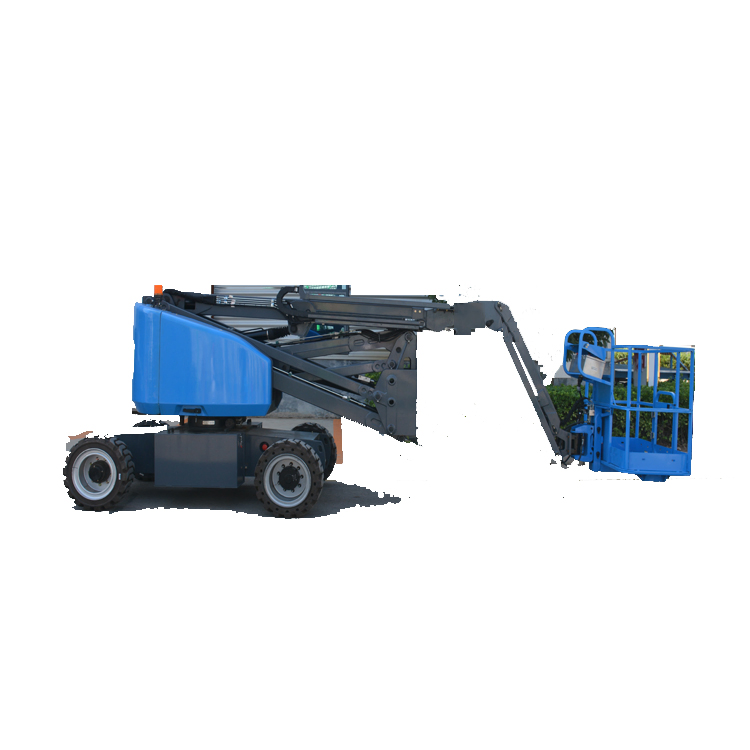

Vertical Mast Boom Lift Mobile Compact Lift with Single Mast and EPA

1 / 5

Vertical Mast Boom Lift Mobile Compact Lift with Single Mast and EPA

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YG-TZ14

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Articulated Lift

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Max Working Height

16m

Max Platform Height

15m

Max Working Radius

7.9m

Max Span Height

7.45m

Max Load Capacity

200kg

Diesel Engine

4 Cylinder 35kw

Drive Type

Hydraulic Motor Drive

Working Desk Size

1.53*0.78m

Equipment Weight

6500kg

Product Description

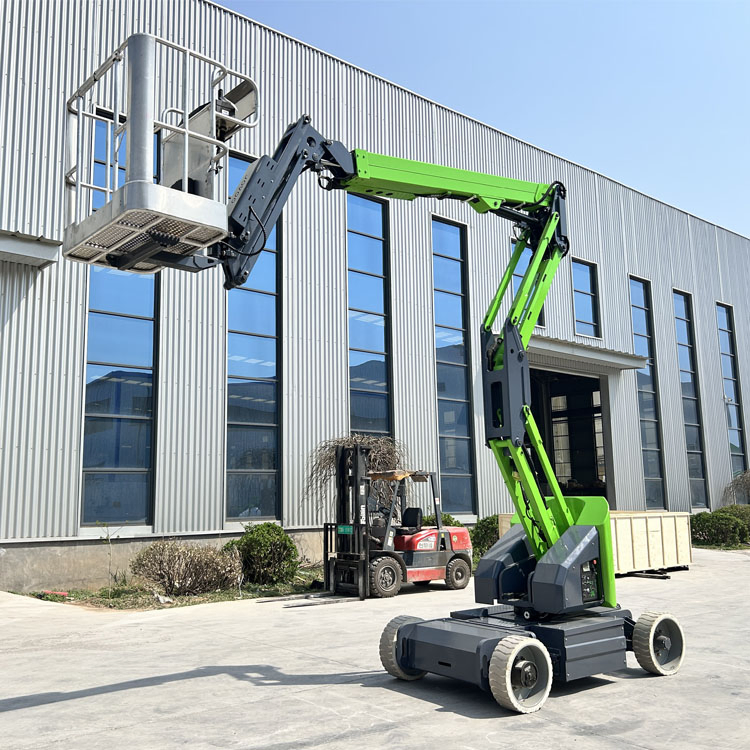

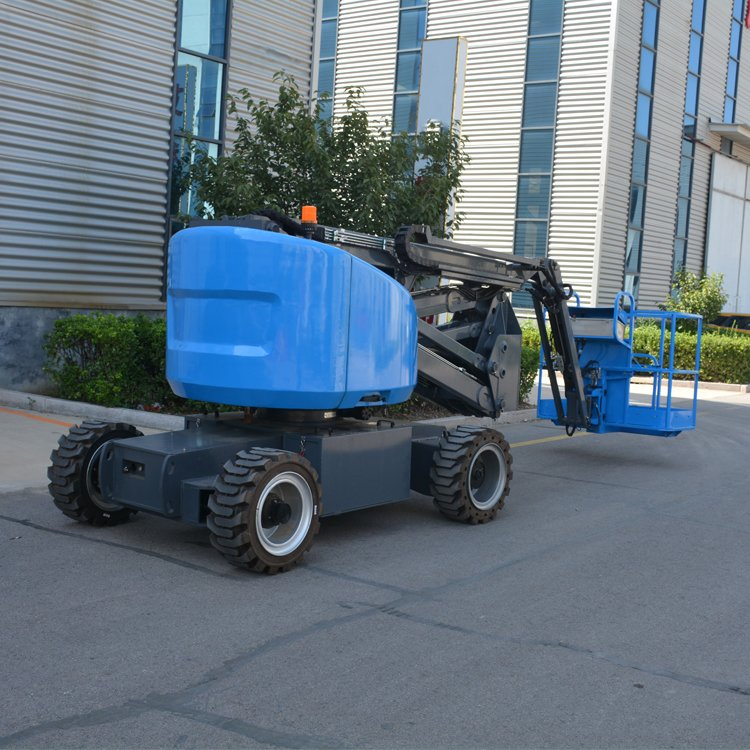

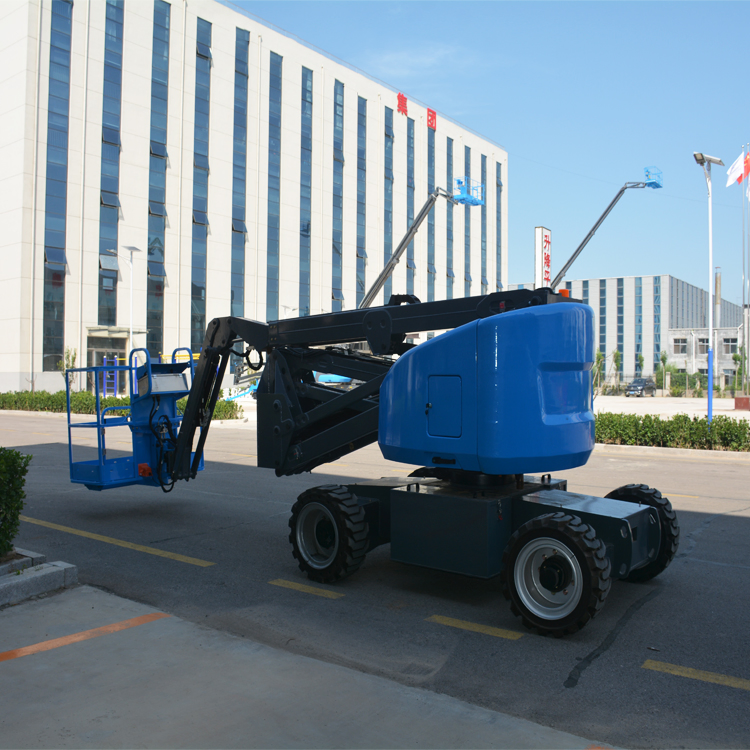

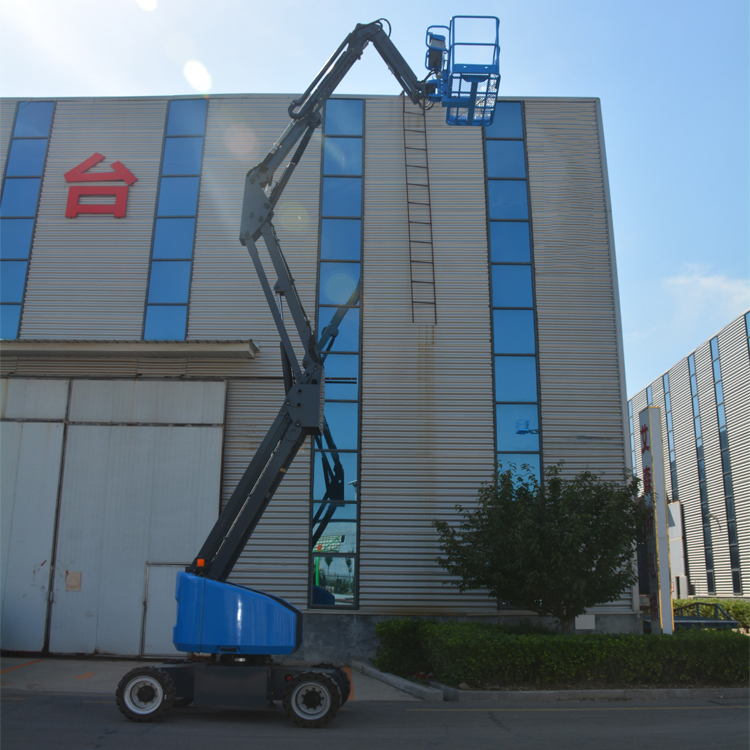

Wheel Articulated Boom Lift
- OEM & ODM Service -

Wheel Articulated Boom Lift is one of the most ideal aerial lift platforms for both indoors and outdoors maintenance work. It can rotate 360 degrees in the air and platform height ranges from 10m to 20m. Articulated boom lift is driven by Diesel, AC electricity, DC Battery or Hybrid Power. It is widely used in neighborhood units, road light maintenance, factories high place maintenance, construction sites and so on.

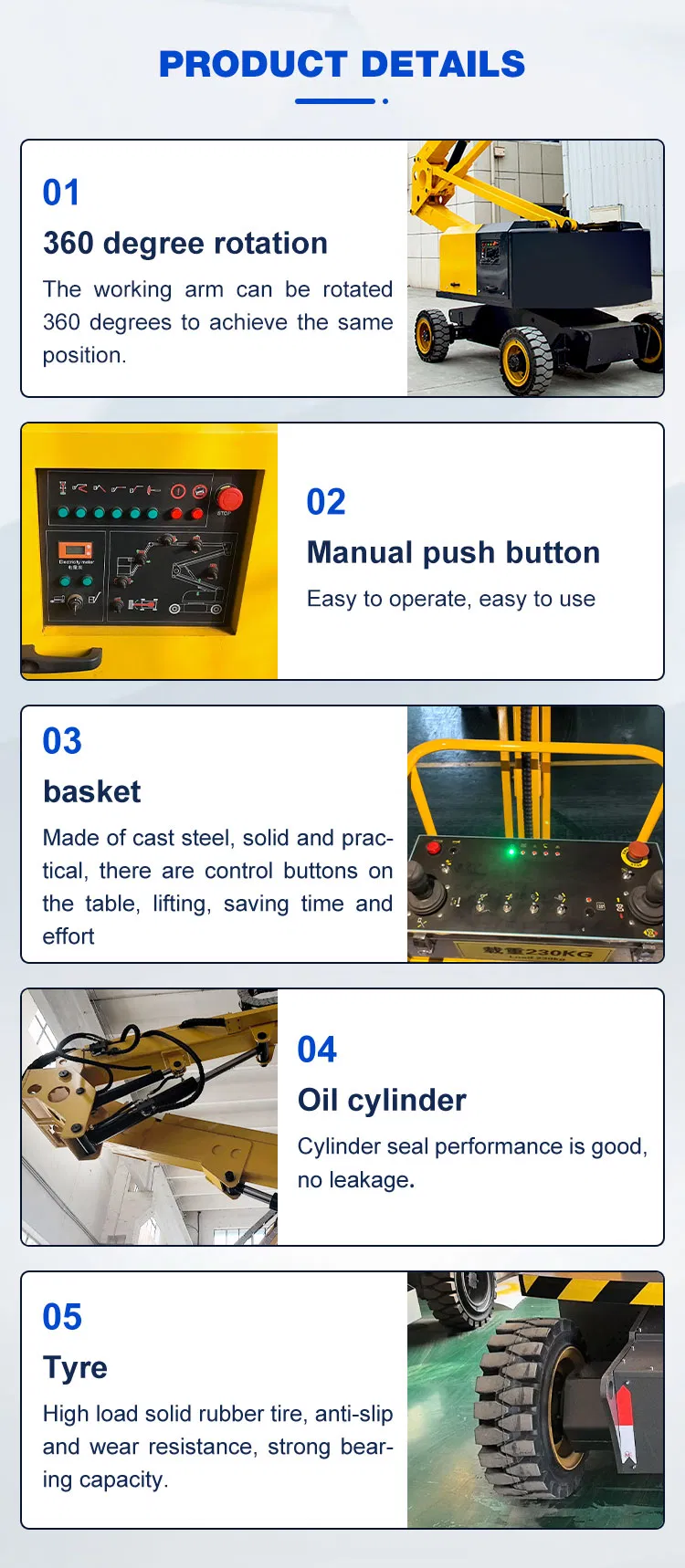

Detailed Photos

Product Parameters

Model	Unit	ZTQE10	ZTQE12	ZTQE14	ZTQE16	ZTQE18	ZTQE20
Working height maximum	m	12	14	16.05	17.8	20	21.9
Platform height maximum	m	10	12	14.05	15.8	18	19.9
Horizontal reach maximum	m	5.8	8	8.1	10	10.8	12.3
Up Stover clearance maximum	m	4.78	5	7.6	7.6	9.2	9.2
Platform dimensions (LxW)	m	1.1x0.65	1.1x0.65	1.53x0.76	1.53x0.76	1.53x0.76	1.53x0.76
Length (stowed)	m	4.35	5.3	6.24	7.9	8.1	9.2
Lift capacity maximum	kg	200	200	230	230	230	230
Drive speed (stowed)	km/h	3	3	5	5	5	5
Battery	-	48V/320Ah	48V/320Ah	48V/420Ah	48V/420Ah	48V/420Ah	48V/420Ah
Weight	kg	4800	5500	6270	6720	8080	8200

Company & Installation

Our Advantages

Frequently Asked Questions

What is the rotation range of the wheel articulated boom lift?

The lift features a 355-degree turntable rotation and the platform itself can rotate ±80 degrees, allowing for excellent maneuverability in high places.

What power sources are available for these lifts?

Our articulated boom lifts are highly versatile and can be powered by Diesel engines, AC electricity, DC batteries, or Hybrid Power systems depending on your specific requirements.

What is the maximum working height of the series?

The ZTQE series offers a wide range of working heights, with the ZTQE20 model reaching up to a maximum working height of 21.9 meters.

Is the equipment suitable for indoor use?

Yes, especially the DC battery-powered models which are ideal for indoor maintenance due to zero emissions and low noise levels.

What is the standard load capacity for the platform?

The standard load capacity ranges from 200kg to 230kg, which safely accommodates two workers plus their necessary tools.

Which international standards do these lifts comply with?

All models are built to comply with rigorous international standards including EN280:2013 + A1:2015 and GB25849-2010, and carry CE, GS, and ISO 9001 certifications.
