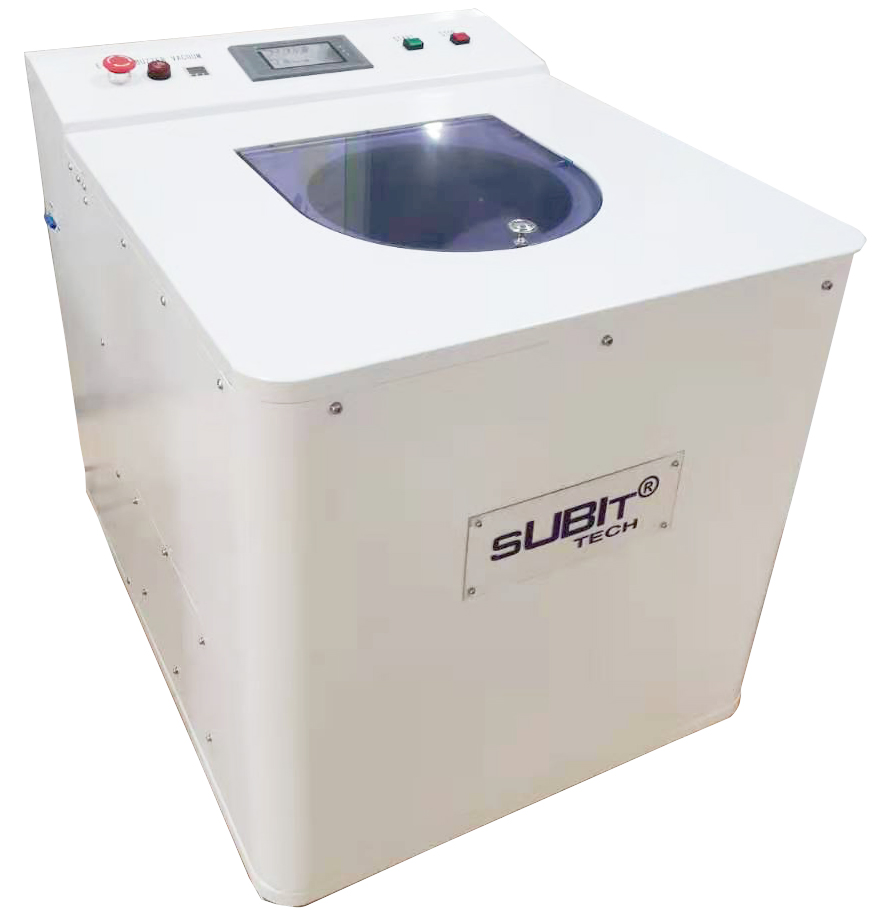

University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
1 / 5
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment
University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment

University Reserch Developing Lab Vacuum Planetary Defoaming Mixing Equipment

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.SBT-VTP2000S
Application AreaDaily Chemical, Liquid, Powder, Granules
CertificationCE, ISO, CCC
Stirring TypeRevolution + Rotation
Revolution Speed0-2000rpm
Max Mixing Capacity2000g, 2000g*2
Warranty12 months
HS Code8479820090
Product Description

SBT-VTP2000S is a high-performance vacuum deaeration mixer utilizing planetary centrifugal technology. It is primarily designed for mixing fluids or powder materials while simultaneously achieving superior deaeration effects.

⚡ Simultaneous Operation: High-power vacuum pump allows for even stirring and vacuuming at the same time within minutes.
⚡ Versatile Capacity: Supports various containers from a few grams up to 2000 grams, suitable for both lab and production use.
⚡ Programmable Logic: Includes 5 preset programs, each divisible into 5 segments with customizable time and speed settings.
⚡ High Viscosity Support: Maximum rotation speed of 2000rpm ensures even mixing of high-viscosity materials.

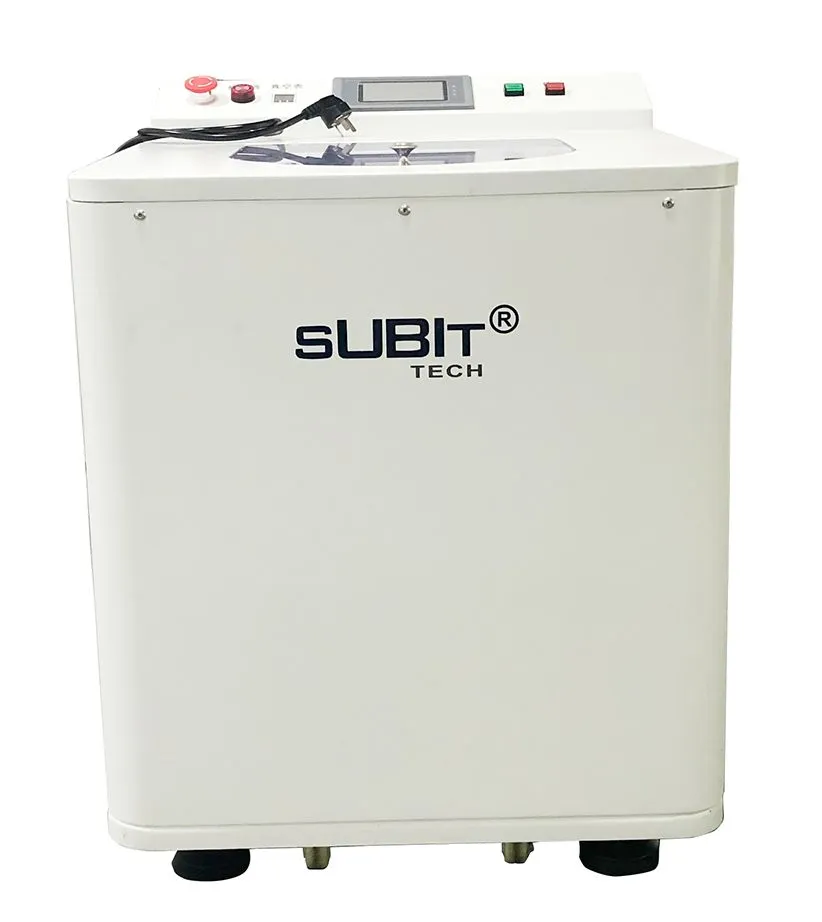

Vacuum Planetary Mixing Equipment

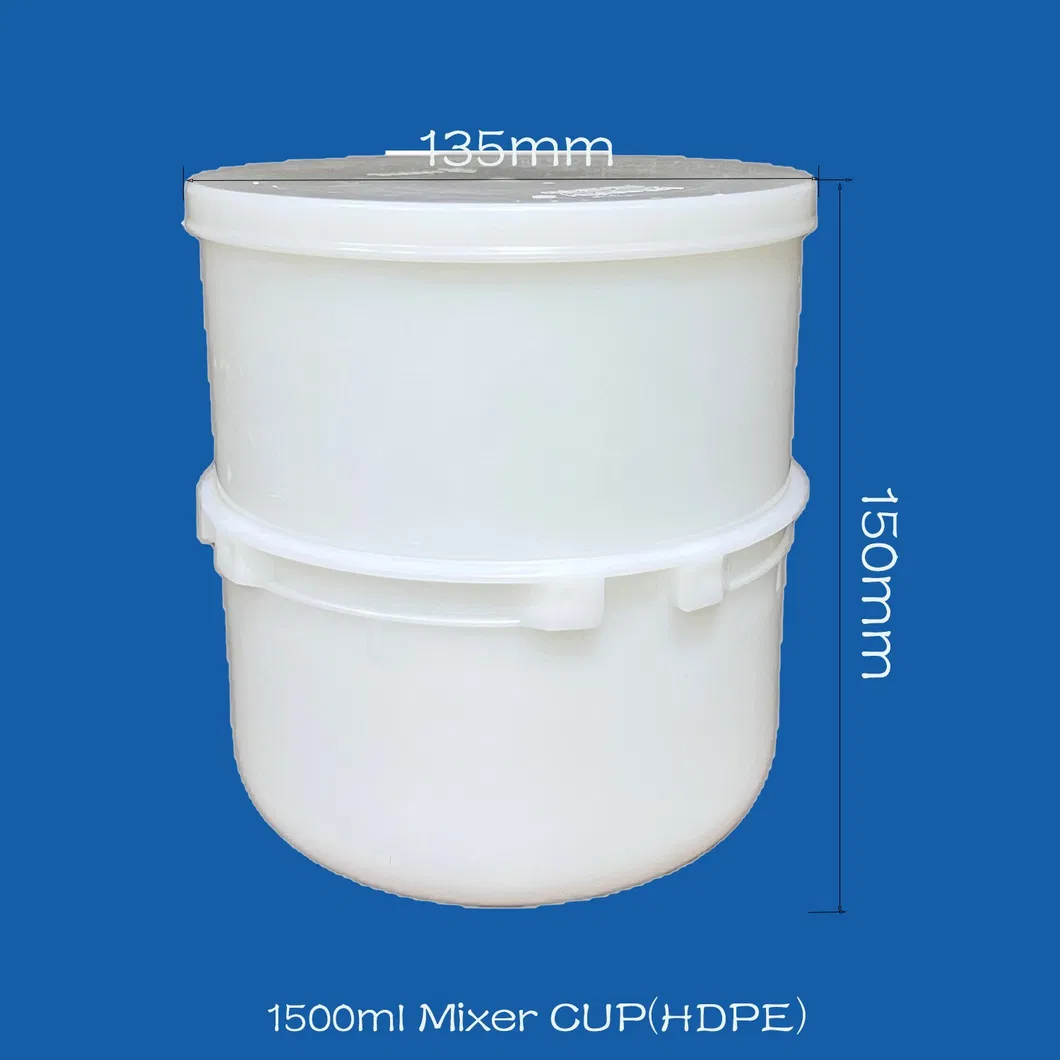

Lab Mixing Equipment

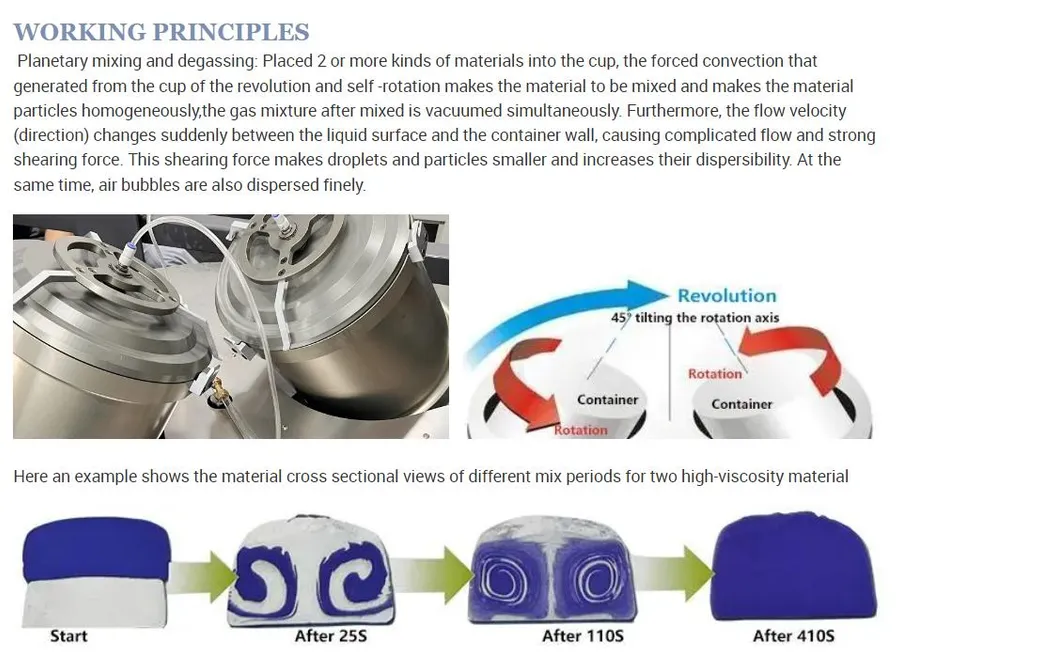

Defoaming Mixing System
Technical Parameters
Parameter Specification
ModelSBT-VTP2000S
Product NameCentrifugal stirring defoaming machine
Memory Group5 Group Programs
Revolution Speed100-2000rpm
Power SupplySingle phase 220v, 50hz/60hz
Container Capacity2000ml * 2 cups
Optimal Mixing Volume0.5-1.5L * 2 cups
Vacuum Level-98Kpa
Machine Weight200KGS
Safety DevicesLock Sensor, Vibration Sensor, Emergency Button
Application Samples

Suitable for various chemical materials, high viscosity resins, and non-contact stirring requirements.

Applied Mixing Sample 1

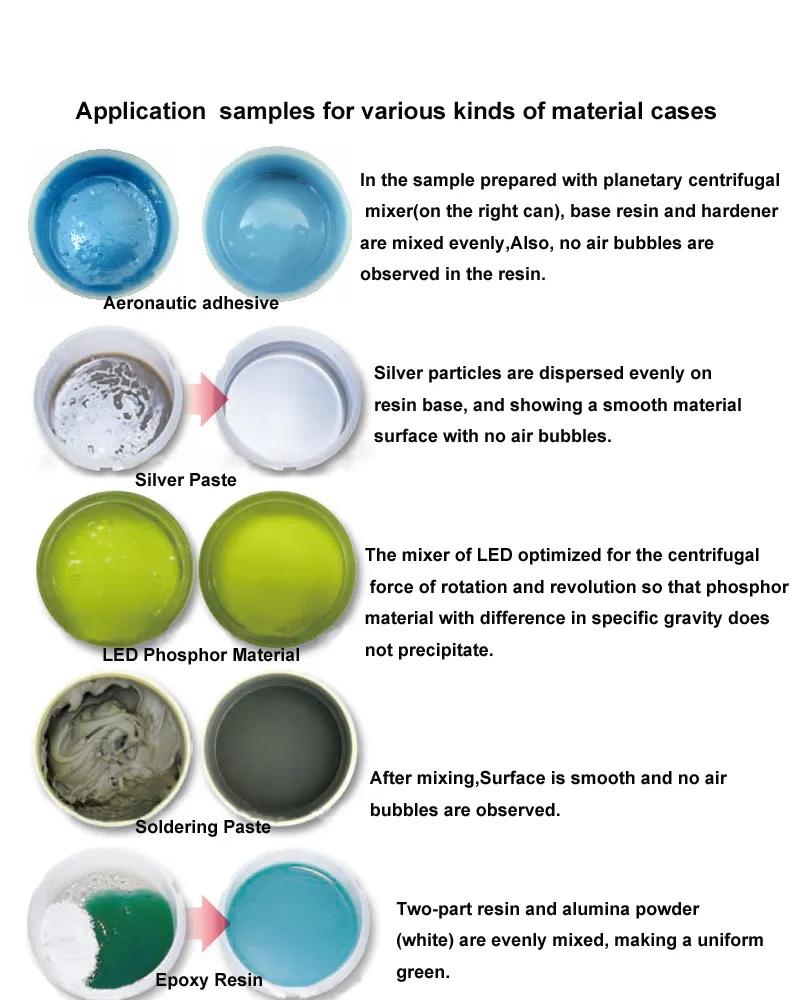

Applied Mixing Sample 2
Application Area
Service & Support

1) Warranty: 12-month period with free spare parts supply.

2) Password Management: Secure access codes for editing programs to prevent unauthorized parameter changes.

3) Technical Support: Lifetime technical assistance with response times within 8 hours.

Frequently Asked Questions
What is the primary function of the SBT-VTP2000S?
It is a planetary centrifugal mixer designed for mixing fluid or powder materials while performing vacuum deaeration to remove air bubbles.
What is the maximum capacity of the mixer?
The equipment features a double-cup design, with each cup holding up to 2000g, allowing a total mixing capacity of 4000g.
Can the mixing speed be adjusted?
Yes, the revolution speed is adjustable from 100 to 2000rpm, making it suitable for materials with different viscosities.
How many programs can I save in the memory?
The system can store up to 5 preset programs, and each program can be divided into 5 segments with different speeds and vacuum levels.
What safety features are included?
The machine is equipped with a lid lock sensor, a vibration sensor for imbalance detection, and an emergency stop button.
Is it suitable for high-viscosity resin?
Yes, high-viscosity resins can be stirred effectively to achieve an ideal deaeration effect in a very short time without material overflow.
