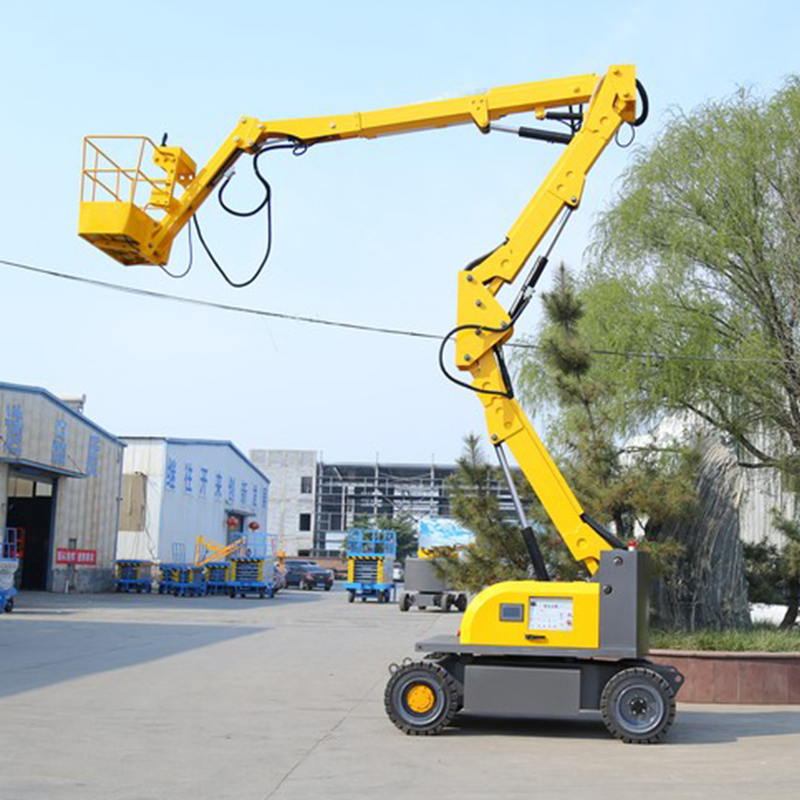

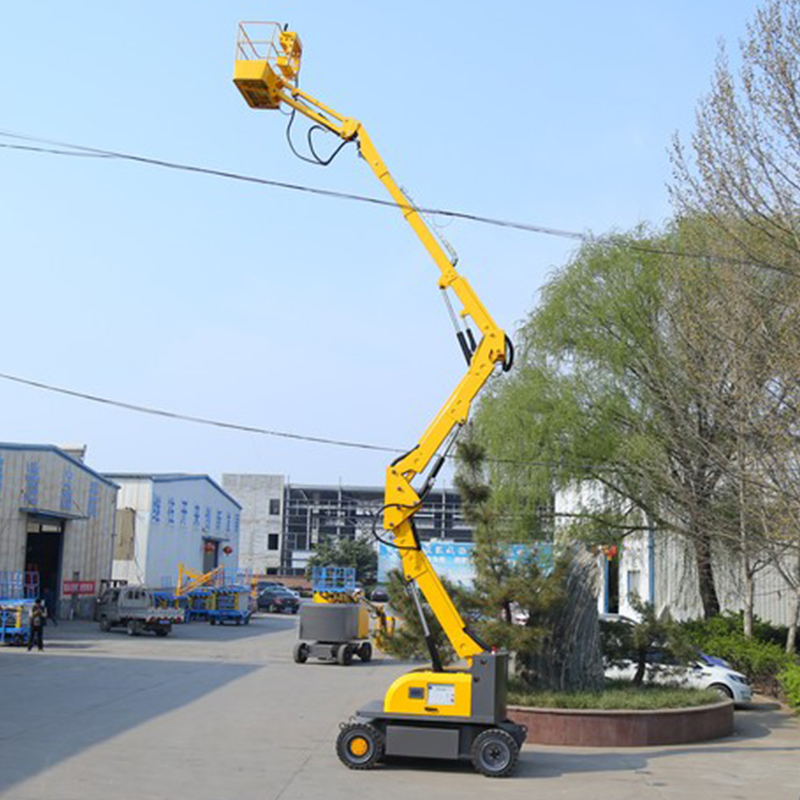

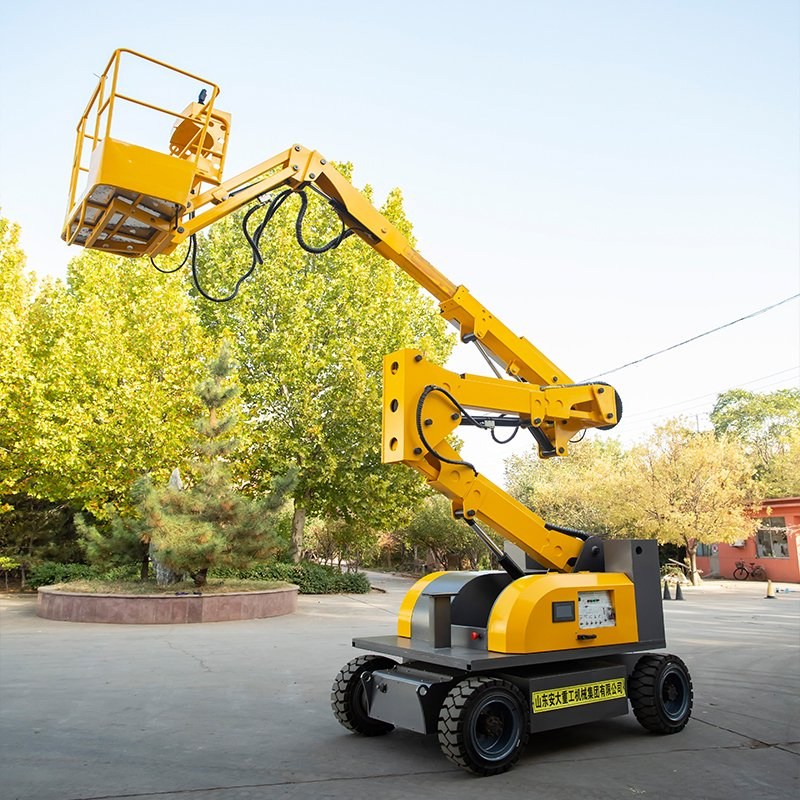

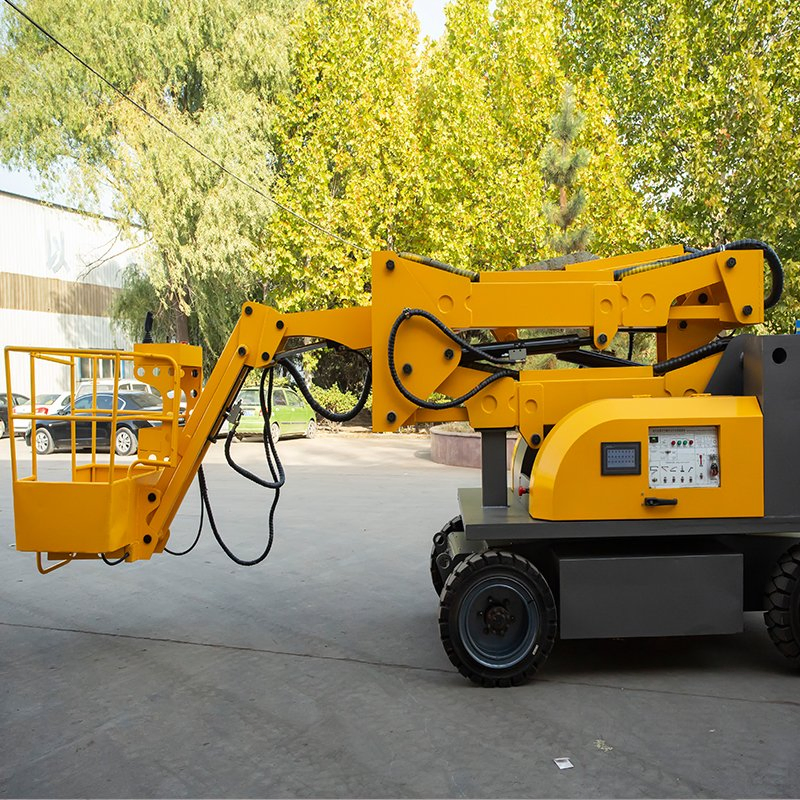

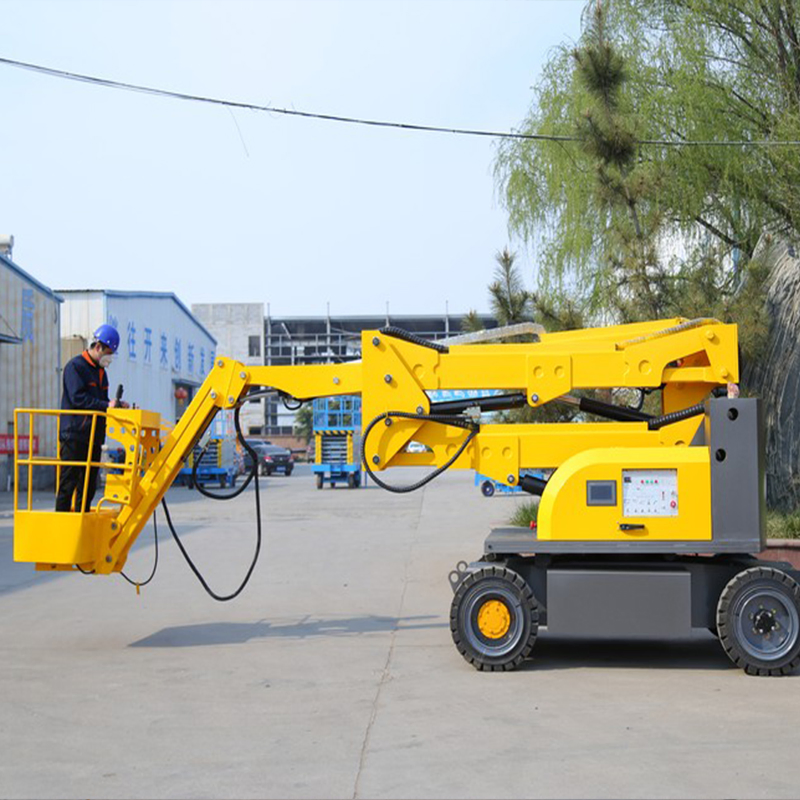

10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
1 / 5
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform
10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform

10-22m Truck Mounted Mobile Hydraulic Towable/Trailer Articulated Aerial Work/Working Lift Platform

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
12m
Load Capacity
200kg
Platform Size
1200*600mm
Overall Size
6200*1780*2350mm
Machine Weight
6100kg
Material
High-Duty Steel Structure
Control
Double Controller
Power Source
Diesel or Battery
Production Capacity
1000/Month

Product Description

Articulated Aerial Work Lift Platform
The self propelled boom lift is designed with a multi-stage folding arm combination method, which is flexible and convenient. It can cross certain obstacles and perform multi-point operations in one lift. Better security and easy to move, 360-degree rotation, large load capacity of the platform, for two or more people to work at the same time and carry certain equipment. It can be powered by diesel or battery.

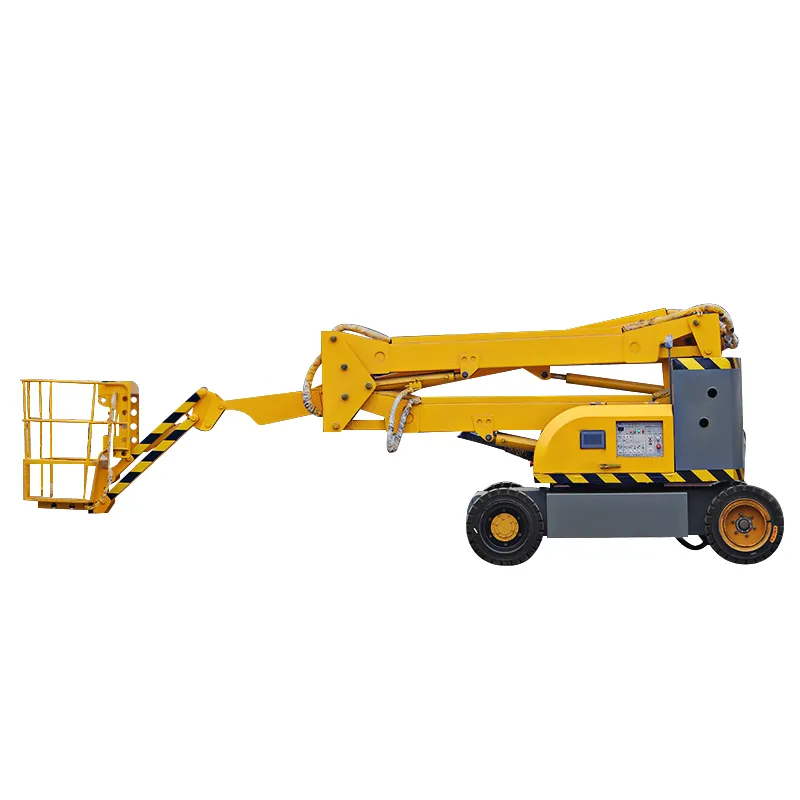

Boom Lift View 1

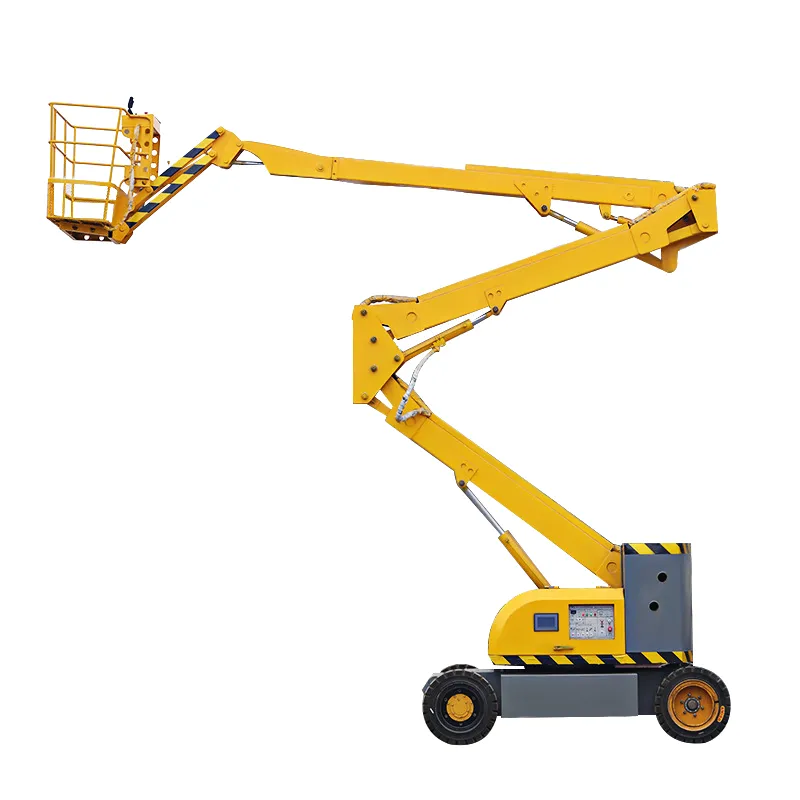

Boom Lift View 2

Technical Parameters

Model THZXQB-10 THZXQB-12 THZXQB-14 THZXQB-16 THZXQB-18 THZXQB-20
Platform height (m) 101214161820
Load capacity (kg) 200200200200200200
Platform size (mm) 1200x6001200x6001200x6001880x7801880x7801880x780
Overall size (mm) 5200x1650x23506200x1780x23506900x1780x23507100x2040x22008200x2400x24509100x2400x2450
Weight (kg) 5100610069007300900010600

Key Advantages

1
The product platform is simple to control, marked with a diagram of operation actions, and easy to understand and operate.
2
The ground can also control the lifting and rotating of the equipment.
3
Each supporting foot can be individually controlled. The platform can be extended outwards to increase the working area.
4
In the event of power failure or other failures, the emergency lowering switch can be activated to lower the platform.
5
The proportional electro-hydraulic control system can be used to adjust the lifting and rotating speed at will.
6
The products are equipped with level indicator, level sensor, and multiple safety systems to fully guarantee the safety of workers.
7
The power display meter shows the remaining power of the battery.

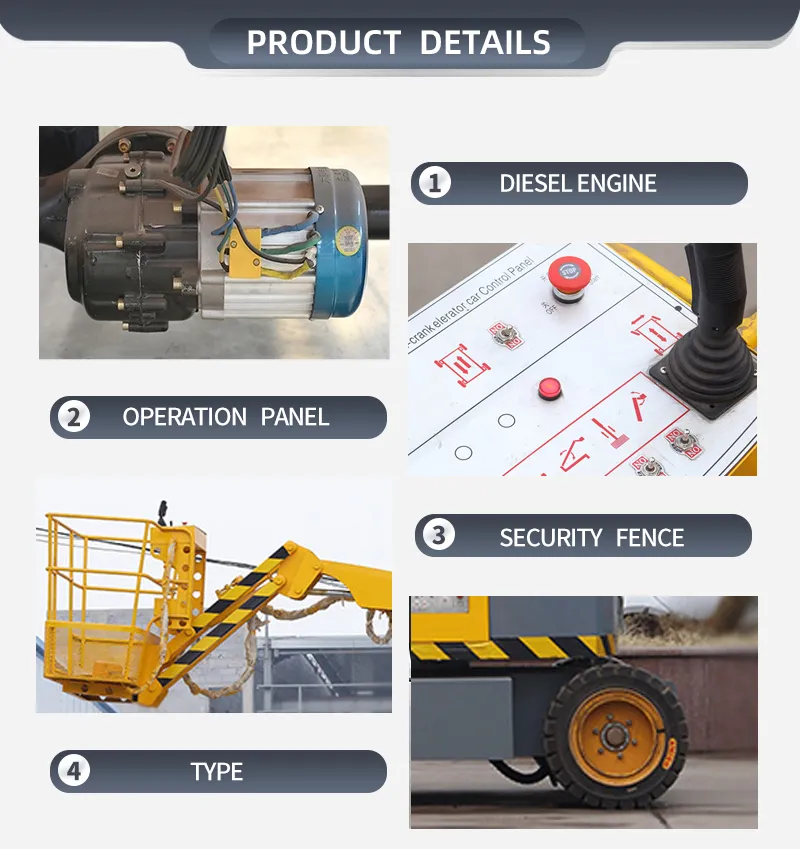

Detailed View 1
Detailed View 2
Detailed View 3

Frequently Asked Questions

What's our delivery time?
Normally we have inventory of the standard products. If not, we need 7-10 days to produce standard products and 10-15 days for customized products.
What's our guarantee?
We provide a one-year guarantee period. During this time, we provide non-human damaged parts for free and offer 24h online service.
Do we accept customization?
Yes, we can customize products according to your specific requirements, including OEM & ODM services.
Why should you choose our hydraulic lift equipment?
We are a professional large-scale manufacturing enterprise integrating R&D, production, and sales, specialized in hydraulic lift equipment for logistics, warehouses, and construction.
What is the Minimum Order Quantity (MOQ)?
The MOQ is one unit. However, we offer significant discounts for bulk orders.
How is the equipment powered?
Our articulated boom lifts can be powered by either Diesel engines or high-capacity Batteries depending on your operational needs.
