4-14m Working Level Trailer Mounted Articulated Boom Lift

1 / 5

4-14m Working Level Trailer Mounted Articulated Boom Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Telescoping Lift

Send Inquiry

Product Description

Basic Specifications

Model NO.

TBL

Carrying Capacity

Light Level

Moves

Vehicular

Driven Type

Running Mode

Moving

Feature

Explosion-Proof

Certification

Load Capacity

150kg-200kg

Lifting Height

4m-14m

Dimension

5400*2000*3100mm

Power

Diesel/Electrical

Rotation

360 Degree

Lifting Speed

50-90mm/S

Motor

3kw

Basket Capacity

250kg

Max. Horizontal Extent

4000mm

Travel Speed

15-30km/H

HS Code

842890

Production Capacity

500PCS/Year

★

Product Description

4-14m Working Level Trailer Mounted Articulated Boom Lift

Key Features

Versatile Platform The platform can lift up, extend horizontally, or turn around 360 degrees to stride across certain obstacles, realizing multipoint work in a wide scope.

Automatic Stabilization Legs Equipped with 4 full-automatic hydraulic outriggers to steady the machine on any ground condition, including uneven roads.

Flexible Drive Options Power source can be configured as a diesel engine or storage battery according to specific requirements.

High-Quality Material Constructed using high-quality structural steel with professional single-side welding and double-side molding handicrafts.

Premium Hydraulic System Utilizes high-quality hydraulic cylinders (original import or joint venture) to improve reliability and prolong service life.

Safety Mechanisms Equipped with balanced valves, automatic pressure maintenance, and emergency security systems.

Main Descriptions

Diesel engine driven with automatic lifting; operable from both the upper platform and lower controls.
Articulating boom structure with 360° rotation, designed to work across obstacles where scissor lifts cannot reach.
Supports 2 persons working simultaneously; ideal for window cleaning, light maintenance, and factory repairs.

Application

Trailer boom lifts are widely used in highways, boat yards, shopping malls, stadiums, docks, stations, marketplaces, gymnasiums, residential properties, workshops, and mining sites for complex high-altitude construction and maintenance.

📋

Technical Parameters

Model	TBL-12
Max platform height(m)	12
Max. horizontal extent(m)	4
Rotation	360°
Basket capacity(kg)	250kg
Dimensions (mm)	5400×2000X3100
Total weight(kg)	2200
Lifting speed(m/s)	0.05-0.09
Work pressure (M pa)	10
Travel speed(km/h)	15-30
Wind-proof	≤5
Motor	115V/230V/460V 3KW

📷

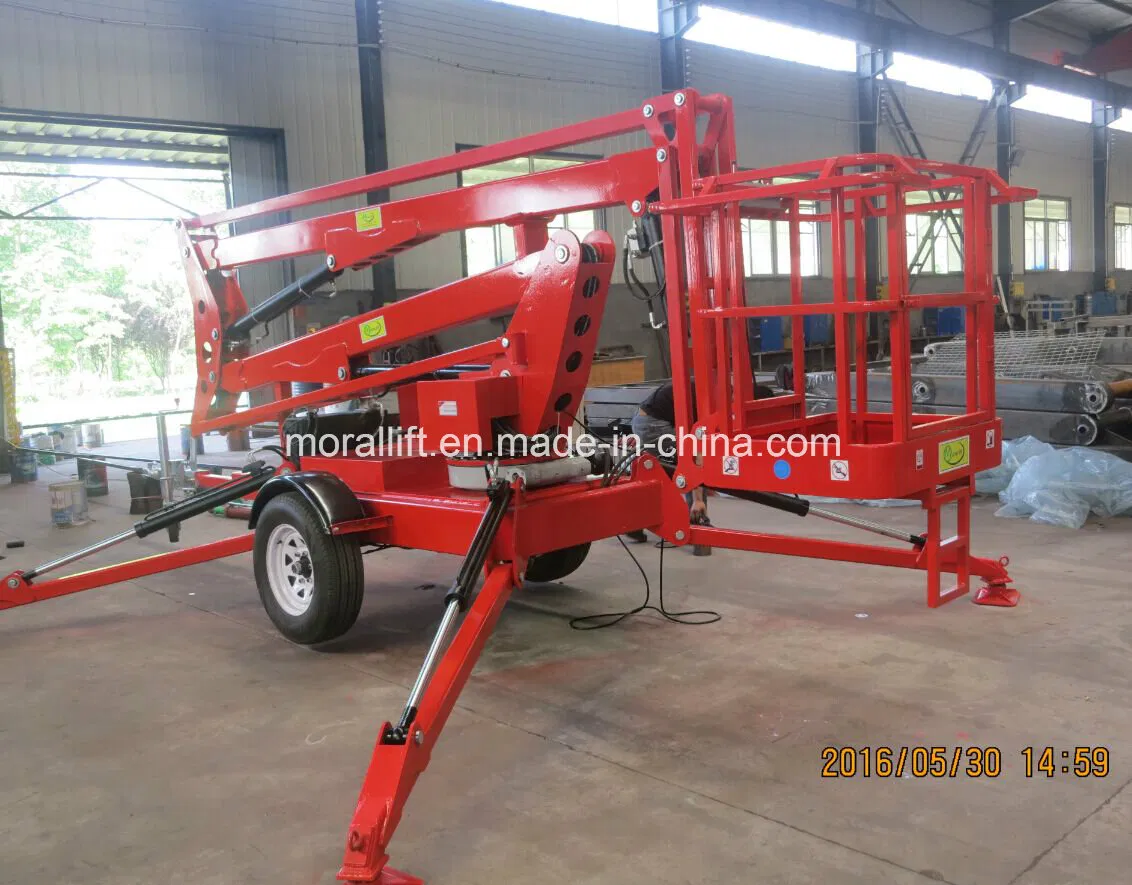

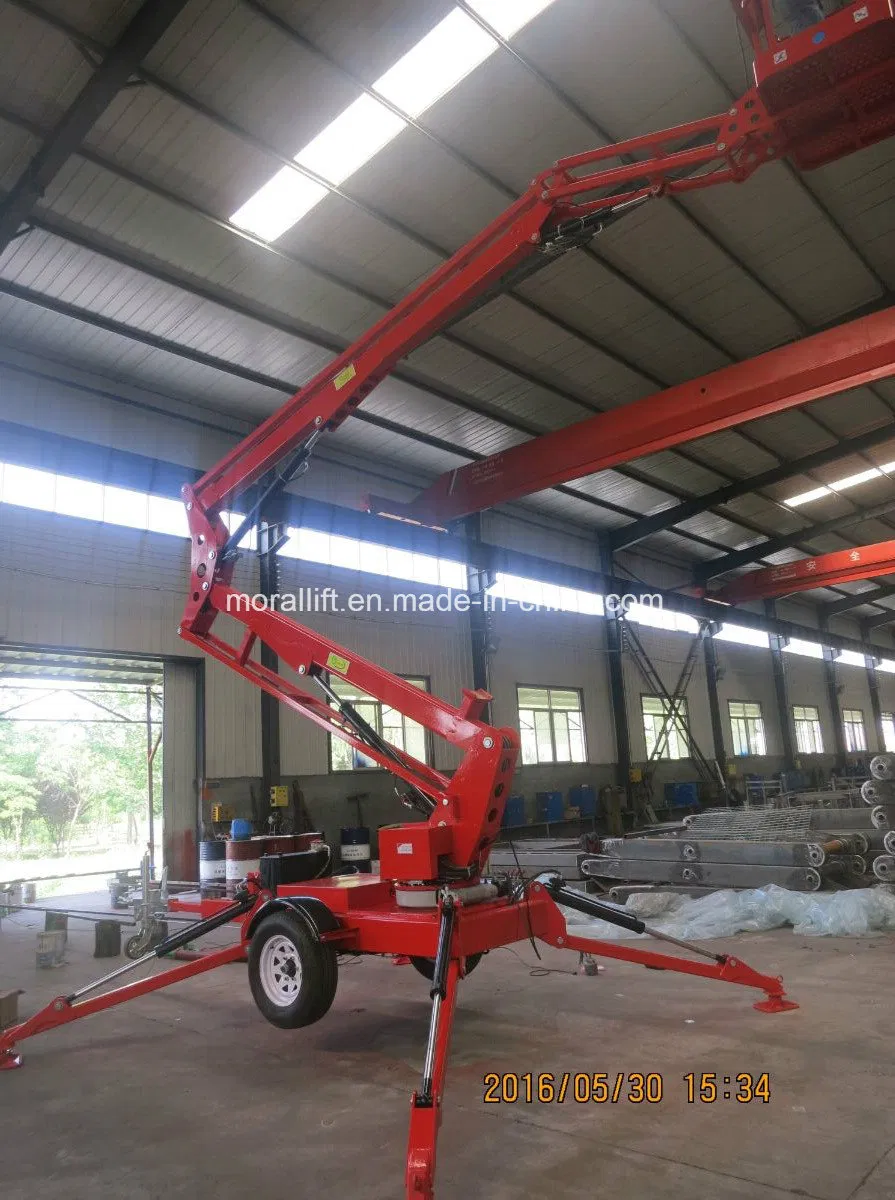

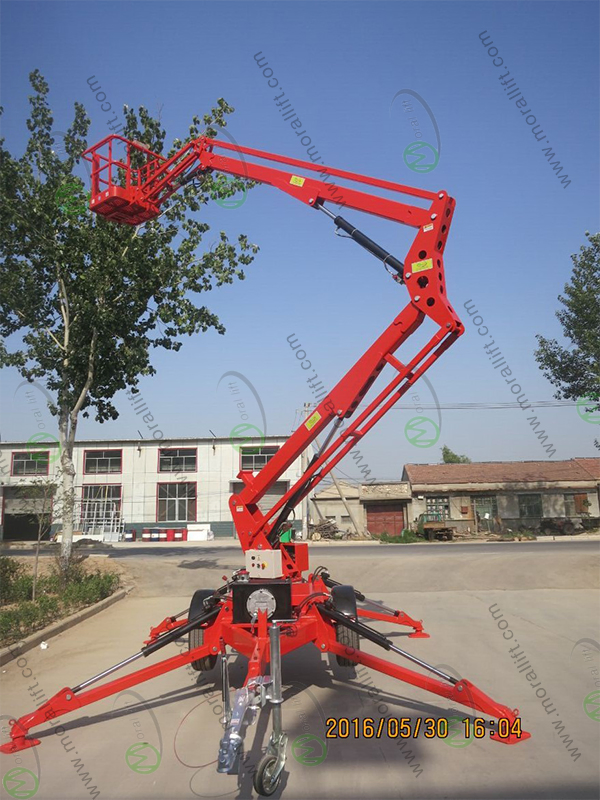

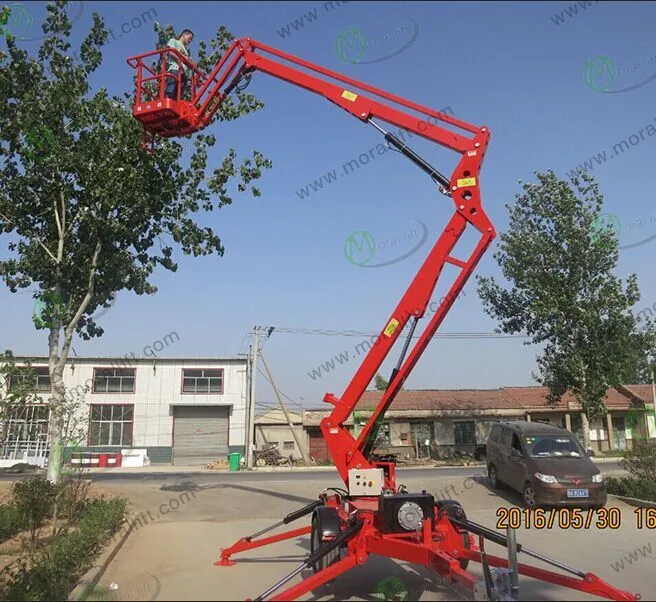

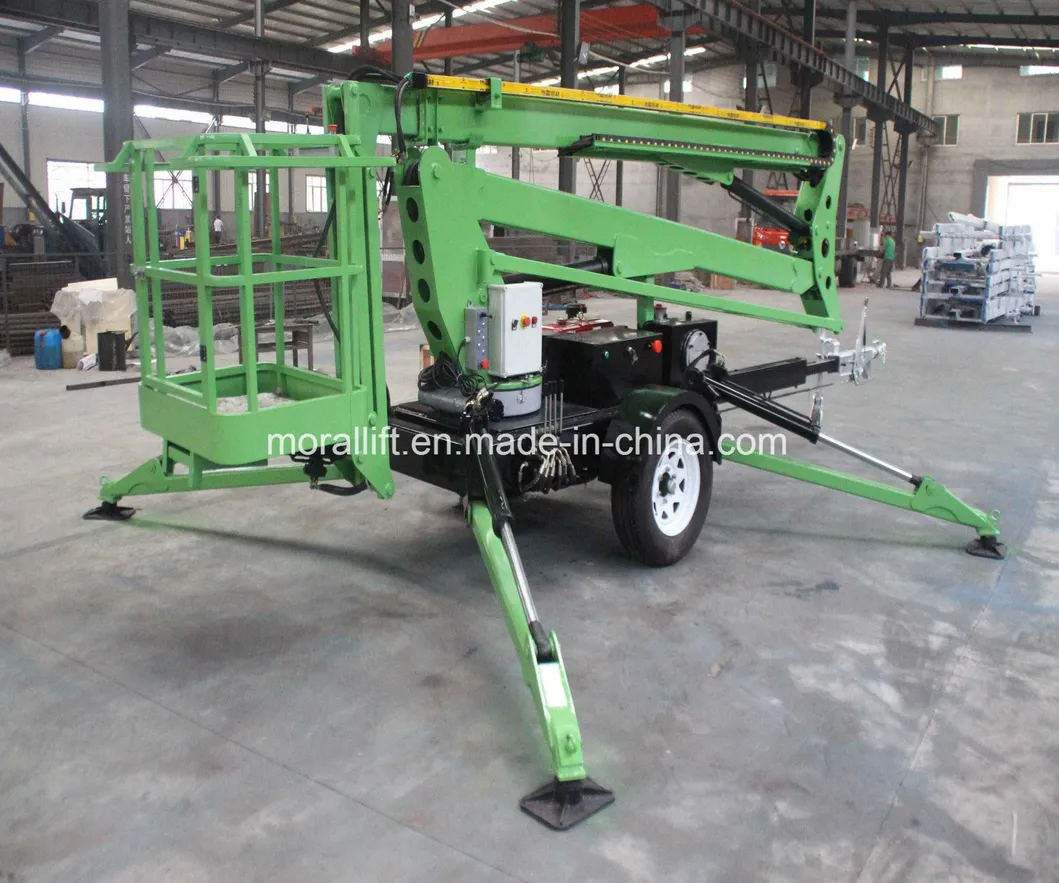

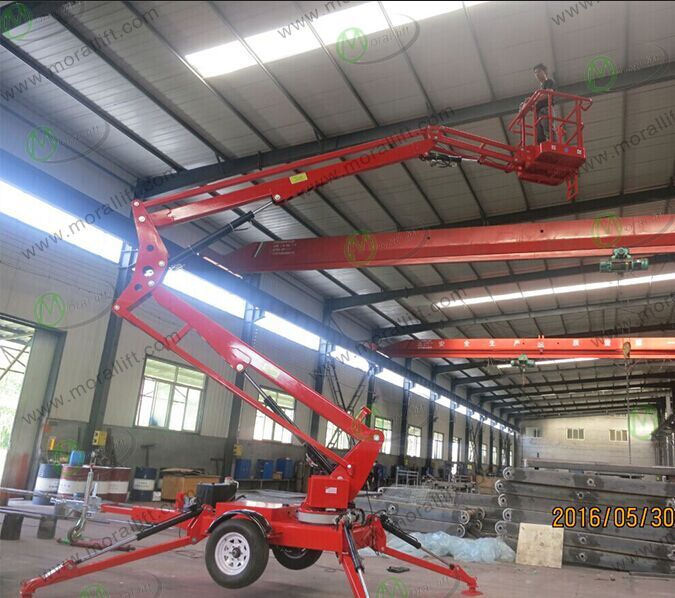

Product Gallery

Frequently Asked Questions

What is the maximum working height of this trailer boom lift?

The series offers a working height range from 4 meters up to 14 meters, with the TBL-12 model specifically reaching a platform height of 12 meters.

What power sources can be used for the lift?

The machine can be driven by a diesel engine or a storage battery, depending on the customer's specific operational requirements.

Can the boom lift operate on uneven ground?

Yes, it is equipped with 4 full-automatic hydraulic outriggers that can stabilize the entire machine even on uneven road conditions.

Does the lift support rotation for obstacle navigation?

Yes, it features a 360-degree articulating boom structure, allowing it to rotate and reach across obstacles that traditional scissor lifts cannot.

What is the basket capacity for workers?

The basket has a capacity of 250kg, which is sufficient for up to 2 persons and their necessary tools for high-altitude operations.

What are the typical applications for this equipment?

It is widely used for window cleaning, light maintenance, factory repairs, and construction in stadiums, malls, stations, and residential properties.
