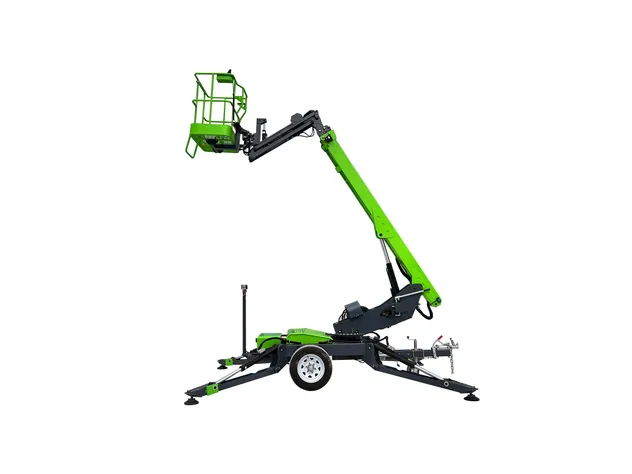

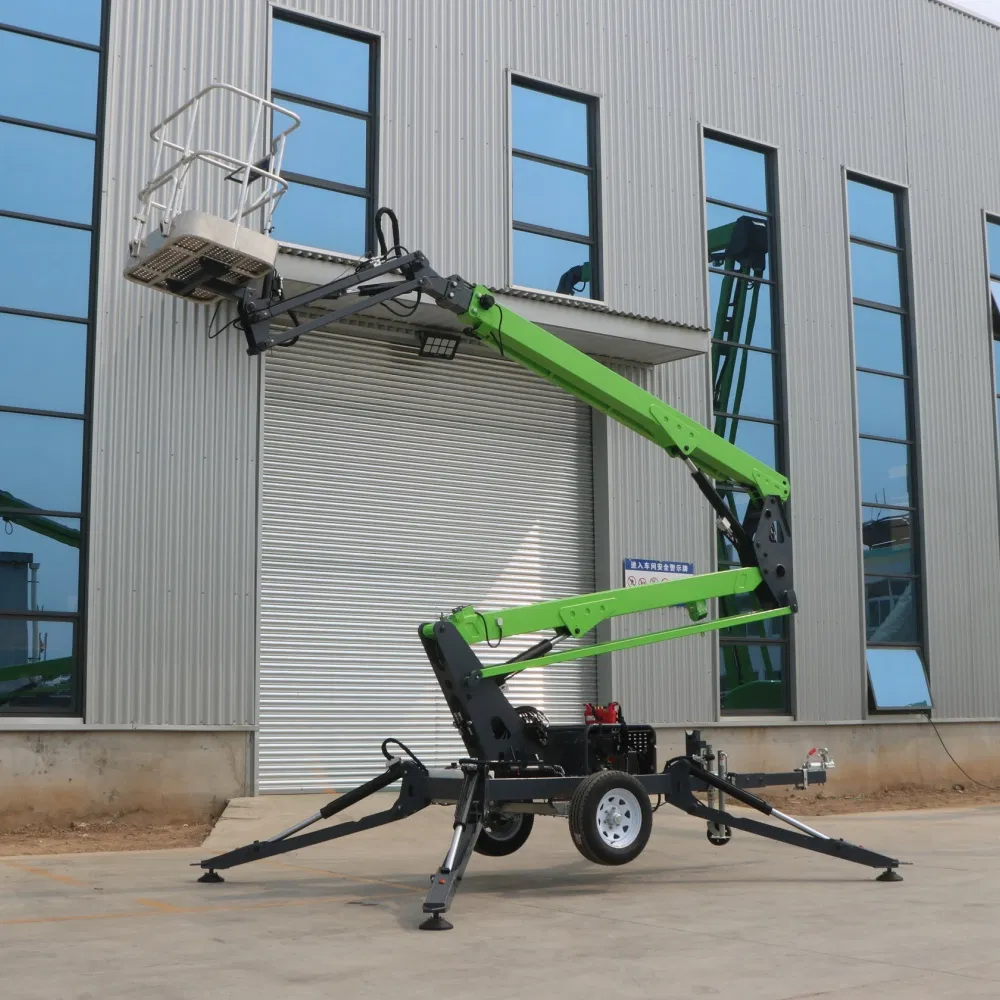

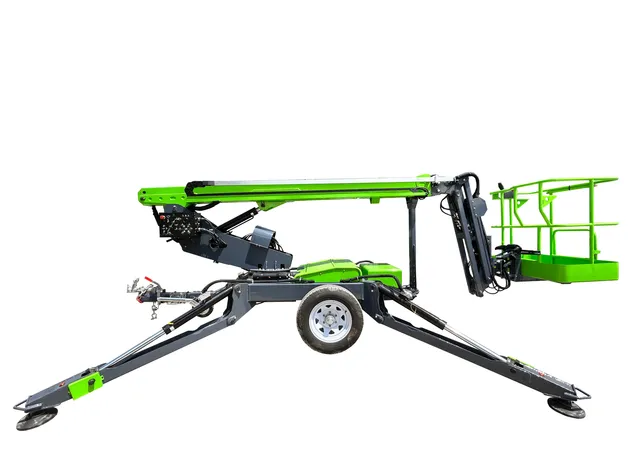

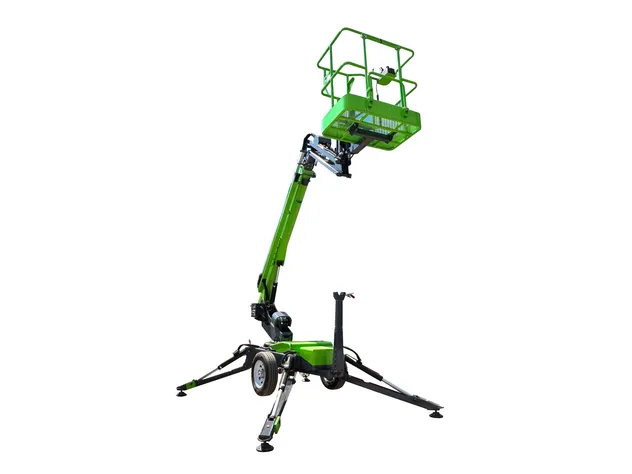

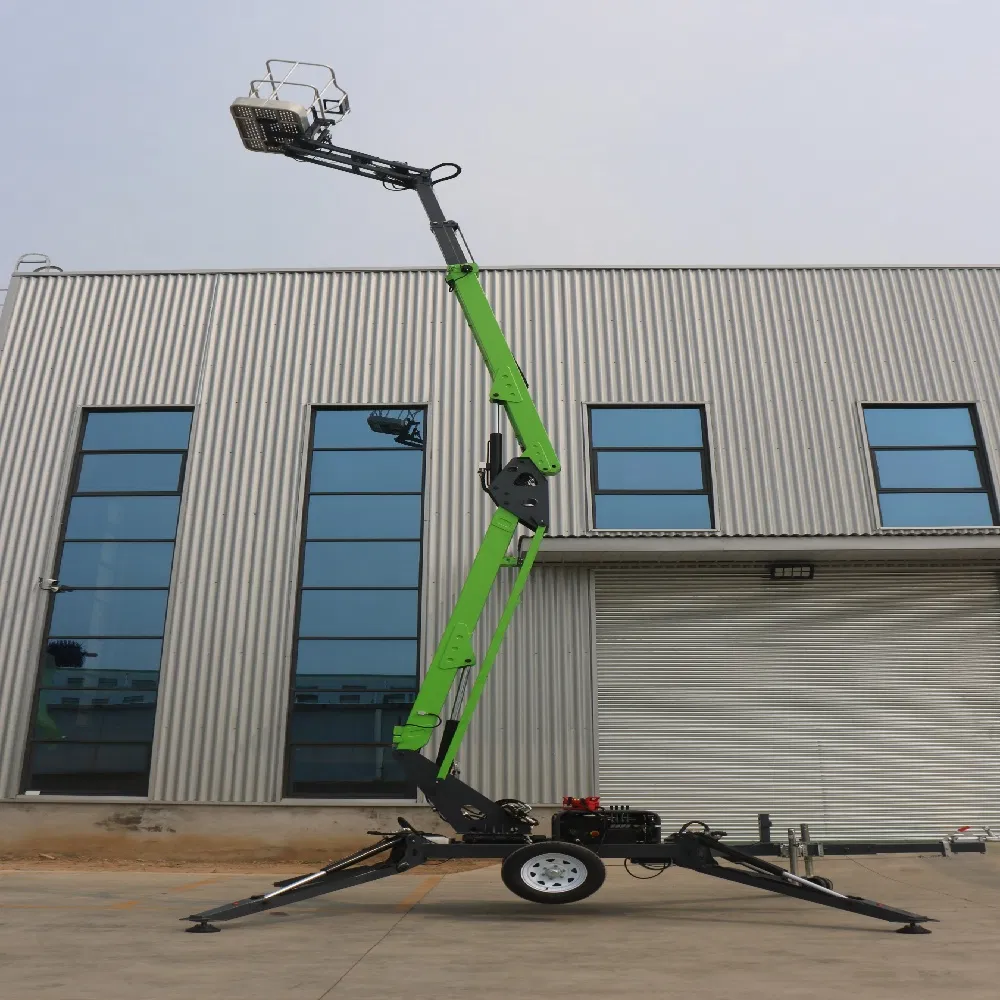

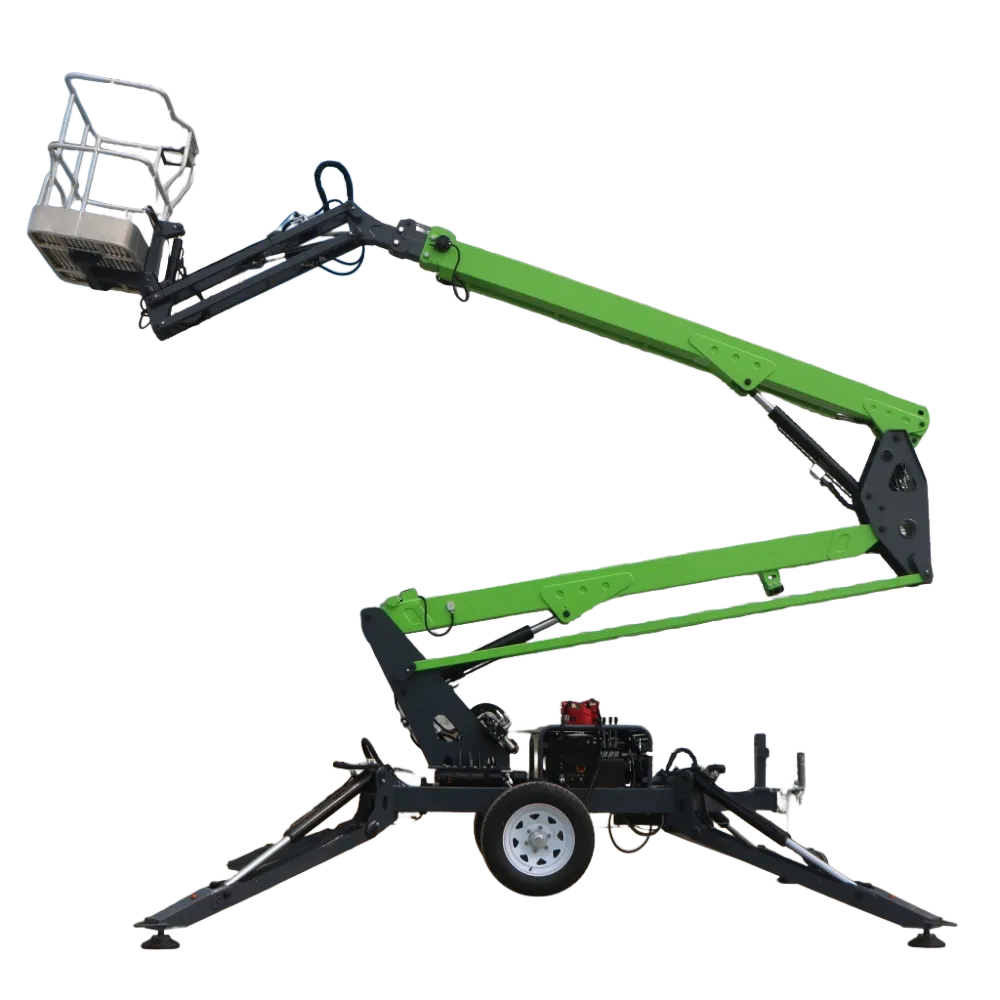

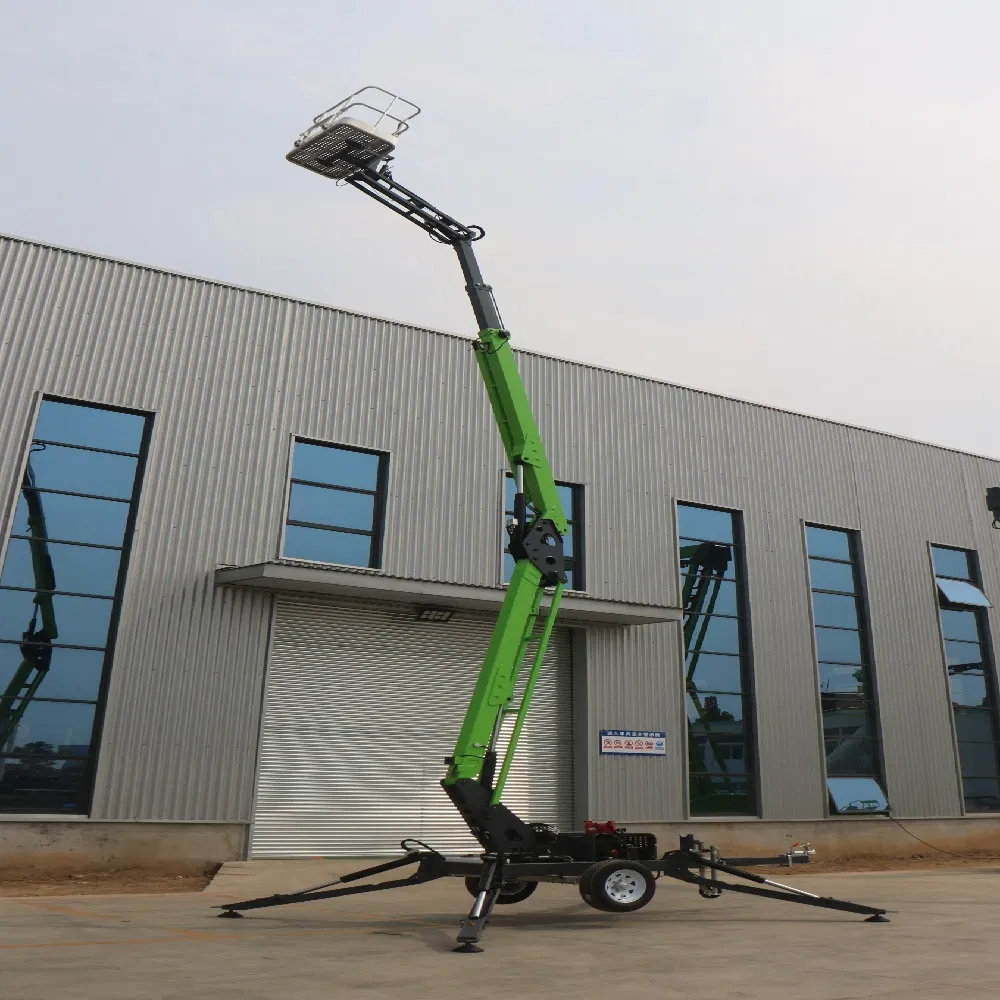

Our Electric 18M Platform Height Towable Boom Lift, also known as a Trailer Mounted, Tow-Behind, or on-Trailer Telescopic Boom Lift, offers an exceptional fusion of mobility and performance. Its towable design facilitates easy transport, while the electric system ensures quiet, zero-emission operation. The telescopic boom provides outstanding reach and precise positioning, making it a superbly efficient solution for diverse outdoor aerial tasks.

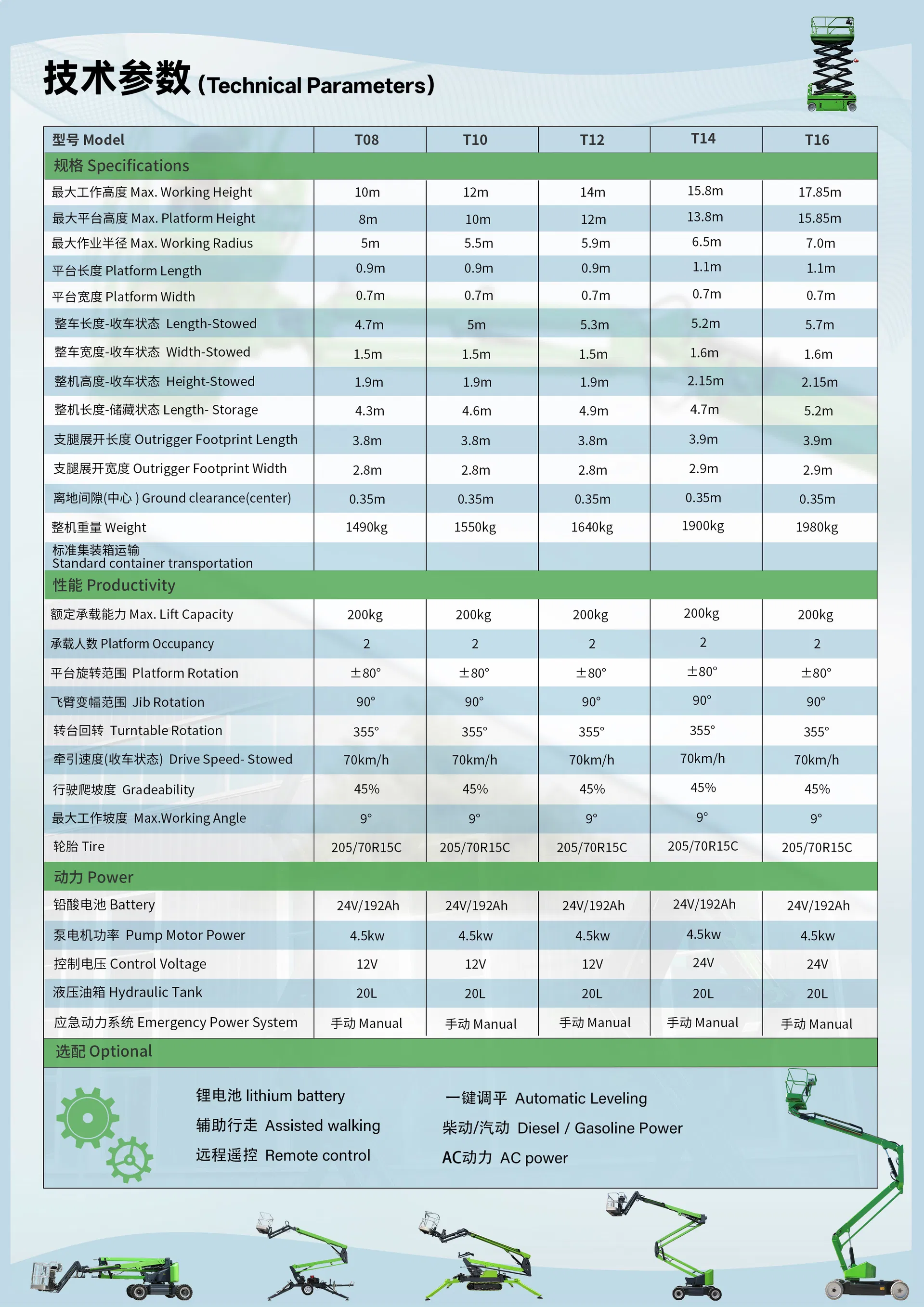

| Model | T08 | T10 | T12 | T14 | T16 |
|---|---|---|---|---|---|
| Max. Working Height | 10m | 12m | 14m | 15.8m | 17.85m |
| Max. Platform Height | 8m | 10m | 12m | 13.8m | 15.85m |
| Max. Working Radius | 5m | 5.5m | 5.9m | 6.5m | 7.0m |
| Platform Size (L*W) | 0.9*0.7m | 0.9*0.7m | 0.9*0.7m | 1.1*0.7m | 1.1*0.7m |
| Length-Stowed | 4.7m | 5m | 5.3m | 5.2m | 5.7m |
| Width-Stowed | 1.5m | 1.5m | 1.5m | 1.6m | 1.6m |
| Height-Stowed | 1.9m | 1.9m | 1.9m | 2.15m | 2.15m |
| Weight | 1490kg | 1550kg | 1640kg | 1900kg | 1980kg |
| Max. Lift Capacity | 200kg | 200kg | 200kg | 200kg | 200kg |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° |
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° |
| Drive Speed-Stowed | 70km/h | 70km/h | 70km/h | 70km/h | 70km/h |
| Gradeability | 45% | 45% | 45% | 45% | 45% |
| Battery | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah |
