Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
1 / 5
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment
Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment

Static Hydraulic Piling Press Large Rig Component Stable Pressure 800mm Pile Driving Equipment

Customization: Available
After-sales Service: on Site Training
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
ZYC120
Type
Pressure Pile Driver
Power Source
Diesel
Noise
Low Noise
Certification
CS, ISO 9001:2000
Piling Speed
10 M/Min
Efficiency
98%
Weight
50000kg
Product Overview

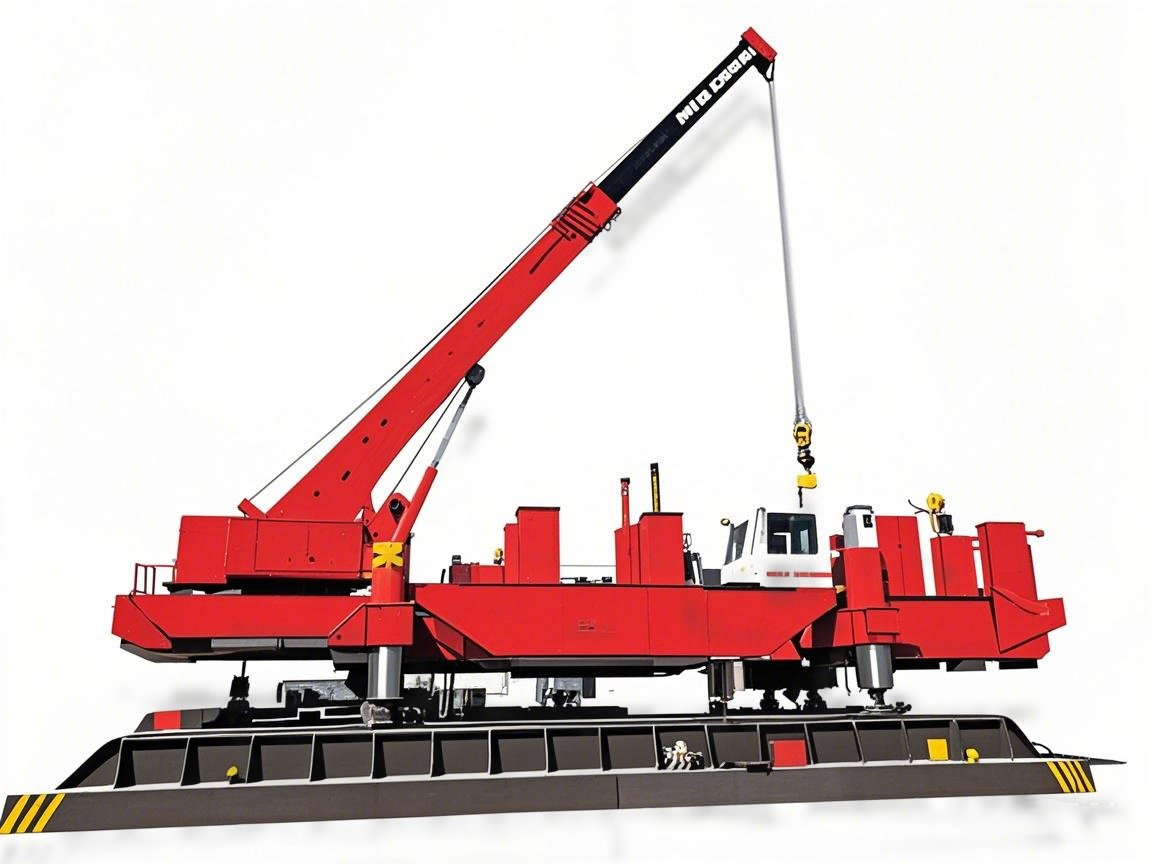

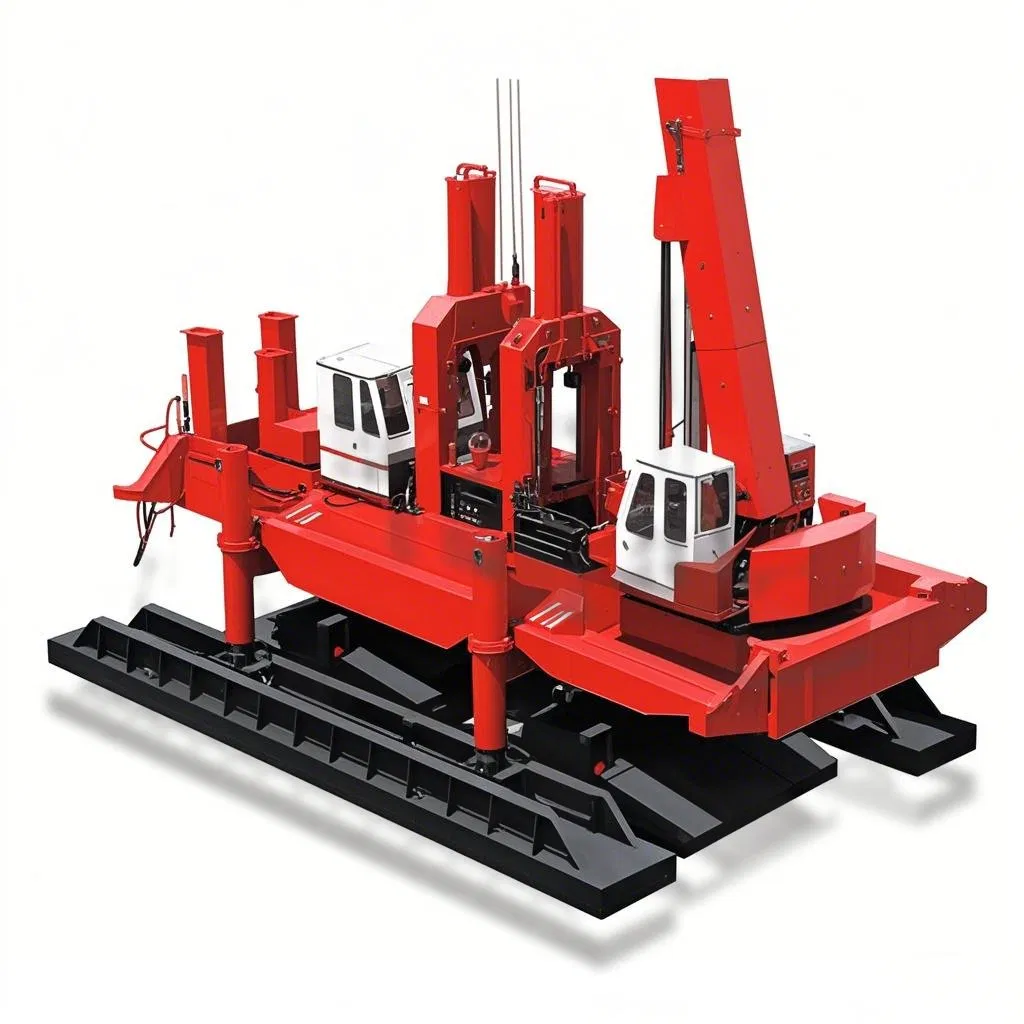

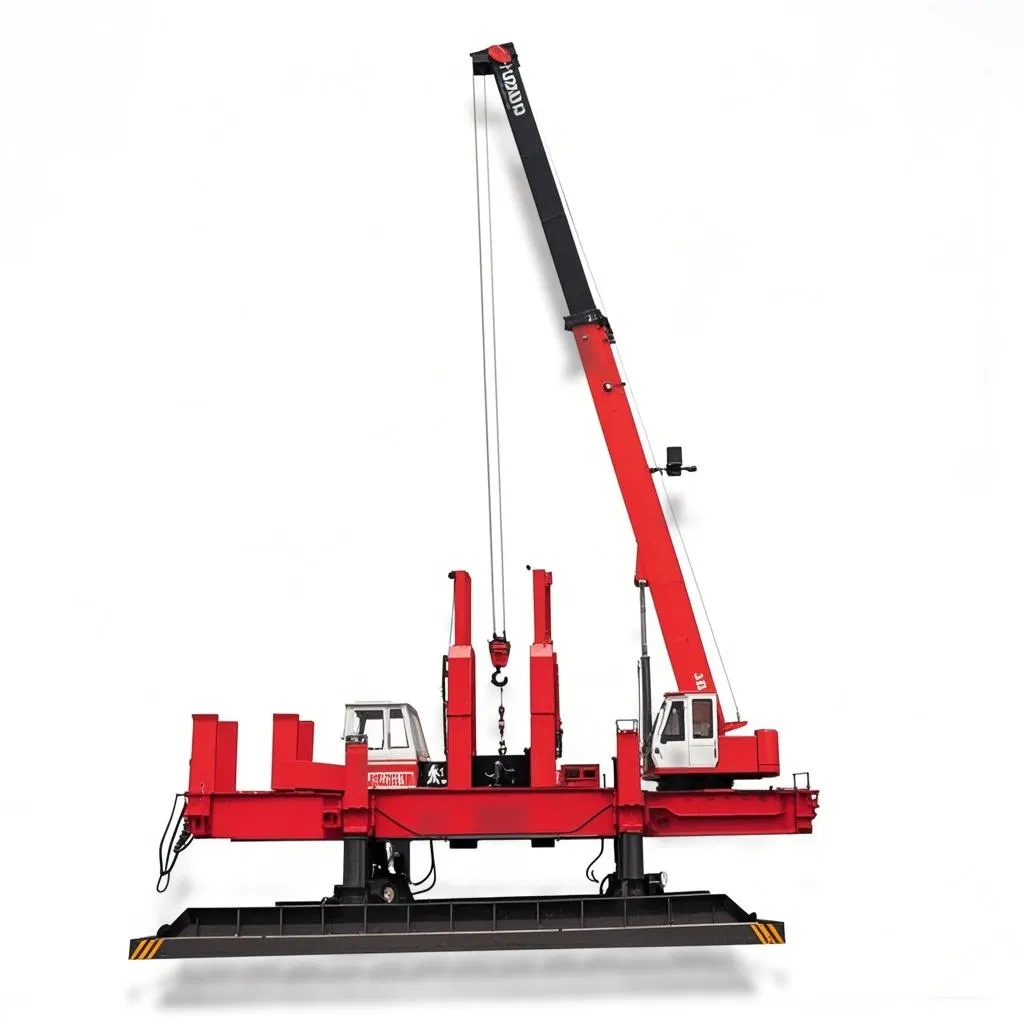

ZYC120 Hydraulic Static Pile Driver

The ZYC series 120 Ton Hydraulic Static Pile Driver is a high-efficiency construction tool designed for stable and precise piling. It features a rated piling force of 1200KN and is adaptable to square piles up to 350mm and circular piles up to 400mm.

Adaptable Working Sites: Clay layers, soft soil layers, and sand layers.

Hydraulic Piling Equipment

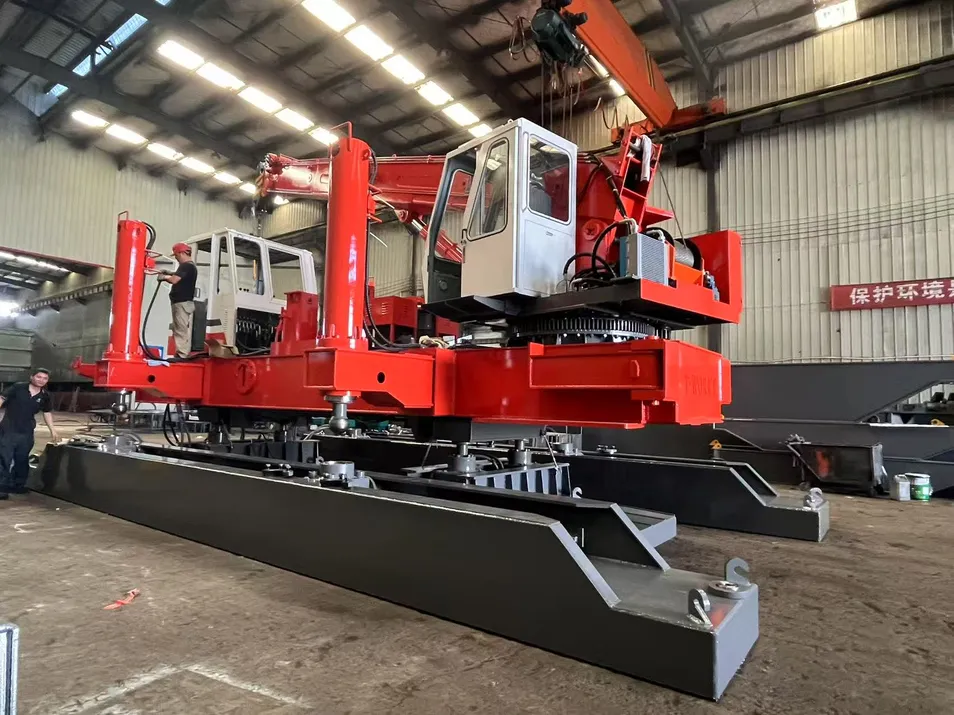

Rig Component
Main Product Features
  • 01
    Forged Material Excellence: Roller wheels and clamping jaws use forged material for superior wear resistance compared to cast steel.
  • 02
    Eccentric Wheel Innovation: Adjustable-gap eccentric wheel in the clamping box ensures precise vertical alignment.
  • 03
    Inverted Cylinder Strength: Doubles as sturdy supports, boosting radial force resistance and cylinder durability.
  • 04
    Six-Cylinder Efficiency: Heavy models feature six cylinders to significantly speed up construction.
  • 05
    Strategic Counterweight: Optimally positioned for balanced weight distribution and maximum piling force.
Technical Parameters
Type / Model ZYC 180 ZYC 260 ZYC 360 ZYC 460 ZYC 600 ZYC 860
Rated Pressure (KN) 1800 2800 3600 4600 6000 8600
Max Square Pile (mm) 400 500 600 600 600 550
Max Circle Pile (mm) 400 500 500 500 500 600
Piling Power (KW) 60 60 74 111 111 111
Total Weight (T) 180 260 360 460 600 860
After Sales & Service

Standard Warranty: 12-month warranty or 2,000 operating hours.

Global Support: 24/7 technical assistance and reliable supply of spare parts.

Training: Comprehensive on-site or remote operation and maintenance training.

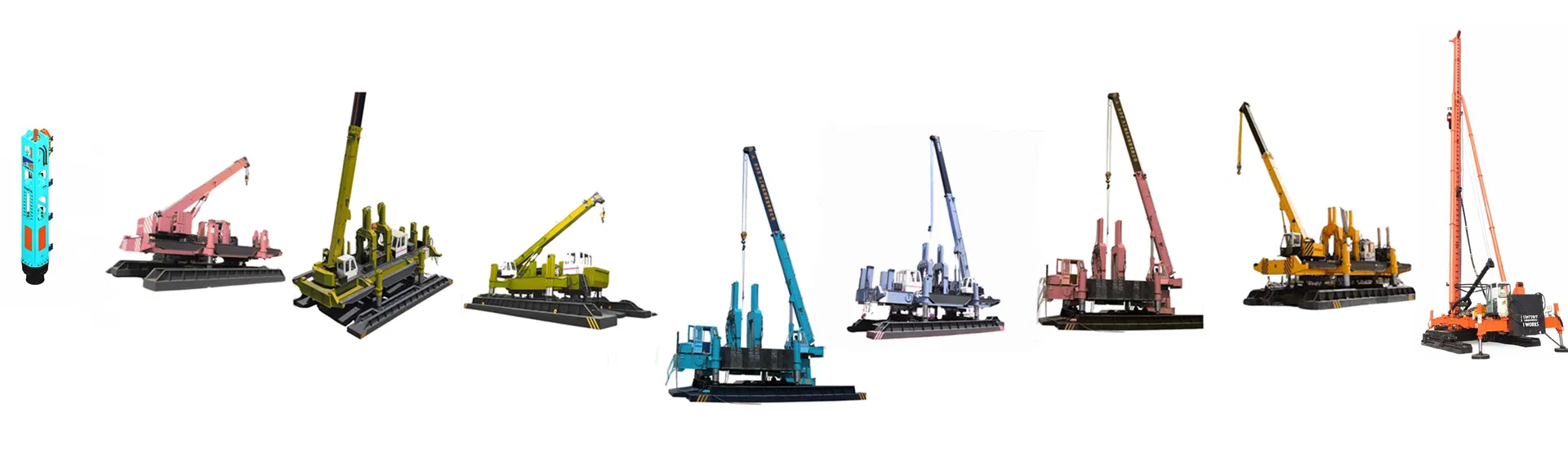

Service Support

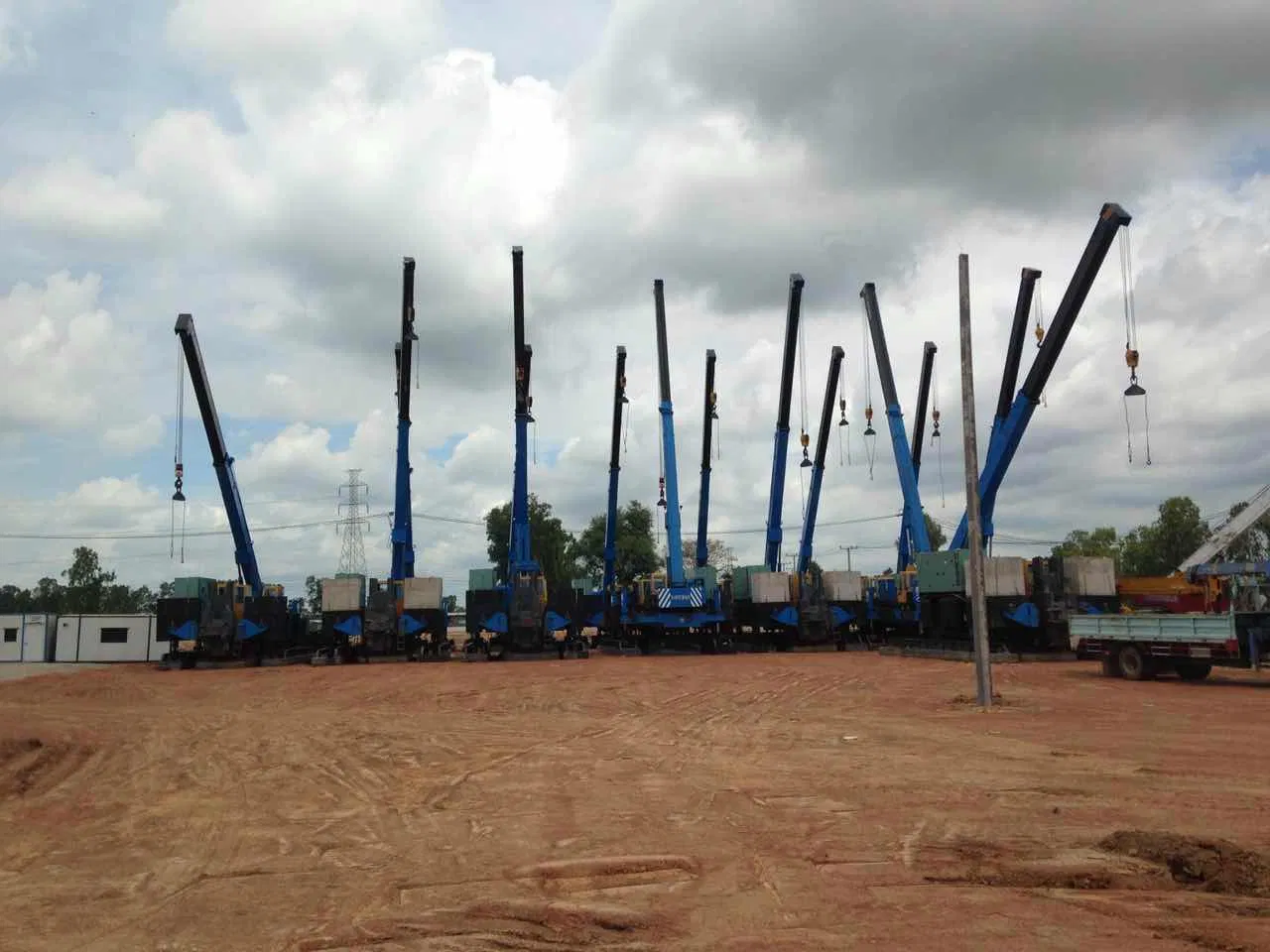

Shipment of 2025
Shipment 1
Shipment 2

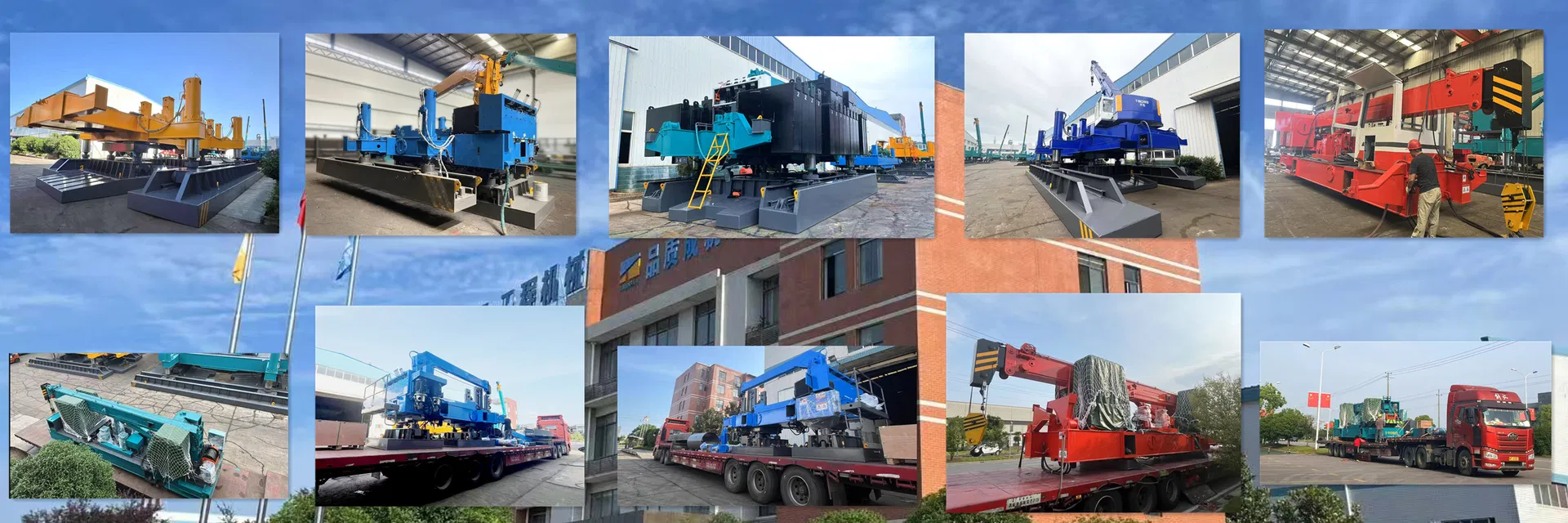

Shipment 3

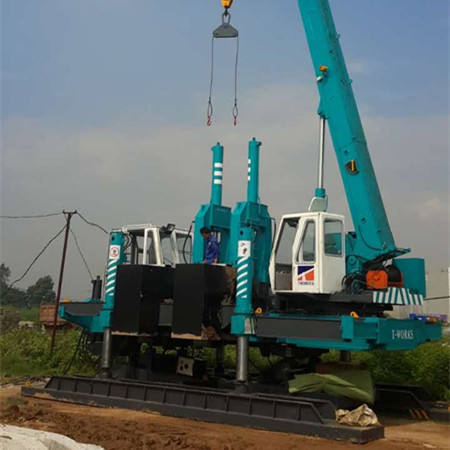

Equipment Demonstration
Frequently Asked Questions
Q1: What are the primary applications of the hydraulic static pile driver?
It is expertly designed for jacking in precast concrete piles, including square, round, triangle, and H-piles. It is ideal for urban areas due to its zero noise, pollution, and vibration.
Q2: What kind of terrain is this machinery suitable for?
The equipment performs optimally in clay layers, soft soil layers, and sand layers.
Q3: What is the typical lead time for an order?
The standard lead time is approximately 30 days after receiving the deposit, depending on specific customization requirements.
Q4: What payment terms do you accept?
We accept flexible payment options including T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Q5: What is included in the after-sales warranty?
We provide a 1-year warranty on the machine structure and 6 months on main spare parts, supported by lifelong technical assistance.
Q6: Can the machine be customized for specific project needs?
Yes, customization is fully supported to meet unique site conditions and customer technical requirements.
