9.2m 11m 200kg Small Aerial Work Platform Self Propelled Vertical Telescopic Mast Boom Man Lift with Jib

Customization:	Available
After-sales Service:	Online
Warranty:	15 Months

Send Inquiry

Product Description

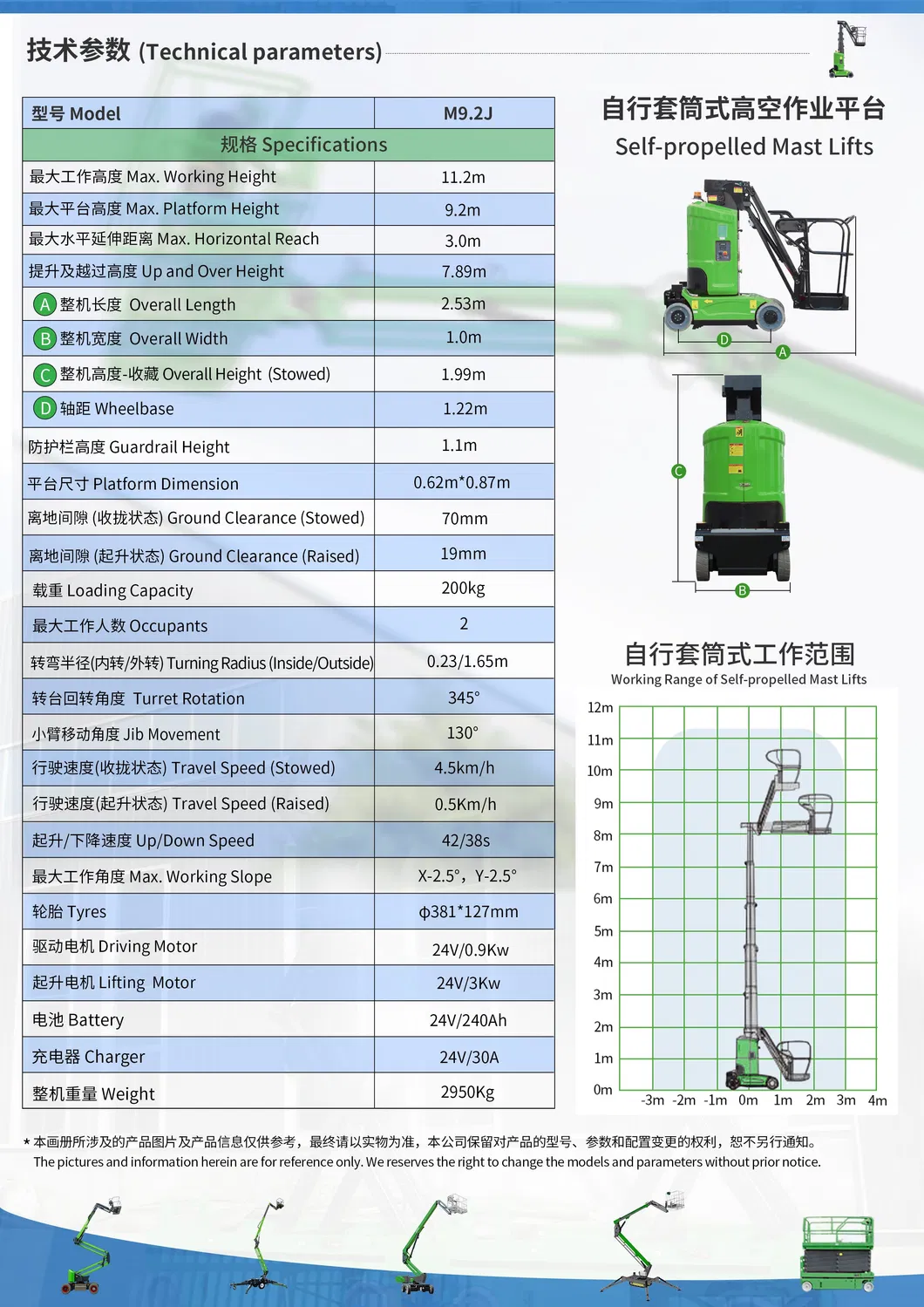

Basic Info.

Model NO.:M9.2J

Type:Lifting Equipment

Power:AC Motor

Fuel:Electric

Load Capacity:≤1T

Lift height:9000mm

Product Name:Self-Propelled Mast Lift

Battery Type:Lead Acid

Battery Capacity:48V/320ah

Self Weight:3590kg

Wheel:Solid PU

Condition:New

Product Description

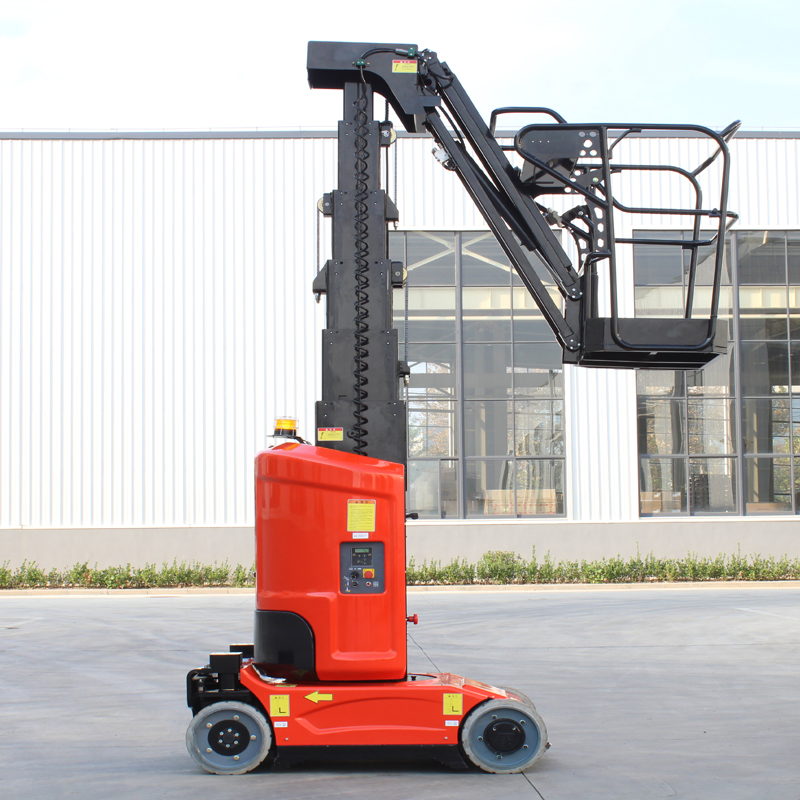

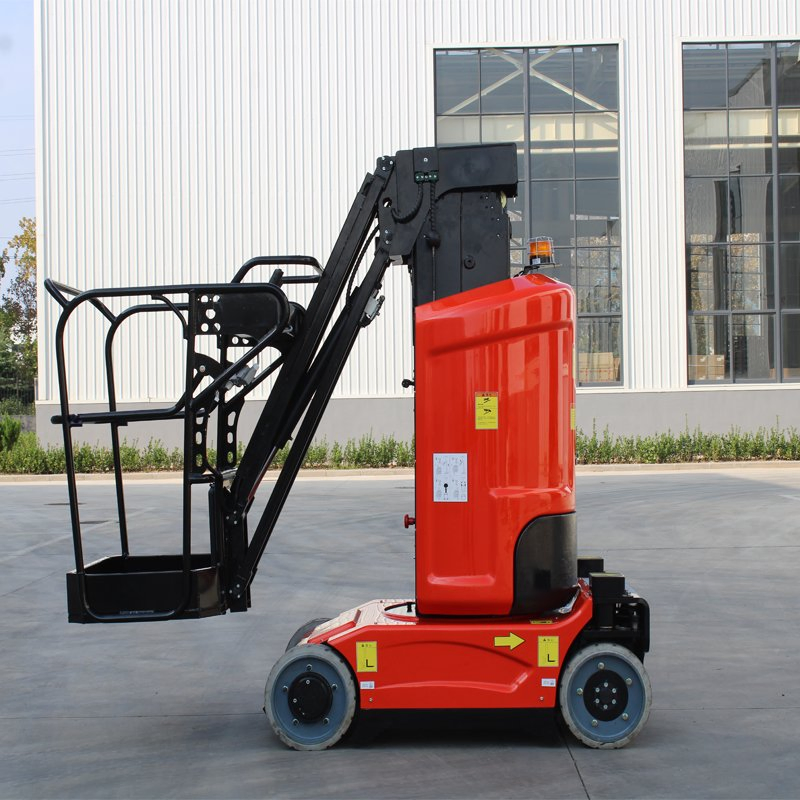

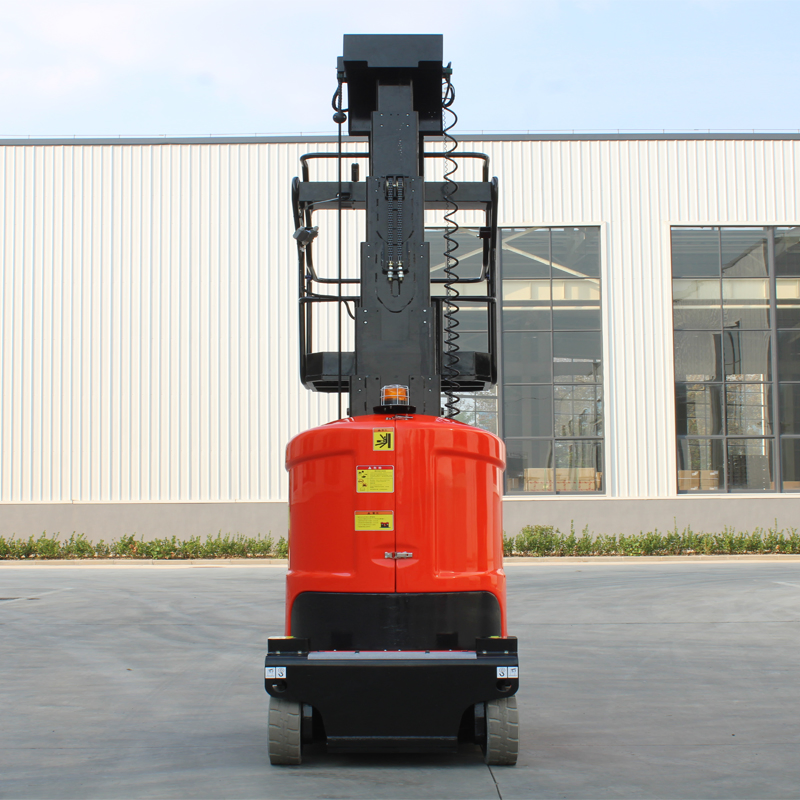

9m Self Propelled Mast Lift

This equipment features a rigorous quality control system including braking performance, mast inclination angle detection, chassis oil leakage inspection, loading, lifting, tilting, and climbing tests to ensure high performance.

✓ AC driving motor

✓ Proportional Joystick Controls

✓ Drivable At Full Height

✓ Non-Marking Tires

✓ Automatic Braking System

✓ Emergency Descent System

✓ Tilt sensor Alarm

✓ 345° Turret Rotation

✓ Fault Diagnosis System

✓ Automatic Pothole Protection

All units are tested before delivery. If storage exceeds one month, regular maintenance and testing are conducted until the unit leaves the factory. Standard package includes Tool Box, Catalog, Gloves, Operation Manuals, and Spare Parts.

Available Categories

Diesel forklift truck capacity from 1.5ton to 32ton
Electric forklift truck capacity from 1.5ton to 12ton
LPG gas gasoline forklift truck capacity from 1.5ton to 7ton
Warehouse equipment: electric pallet trucks, reach trucks, stackers
Rough terrain forklift trucks from 1.8-5ton
Special function lifts: Explosion-proof, VNA Articulated, Telehandlers, and Self-Propelled Boom Lifts

Frequently Asked Questions

1. What is the maximum lifting height of the M9.2J Mast Lift?

The maximum lifting height for this model is 9 meters (9000mm).

2. Can the equipment be driven while the platform is raised?

Yes, it is designed to be drivable at full height for increased efficiency during aerial work.

3. What type of power source does this mast lift use?

It is powered by an AC motor and a high-capacity 48V/320ah lead-acid battery.

4. Are the tires suitable for indoor flooring?

Yes, the lift is equipped with non-marking solid PU tires, making it ideal for sensitive indoor surfaces.

5. What safety systems are included?

Safety features include an automatic braking system, emergency descent system, tilt sensor alarm, motion alarm, and pothole protection.

6. What is the rotation capability of the turret?

The M9.2J model features a 345° turret rotation for versatile positioning.
