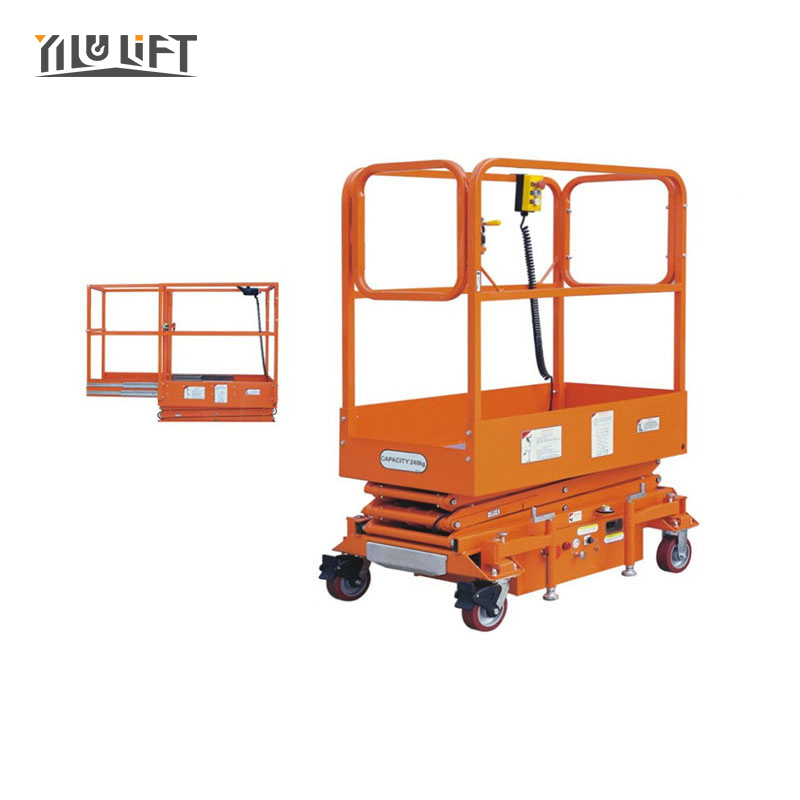

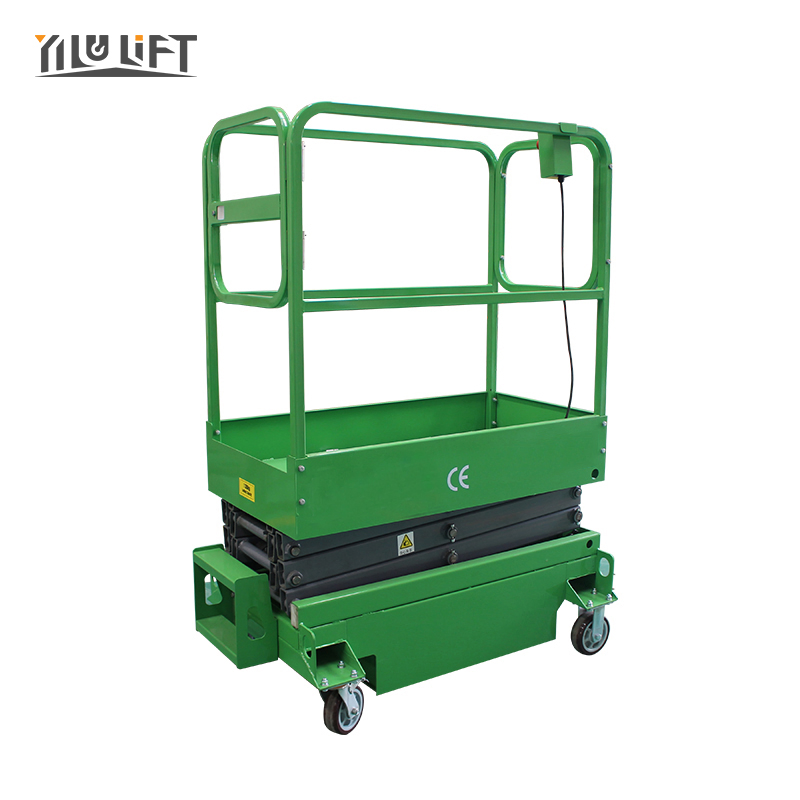

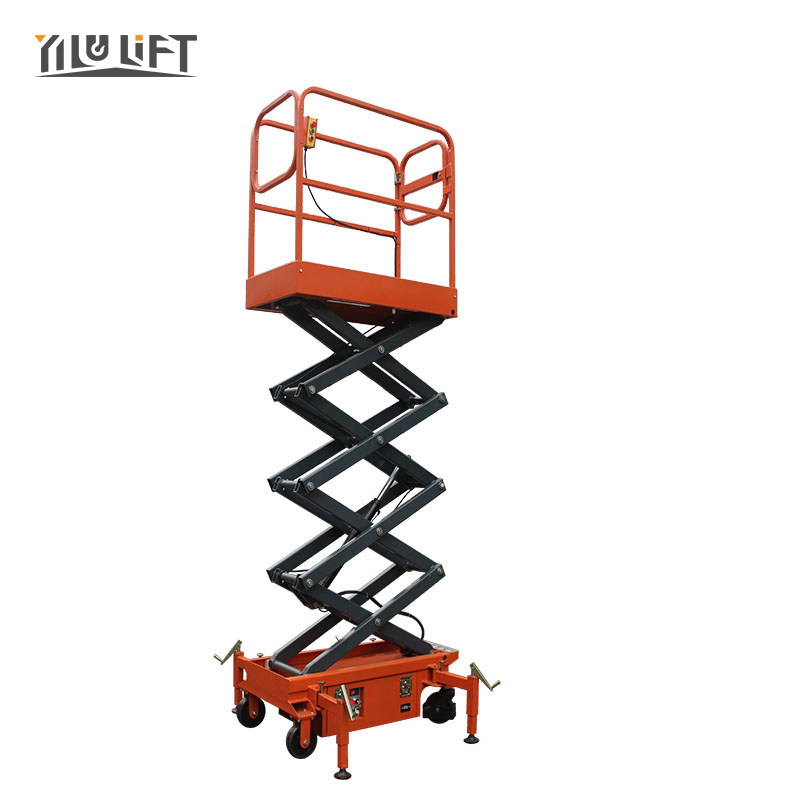

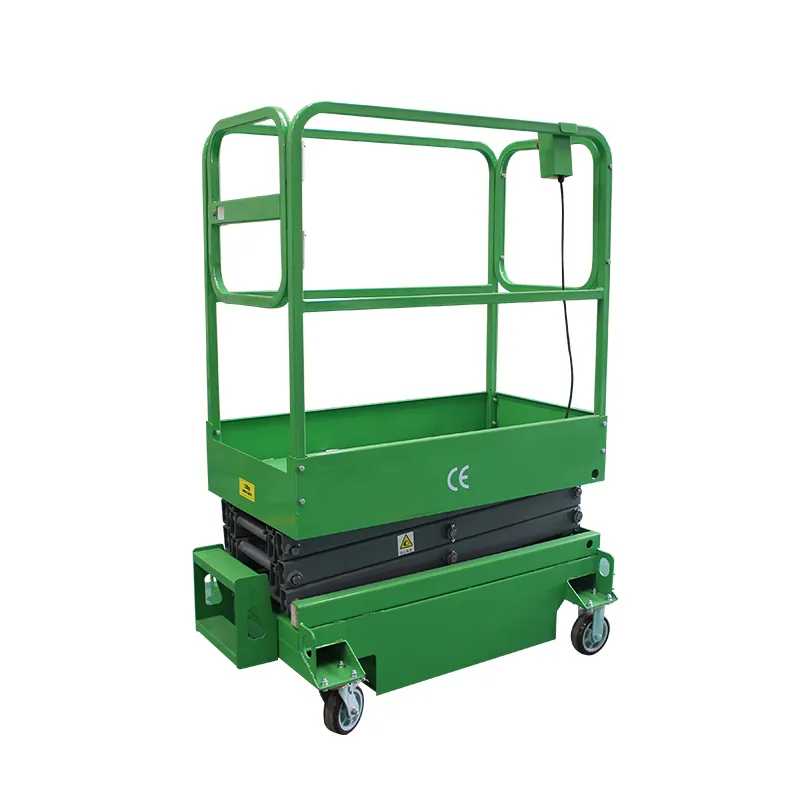

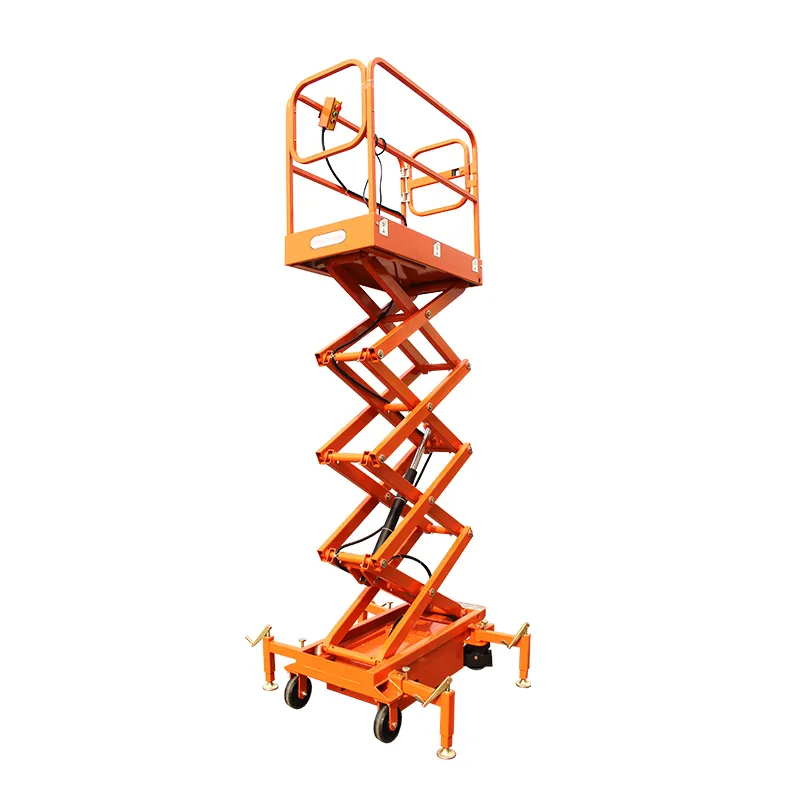

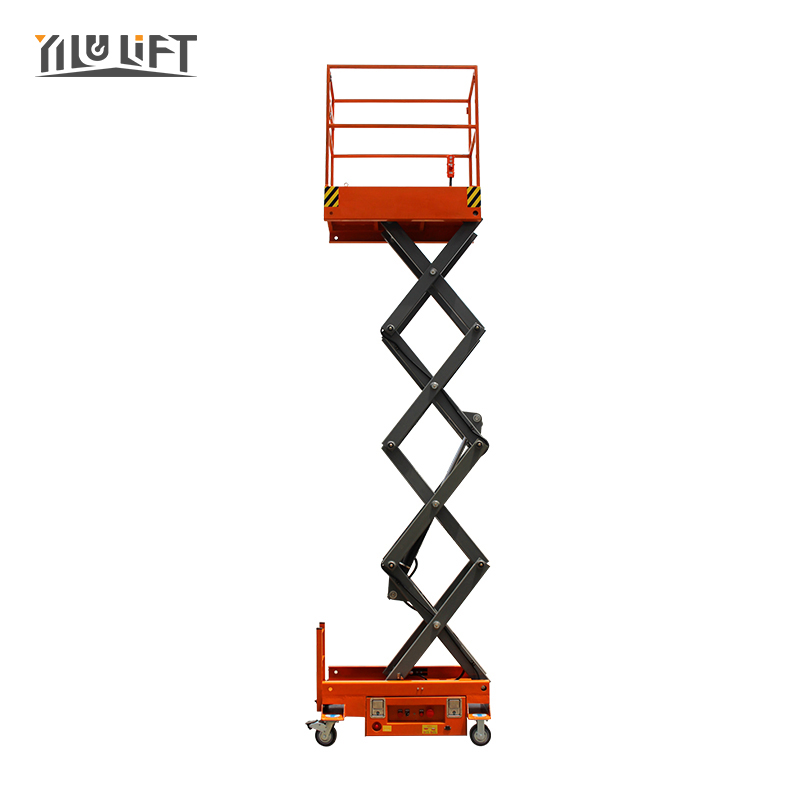

Semi-Electric Mini Scissor Lift Mini Push Around Scissor Lift for Indoor.

1 / 5

Semi-Electric Mini Scissor Lift Mini Push Around Scissor Lift for Indoor.

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.: SJY

Application: Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism: Scissor Lift

Driven Type: Hydraulic

Certification: GS, CE, RoHS, ISO 9001

Lifting Capacity: 300kg

Platform Height: 3-4.8m

Platform Size: 1170X600 mm

Lifting Motor: 12V/0.8kw

Battery: 12V / 60Ah

Feature: Explosion-Proof, Insulating

HS Code: 8428909090

✓

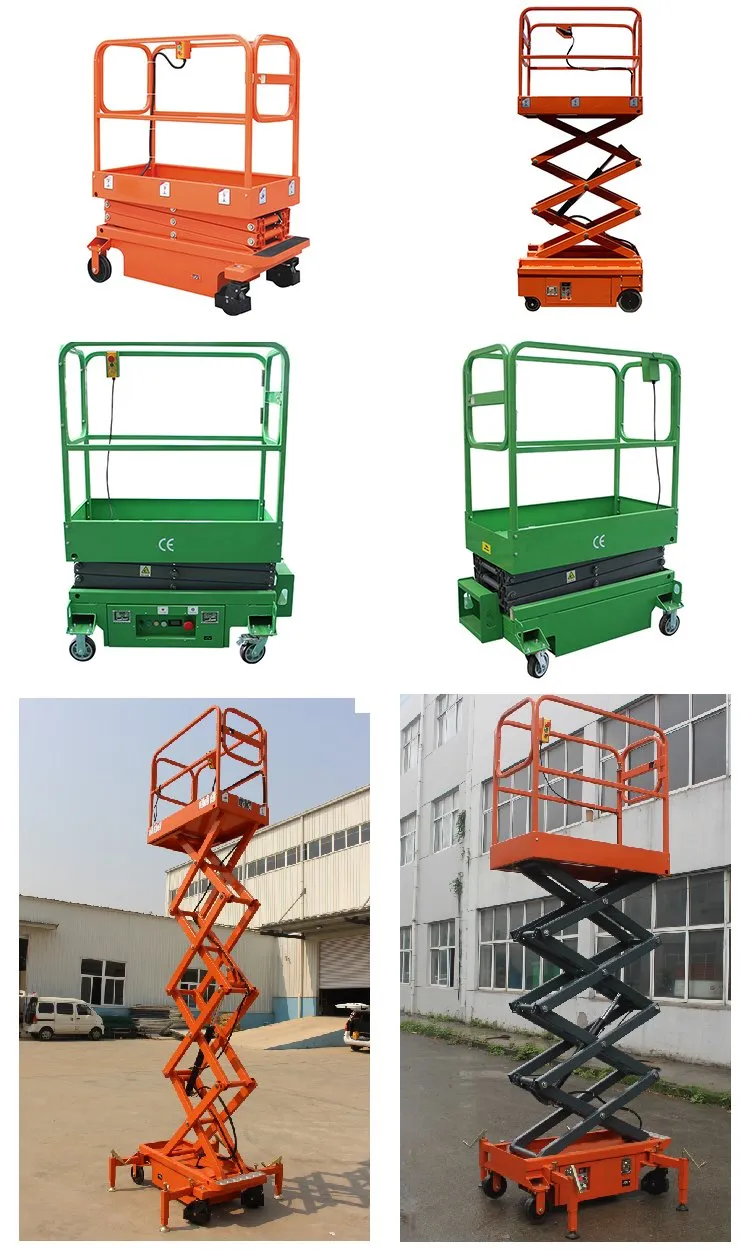

Semi Electric Mini Scissor Lift

Model Type	Unit	SJY5.0	SJY5.9	SJY6.8
Maximum platform height	mm	3000	3900	4800
Minimum platform height	mm	630	700	830
Lifting capacity	kg	300	300	300
Platform size	mm	1170x600	1170x600	1170x600
Lifting Time	sec	33	40	40
Descent time	sec	30	30	30
Lifting Motor	v/kw	12/0.8	12/0.8	12/0.8
Battery	V/Ah	12/60	12/60	12/60
Charger	V/A	12/10	12/10	12/10
Whole Length	mm	1300	1300	1300
Whole Width	mm	740	740	740
Whole Height	mm	1650	1750	1880
Overall Net Weight	kg	360	420	475

★

Key Advantages

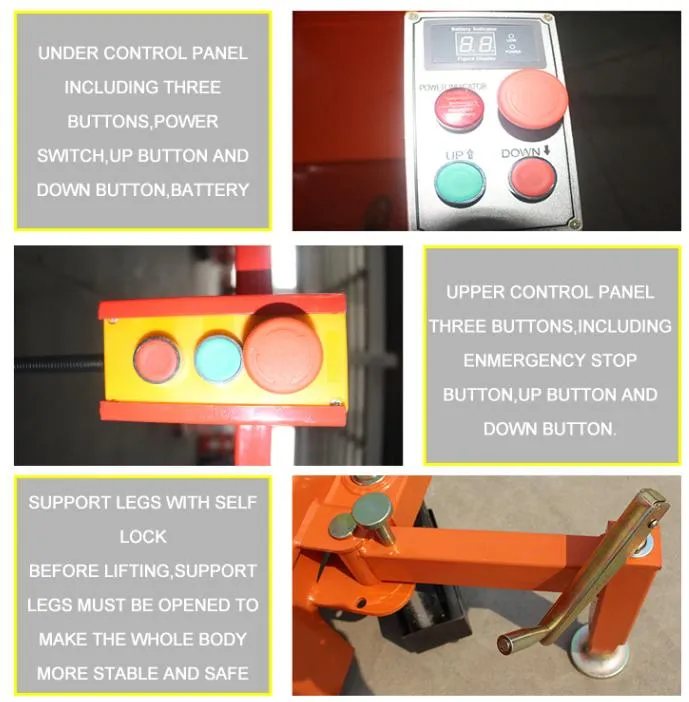

01 Up-down control panel on the body

02 Up-down control panel on the platform

03 Electric motor and hydraulic pump station

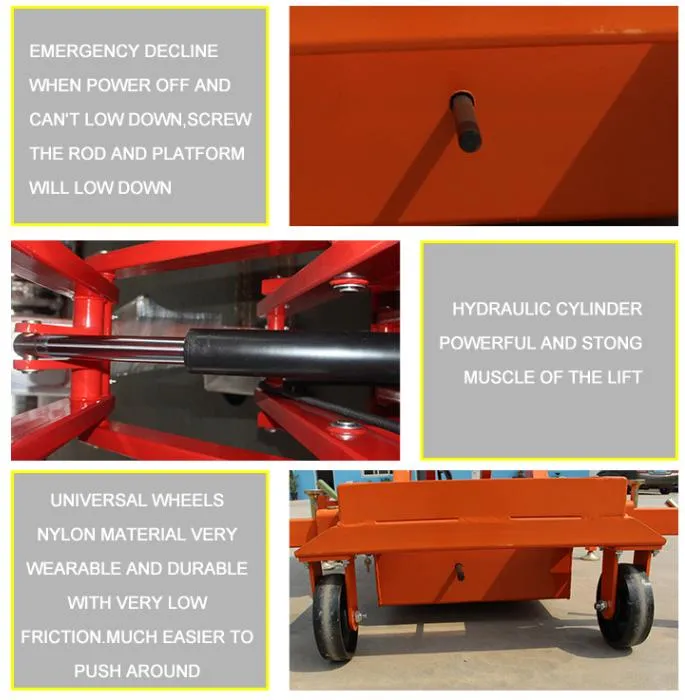

04 High strength hydraulic cylinder

05 Emergency stop button

06 Durable high-performance battery

07 Automatic battery charger included

08 Explosion-proof valves for hydraulic pipe protection

09 Spillover valve to prevent high pressure

10 Anti-dropping device for platform safety

11 Emergency decline valve for manual lowering

12 Safety support legs for maximum stability

Frequently Asked Questions

What is the lifting capacity of this mini scissor lift?

The SJY series mini scissor lift has a standard lifting capacity of 300kg, which is suitable for one person plus tools and materials.

What are the available maximum platform heights?

We offer three main models with maximum platform heights of 3000mm (3m), 3900mm (3.9m), and 4800mm (4.8m).

Is this equipment easy to transport and move?

Yes, it is a semi-electric push-around type. It features a compact width of only 740mm, allowing it to pass through standard doors and operate in narrow aisles.

What safety features are included?

The lift includes explosion-proof valves, an emergency decline valve, safety support legs, an anti-dropping device, and dual control panels (body and platform).

How is the lift powered?

It is powered by a 12V DC battery with a 0.8kw lifting motor. It comes with a 12V/10A charger for easy maintenance.

What certifications does this product hold?

This product is manufactured according to high-quality standards and carries GS, CE, RoHS, and ISO 9001 certifications.
