Basic Information
Model NO.:HA09RJE
Application:Workshop, Shipboard, Warehouse, Building
Lift Mechanism:Articulated Lift
Moves:Self-propelled
Driven Type:AC
Max.Working Height:10.82m
Platform Height:8.82m
Carrying Capacity:230kg
Gradeability:35%
Batteries:48V/310ah
Certification:GS, CE, RoHS, ISO 9001, ANSI
Product Description

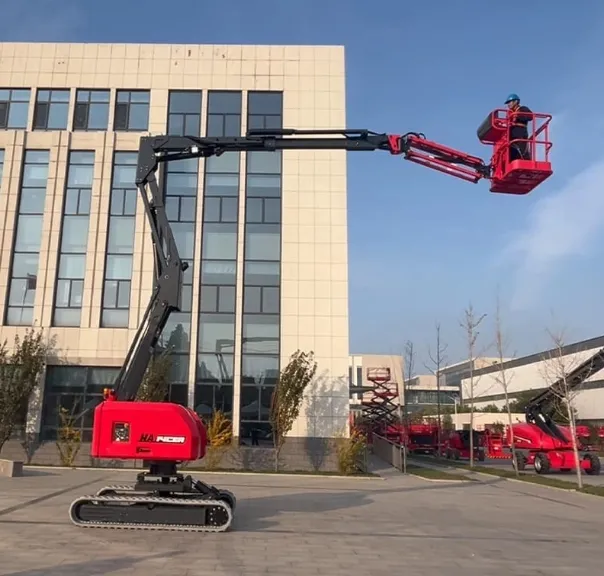

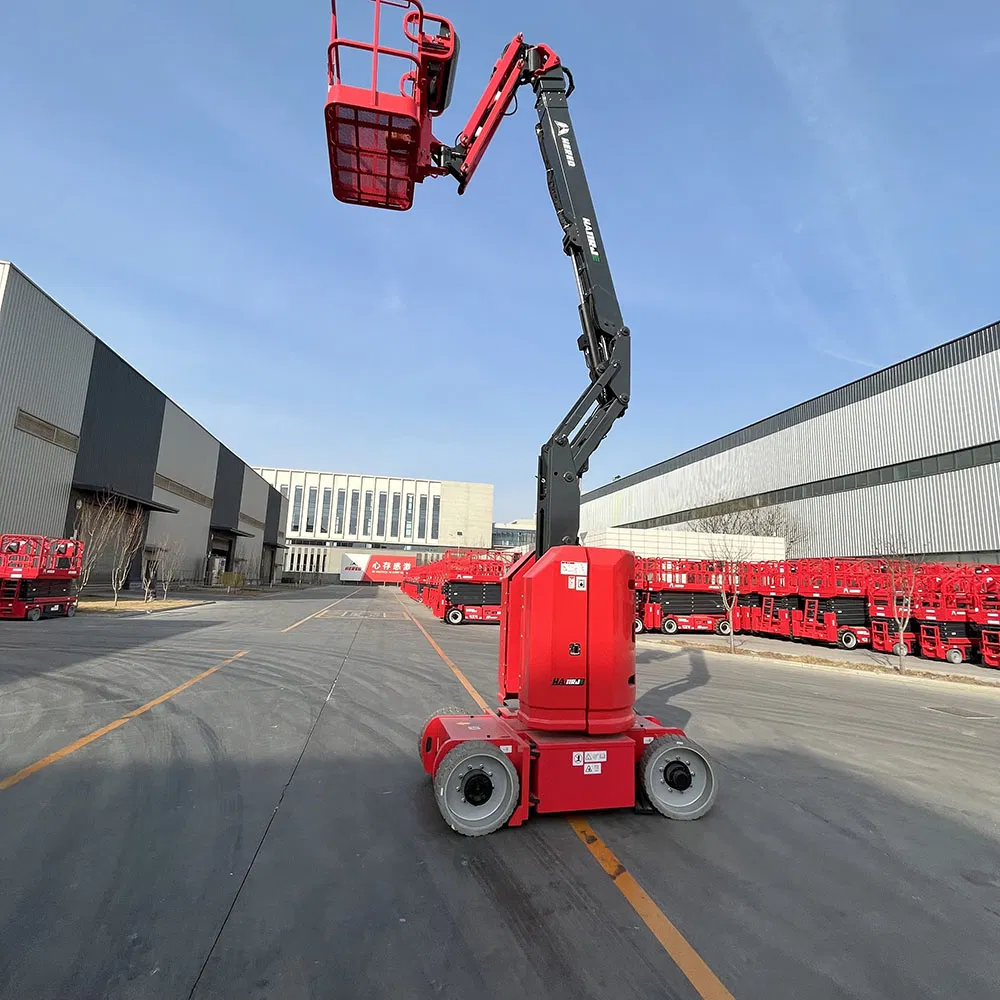

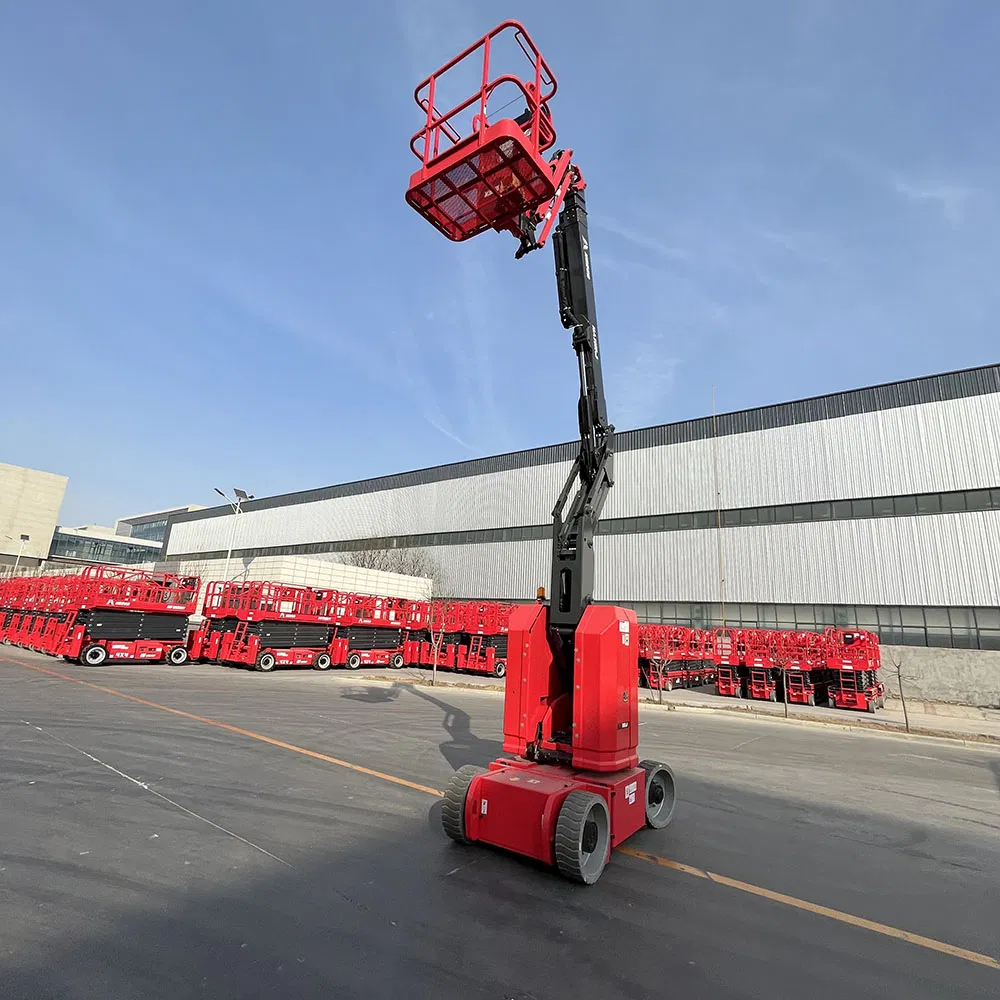

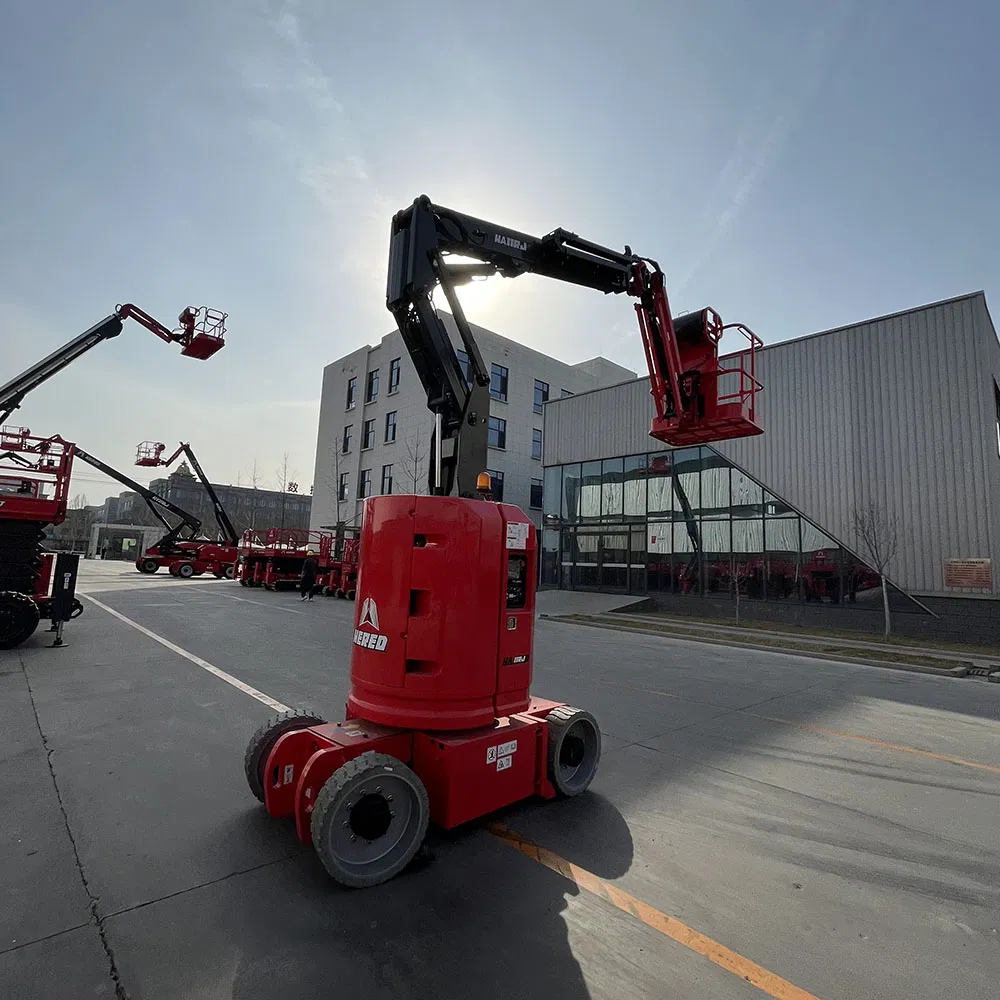

Articulating boom lifts, also known as cherry pickers, give you extra reach over and around obstacles on the job site. Electric articulating boom lift offers excellent outreach, high capacity, versatile performance and easy maintenance. Articulated lifts provide a large working range, allowing you to access those hard-to-reach places. The articulating boom lift is best used for complex structures or in tight and crowded spaces.
- ✓ Environmental friendliness, low noise, zero emission, and large-capacity lithium batteries.
- ✓ Precise and efficient AC drive system for strong power and smooth control.
- ✓ Smooth and efficient compound boom actions from fully electric proportional control.
- ✓ Remote control capability within 200 m.
- ✓ Fully automatic or manual chassis leveling achievable during travel.
Technical Specifications
| Parameter |
Value (HA09RJE) |
| Max. Working Height | 10.82m |
| Max. Platform Height | 8.82m |

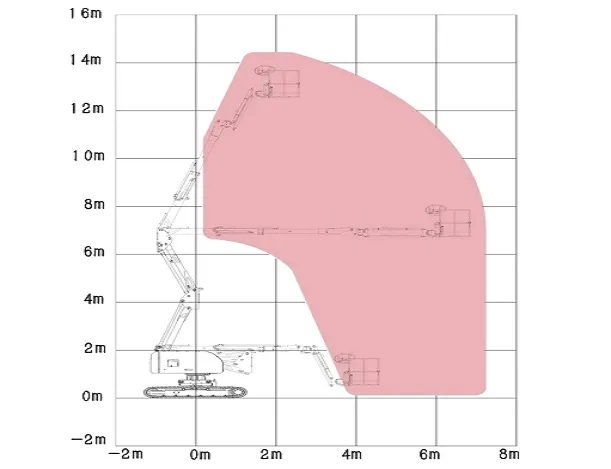

| Max. Horizontal Extension | 6.29m |
| Max. Up and Over Height | 3.77m |

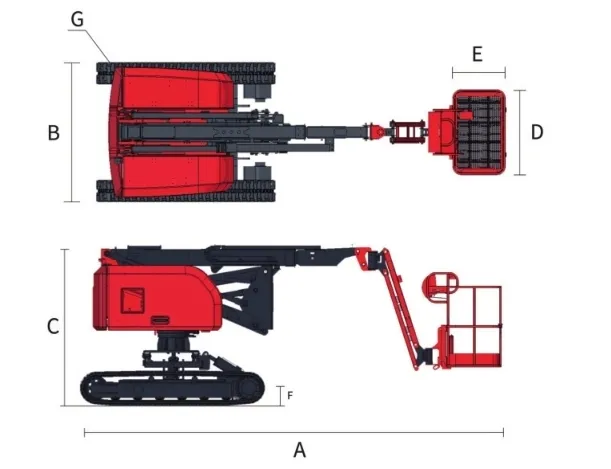

| Length (Stowed) | 5.38m |
| Width (Stowed) | 1.19m |
| Height (Stowed) | 2.04m |
| Platform Capacity | 230kg |
| Drive Speed (Stowed) | 4.8km/h |
| Gradeability | 35% |
| Turning Radius (Out.) | 3.35m |
| Batteries | 48V/310Ah |
| Drive Motor | AC 48V |
| Weight | 6900kg |
Product Application
Depending on different environments such as indoors, outdoors, flat terrain, or rugged terrain, this articulating boom lift is designed for versatile performance.

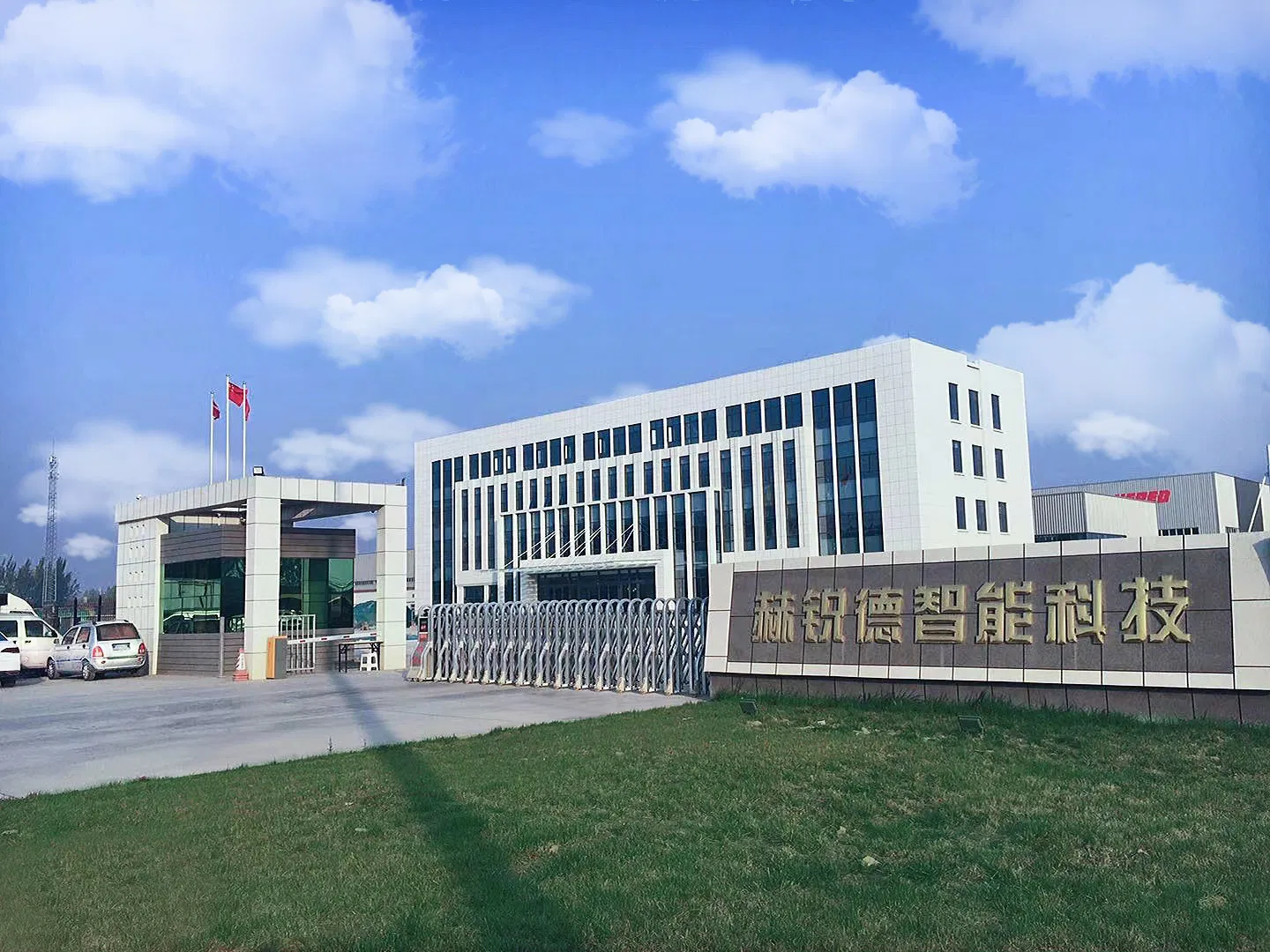

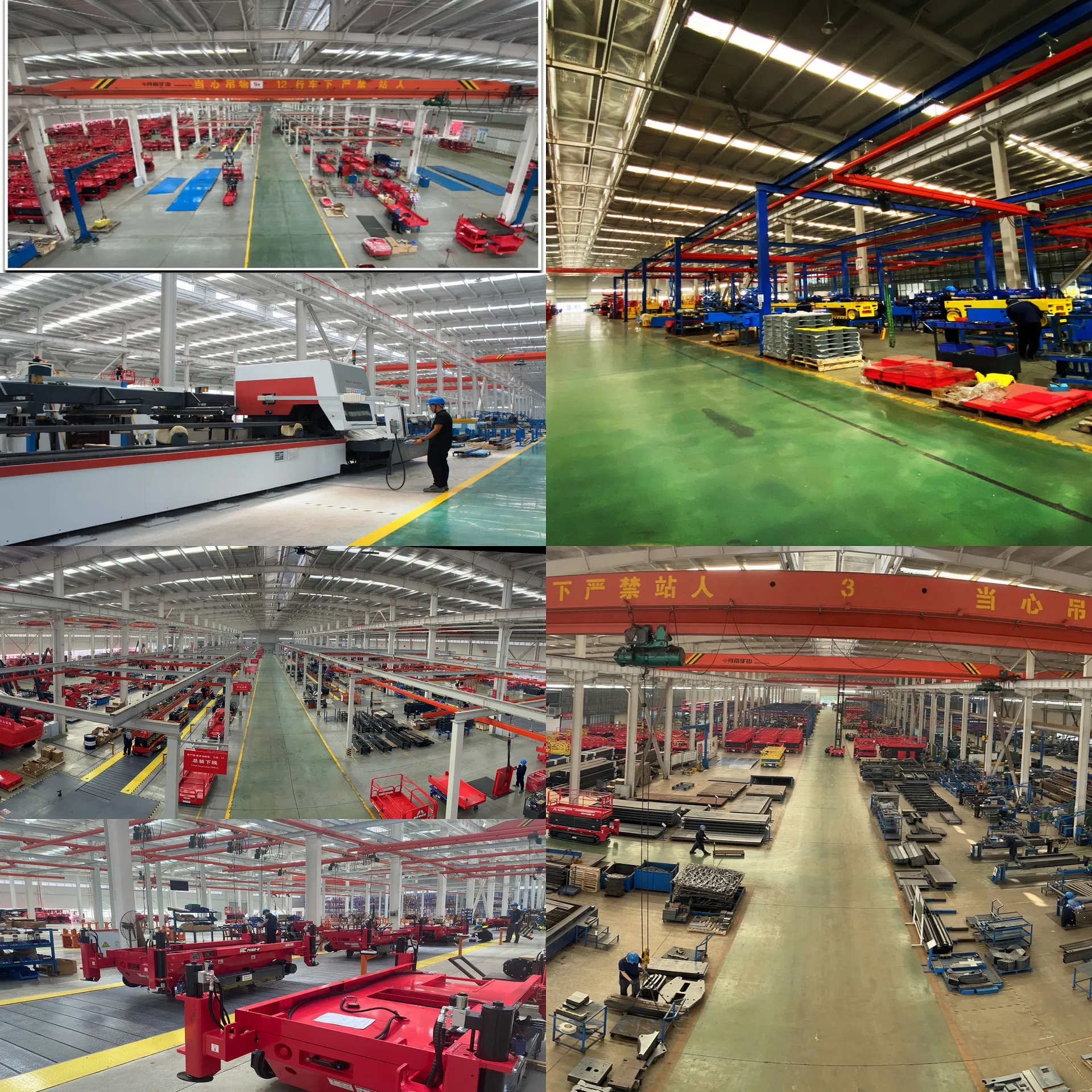

Manufacturing & Quality Control
The modern manufacturing facility integrates research and development, manufacturing, and service. With an annual capacity of more than 20,000 units, the production utilizes intelligent equipment and digital workshops.

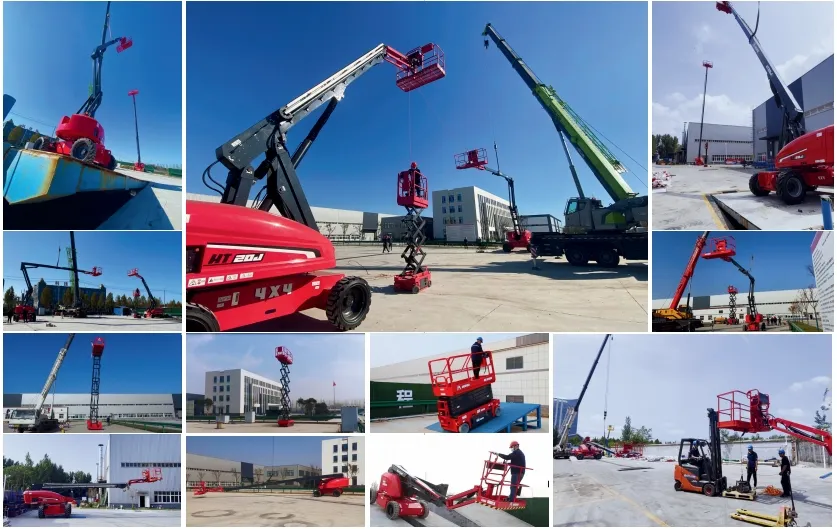

Professional test sites ensure design safety through comprehensive functional testing. Products undergo 100,000 fatigue tests, climbing ability assessments, and pothole/rollover safety checks.
Frequently Asked Questions
Q1: Do you supply customized service?
A1: Yes, we provide customized services including specific color options and design adjustments to meet your job site requirements.
Q2: Can you print our logo or website on the products?
A2: Yes, custom logo application is available for all aerial work platforms.
Q3: What is the Minimum Order Quantity (MOQ)?
A3: The standard MOQ is 1 unit. You can start with a sample to verify quality before placing larger orders.
Q4: What are the available payment methods?
A4: We accept payments via L/C, T/T, Money Gram, and Western Union.
Q5: What is the estimated delivery time?
A5: Delivery typically takes 15-30 days after the order is confirmed, depending on the quantity and specific requirements.
Q6: What is your monthly supply capacity?
A6: We have the capacity to supply up to 10,000 units per month to meet global demand.
