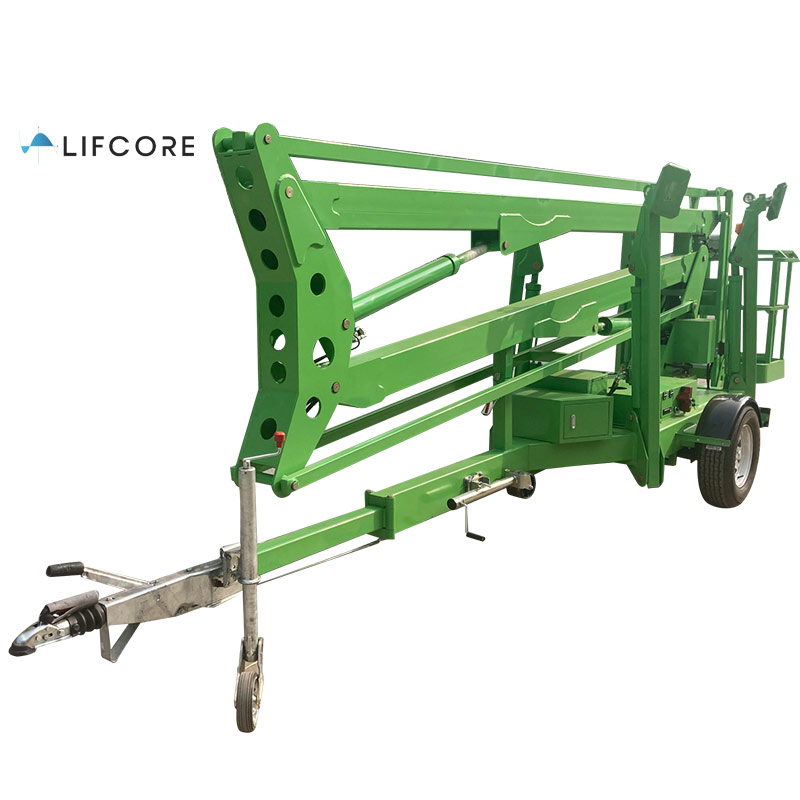

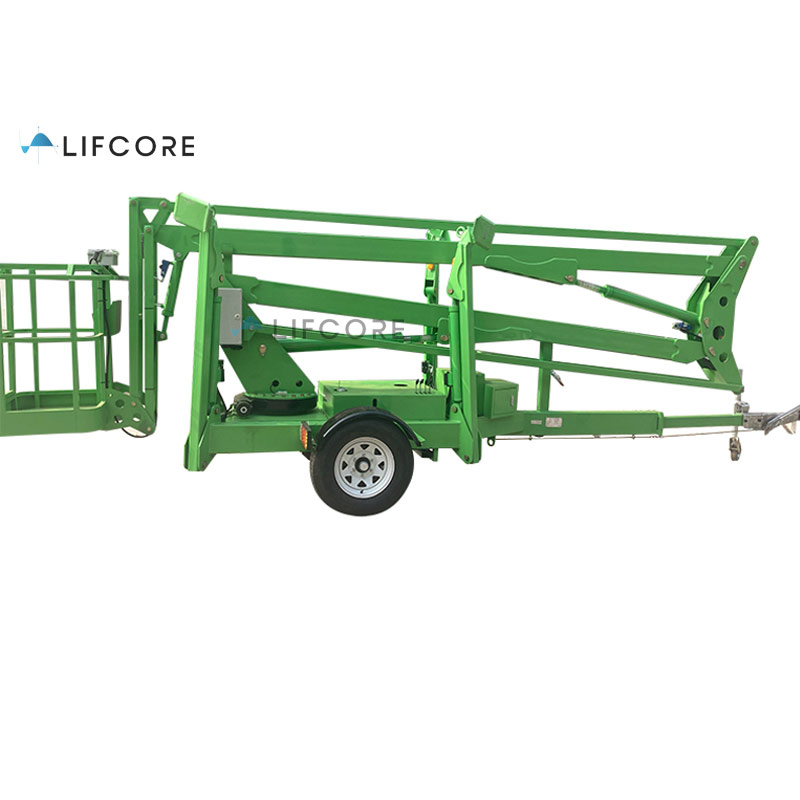

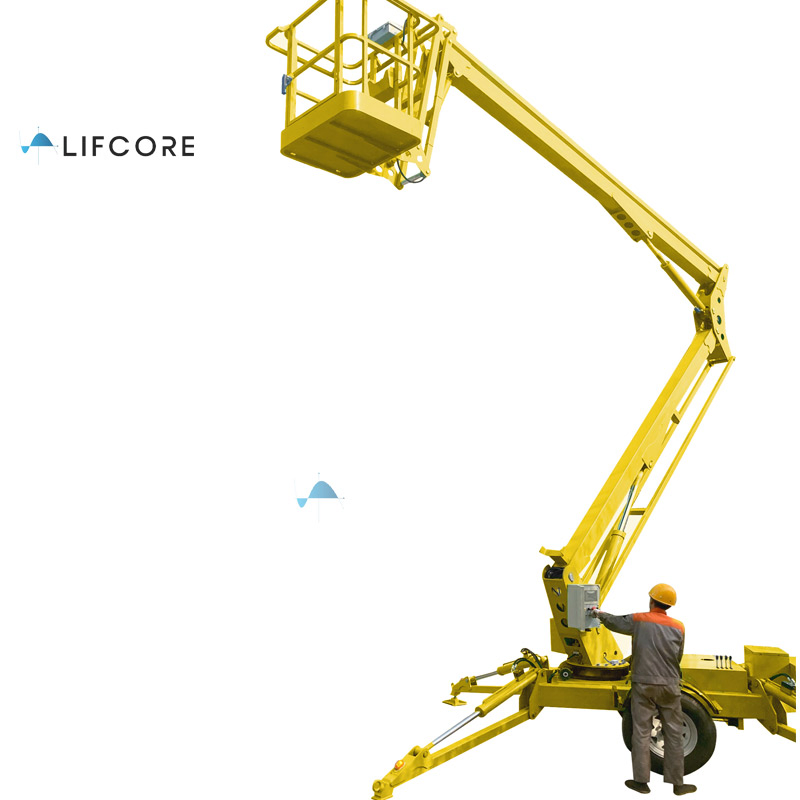

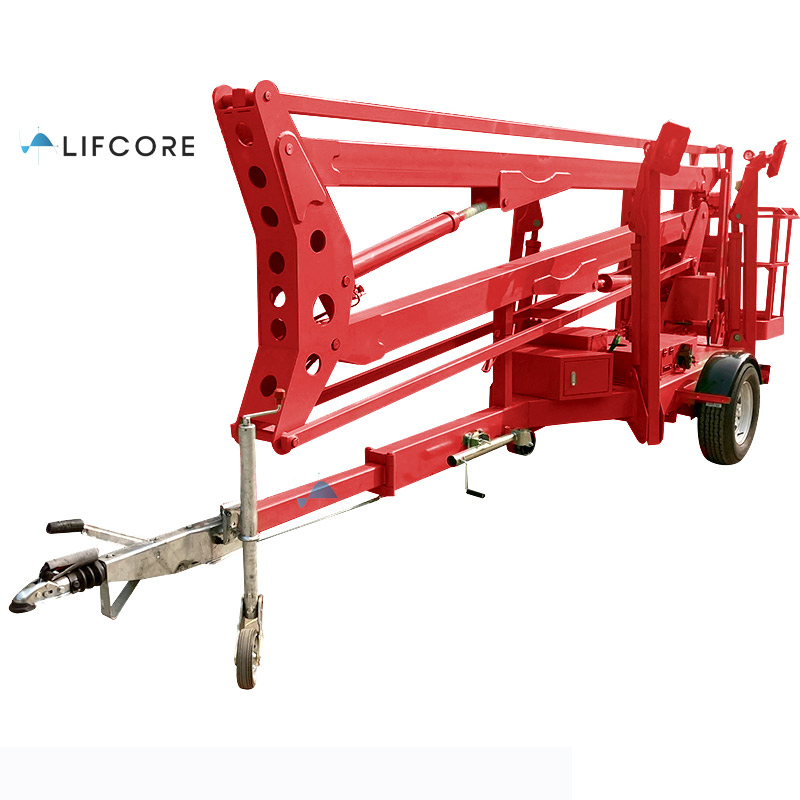

18m Hydraulic Towable Trailer Mounted Telescopic Articulating Electric Boom Man Lift

Basic Information

Model NO.

LKTBL

Lift Mechanism

Telescoping Lift

Carrying Capacity

Middle-Level

Driven Type

Hydraulic

Certification

CE, ISO 9001

Lifting Height

8-20m

Power Source

DC/AC/Petrol/Diesel

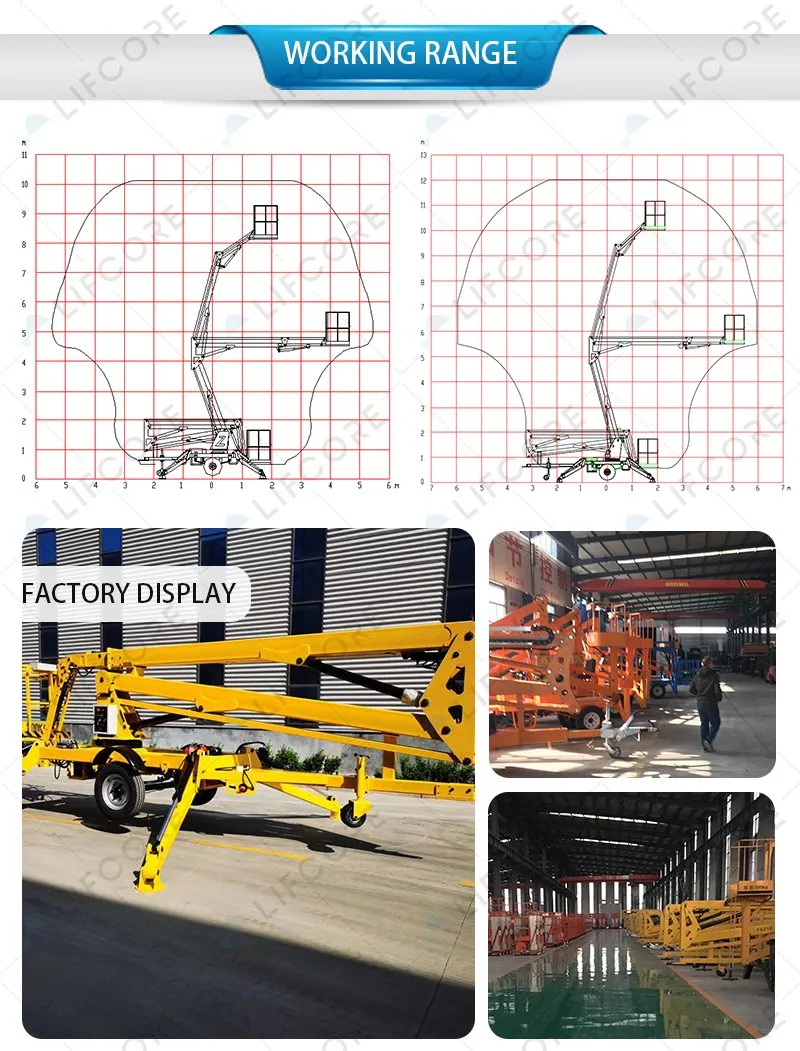

Working Radius

5-12m

Rotation

360° Boom Rotation

Load Capacity

200kg

Product Description

🏗️

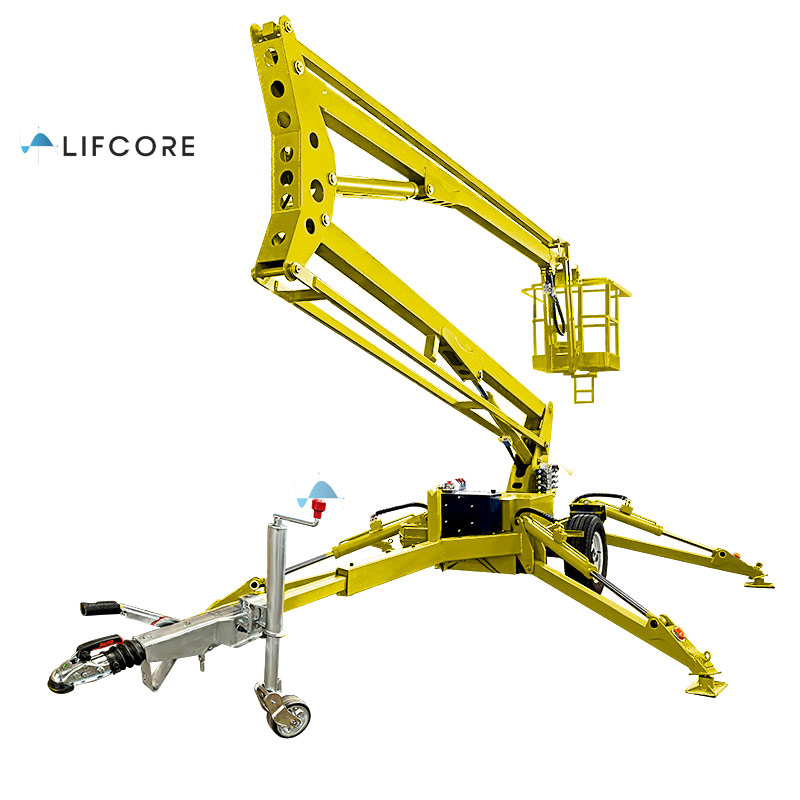

18m Hydraulic Towable Trailer Mounted Telescopic Articulating Electric Boom Man Lift

Boom lift is widely used in installation, maintenance and climbing operations in municipalities, electricity, street lights, advertising, communications, photography, gardens, transportation, docks, airports and ports, large industrial and mining enterprises and other industries. It is suitable for various rugged terrains in the field, and has a wide range of space operations.

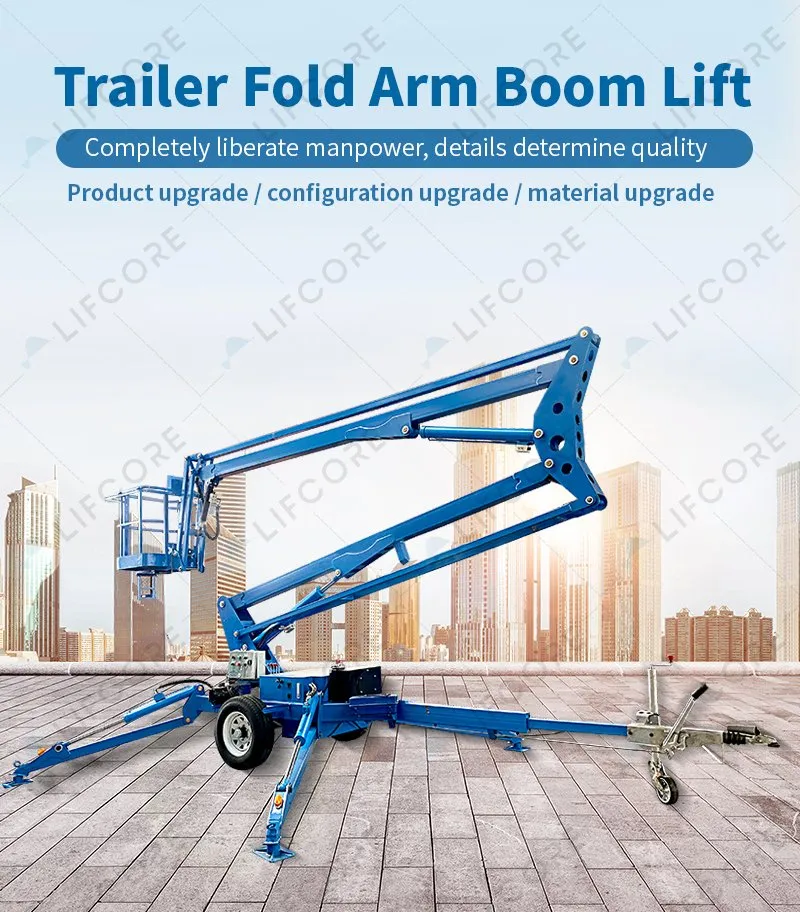

Towable boom lift is a hydraulic lifting tool that rotates 360° to lift pedestrians or goods. It features convenient movement, simple operation, large working radius, and excellent balance performance. Currently, we provide lifting heights from 10 to 22 meters with a load capacity of 200kg.

Technical Specifications

Model Number	Dimensions (mm)	Lifting Height (m)	Working Height (m)	Platform Size (mm)	Weight (ton)	Capacity (kg)	Working Radius (m)
LKTBL-10	630016802100	10	12	900*700	1.7	200	5.5
LKTBL-12	730016802100	12	14	900*700	2.0	200	6.5
LKTBL-14	680016802100	14	16	900*700	2.4	200	8.5
LKTBL-16	690016802200	16	18	900*700	2.6	200	10.5
LKTBL-18	760018002250	18	20	900*700	4.3	200	11
LKTBL-20	690019002250	20	22	900*700	4.5	200	11
LKTBL-22	690019002250	22	24	900*700	4.6	200	11

Detailed Features & Quality

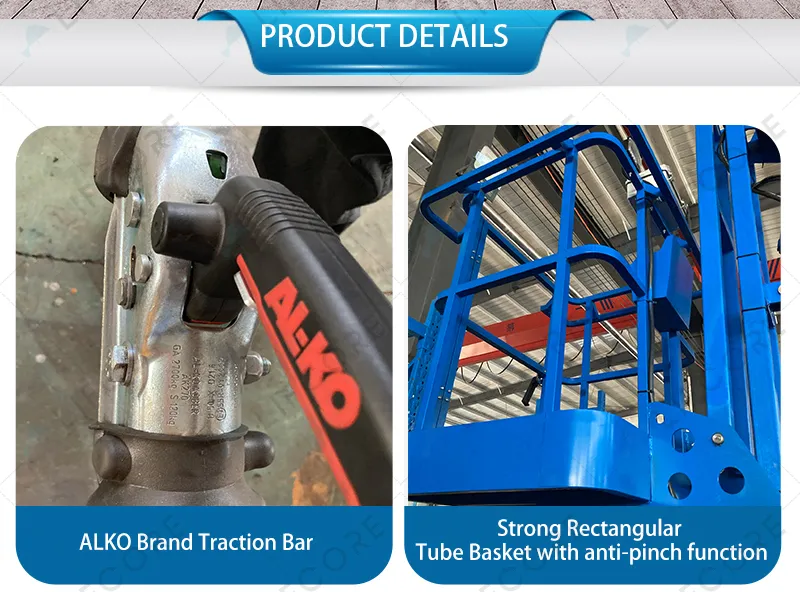

Trailer traction uses ALKO components. The platform includes safety guardrails, lights, and a dual control system.

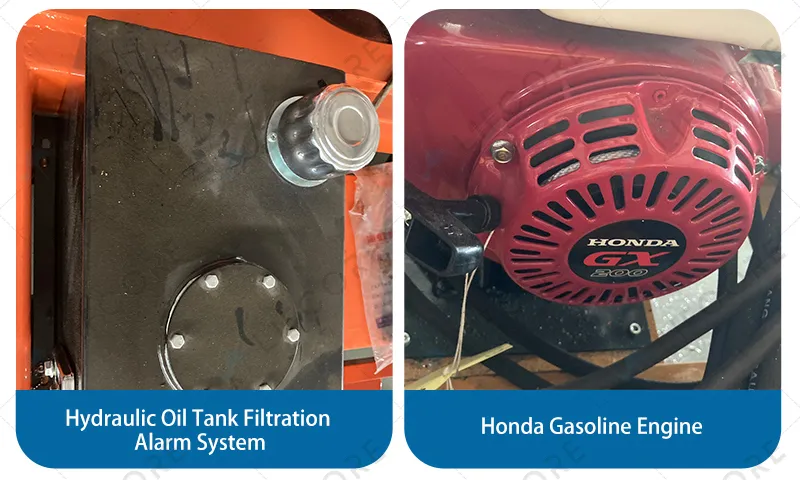

Equipped with high-pressure explosion-proof oil pipes and efficient Honda gasoline engines (EPA certified).

Industry Overview

Aerial work platform solutions have revolutionized construction and maintenance. Hydraulic lifts play a pivotal role in managing lifting requirements across industrial and residential sites. Specialized manufacturing ensures reliability and professional service for various rugged field operations.

Frequently Asked Questions

What is the maximum working height available?

The towable boom lifts offer a working height range from 12 meters up to 24 meters, depending on the specific model selected.

What power options can I choose for the lift?

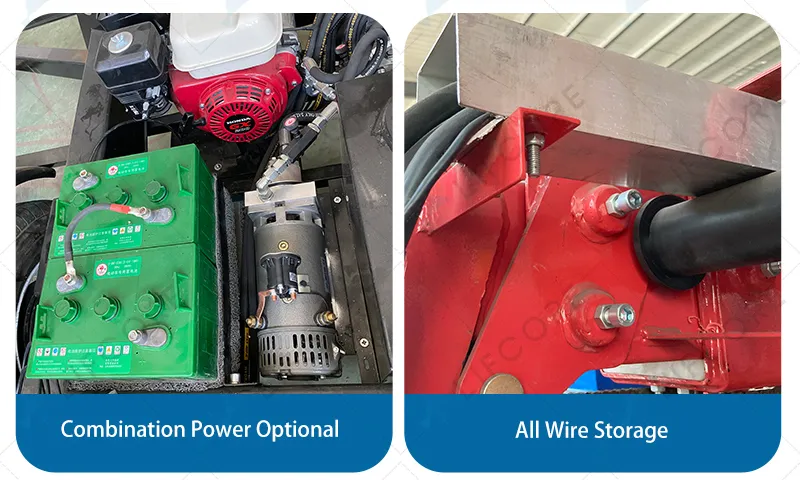

We provide multiple power options including AC power, DC battery power, Gasoline engine (Honda), and Diesel power. Multiple power sources can be combined on a single unit.

Can the boom lift work on uneven ground?

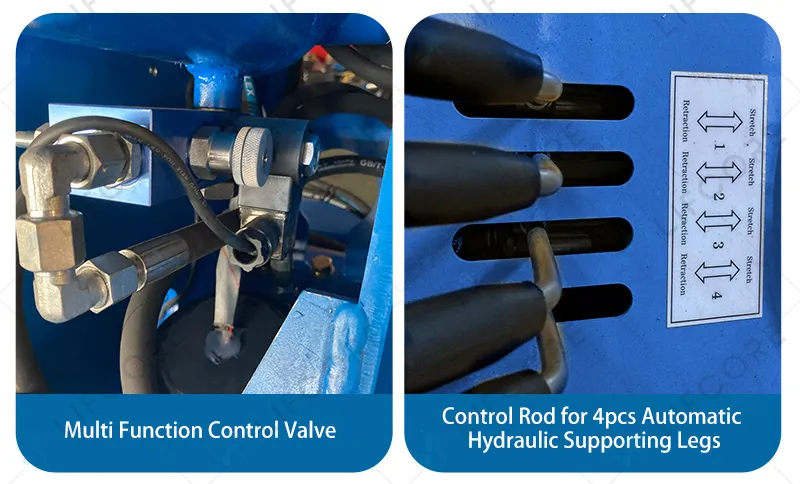

Yes, the lift is equipped with four hydraulic outriggers that can be controlled individually to level and support the machine on uneven terrain.

What is the loading capacity of the platform?

All our standard LKTBL models are designed with a loading capacity of 200kg, suitable for two workers with tools.

Is the boom rotation limited?

No, the lift provides a full 360-degree continuous rotation, allowing for a wide working range without the need to relocate the trailer.

Are the hydraulic systems safe for high-pressure use?

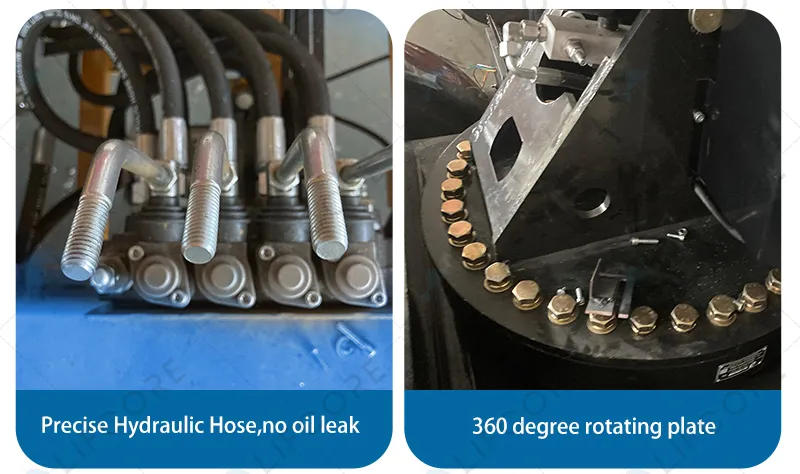

Absolutely. All hydraulic oil pipes are high-pressure explosion-proof tubes, and joints are sealed with high-pressure fittings to ensure maximum safety.
