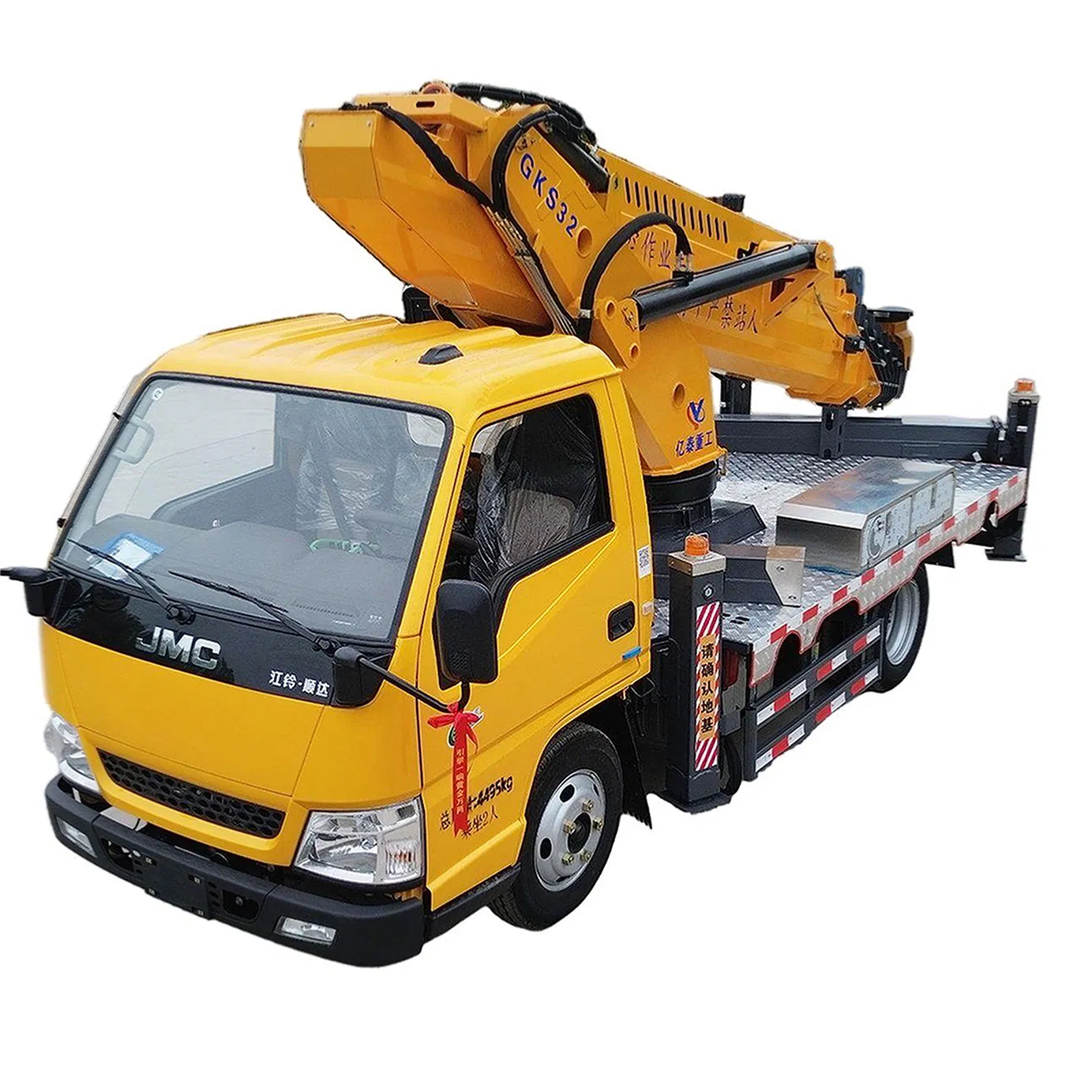

Self-Propelled Hybrid Aerial Work Platform for Outdoor Versatility 32m Lifting Height Small Cranes for Sale

Customization: Available
After-sales Service: Video Technical Support, Free Spare Parts
Type: S

Product Description

Basic Information

Model NO.
JLGKS32
Certification
ISO9000, CCC, CE
Emission Standard
Euro 2
Horsepower
150-250hp
Payload
200kgs
Fuel
Diesel
Transmission
Automatic
Drive Wheel
4x2
Condition
New
Max. Work Height
32m

Product Description

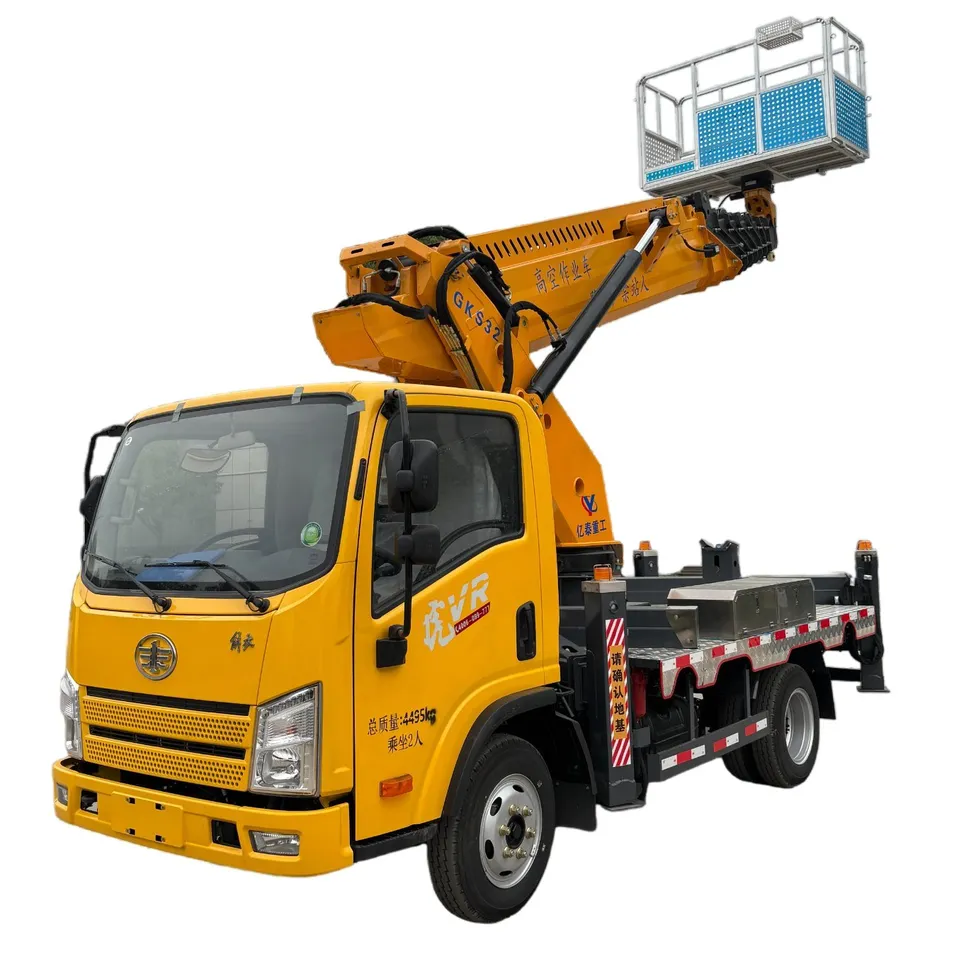

Truck Mounted Aerial Work Vehicle 32M

The JFGKS32 model aerial work vehicle adopts a robust chassis and is equipped with a 150 horsepower full diesel engine, providing a lifting capacity of up to 32 meters. It features a 200 kilogram suspension basket, air brakes, and double hydraulic support legs. The vehicle offers three operation modes: remote control, electronic control, and manual, ensuring high stability and versatility for high-altitude construction and decoration tasks.

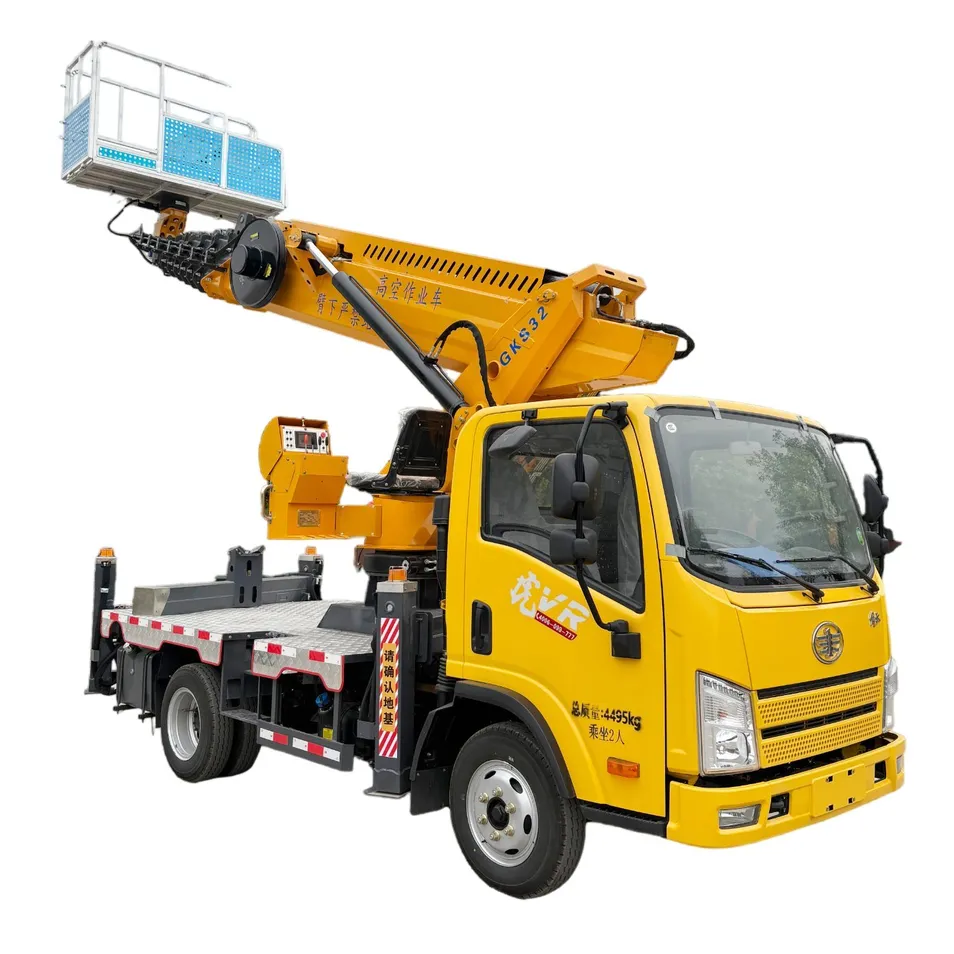

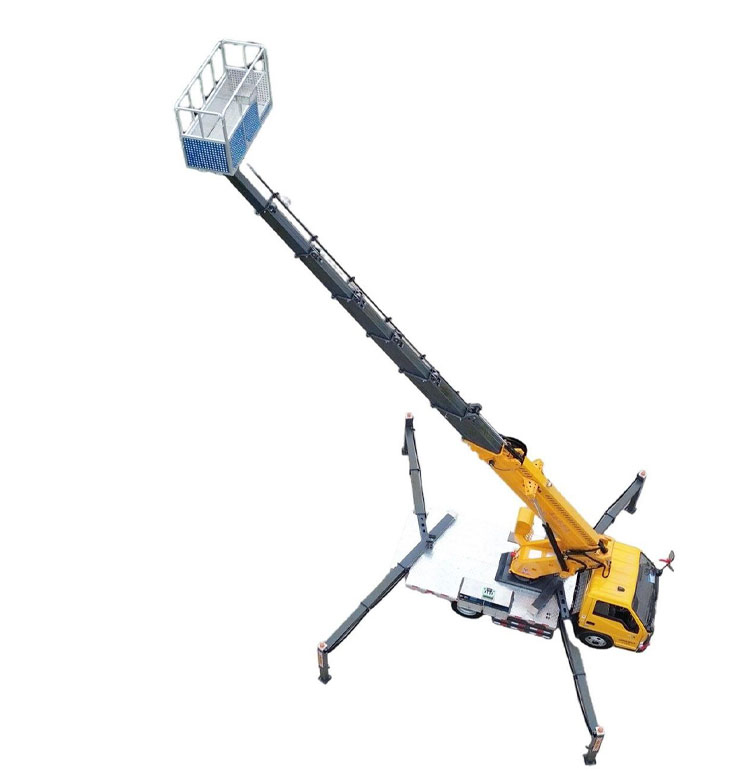

Aerial Work Platform 32m
Technical Specifications Display

Technical Specifications

  • Total Length: 5998mm | Overall Width: 2050mm
  • Max. Work Height: 32m | Max. Work Radius: 16m
  • Wheelbase: 2800mm | Actual Weight: 5744kg
  • Transverse Span: 6200mm | Longitudinal Span: 5700mm

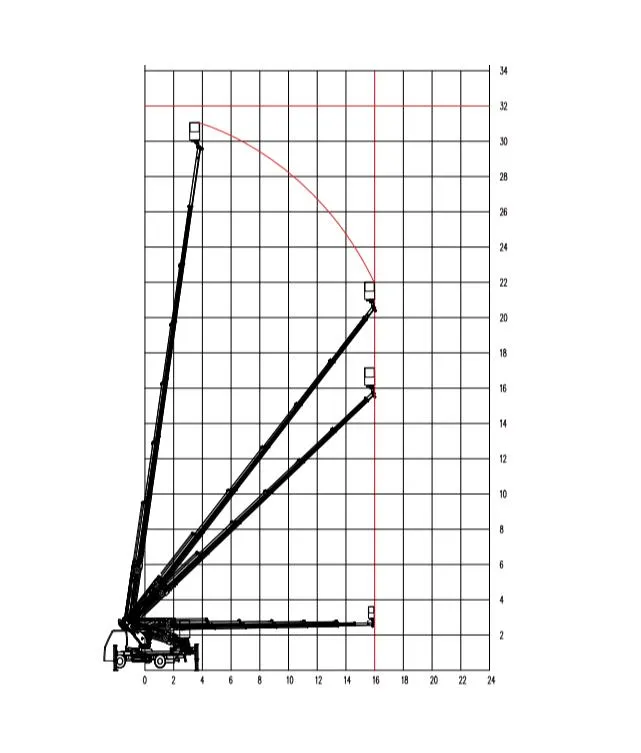

Work Radius Diagram

Key Configurations

Engine
Full diesel engine Q23-13260(150HP)
Boom Type
8-Stage Drum-Shaped Polygonal Section
Rotator
21 inch disc worm gear, 360° rotation
Leveling System
Hydraulic Auto-Leveling System
Safety System
Upper/Lower Interlock & E-Stop
Tires
650mm Reinforced Steel-Belted Radial

Production Excellence

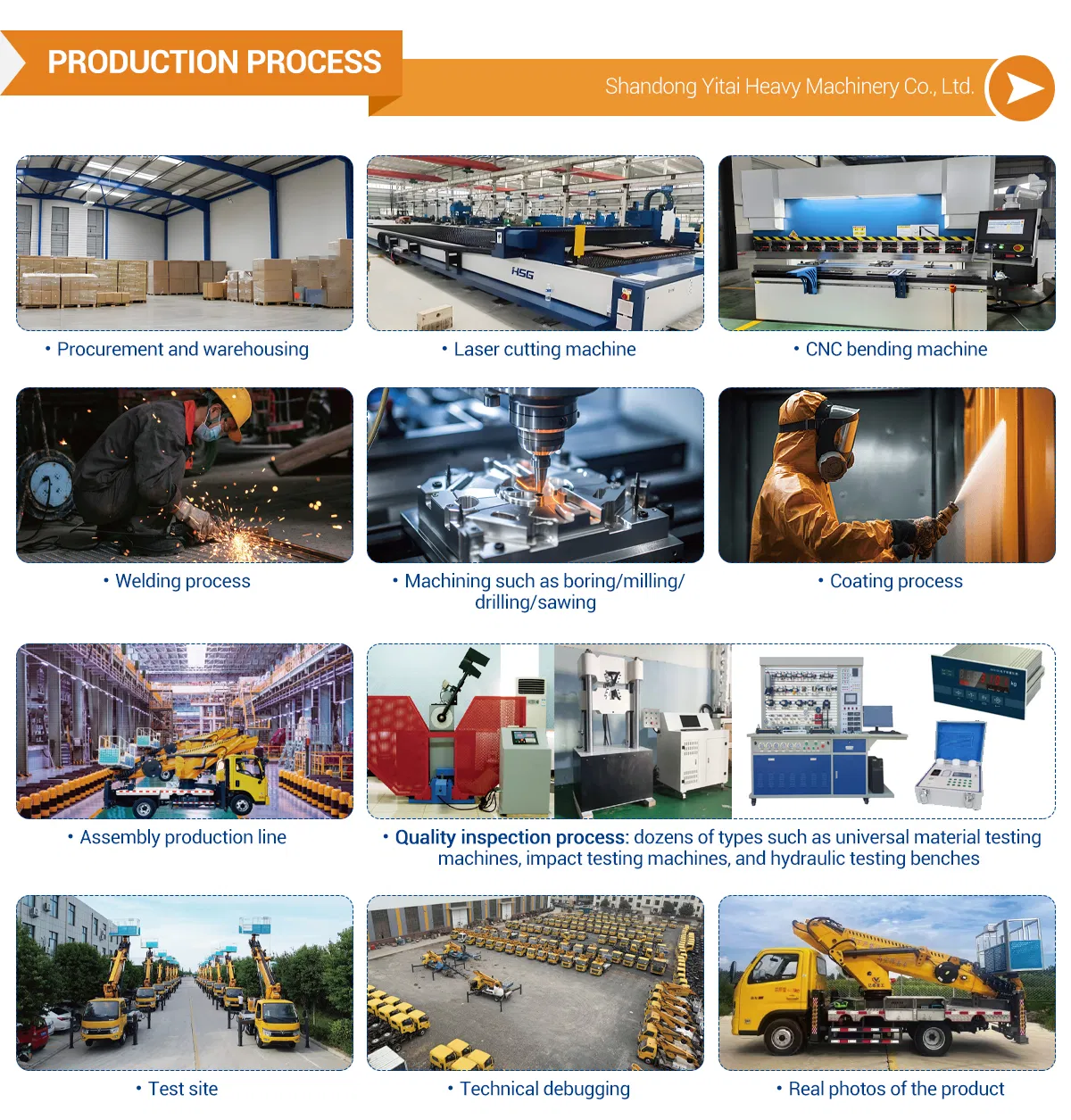

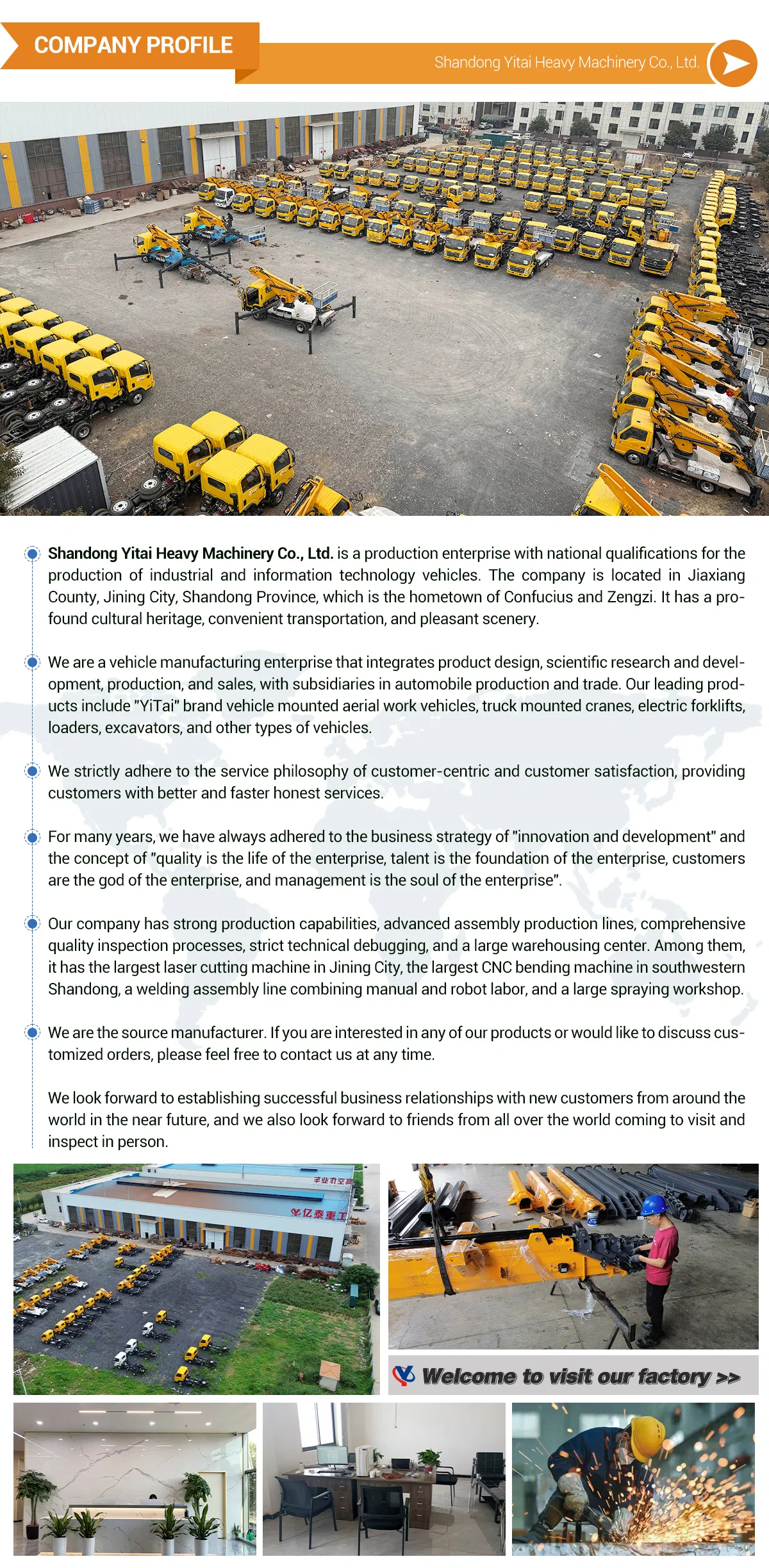

Our facility features advanced assembly lines, comprehensive quality inspection processes, and professional technical debugging. We utilize large-scale laser cutting machines and CNC bending equipment to ensure precision in every component.

Production Line
Manufacturing Process
Warehouse Display
Quality Check
Shipping Preparation

Frequently Asked Questions

What is the maximum working height available?
We offer a range of working heights; any height below 60 meters can be customized to suit your specific project needs.
Are the platforms compliant with safety standards?
Yes, all devices come with built-in safety features including tilt sensors, overload protection, and emergency descent systems.
Can the equipment operate on uneven terrain?
Our telescopic arm lifts are designed with a specialized drive system and swing shaft, capable of operating on slopes up to 24°.
What is the maximum load capacity for the platform?
The standard maximum carrying capacity is 200 kilograms, with customization options available for personalized needs.
How often is maintenance required?
New vehicles should have the fuel tank and filter cleaned after the first 200 hours. Normally, cleaning and oil replacement should occur every six months.
How do I choose between electric and diesel power?
Electric models offer zero emissions for indoor use, while diesel/hybrid models provide higher torque and extended runtime for outdoor rough terrain.
