200kg 300kg capacity one person trailed towable aerial man lifts
GERMANY ALKO AXLES MEET EU TRAFFIC STANDARD ROAD+ALKO BRAKES SYSTEM

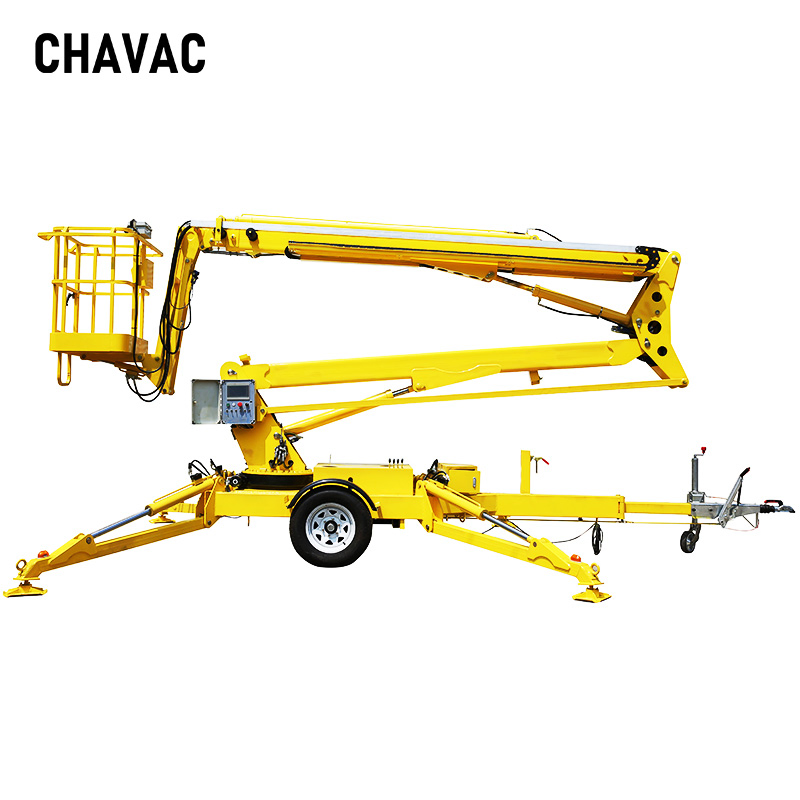

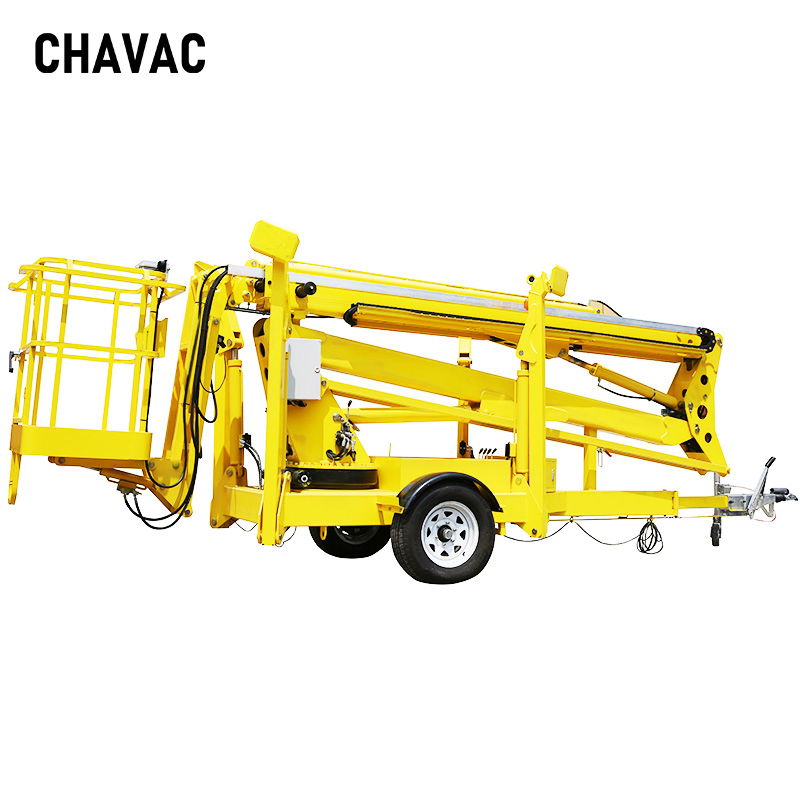

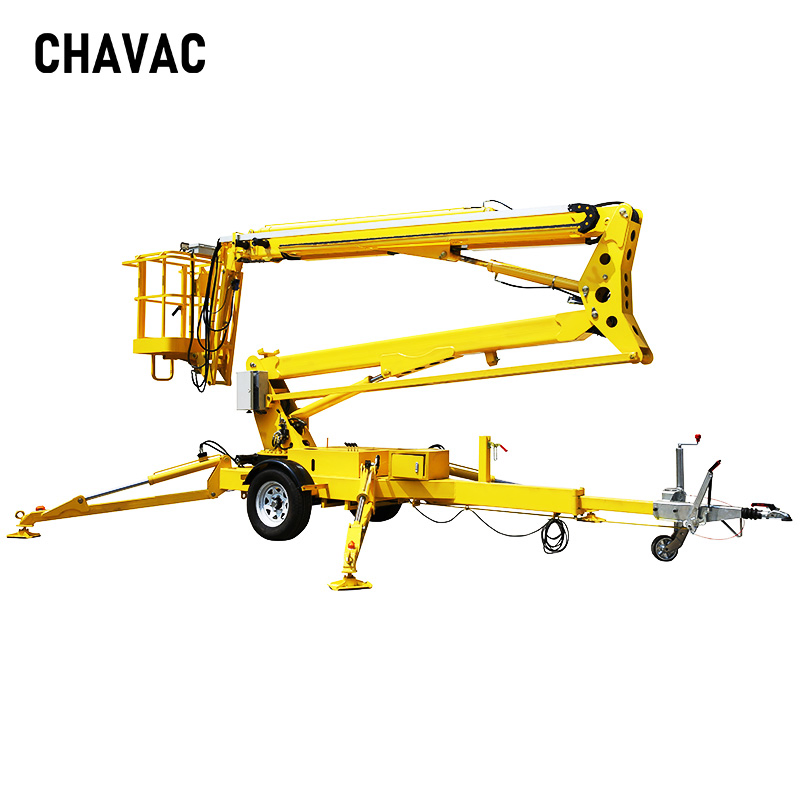

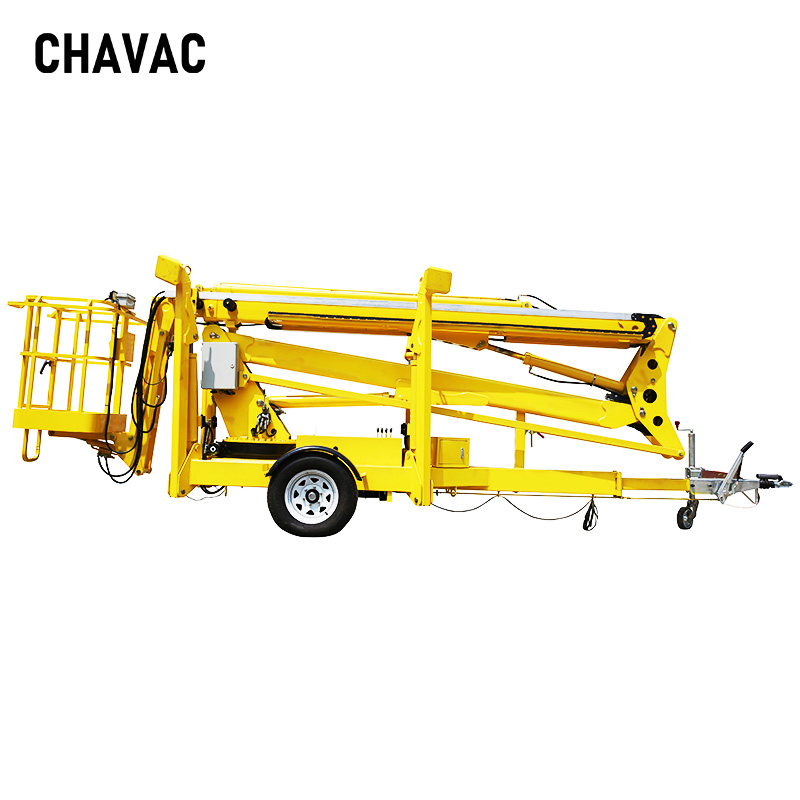

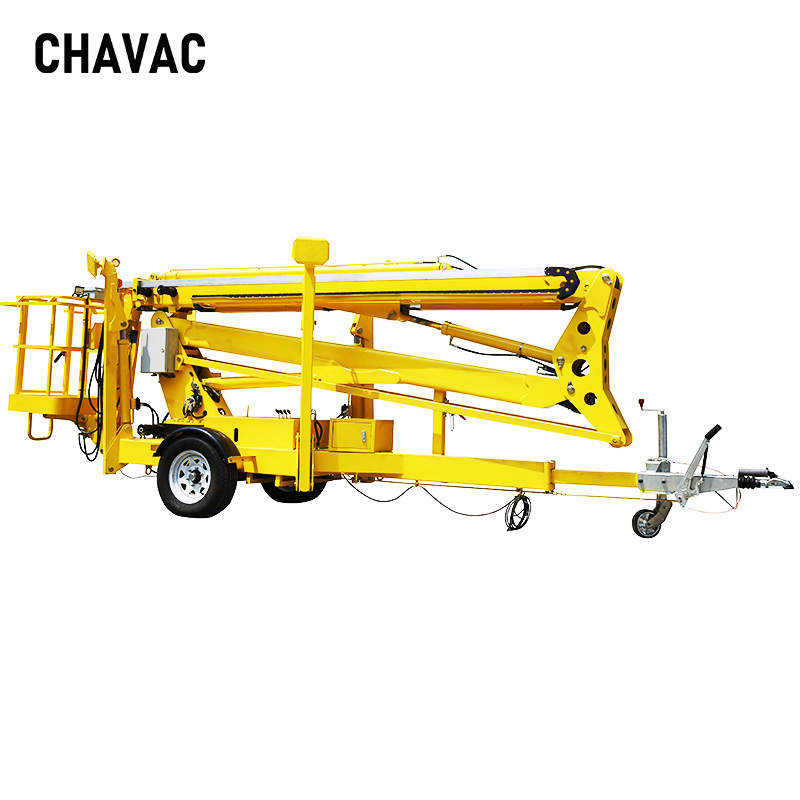

Trailing Cherry Picker articulated boom lift is one of the most ideal aerial lift platforms for both indoors and outdoors maintenance work. It can rotate 360 degrees in the air and the platform height is from 6m to 16m. It can be used in a tight space because of its compact structure. It is very easy and convenient to be trailed by car or tractor anywhere. It is widely used in neighborhood units, road light maintenance, factories high place maintenance, construction sites, and so on.
Four high-strength hydraulic automatic support legs will jack up the whole body of the towable boom lift when working, which will guarantee the great stability of the whole machine. Considering the four high-strength support legs, it has a nickname called "Spider Boom Lift".
| Model Type | TBL-10A | TBL-12A | TBL-14A | TBL-16A | TBL-18A | TBL-20A |
|---|---|---|---|---|---|---|
| Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
| Working height | 12M | 14M | 16M | 18M | 20M | 22M |
| Load capacity | 200KG | |||||
| Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
| Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 2800KG | 2800KG |
| Overall Size (L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
