Customization:	Available
Application:	Workshop Crane
Lift Mechanism:	Telescoping Lift

Send Inquiry

Product Description

i

Basic Specifications

Model NO.

AMWP3.6-6100

Carrying Capacity

Light Level

Moves

Self-propelled

Driven Type

DC

Max. Working Height

5.6m

Max. Platform Height

3.6m

Loading Capacity

227kg

Certification

CE, ISO 9001

Travel Speed (Stowed)

4km/h

Turning Radius (Inner)

0m

★

Product Description & Highlights

Telescopic Vertical Lift Usage: Widely used in high-altitude installation and maintenance in hotels, auditoriums, stadiums, large factories, workshops, warehouses, granaries, bus stations, train stations, airports, gas stations, overhead pipelines and other workplaces.

Electric lifting push rod replaces traditional hydraulic cylinder, "oil-free" for energy saving.
Equipped with brushless DC motor, the whole machine is maintenance-free.
No noise, zero emission, no pollution, and environmental protection.
Light structure with flexible movement for tight spaces.

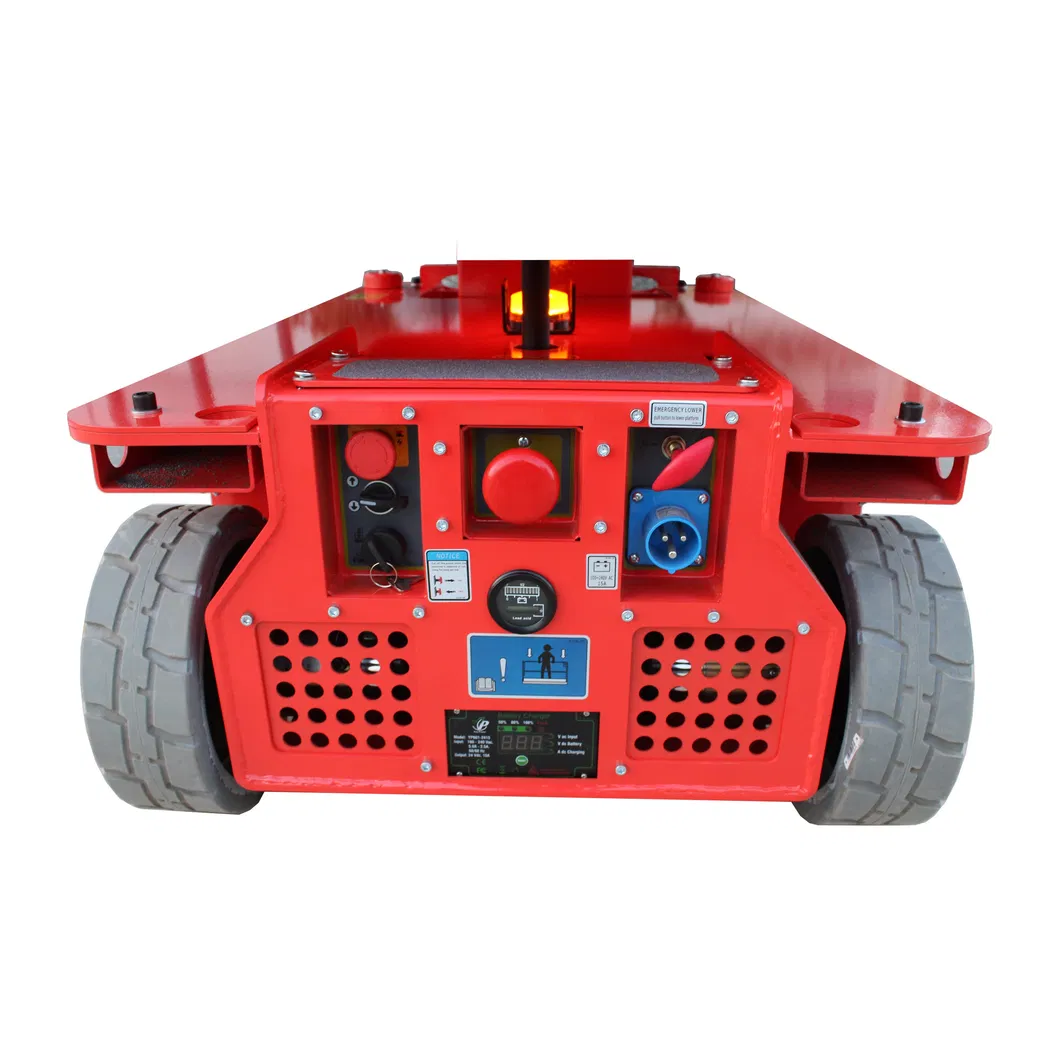

Telescopic Vertical Lift

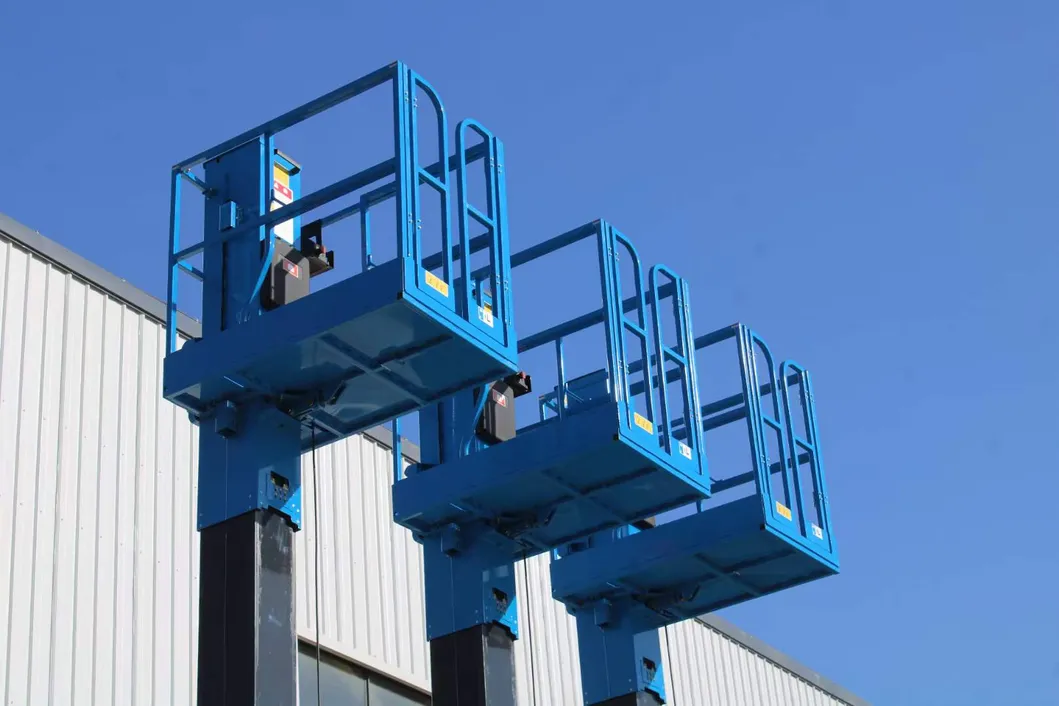

Electric Lift Push Rod

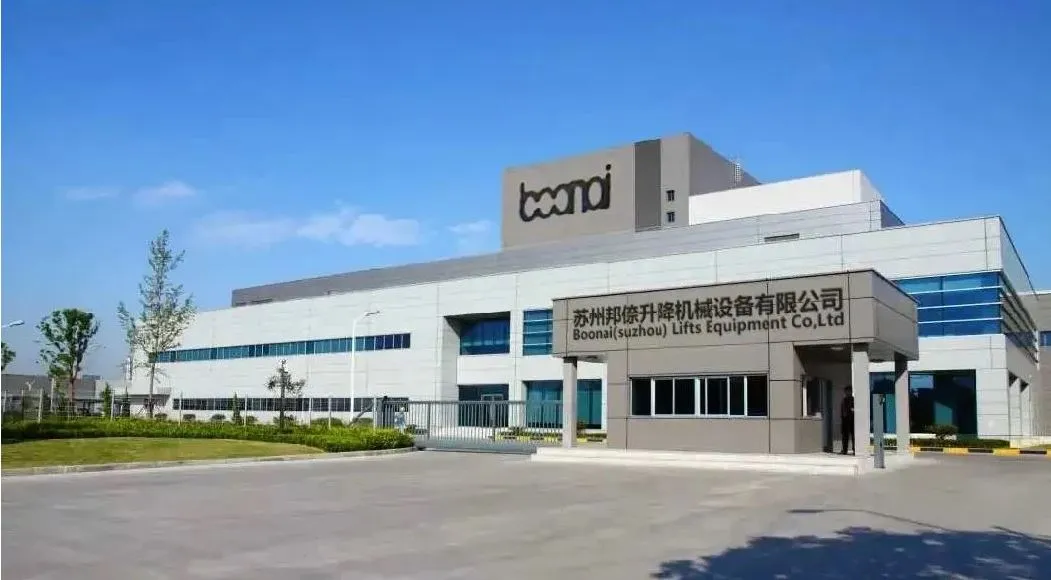

Vertical Lift Workshop

⚙

Technical Parameters

Max. Working Height	5.6m	Overall Length	1.36m
Max. Platform Height	3.6m	Overall Width	0.76m
Loading Capacity	227kg	Overall Height	1.7m
Ext. Platform Capacity	114kg	Platform Dimension (Extended)	1.8m × 0.70m
Travel Speed (Stowed)	4km/h	Inner Turning Radius	0m
Drive Motors	2 × 12VDC/0.5kW	Battery	2 × 12V/100Ah
Weight	810kg	Gradeability	25%

✔

Standard Configuration

Proportional controls

Automatic pothole protection

Drivable at full height

Non-marking tyre

Automatic brake system

Emergency lowering system

Emergency stop button

Onboard diagnostic system

📦

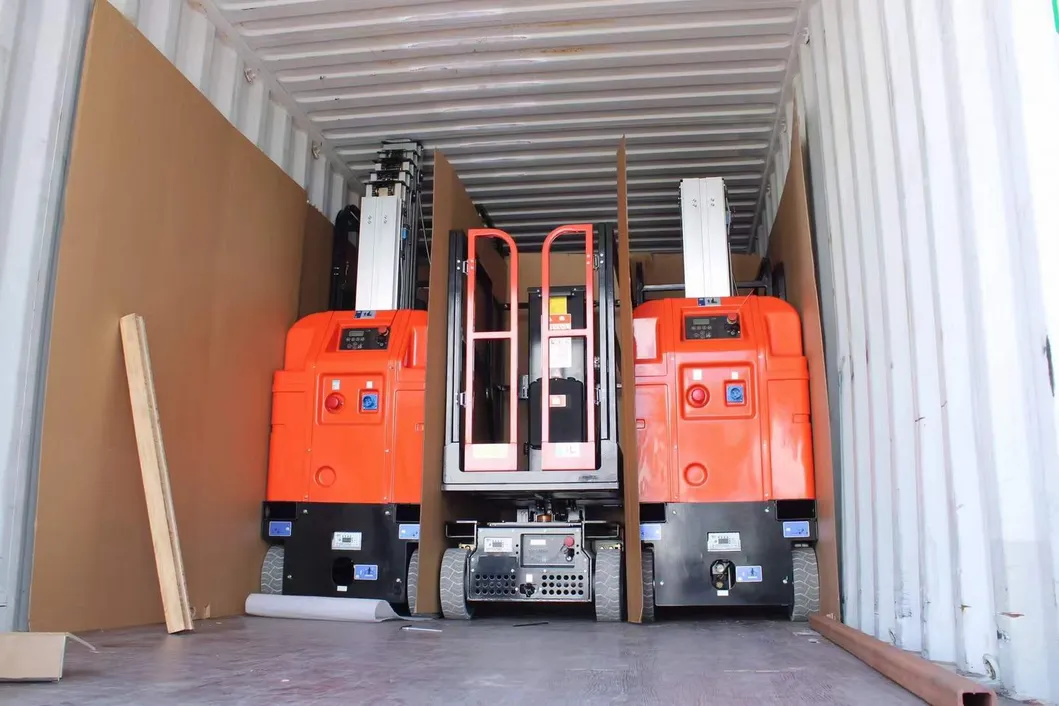

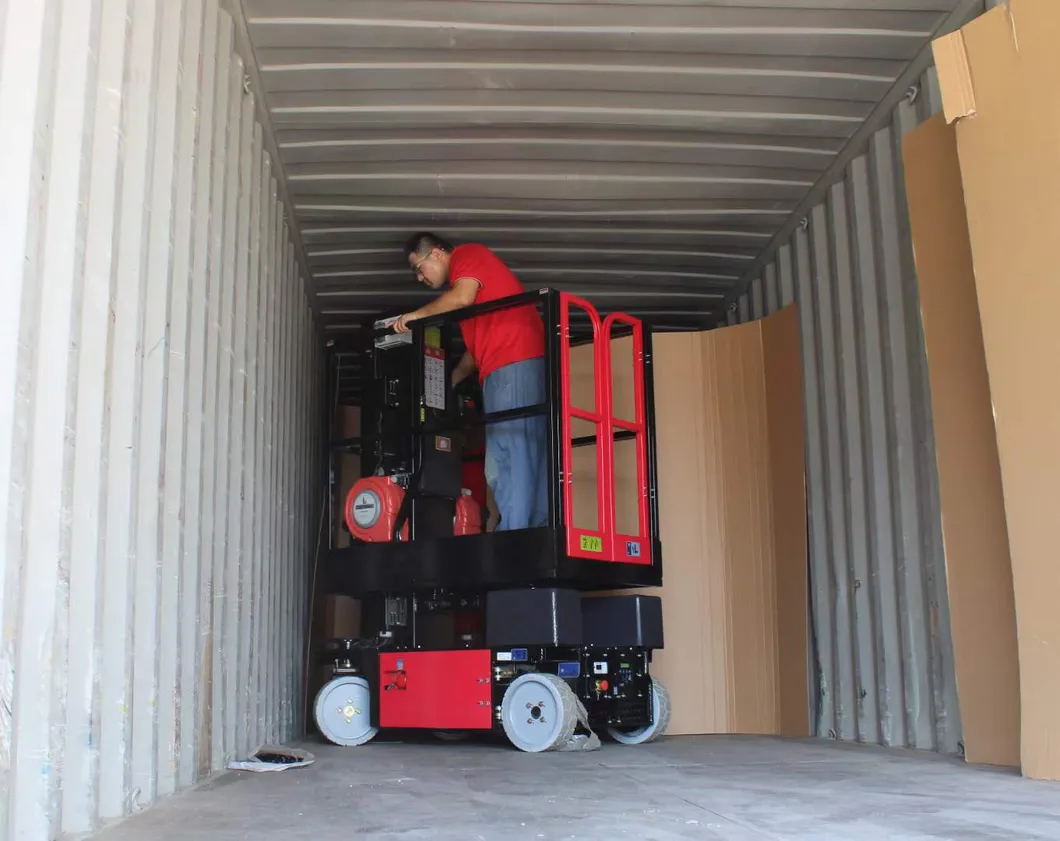

Packaging & Delivery

Package Size

146.00cm * 770.00cm * 180.00cm

Package Gross Weight

242.000kg

🛡

Warranty & Support

1. User-friendly English manual for machine using and maintenance.

2. One year warranty for whole machine without man-made fault.

3. Free parts replacement for non-human factor problems during warranty time.

4. 24-hours technical support via email or online communication.

Frequently Asked Questions

What is the maximum working height of this lift?

The AMWP3.6-6100 model offers a maximum working height of 5.6 meters.

Is the machine easy to move in narrow spaces?

Yes, it features an inner turning radius of 0m and a compact width of 0.76m, making it extremely flexible for tight indoor environments.

What makes this lift "environmentally friendly"?

It uses an electric lifting push rod instead of a hydraulic cylinder, ensuring an "oil-free" operation with zero emissions and no noise pollution.

What is the loading capacity of the platform?

The main platform has a loading capacity of 227kg, and the extended platform can carry up to 114kg.

What kind of maintenance does the motor require?

The machine is equipped with a brushless DC motor, which is designed to be maintenance-free for its entire lifespan.

Does the lift include safety features for emergency situations?

Yes, it comes standard with an emergency lowering system, emergency stop buttons, and an automatic brake system for maximum operator safety.
