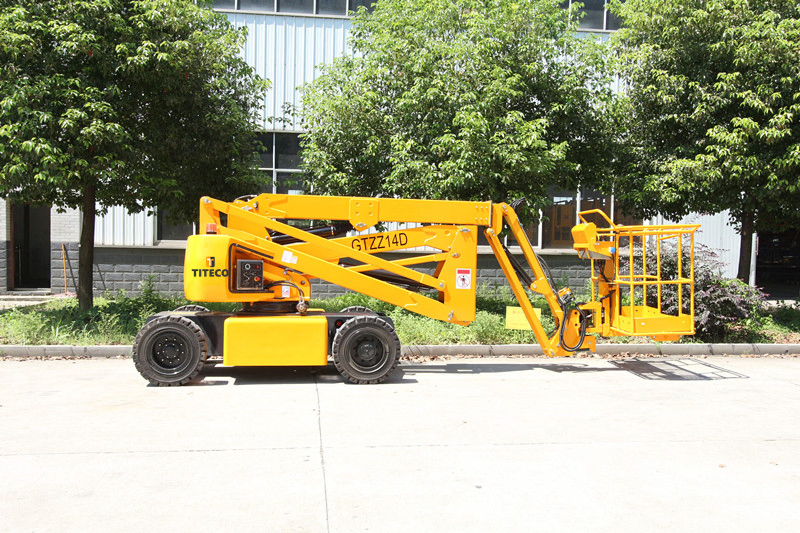

| Model | GTZZ10D | GTZZ12D | GTZZ14D | GTZZ16D | GTZZ18D | GTZZ20D |
|---|---|---|---|---|---|---|
| Max. Working Height(m) | 12 | 14 | 16.05 | 17.8 | 20 | 21.9 |
| Max. Platform Height(m) | 10 | 12 | 14.05 | 15.8 | 18 | 19.9 |
| Max. Horizontal Reach(m) | 5.8 | 8 | 8.1 | 10 | 10.8 | 12.3 |
| Max. Up&Over Clearance(m) | 4.78 | 5 | 7.6 | 7.6 | 9.2 | 9.2 |
| Platform Dimension(m) | 1.1×0.65 | 1.1×0.65 | 1.53×0.76 | 1.53×0.76 | 1.53×0.76 | 1.53×0.76 |
| Max. Lift Capacity(kg) | 200 | 200 | 230 | 230 | 230 | 230 |
| Tire Type | 0.59×1.19 | 0.59×1.19 | 28×9×15 | 28×9×15 | 33×12×20 | 33×12×20 |

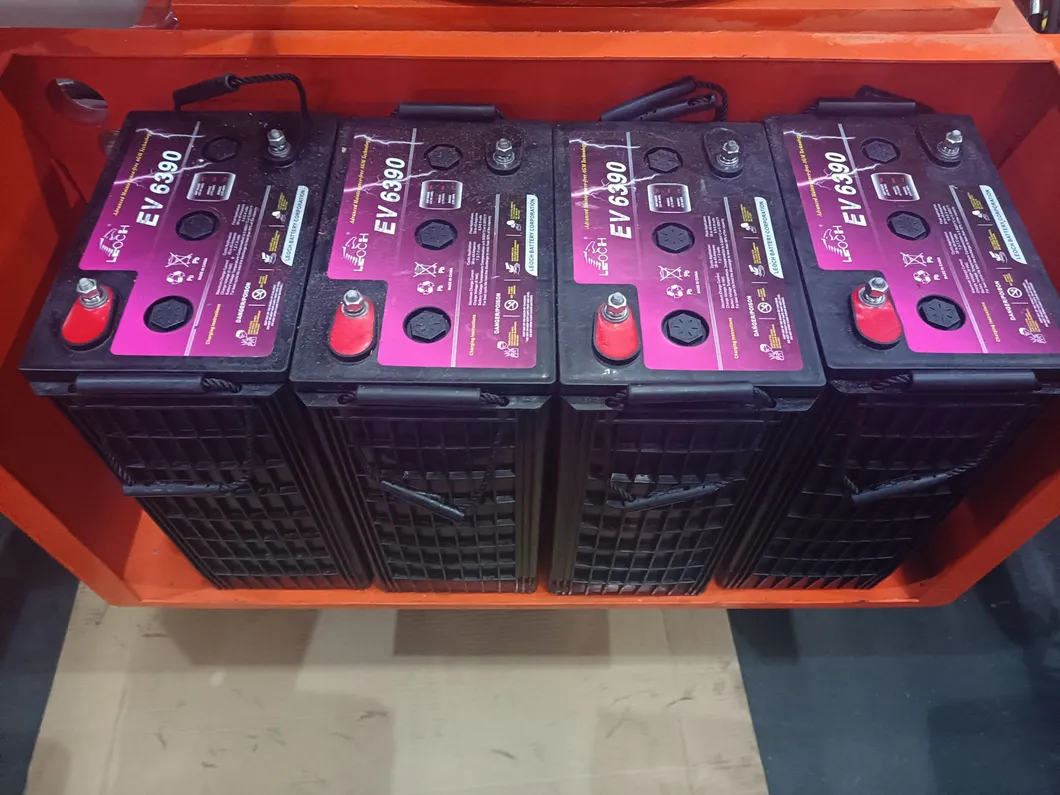

| Battery | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah |
| Weight(kg) | 4800 | 5500 | 6270 | 6270 | 8080 | 8200 |

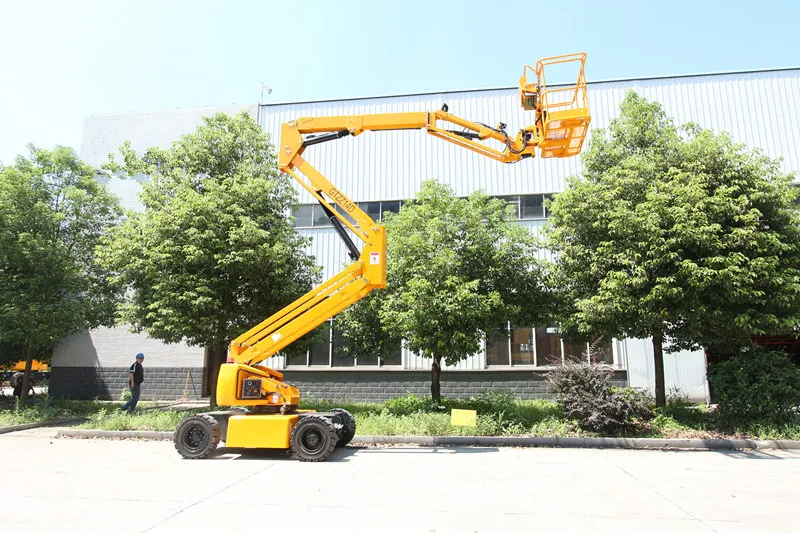

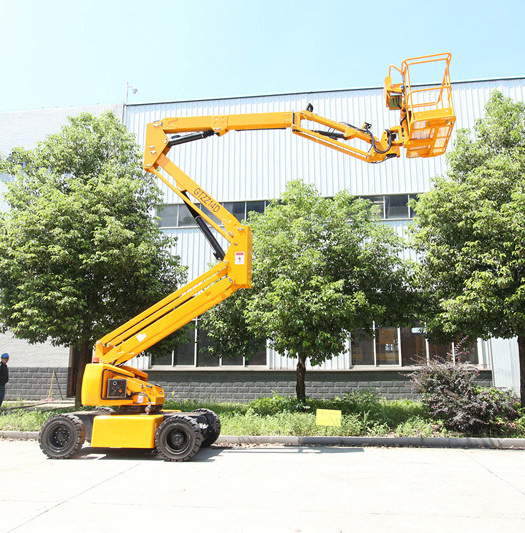

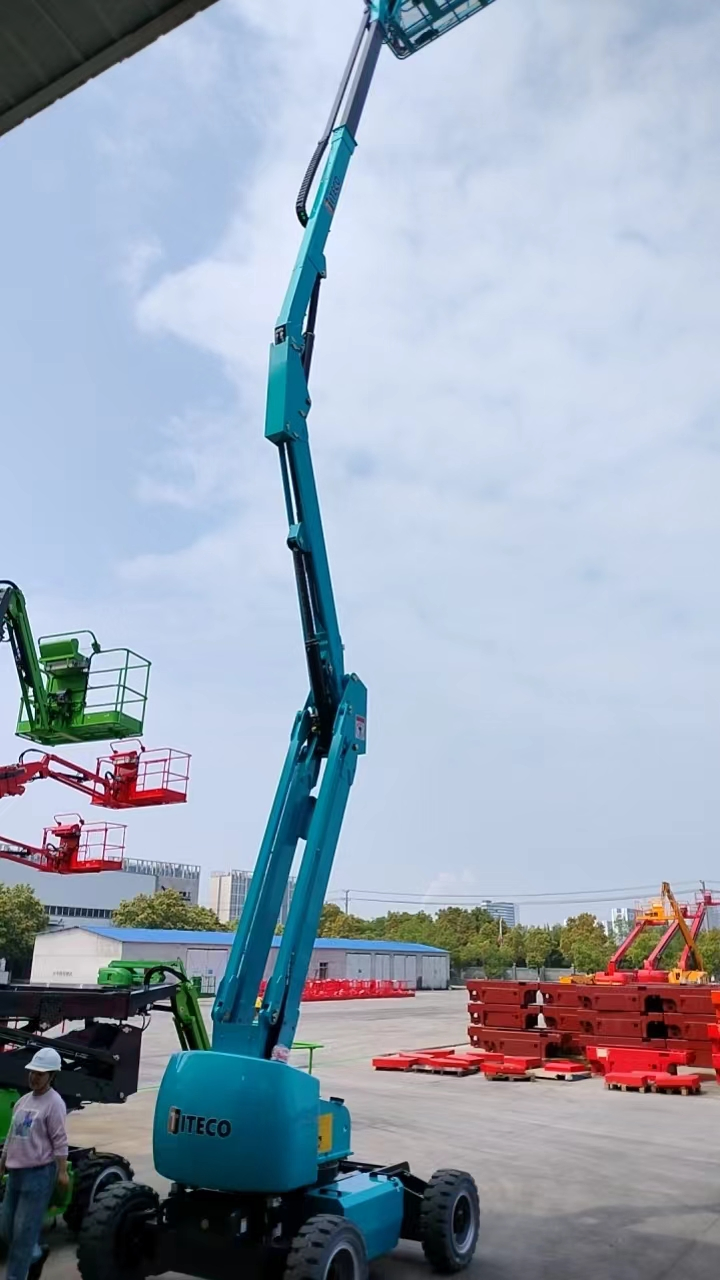

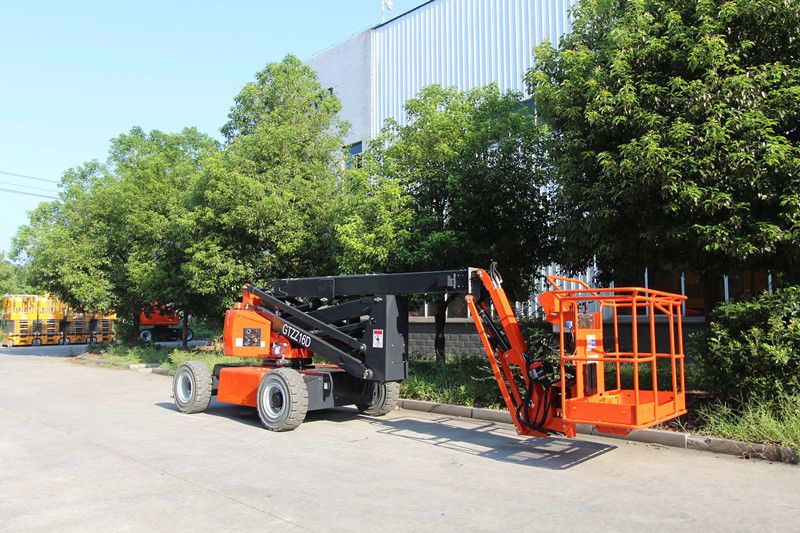

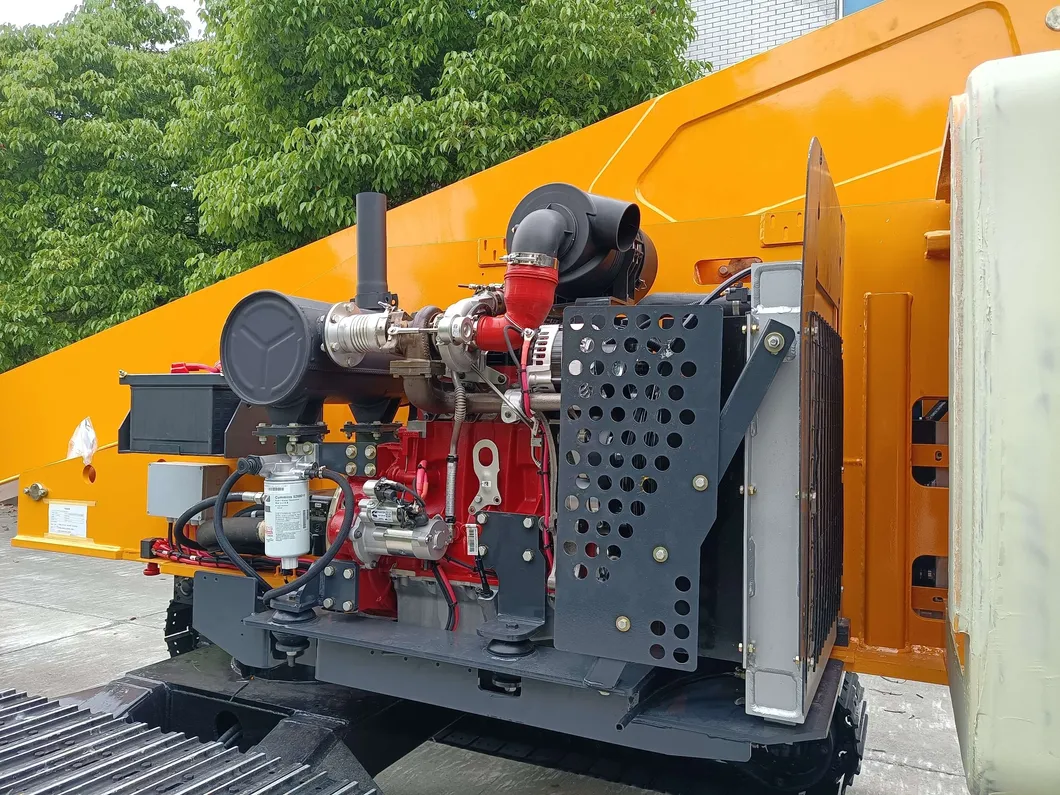

We provide all Boom Lifts include both diesel and electric driven models, with the primary feature being the highly flexible and convenient. Their articulation and rotation in particular allows this type of work platform to out-maneuver various obstacles and work at several points without the need to reposition the base.

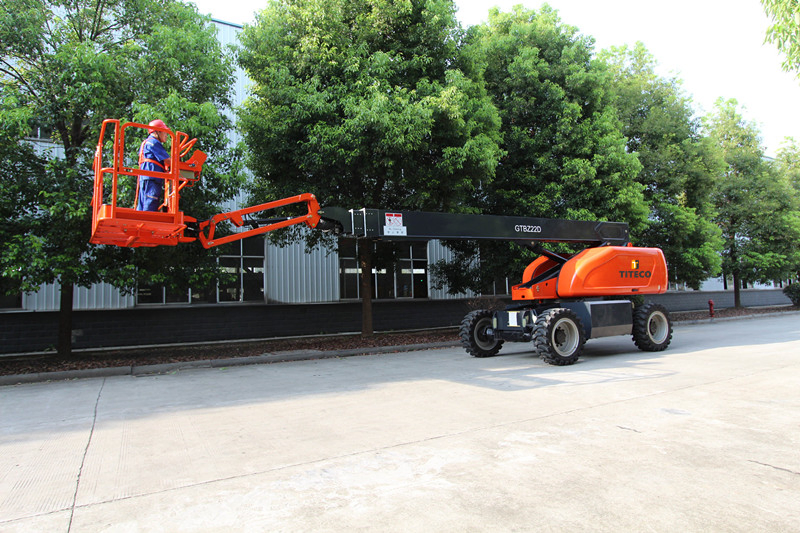

With a wide operating range, high efficiency and large load capacity, numerous technical innovations have been incorporated into the design so that the product boasts high-level safety, reliability and operability. Both telescopic and articulated articulating Boom Lifts are widely used for plant installation and maintenance, venue construction and maintenance, construction engineering, large-scale warehousing, aviation and aerospace industry applications, airports and harbors, urban utilities and gardening, curtain wall engineering and more.
