Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
📦
Packaging & Delivery
Package Size
220.00cm * 120.00cm * 200.00cm
Transport Package
Wooden Case
📊
Product Parameters
| Model |
Platform size (mm) |
Elevated height (m) |
Load (kg) |
External dimensions (mm) |
Weight (KG) |
| SJYZ0.2-4 | 1300*680 | 4 | 230 | 1420*700*1880 | 860 |
| SJYZ0.2-6 | 1670*740 | 6 | 230 | 1800*760*2000 | 1200 |
| SJYZ0.5-6 | 2270*1120 | 6 | 500 | 2350*1150*2260 | 2050 |
| SJYZ0.5-8 | 2270*1120 | 8 | 500 | 2350*1150*2380 | 2250 |
| SJYZ0.3-10 | 2270*1120 | 10 | 350 | 2350*1150*2500 | 2550 |
| SJYZ0.3-12 | 2270*1120 | 12 | 350 | 2350*1150*2650 | 2960 |
| SJYZ0.3-14 | 2630*1120 | 14 | 250 | 2750*1240*2650 | 3300 |
⚙
Product Configuration
Proportional control
Automatic braking system
Buzzer & Horn

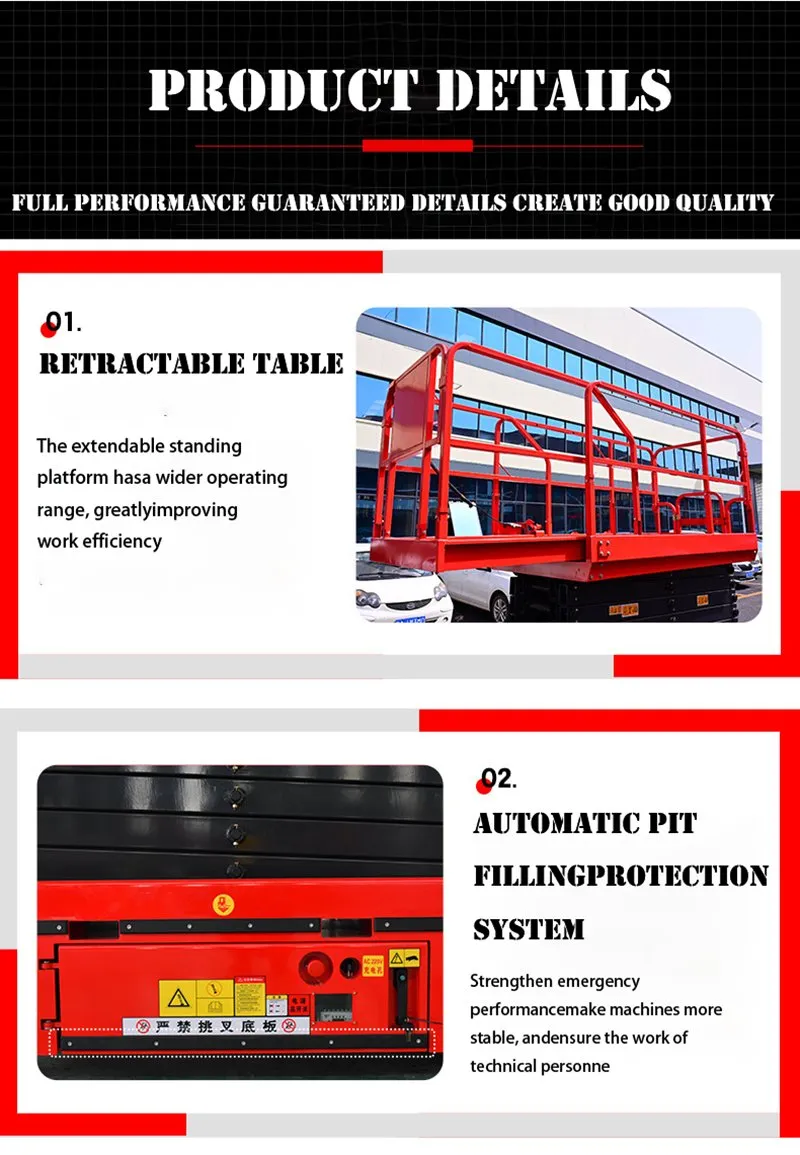

Extension platform
Automatic pit protection
Emergency descent system

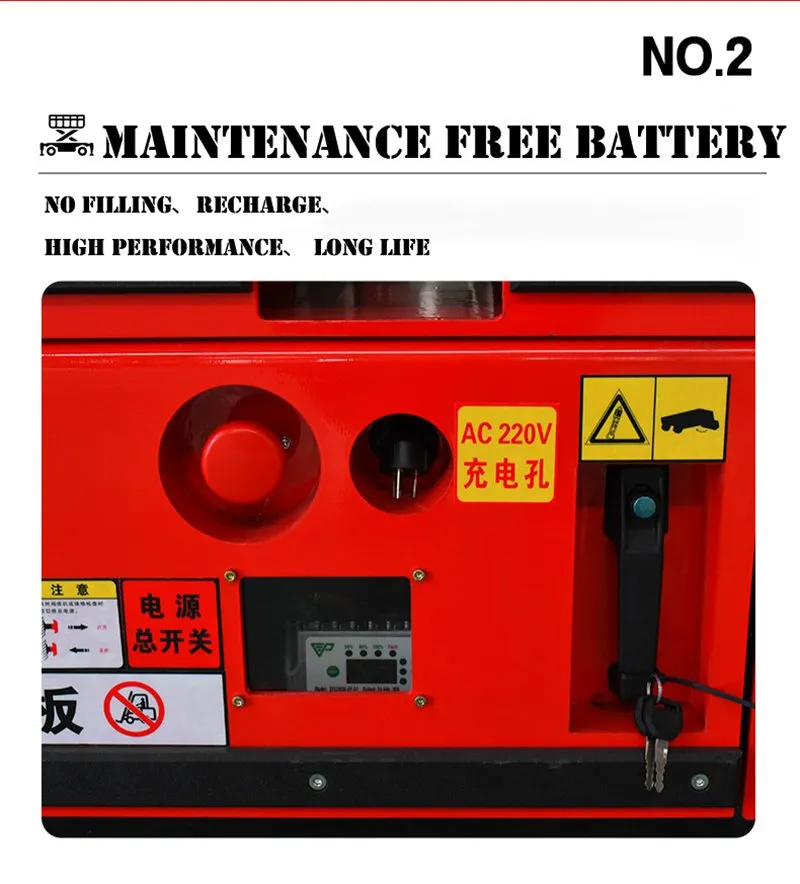

Charging protection system
Platform self-locking door
Emergency stop button
Fault Diagnosis System
Seamless tire
Tilt protection system
Hydraulic drive
Safety maintenance support rod
Folding fence
❓
Frequently Asked Questions
What is the maximum working height of this scissor lift series?
The SJYZ series offers a variety of models with elevated heights ranging from 4 meters up to 14 meters to suit different aerial work requirements.
What safety features are integrated into the platform?
Safety is a priority; it includes an automatic braking system, emergency descent system, tilt protection, oil pipe explosion-proof system, and an emergency stop button.
Can the platform be extended for a larger workspace?
Yes, the models feature an extension platform of 0.9m, allowing operators to reach over obstacles or expand their working area.

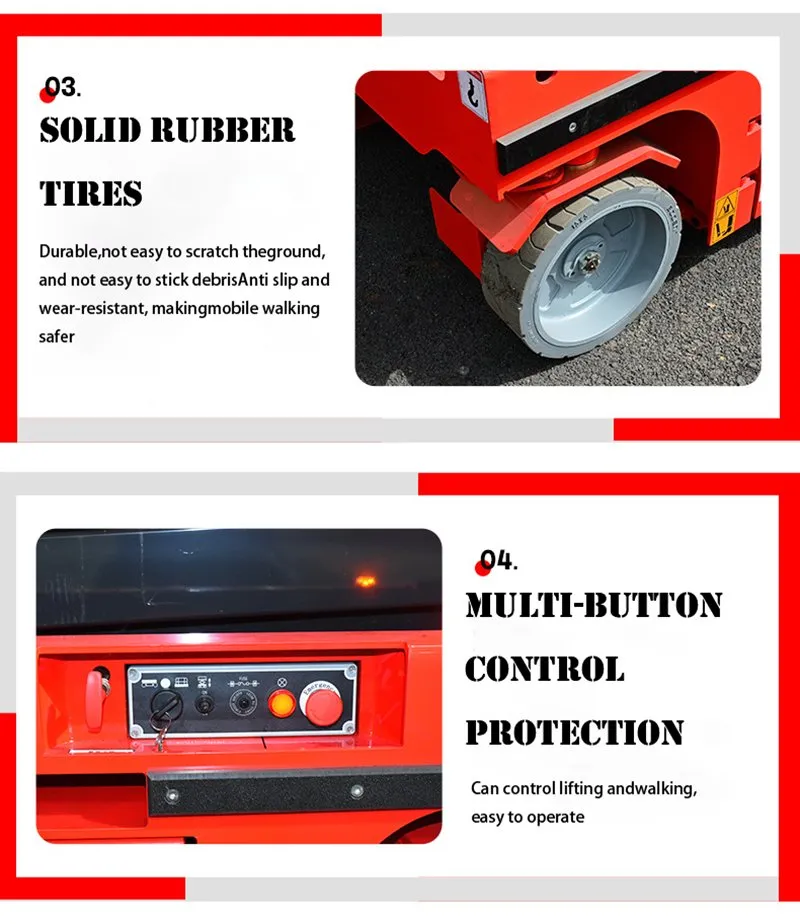

What type of tires are used on these lifts?
The equipment is fitted with seamless tires, making them ideal for indoor use in warehouses or workshops without leaving marks on the floor.
What certifications do these scissor lifts hold?
Our self-propelled scissor lifts are fully compliant with international safety standards and hold both CE and ISO 9001 certifications.
How is the equipment driven and moved?
The SJYZ series utilizes a DC hydraulic drive system, supporting full-range walking and intelligent proportional control for smooth movement.

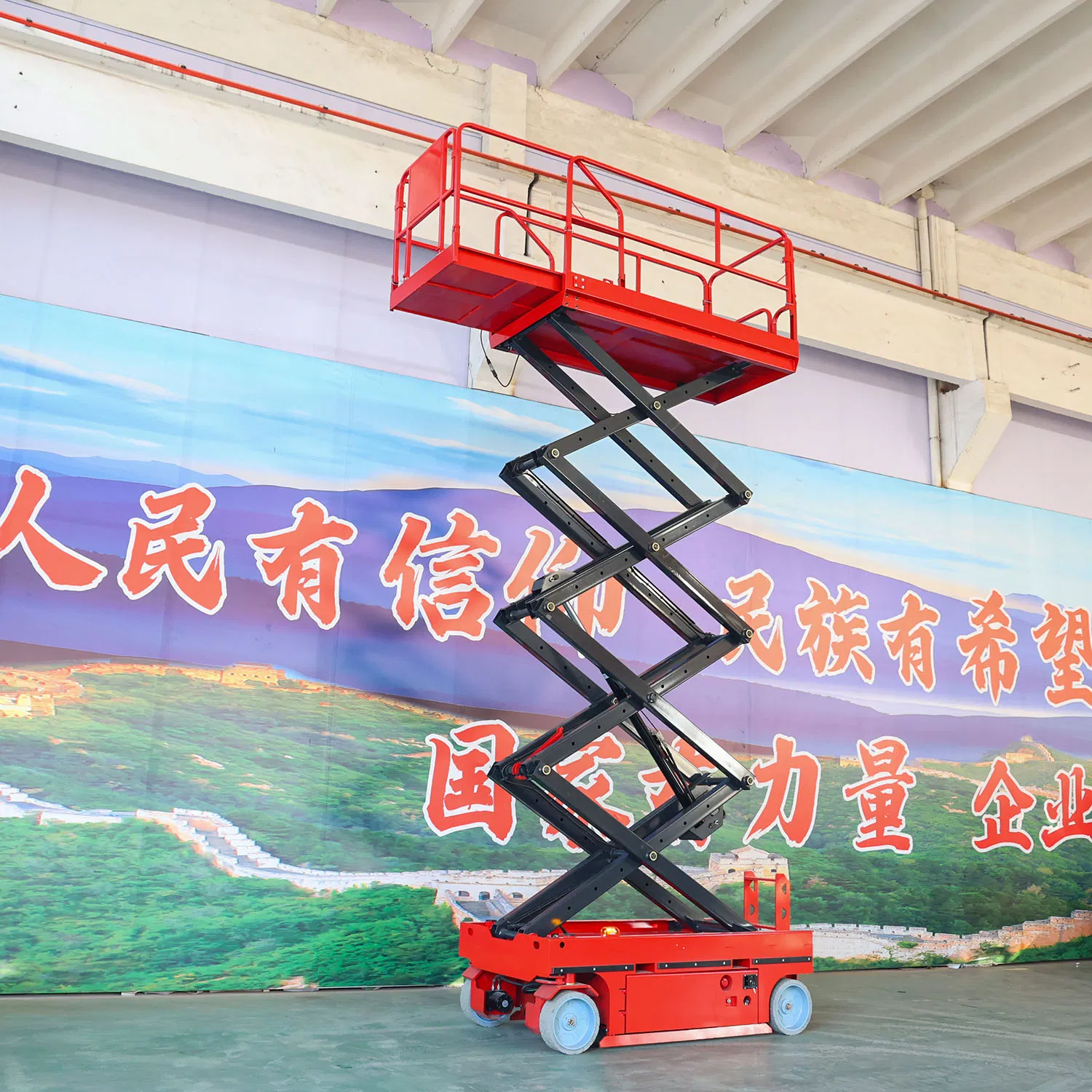

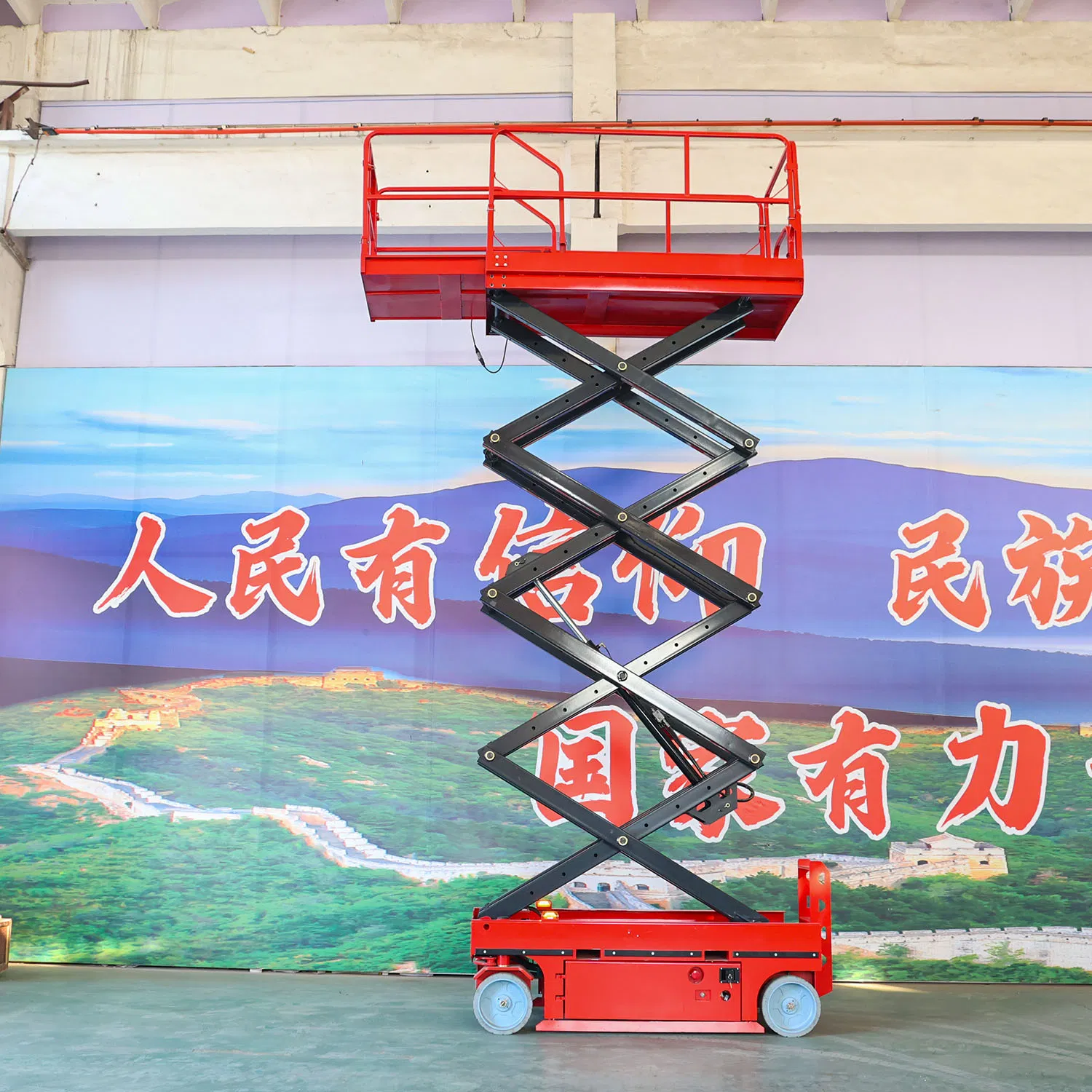

Scissor hydraulic intelligent electric lifting platform ladder aerial work platform car self-propelled lift
