Basic Information
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Swivel
360 Degree Rotation

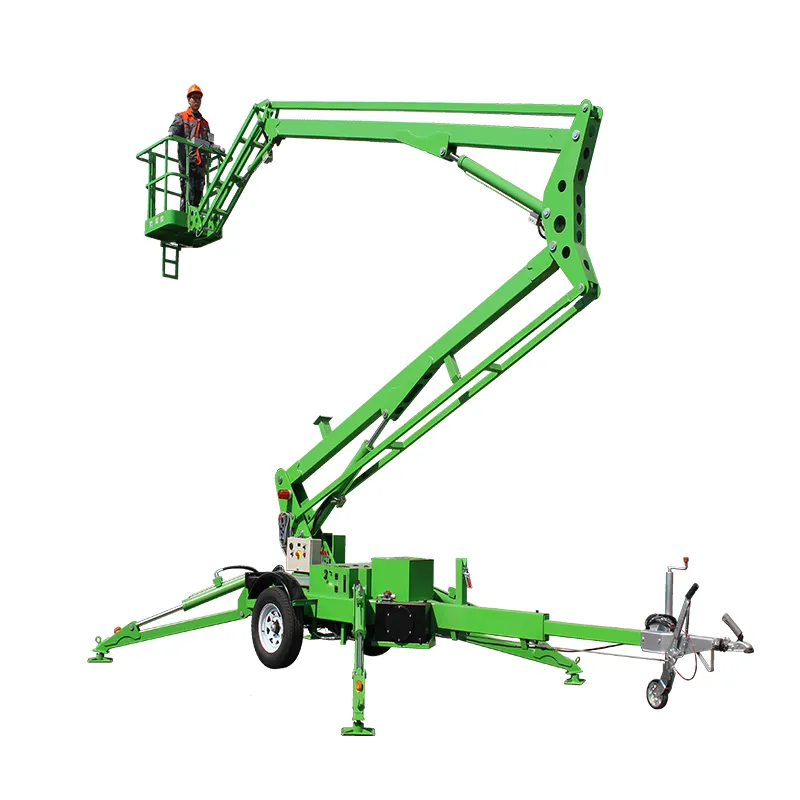

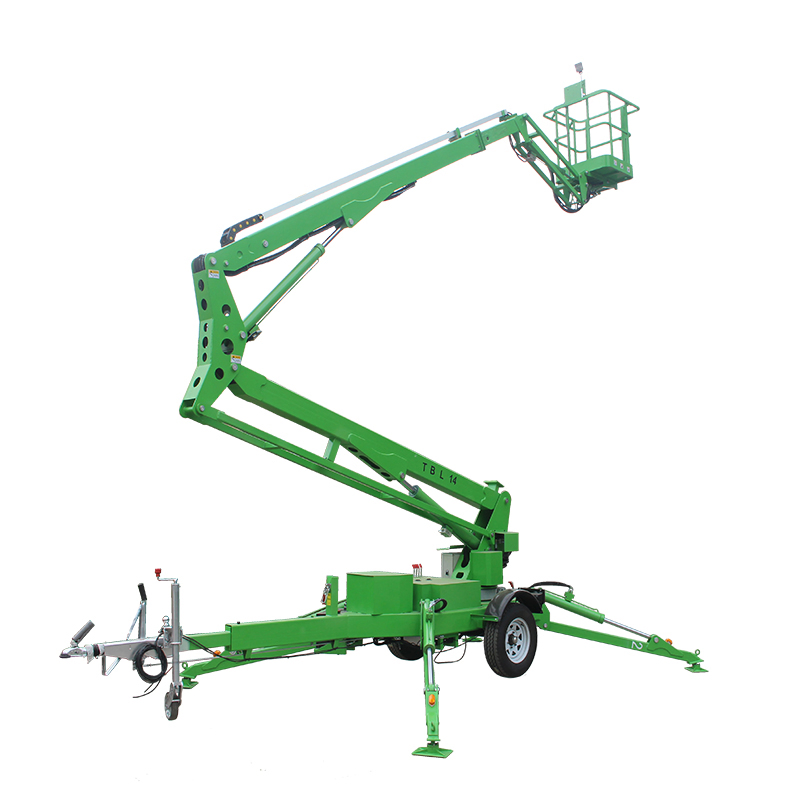

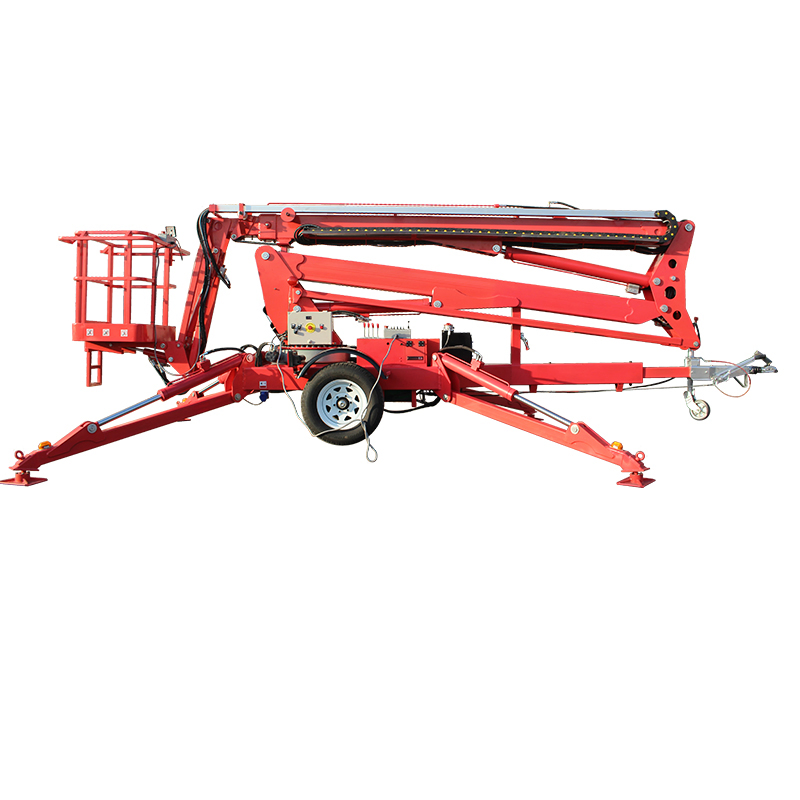

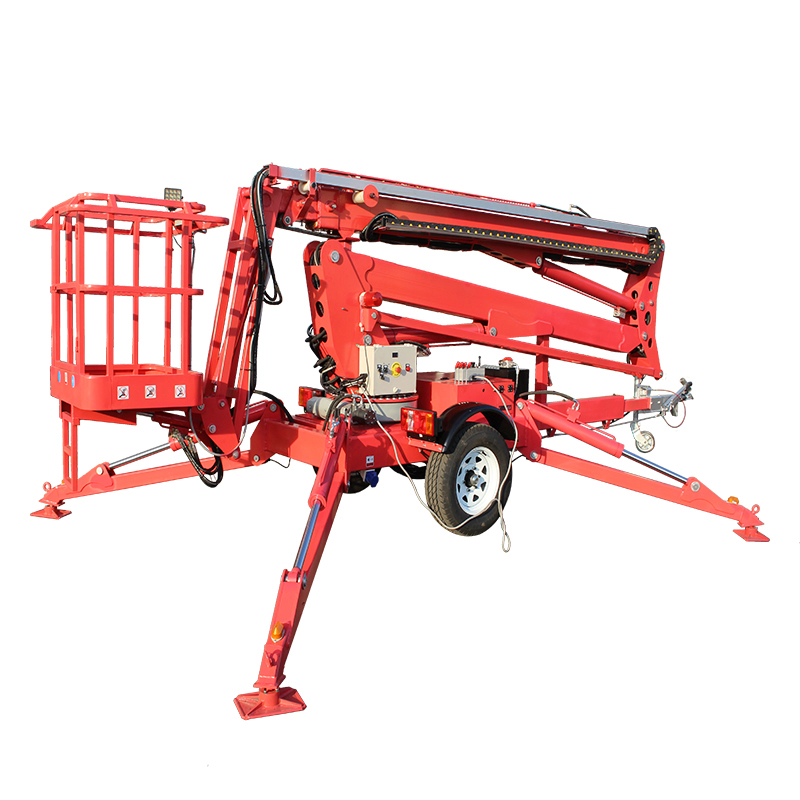

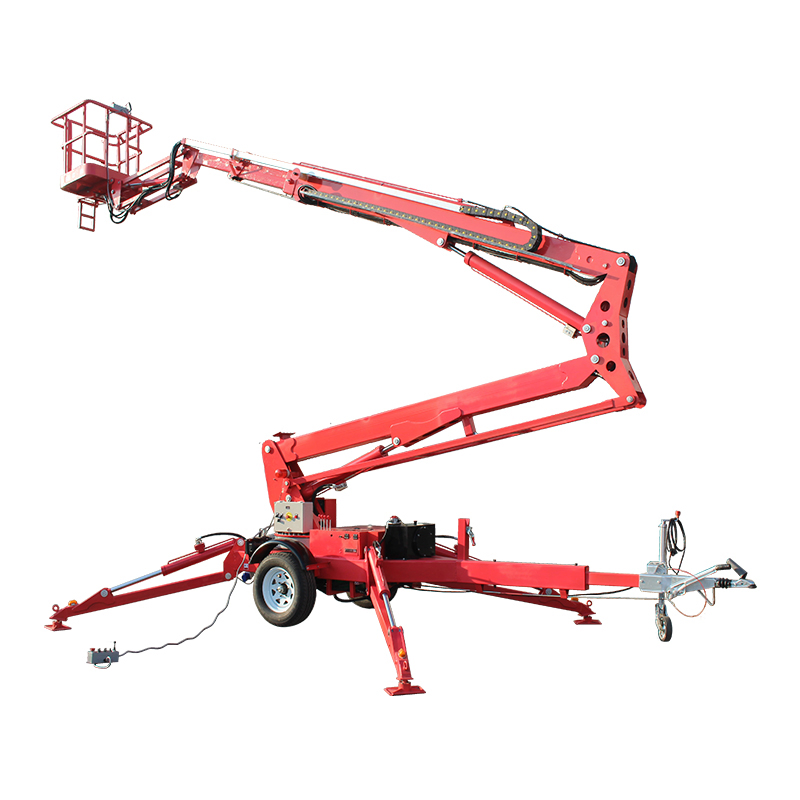

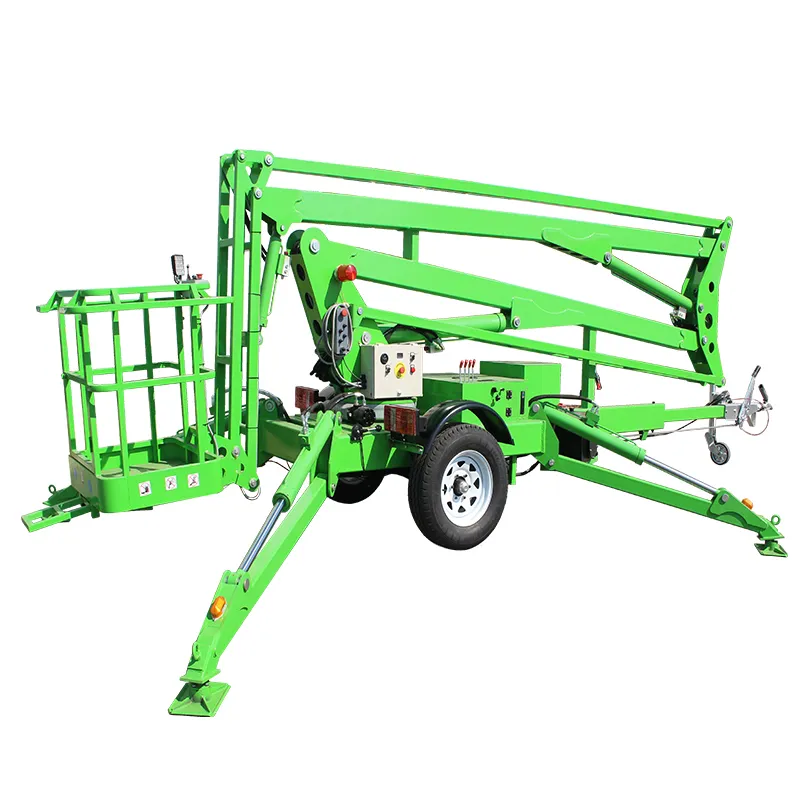

Towable Boom Lift Overview
- Germany ALKO brand brakes with high quality
- Switzerland Bucher brand DC pump station
- Japan Honda brand Gasoline pump station

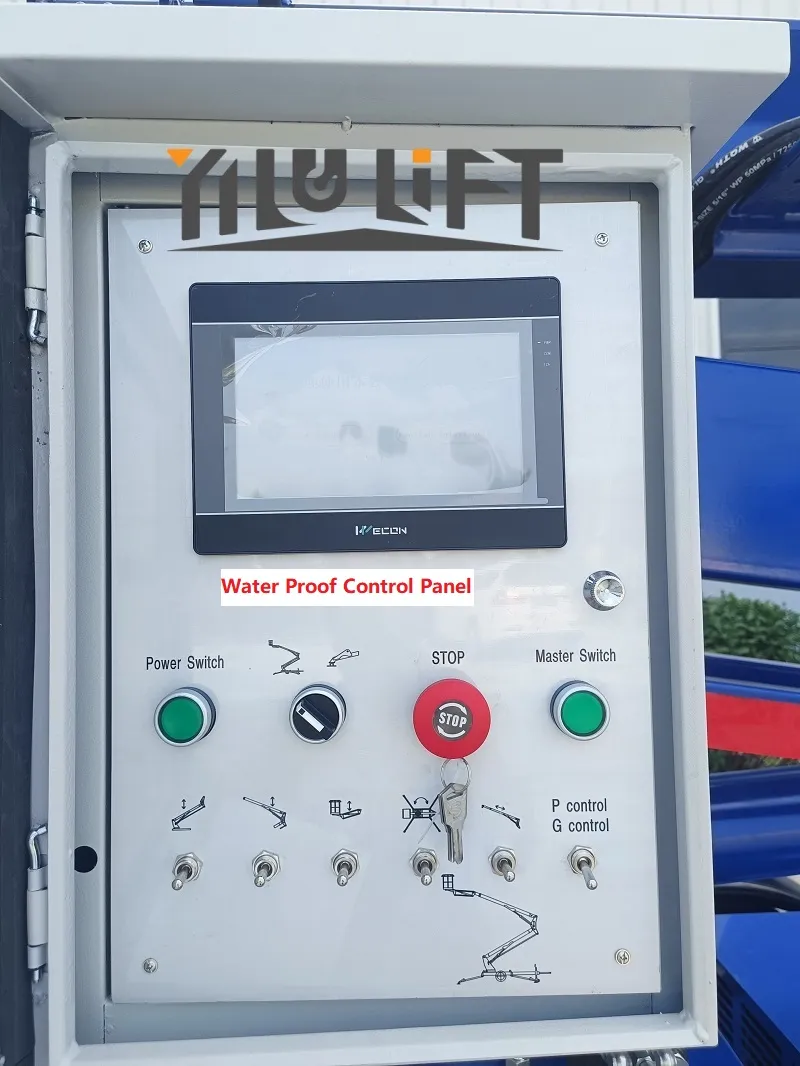

- Waterproof and dust proof electrical box, suitable for outdoors working
- Self Levelling sole for efficient and safety operation
- Two way cylinders with balance valve and emergency decline switch
- Equipped with Torsion Shaft with great shock absorption function
- Max 120Km/h Towing Speed
- Multi power for choice: AC, DC, Diesel, Gas, etc.
Technical Specifications
| Model |
TBL-10A |
TBL-12A |
TBL-14A |
TBL-16A |
TBL-18A |
TBL-20A |
| Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
| Working height |
12M |
14M |
16M |
18M |
20M |
22M |
| Load capacity |
200KG |
| Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
| Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
2800KG |
2800KG |
Key Components & Advantages
1 Imported key components: Switzerland Bucher DC Pump, Japan Honda Gas Pump, Germany ALKO Brakes.
2 Self-Levelling: Stable anchor pad system for safety.
3 360° rotation: High performance rotary motor.
4 Oil filtration: Hydraulic oil filtration alarm system.
5 Power Sources: AC, DC, Diesel, Gas available.
Safety Precautions
- Anti-burst valve prevents accident in case of hydraulic hose rupture.
- Spillover valve releases pressure when necessary.
- Emergency decline valve allows for descent amid power failure.
- Anti-dropping device prevents fall while in operation.
Frequently Asked Questions
How to place an order?
Please tell us your detailed requirements (including materials, dimensions, and weight), and we will send you detailed parameters and quotations as soon as possible.
What is your price range?
It depends on your requirements of the equipment and shipment terms such as FOB, CIF, or DDP.
What are the available payment methods?
We accept wire transfer, letter of credit, and trade guarantee.
What is the expected delivery time?
For standard products, delivery time is 7 days. For customized orders, it depends on current stock and production status.
What kind of warranty is provided?
We offer a 1-year warranty along with lifelong technical support via email or video.
What modes of transportation are available?
You can choose between sea, air, or rail transportation depending on your location and urgency.
