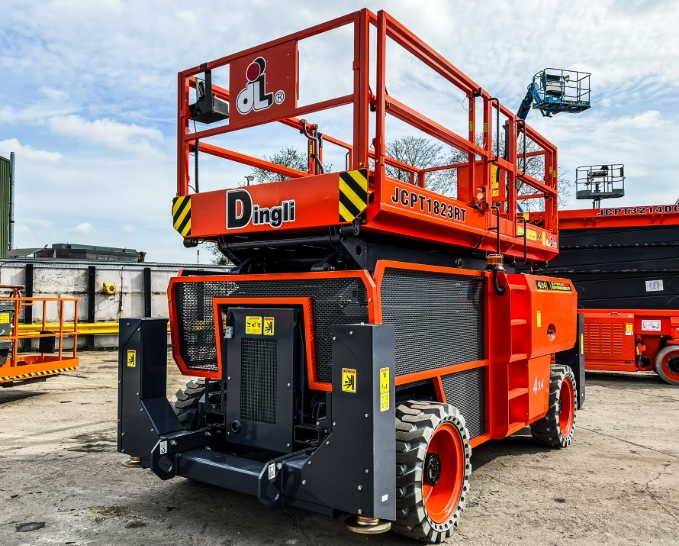

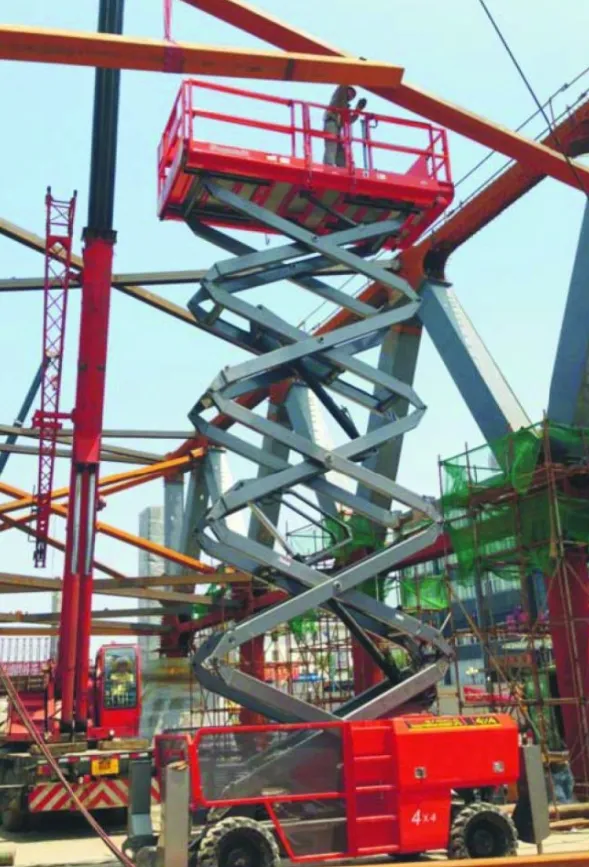

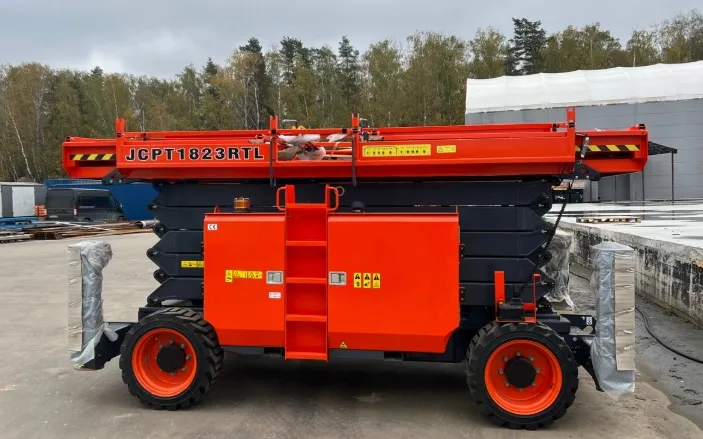

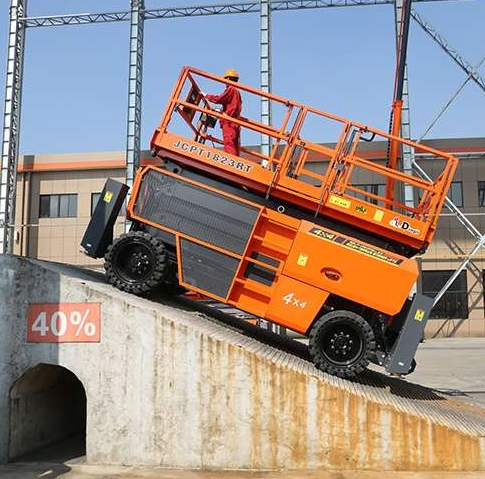

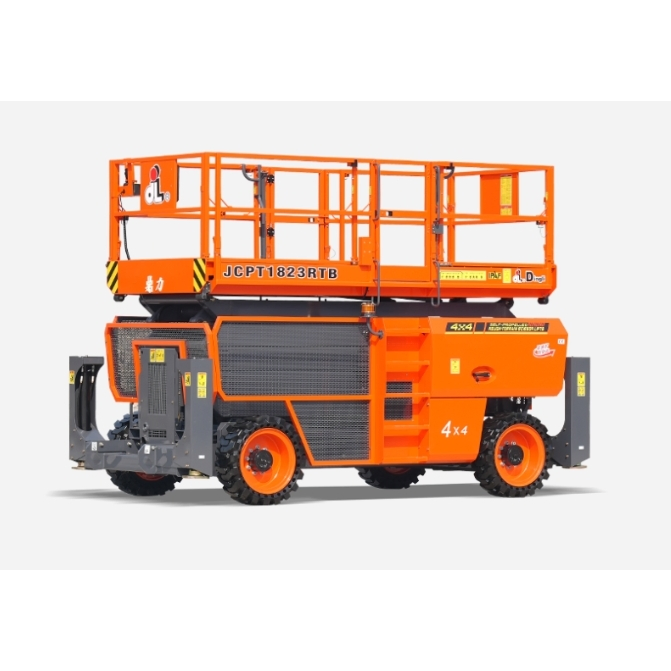

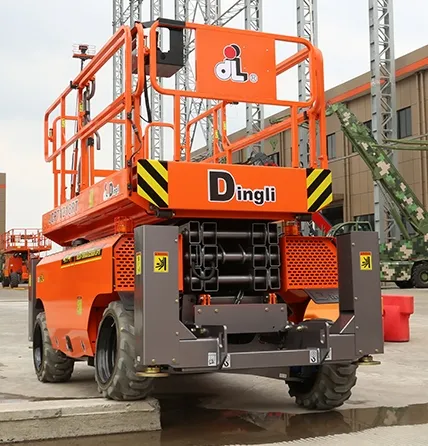

Introducing the Diesel-Powered JCPT1823RTB Self-Propelled Scissor Lift
Designed for heavy-duty performance, the JCPT1823RTB diesel scissor lift delivers a max working height of 18m (59ft) and a 680kg SWL platform capacity, ideal for construction, industrial maintenance, and warehouse operations.
Equipped with 4×4 drive and proportional joystick controls, it ensures precise maneuverability on rugged terrain. The dual slide-out platform extension (up to 1.43m/4ft 8in) enhances workspace flexibility, while safety features like tilt alarms, motion sensors, LED beacons, and explosion-proof tubing prioritize operator security.
Powered by an 18.2kW diesel engine with a 100L fuel tank, it offers extended runtime and reliability. Additional highlights include automatic hydraulic outriggers, self-locking gate, and a 78-second lifting speed, making it a robust choice for outdoor and high-demand environments.
| Parameter Item | Technical Data |
|---|---|
| Working Height | 18.00m |
| Platform Floor Height | 16.00m |
| Overall Length | 4.88m |
| Overall Width | 2.33m |
| Overall Height (Rails up) | 3.23m |
| Platform Size (L/W) | 3.98m × 1.83m |
| Platform Extension Size | 1.43m / 1.16m |
| Wheel Base | 2.86m |
| Safe Working Load (SWL) | 680kg |
| Extended Platform SWL | 227kg |
| Travel Speed (Stowed) | 5.0km/h |
| Machine Weight | 8560kg |
| Diesel Engine | 18.2kW / 3000rpm |
