Anugenix Lift
1 / 5
| Model Type | USL18E | USL20E | USL22E | USL24E | ||||
|---|---|---|---|---|---|---|---|---|
| Max. Working Height | 18M | 59.06ft | 20M | 65.62ft | 22M | 72.18ft | 24M | 78.74ft |
| Max. Platform Height | 16M | 52.49ft | 18M | 59.06ft | 20M | 65.62ft | 22M | 72.18ft |
| Max. Horizontal Outreach | 10.5M | 34.45ft | 10.5M | 34.45ft | 10.5M | 34.45ft | 12M | 39.37ft |
| Platform Capacity | Restricted: 200KG / Unrestricted: 120kg | |||||||
| Stowed Length | 5.7m | 18.70ft | 6.3m | 20.67ft | 6.5m | 21.33ft | 6.7m | 21.98ft |
| Total Mass | 2500KG | 5511lb | 3000KG | 6613lb | 4300KG | 9479lb | 4500KG | 9920lb |
| Drive Speed | 4.8km/h | 2.98MPH | 4.8km/h | 2.98MPH | 5km/h | 3.11MPH | 5km/h | 3.11MPH |

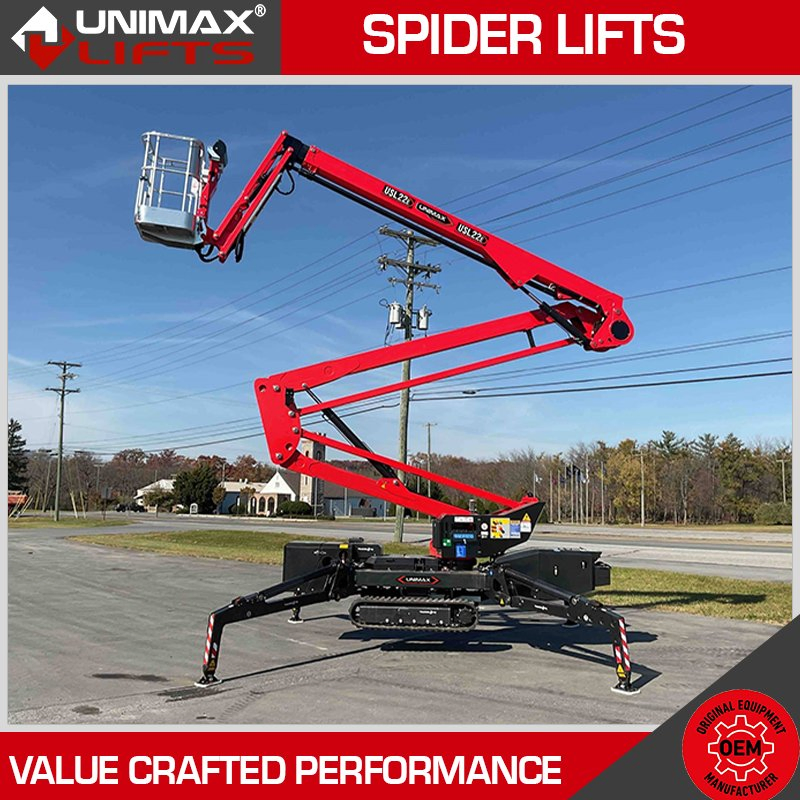

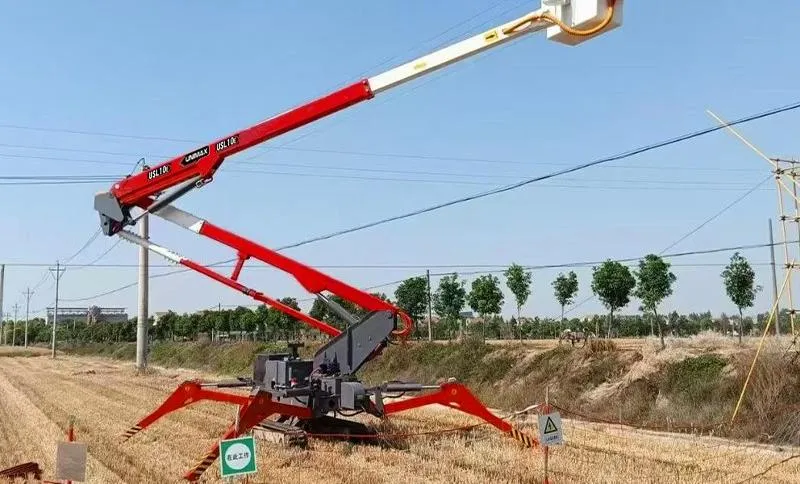

The sturdy outrigger system of spider lifts ensures exceptional stability with a variable configuration featuring three stabilization areas and one-button auto-leveling for swift, precise setup on uneven terrain up to 40% gradeability. Its innovative lying and swinging outriggers minimize space requirements and eliminate dead angles at support points.

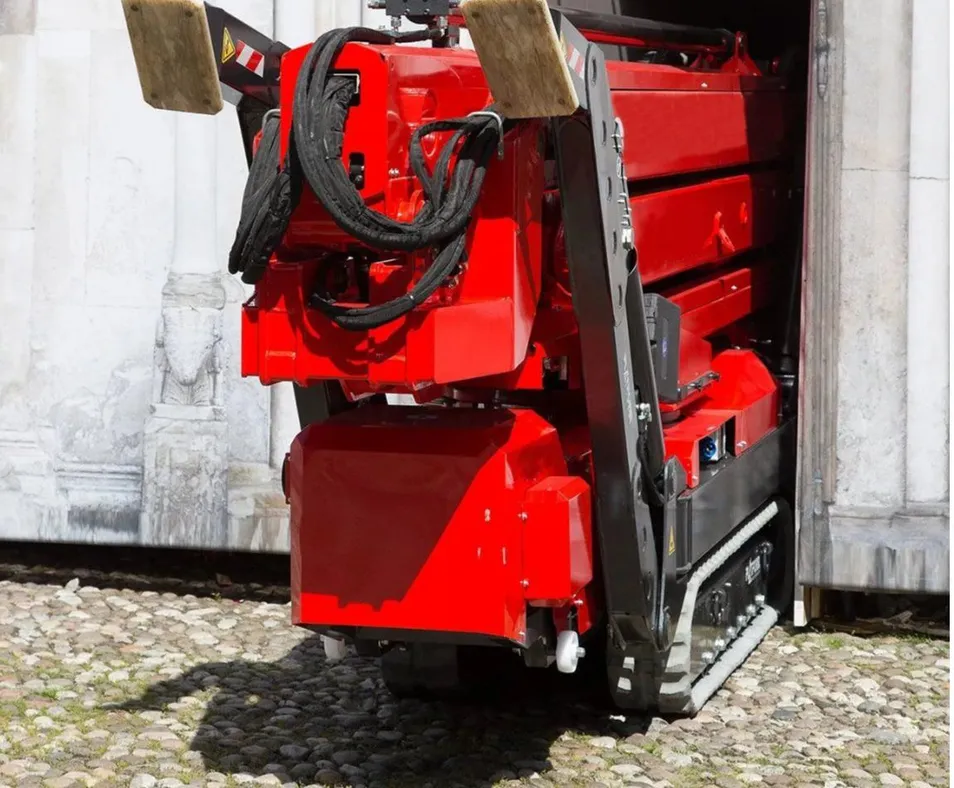

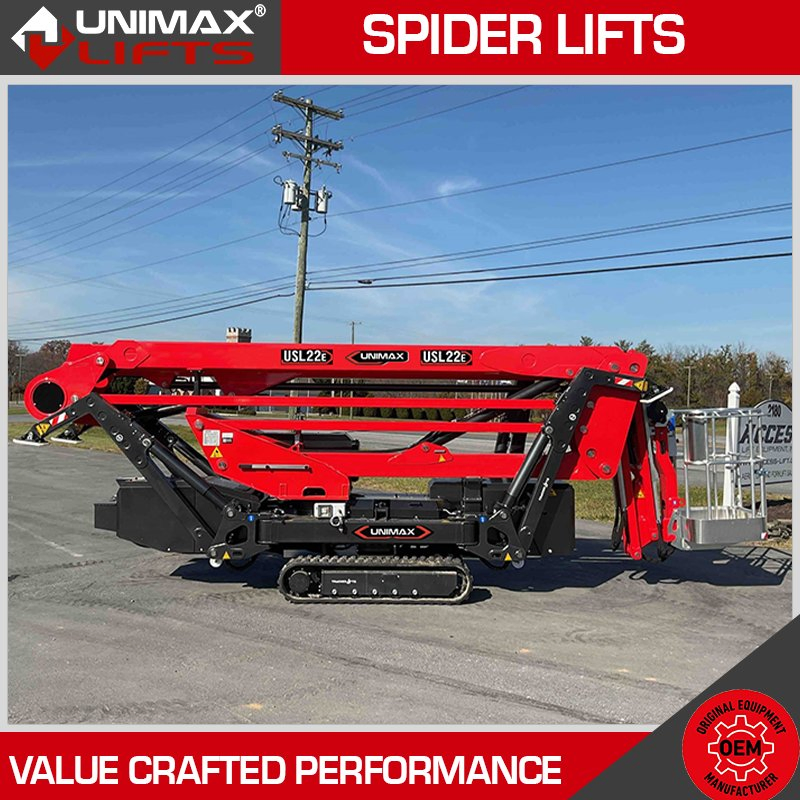

The compact and agile crawler chassis system delivers unmatched maneuverability, with a narrow track width (down to 1.1m) for seamless navigation through doorways and confined spaces. Equipped with adjustable rubber tracks, it safeguards sensitive surfaces like marble or wooden floors.

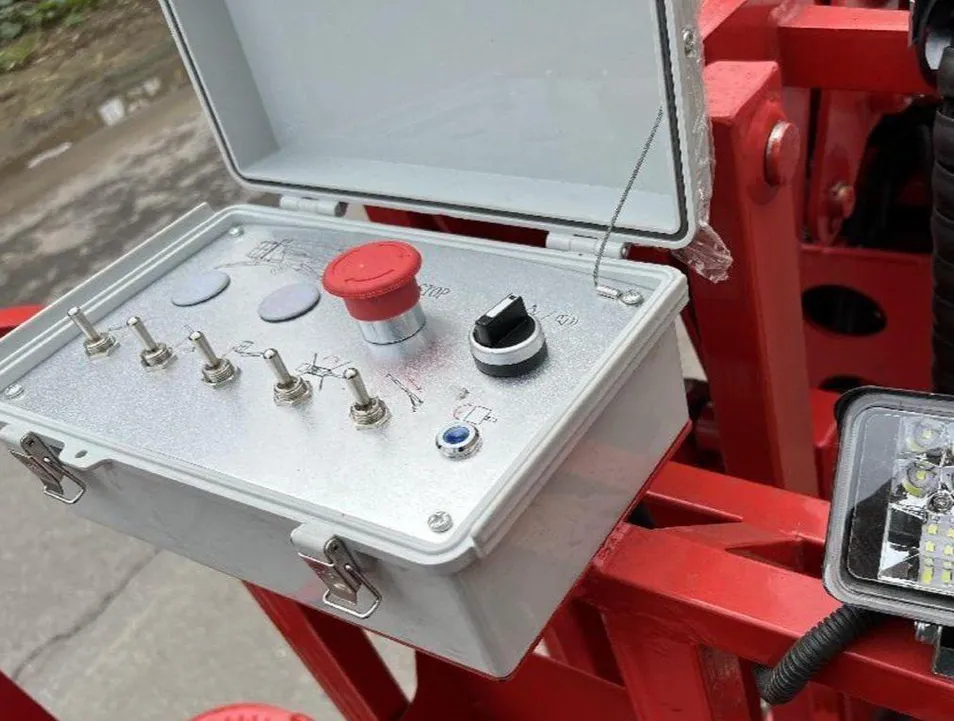

The sophisticated control system of spider lifts combines user-friendly radio remote control with proportional functions, allowing smooth, simultaneous operation of driving, stabilization, and boom functions. Safety is prioritized with proportional emergency controls and fault emergency lowering systems.

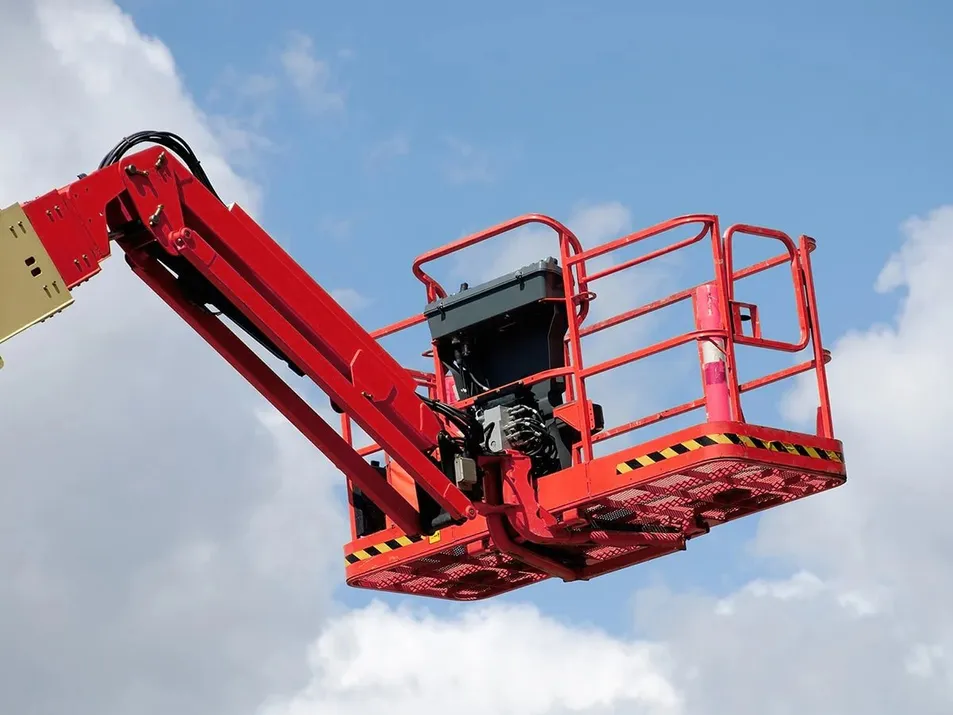

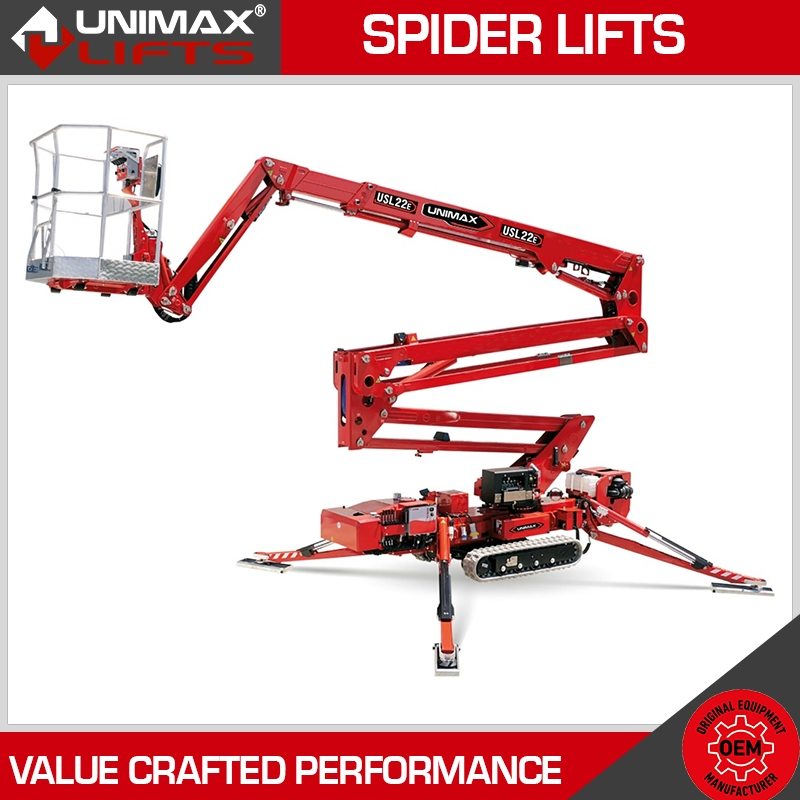

The spacious two-man basket platform is detachable with a quick-release system reducing transit length. With ±80° rotation and auto-leveling, it ensures precise positioning and stability, while a platform overload sensor enhances safety.
