Product Description

Product Overview

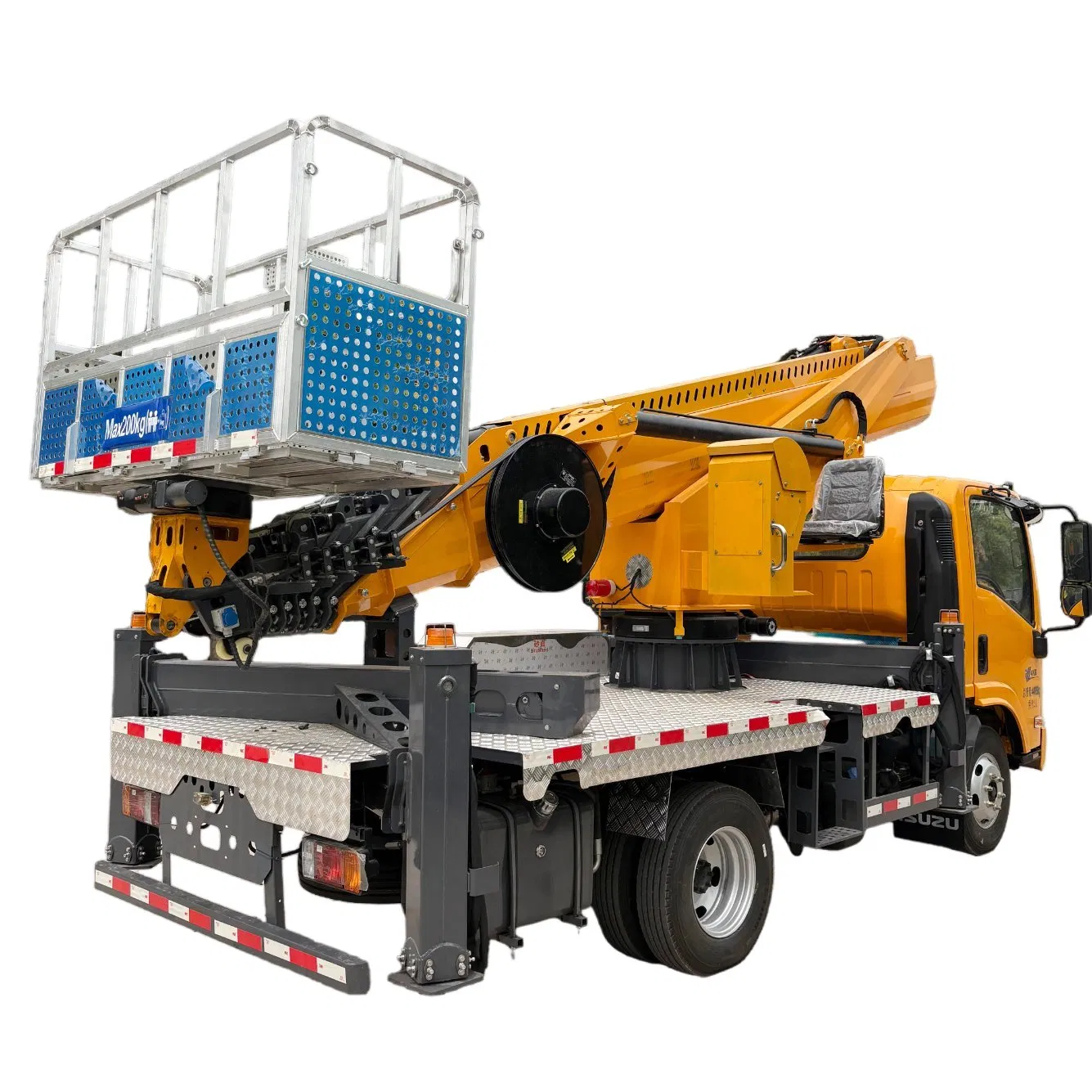

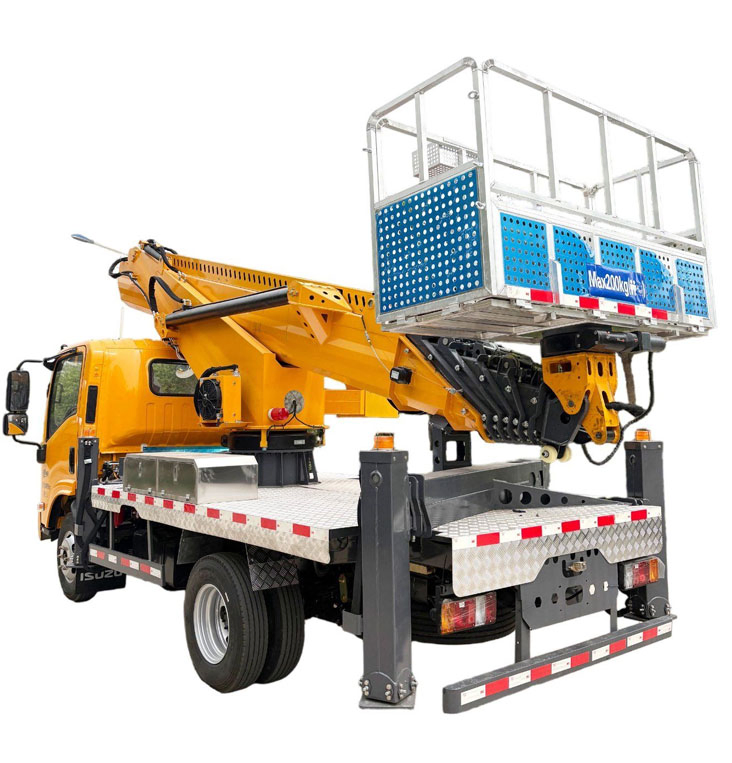

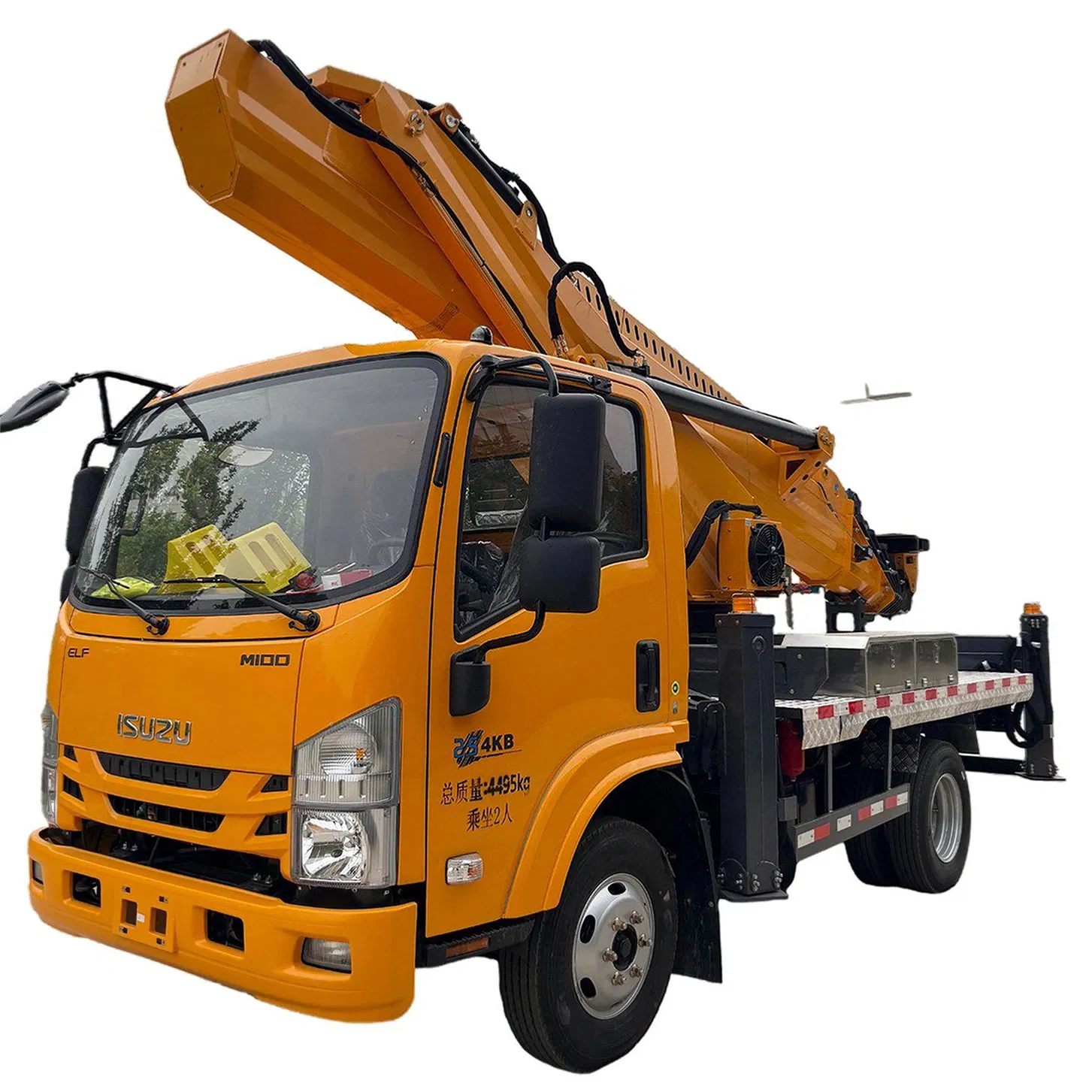

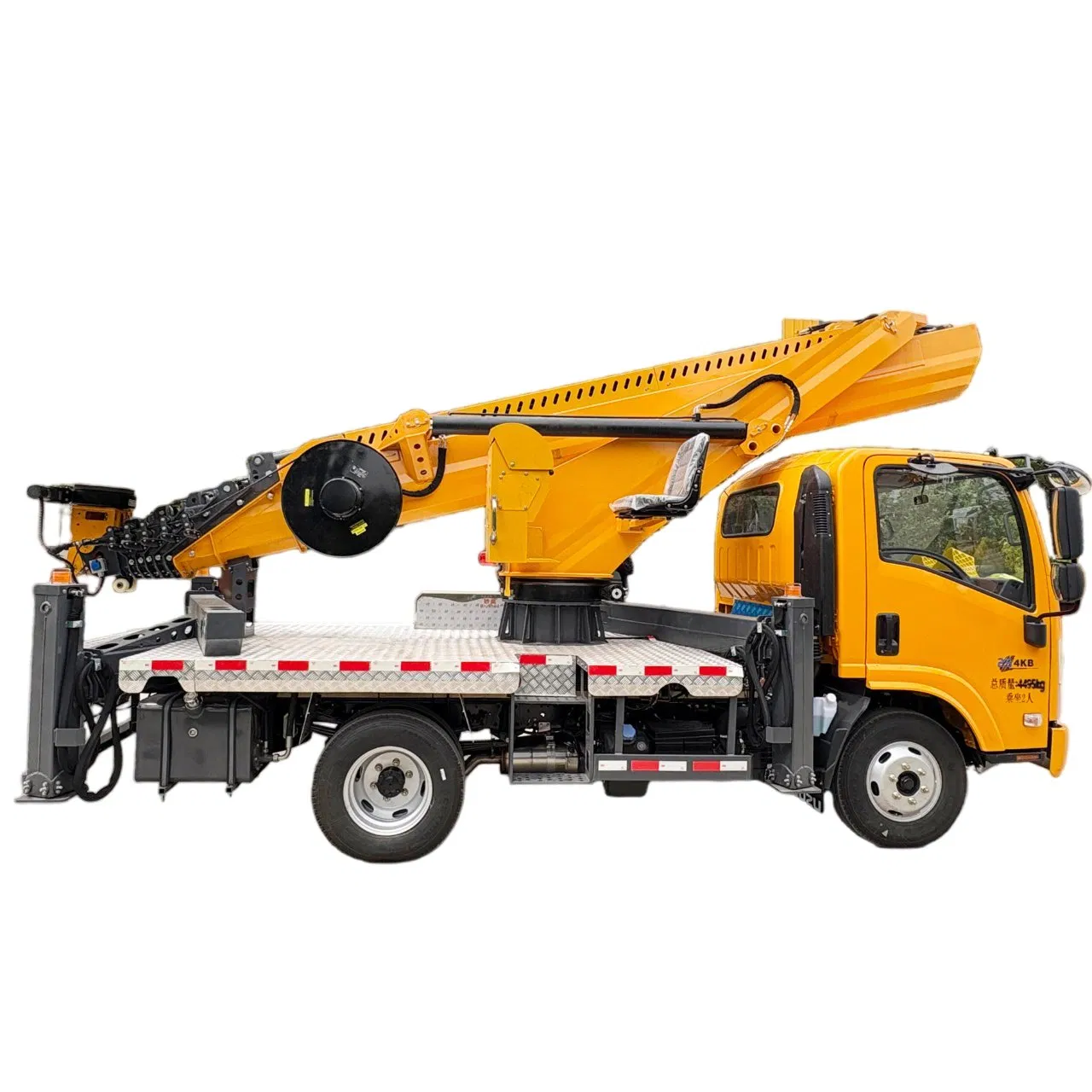

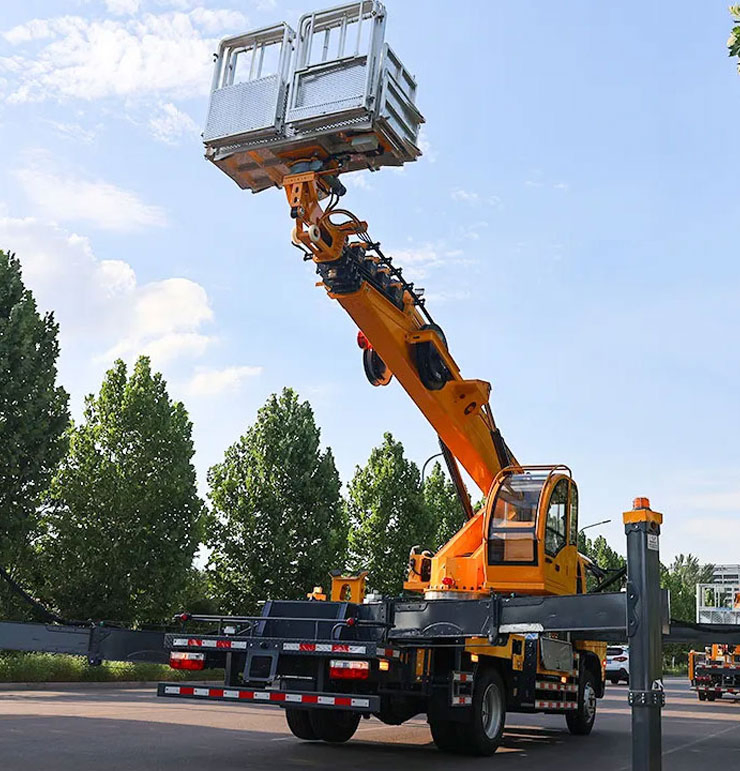

Truck Mounted Aerial Work Vehicle 34m Isuzu

The WSLGKS34 high-altitude work vehicle adopts a premium M100 chassis, equipped with a 130 horsepower engine and a MSB5 gearbox, achieving a lifting capacity of up to 34 meters. It features a 200 kilogram suspension basket, air brakes, and double section hydraulic support legs. Providing three operation modes—remote control, electronic control, and manual—this vehicle ensures high stability and a large span, making it the premier choice for construction and decoration. Custom services for heights up to 60 meters are available to meet specialized project requirements.

Basic Specifications
Model NO.
WSLGKS34
Certification
ISO9000, CCC, CE
Emission Standard
Euro 2
Horsepower
160HP
Payload
200kgs
Fuel Type
Diesel
Transmission
Automatic
Drive Wheel
4x2
Condition
New
Max. Work Height
34m
Key Technical Specifications
Aerial Work Platform Technical View

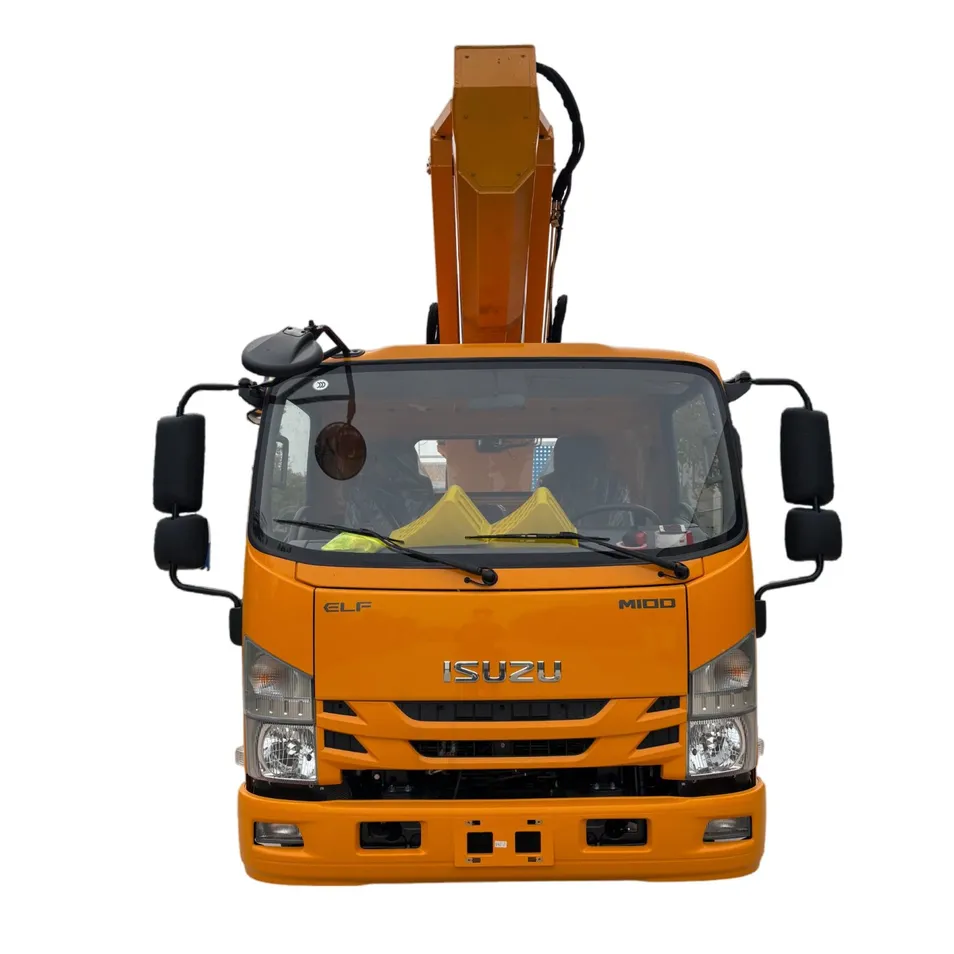

Work Platform Configuration
Dimensions & Performance:
Total Length: 5998mm | Overall Width: 2090mm | Overall Height: 3300mm
Wheelbase: 2795mm | Transverse Span: 6200mm | Longitudinal Span: 5700mm
Max. Work Radius: 18m | Work height at Max. work radius: 23m
Detailed Configuration
Boom Type
7-Segment Drum-Shaped Arm
Rotator
360 degree arbitrary rotation
Leveling System
Hydraulic Auto-Leveling
Outrigger
X-outrigger, Four double jointed
Safety System
Upper/Lower Interlock & E-Stop
Control
Electro-hydraulic proportional
Manufacturing Capabilities

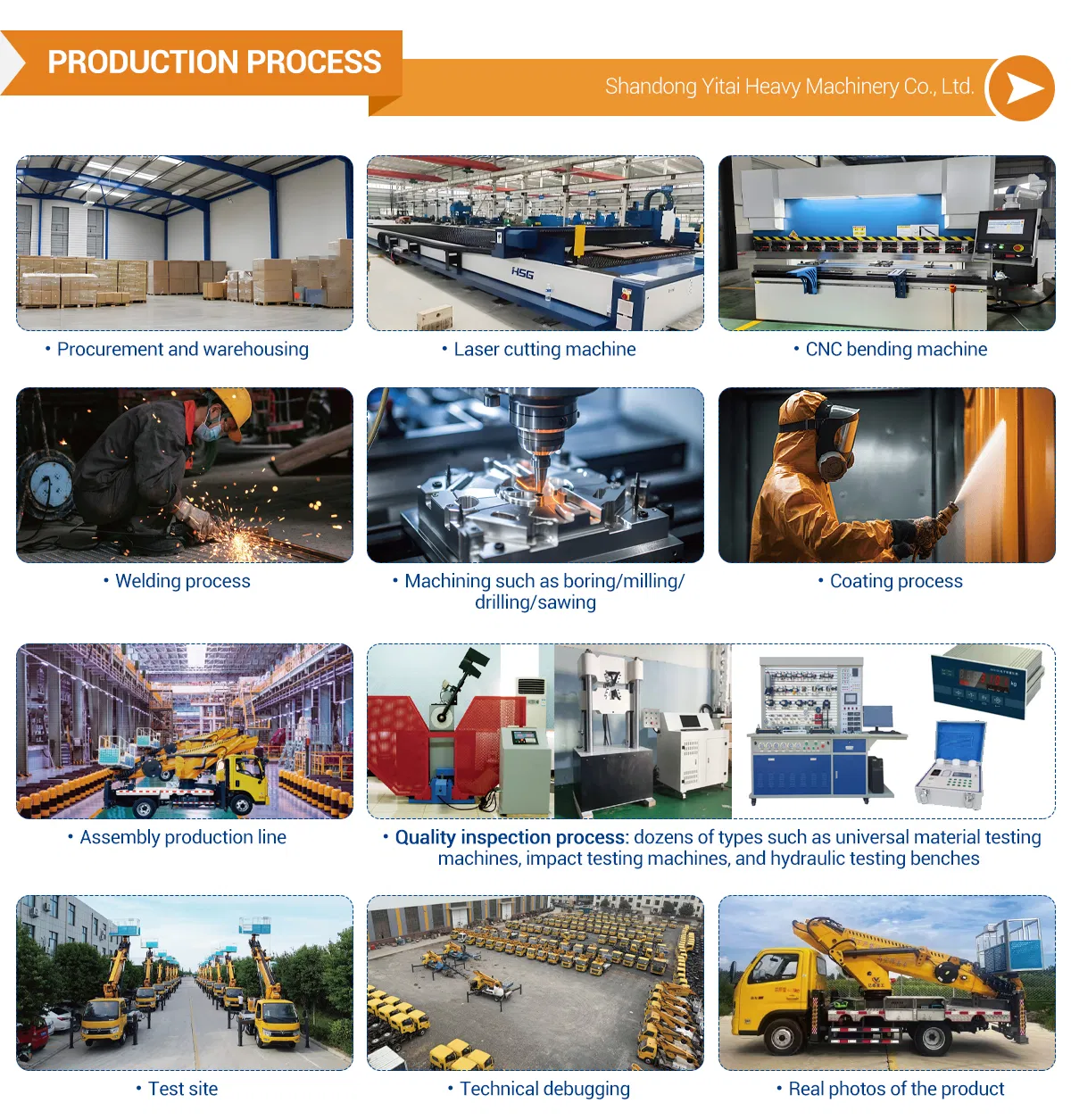

We are a vehicle manufacturing enterprise that integrates product design, scientific research and development, production, and sales. Our facilities include advanced assembly production lines, comprehensive quality inspection processes, and a large warehousing center. Our manufacturing strength is backed by large-scale laser cutting machines, CNC bending machines, and robot-assisted welding assembly lines. We adhere to a customer-centric philosophy, providing high-quality vehicle-mounted aerial work platforms and after-sales guarantee.

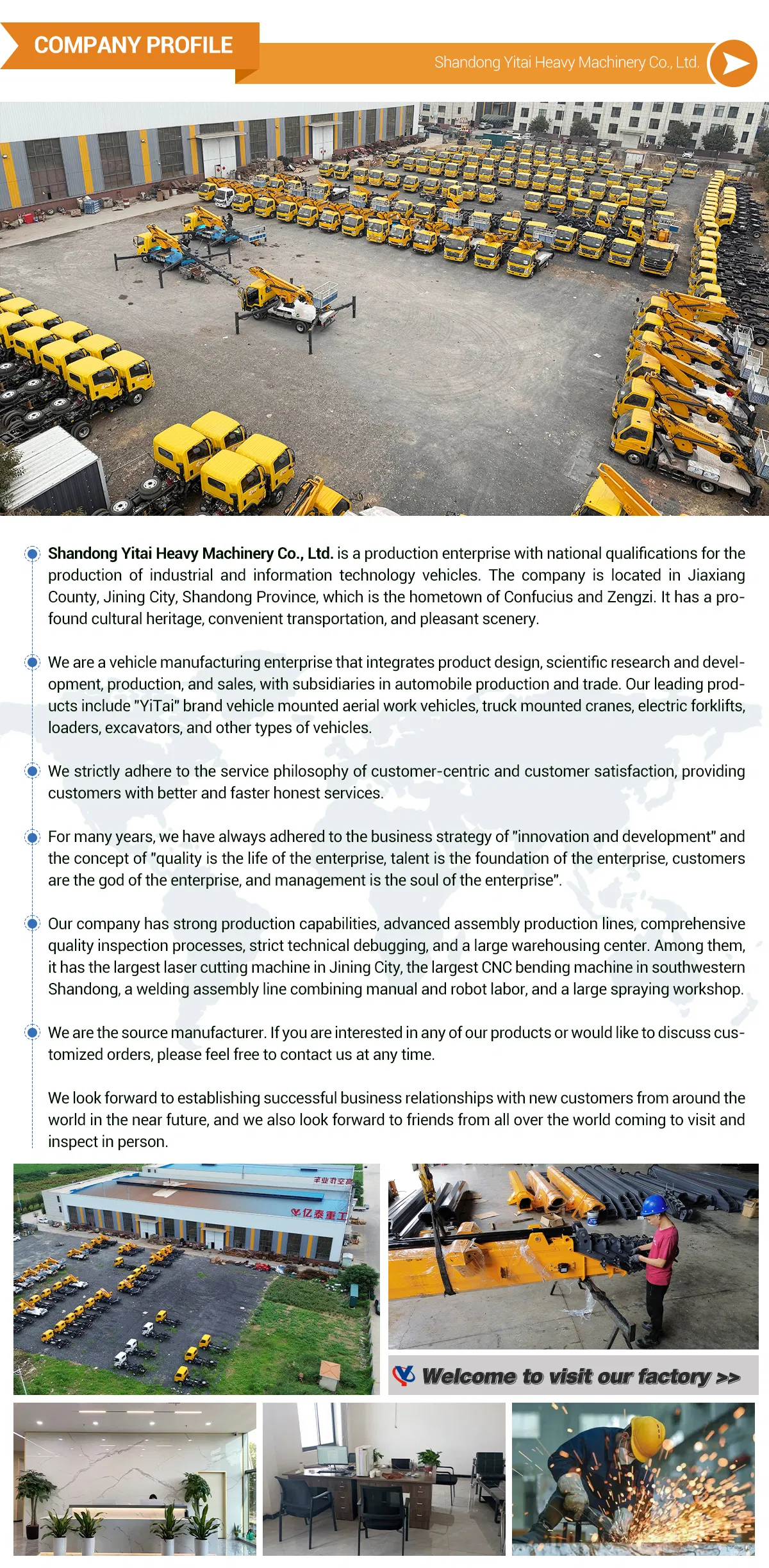

Production Workshop
Advanced Equipment
Quality Control
Assembly Line
Finished Products
Frequently Asked Questions
What is the maximum working height of your aerial work platforms?
We offer a range of working heights; all models below 60 meters can be fully customized to suit your specific project needs.
Are your devices compliant with safety standards?
Yes, all of our devices come with built-in safety features such as tilt sensors, overload protection, and emergency descent systems.
What is the maximum load capacity of the platform?
Our standard aerial work platform has a maximum carrying capacity of 200 kilograms, with customization options available for higher requirements.
How often should maintenance be performed?
After the first 200 hours, clean the fuel tank and filter and replace the oil. Normally, full maintenance should be performed every six months, or more frequently in dusty environments.
Can the platform be operated in extreme weather?
Diesel units perform well in sub-zero conditions. However, avoid operation in winds exceeding 28 mph (45 km/h) or during lightning storms for safety.
What support do you provide if the platform gets stuck at height?
All units include manual override systems. You can lower the platform using backup hydraulic pumps or the manual descent crank as per emergency protocols.
