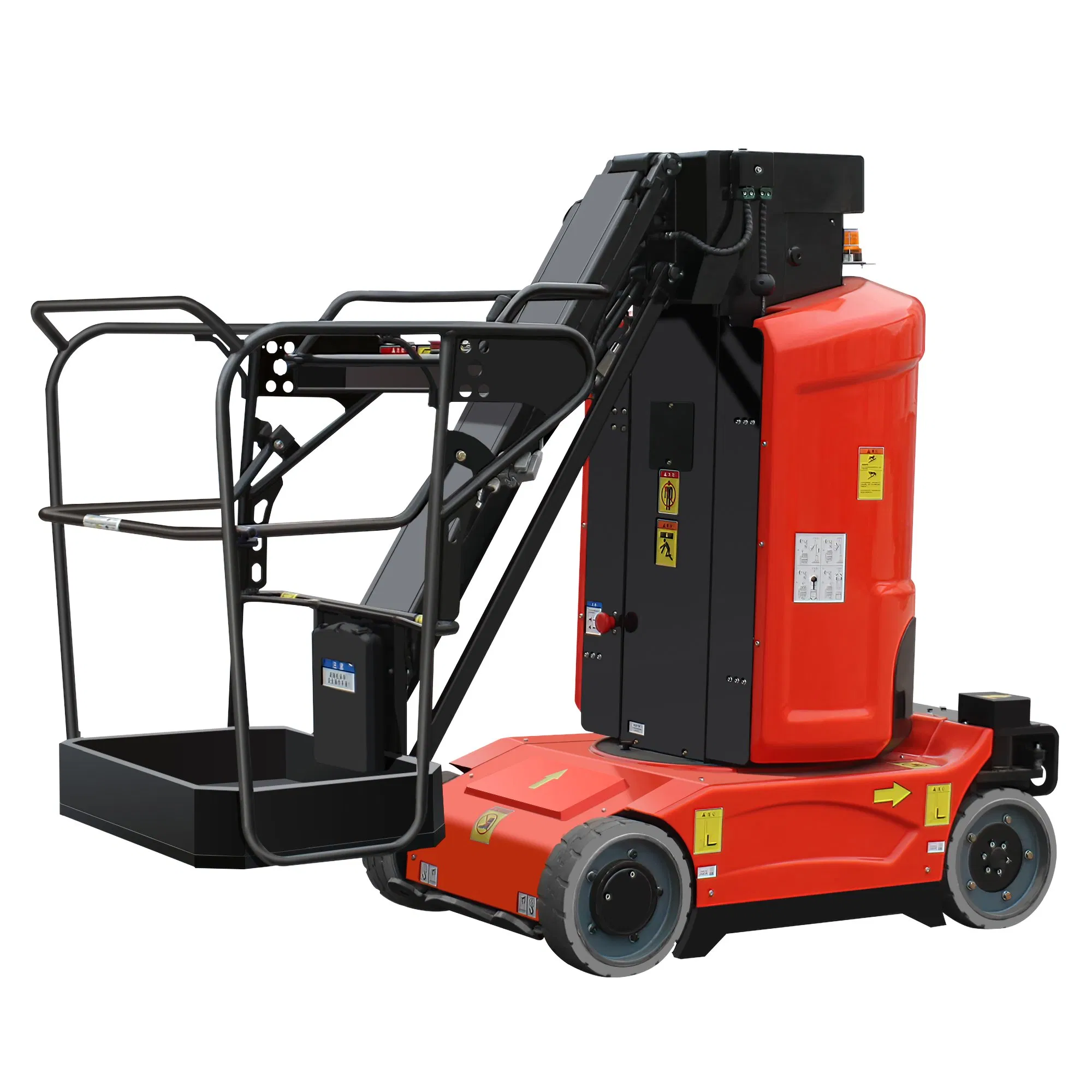

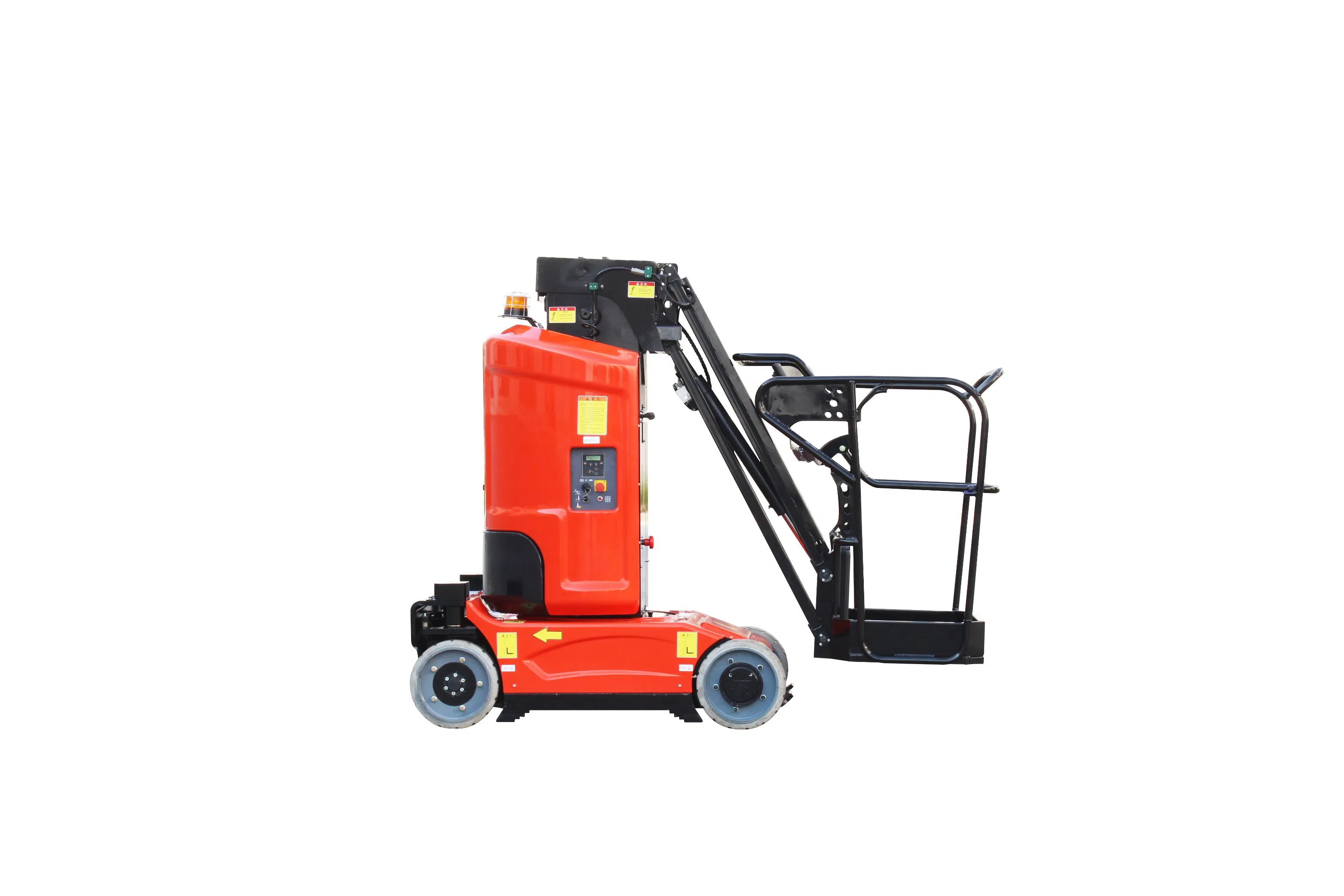

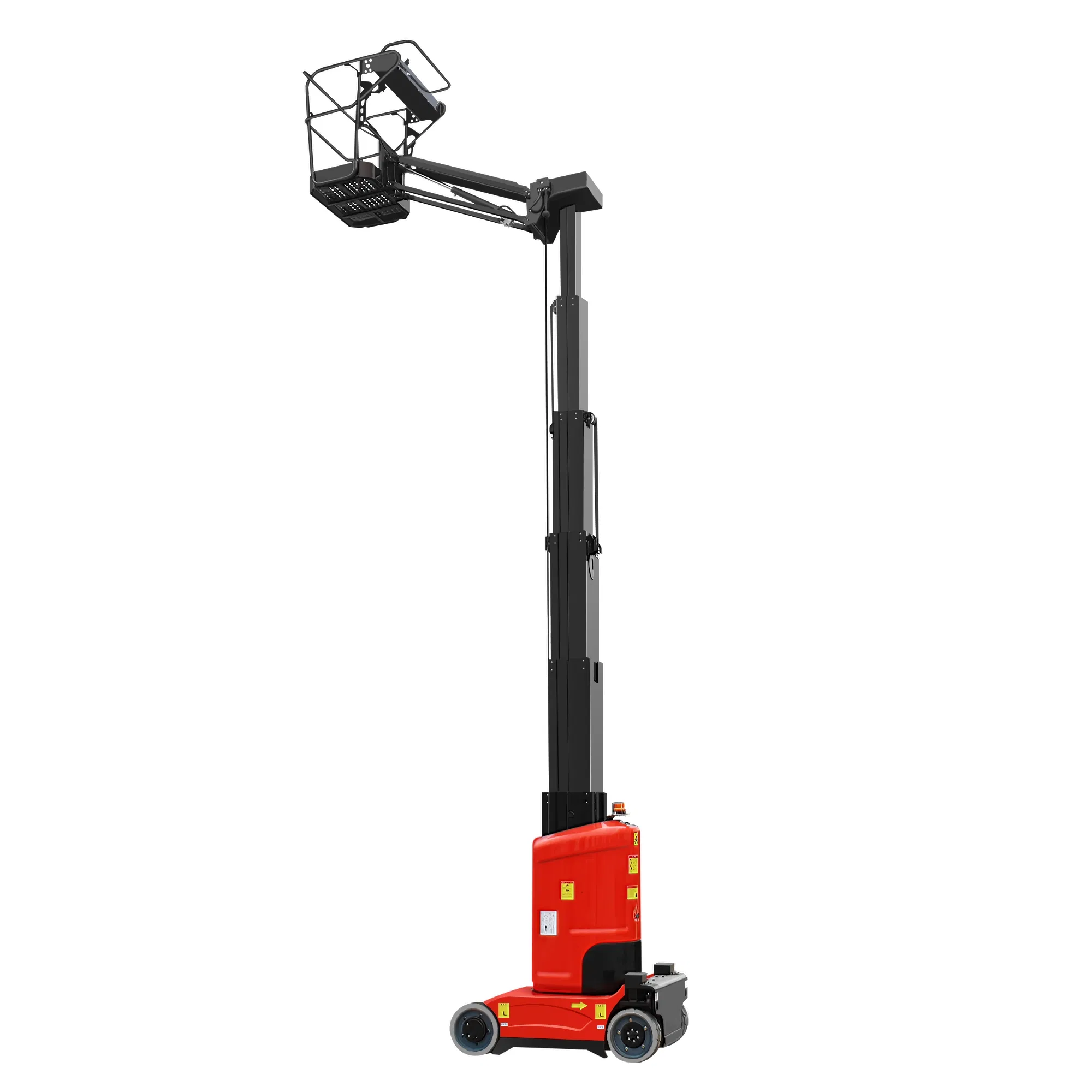

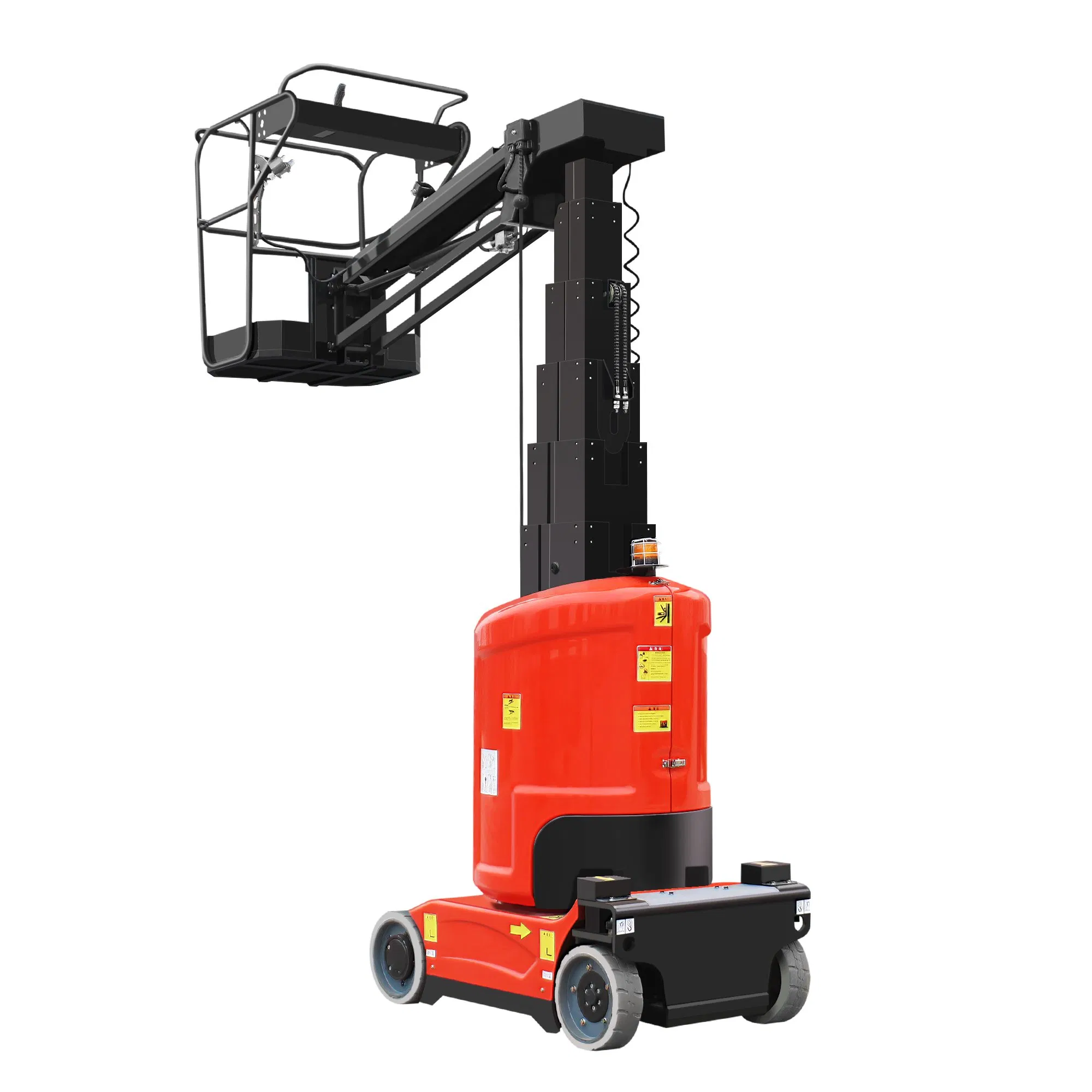

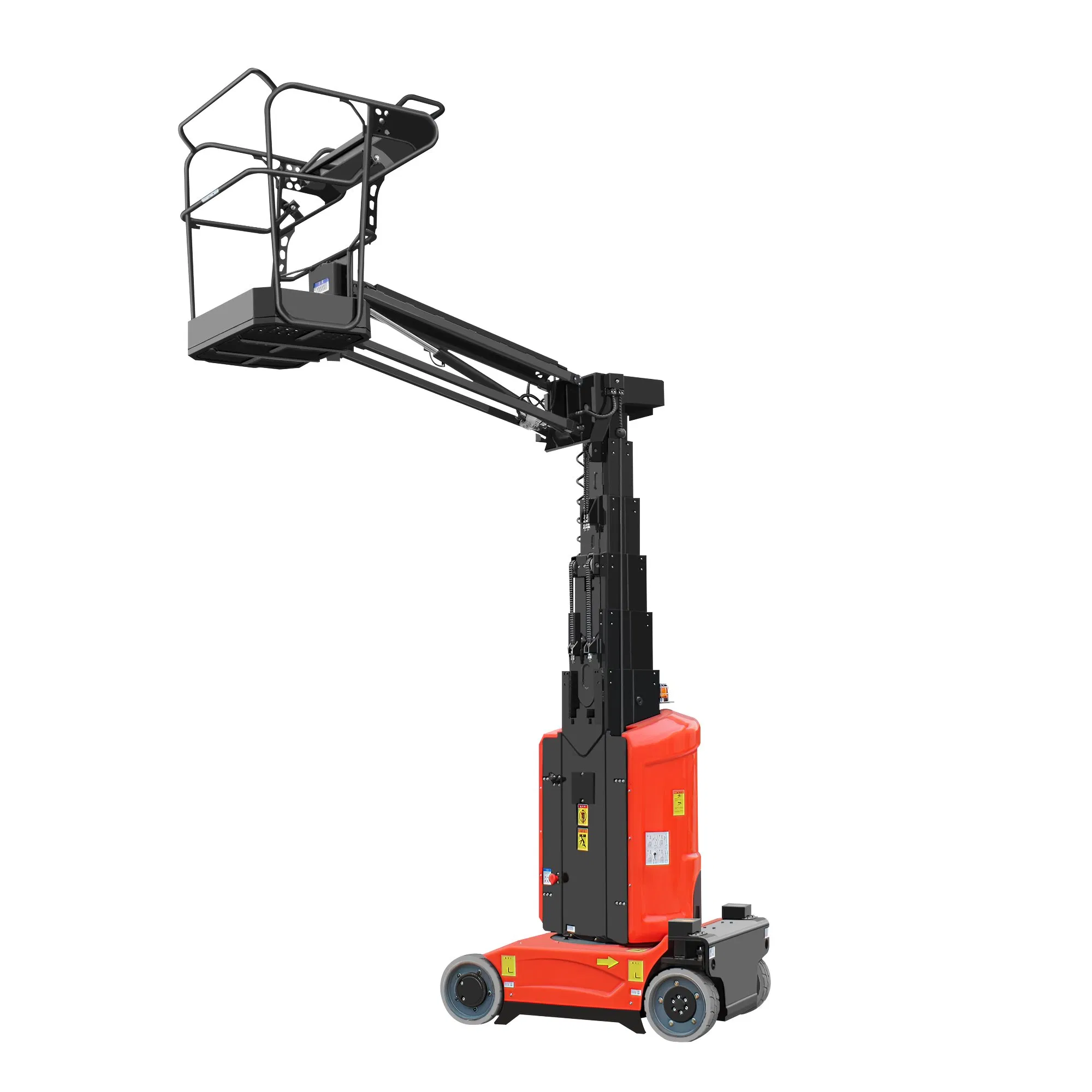

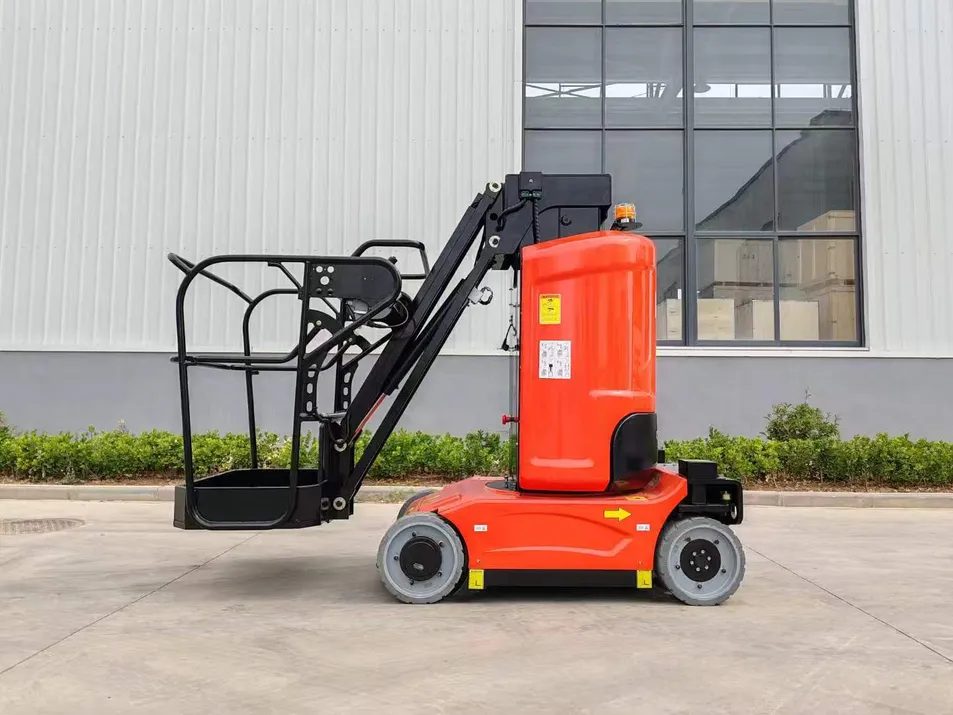

Vertical Mast Boom Lift
This vertical mast boom lift makes quick work of elevated maintenance, painting, lighting, and repair work. This aerial work platform has excellent maneuverability and can be easily operated and driven on the platform, which has a lift height of up to 9.2 meters. In addition, our vertical boom lifts are designed for use in narrow spaces, such as narrow doorways and freight elevators.
1. Warehousing & Logistics: High-density storage rack maintenance, order picking in narrow aisles, and surveillance system installation.
2. Industrial Maintenance: Production line servicing, machinery repair in confined spaces, and pipeline maintenance.
3. Commercial Facilities: Shopping mall ceiling maintenance, exhibition hall decoration, and station facility upkeep.
⭐ Key Advantages:
✓ Zero tail swing for tight spaces
✓ Minimal ground pressure for floor protection
✓ Quiet, emission-free electric power
✓ Precise vertical positioning

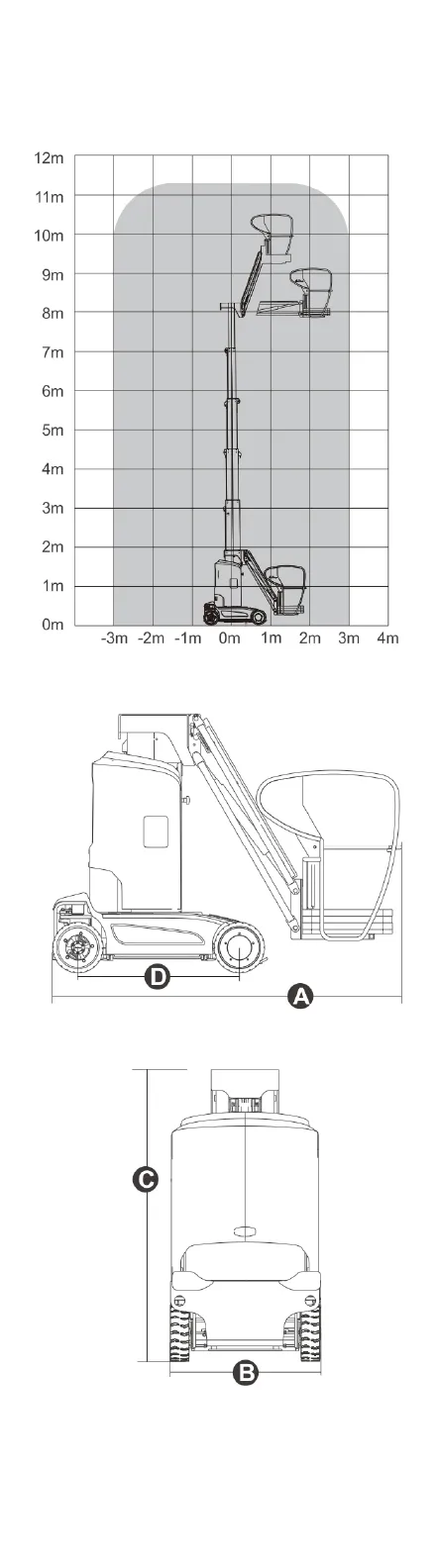

Right Elevation
Back Elevation
Front Elevation
| Max. Working Height | 11.2m | Occupants | 2 |
| Max. Platform Height | 9.2m | Turning Radius | 0.23 / 1.65m |
| Max. Horizontal Reach | 3m | Turret Rotation | 345° |
| Up and Over Height | 7.89m | Jib Movement | 130° |
| Overall Height (stowed) | 1.99m | Travel Speed (Stowed) | 4.5km/h |
| Platform Dimension | 0.62*0.87m | Battery | 24V/240Ah |
| Loading Capacity | 200kg | Machine Weight | 2950kg |
✓ Standard Warranty: 12 months or 2,000 operating hours.
✓ Extended Warranty: Optional coverage up to 36 months.
✓ Global Support: 24/7 technical assistance and spare parts supply.
✓ Training: Comprehensive on-site or remote operation training.
