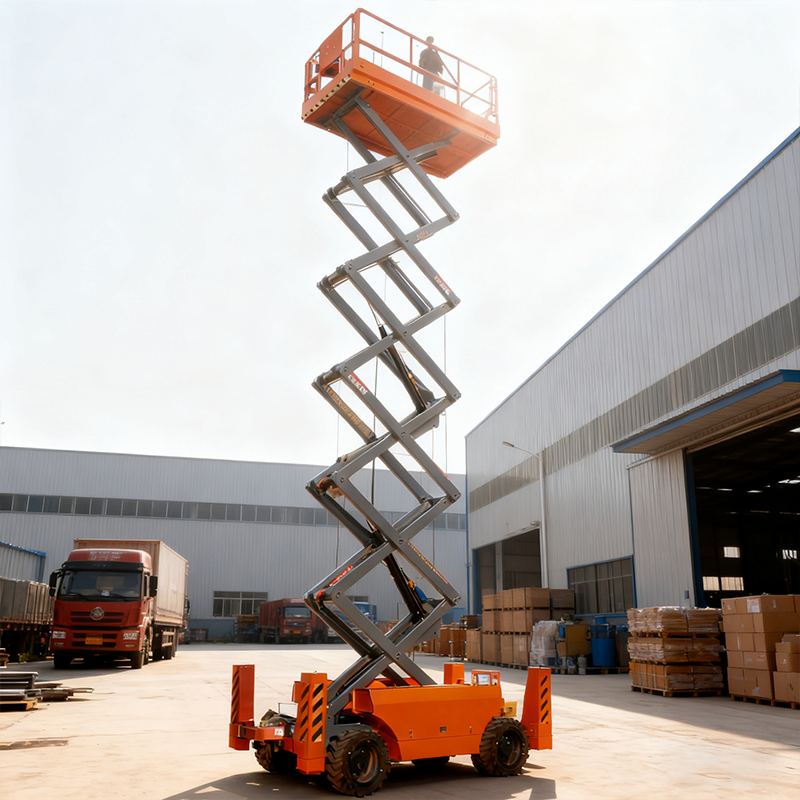

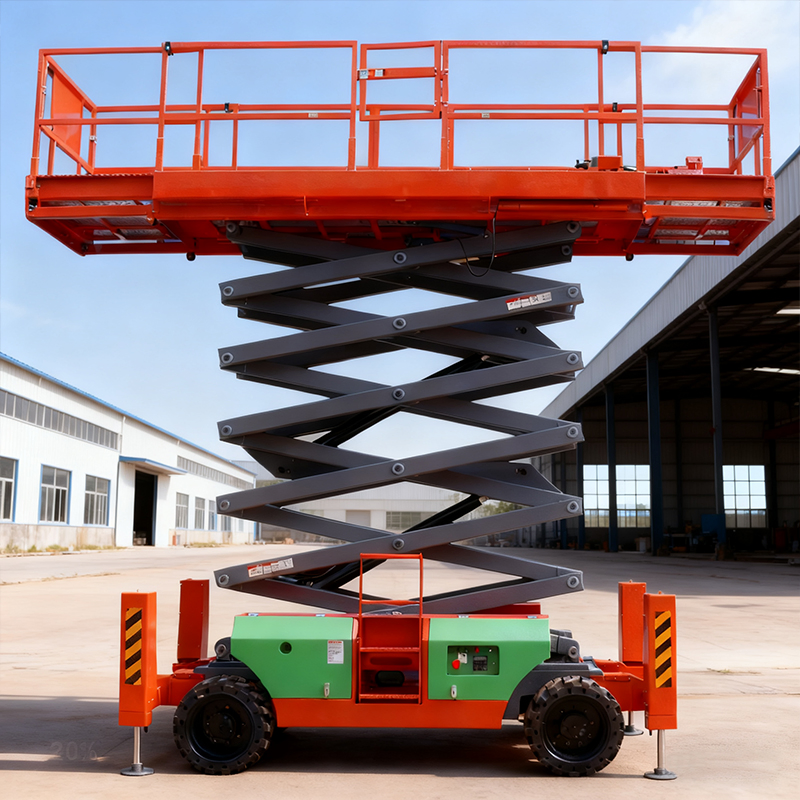

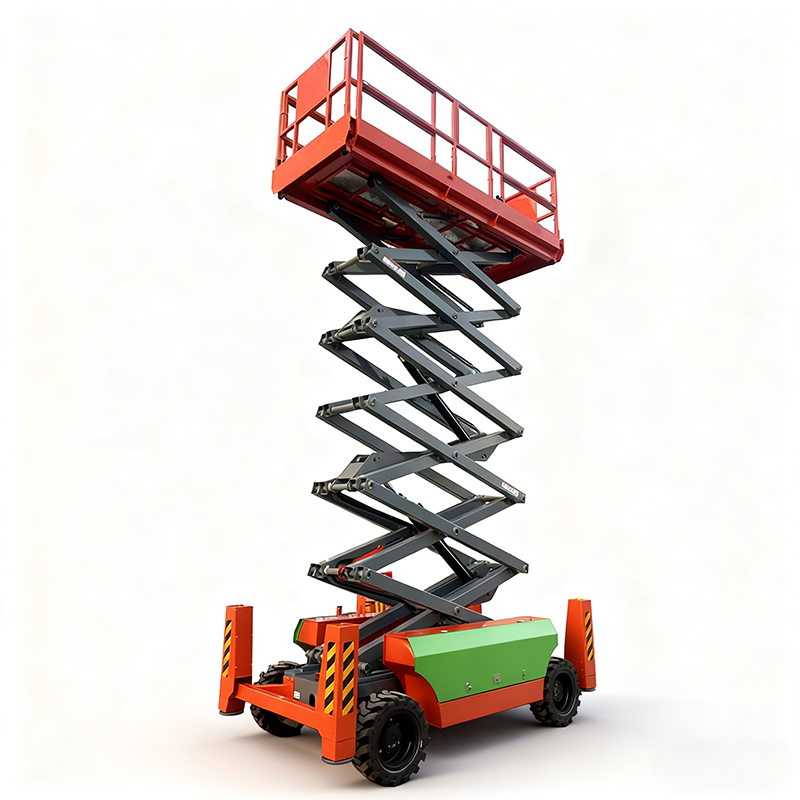

10m 12m 14m 16m 18m 20m Compact Indoor Mobile Elevating Rough Terrain Scissor Lift Warehouse Self-Propelled Electric Wheeled Aerial Work Platform with Outrigger

1 / 5

10m 12m 14m 16m 18m 20m Compact Indoor Mobile Elevating Rough Terrain Scissor Lift Warehouse Self-Propelled Electric Wheeled Aerial Work Platform with Outrigger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SJPT1214ERT

Application

Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

Light Level

Driven Type

Max. Working Height

14m

Platform Size

257*139cm

Rated Load

450kg

Certification

CE, ISO 9001

Origin

China

Production Capacity

100 Sets/Month

Electric Hydraulic Scissor Lift Platform

14–16m Working Height | Electric Travel & Electric Lift | Support Customization

Designed for rough terrain and demanding outdoor environments, this off-road scissor lift provides powerful performance, high stability, and outstanding adaptability.

🛡️

Safety Systems
Automatic brake, Emergency stop button, Emergency lowering, Tilt protection.

🚜

Off-Road Ability
Off-road solid tires and automatic leveling of outriggers for uneven ground.

⚙️

Smart Ops
Fault diagnosis system and automatic platform door locks.

Technical Specifications

Model	SJPT1214ERT	SJPT1214ERT-T4	SJPT1614ERT-T4
Dimensions
Max. Working Height	14m	14m	16m
Max.Platform Height	12m	12m	14m
Platform Length	2570mm	2570mm	3600mm
Platform Width	1390mm	1390mm	1390mm
Overall Length	3330mm	3330mm	3700mm
Performance
Rated Load Capacity	450kg	450kg	450kg
Max. Workers	3	3	3
Travel Speed (Lifting)	6.5Km/h	6.5Km/h	6.5Km/h
Max. Gradeability	30%	35%	35%
Steering / Braking	Rear-Wheel Drive	Front 4WD	Front 4WD
Weight
Overall Machine Weight	3740kg	4160kg	5150kg

Key Features & Benefits

⚡

Electric Travel & Electric Lift
Stable, quiet, and efficient lifting powered by a high-performance system. Reduces labor intensity and improves work efficiency.

🏗️

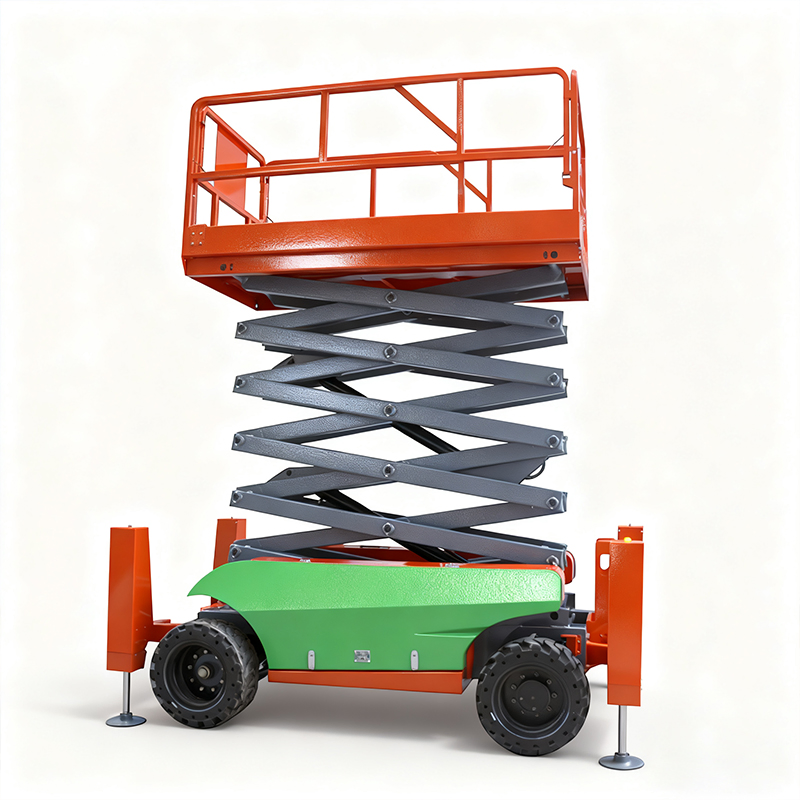

Automatic Leveling Outriggers
One-button auto-leveling system ensures maximum stability during lifting. Outriggers automatically adjust on uneven or sloped terrain.

Versatile Applications

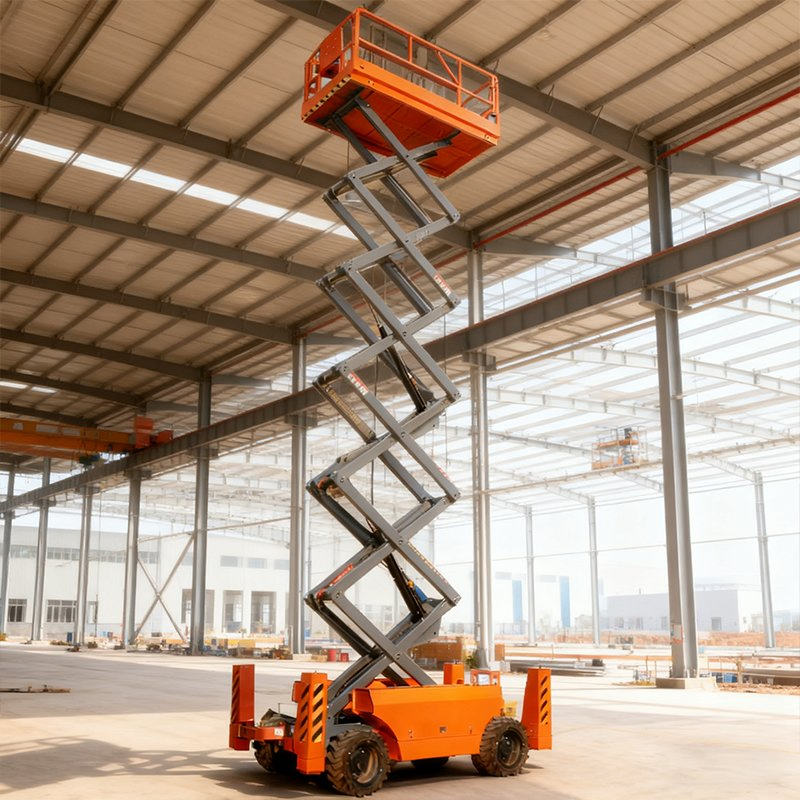

This equipment is ideal for a wide range of scenarios including: Indoor operations in large venues, high-rise building maintenance, equipment repair, billboard installation, construction sites, and outdoor maintenance on uneven concrete or farmland.

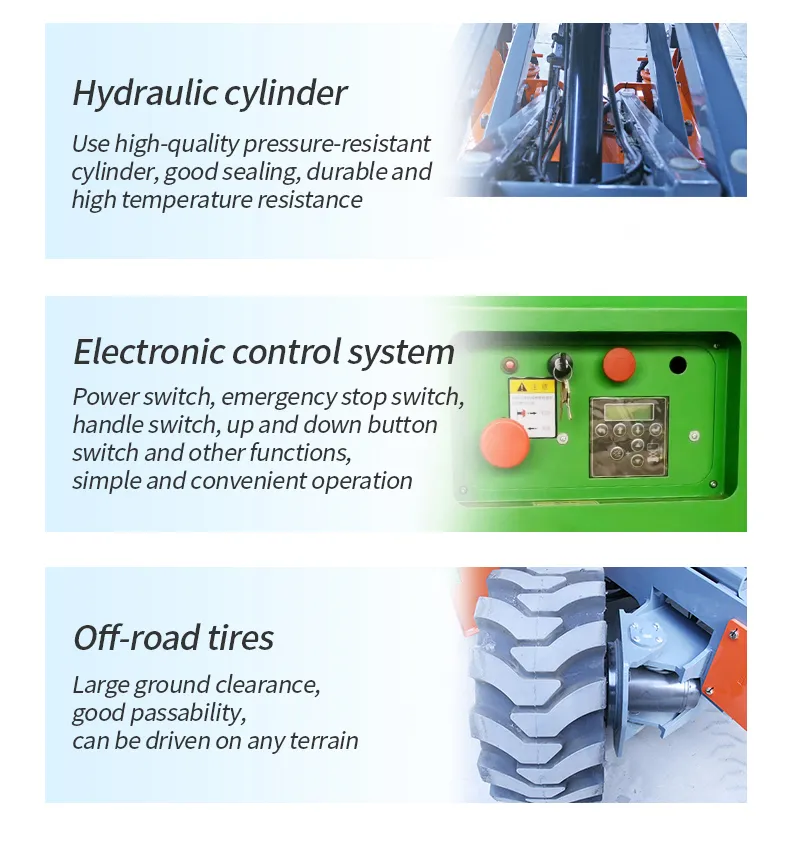

Component Highlights

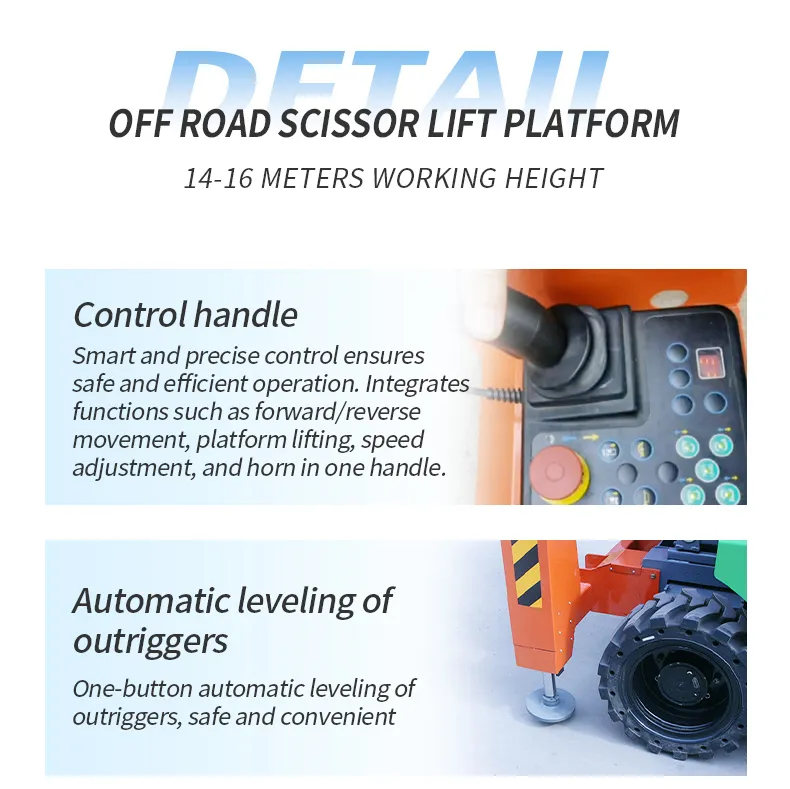

Control Handle
Smart and precise control; integrates travel, lifting, speed adjustment, and horn.

Hydraulic Cylinder
High-quality pressure-resistant cylinder with excellent sealing and durability.

Electronic System
Intuitive control panel with emergency stop and system protection.

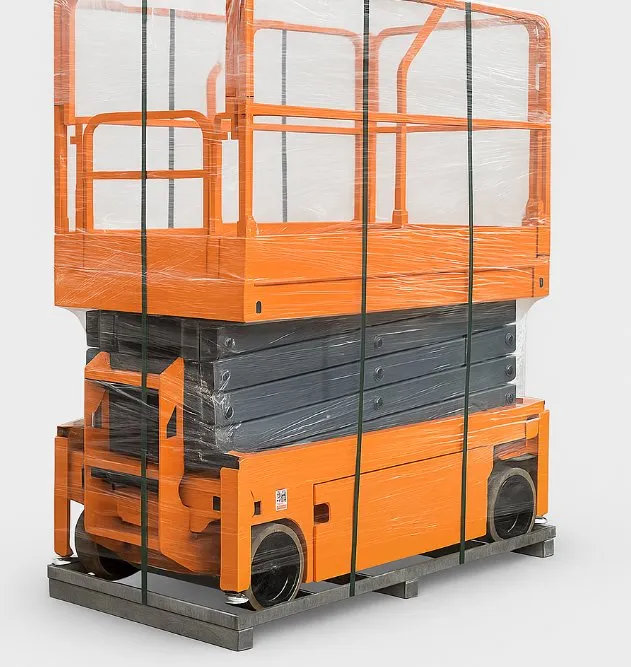

Packing & Delivery

✅ Standard export pallet
✅ Waterproof protective film wrapping
✅ Edge guard and anti-rust treatment
✅ Secured with steel straps
✅ Suitable for 20GP and 40HQ container shipping

Why Choose Our Solutions

As a professional aerial work platform manufacturer, we offer advanced workshops with strict quality control, precision welding, and assembly lines. Our skilled engineering team provides global support and OEM customization.

Frequently Asked Questions

Can the off-road scissor lift operate on uneven or rough terrain?

Yes. This model is equipped with off-road solid tires and automatic leveling outriggers, providing strong traction and stability on gravel, muddy ground, and construction sites.

How long can the machine operate on a full charge?

Under normal working conditions, the lift can operate 6–8 hours per charge. Working time may vary depending on usage frequency and load weight.

Is customization available for this model?

Yes, we support custom working heights, colors, branding/logo printing, and optional safety configuration upgrades. OEM & ODM services are fully supported.

What is the warranty period?

We provide a 12-month warranty for the entire machine, excluding wearing parts, along with free technical support and spare parts replacement for non-human damage.

What safety certifications does the lift have?

Our scissor lifts are fully certified with CE and ISO 9001 standards, ensuring they meet international safety and quality requirements for industrial use.

How is the equipment transported?

The units are packed using standard export pallets with waterproof film and steel straps, specifically designed for safe loading and efficient container shipping (20GP/40HQ).
