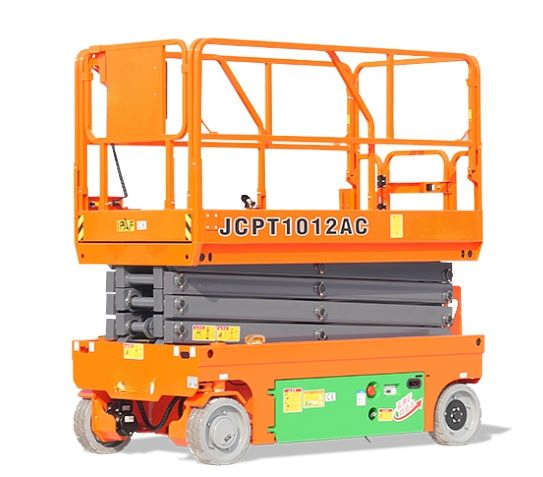

Anugenix Lift
1 / 5
- Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system, maintenance-free, more waterproof, more efficient and safer.
- Automatic pothole protection system, more safe and reliable.
- Unidirectional extension platform, can quickly reach the operation point.
- Automatic display of fault code for easy maintenance.
Standard Items:

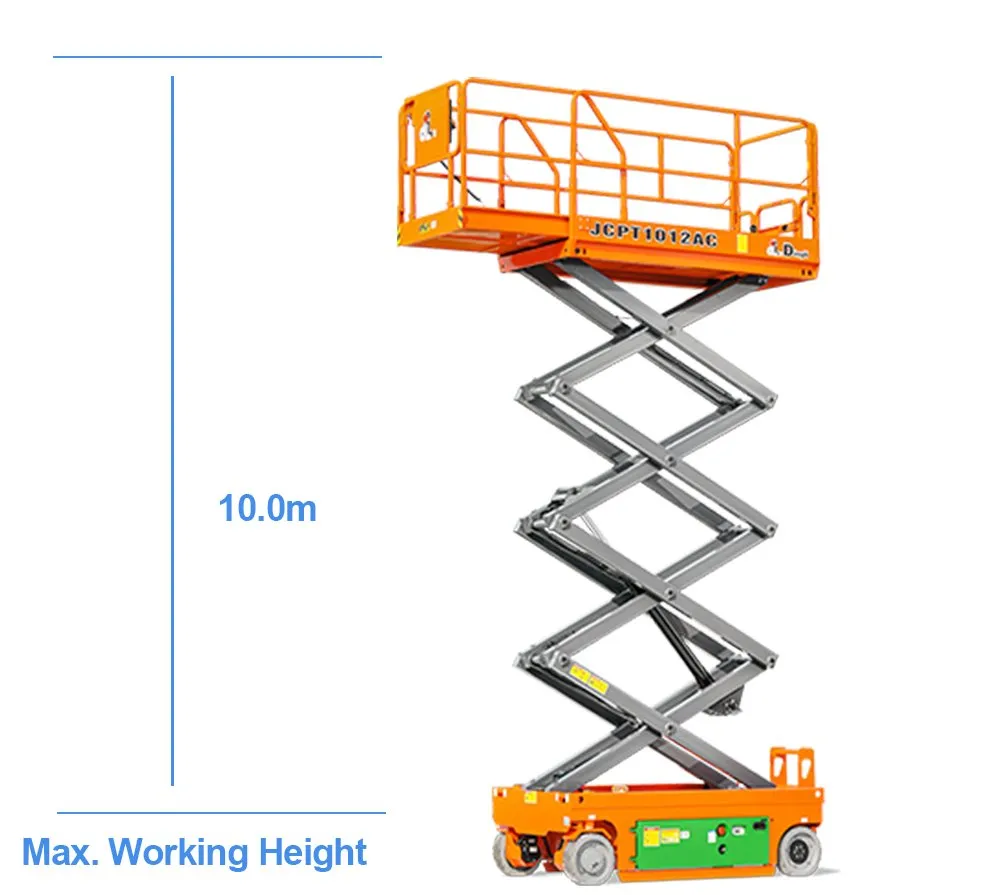

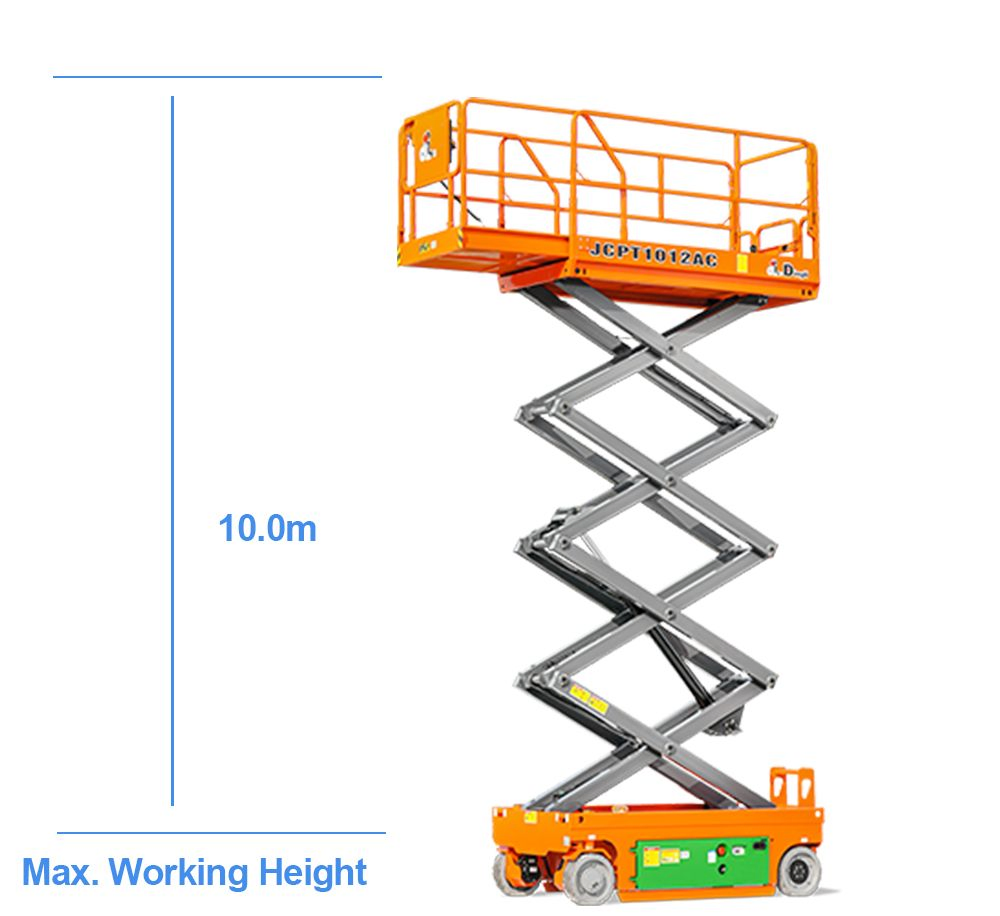

| Max. Working Height | 10m | Max. Platform Height | 8m |
| Overall Length (With Ladder) | 2.48m | Overall Width | 1.15m |
| Overall Height (Rails Up) | 2.36m | Overall Height (Rails Down) | 1.83m |

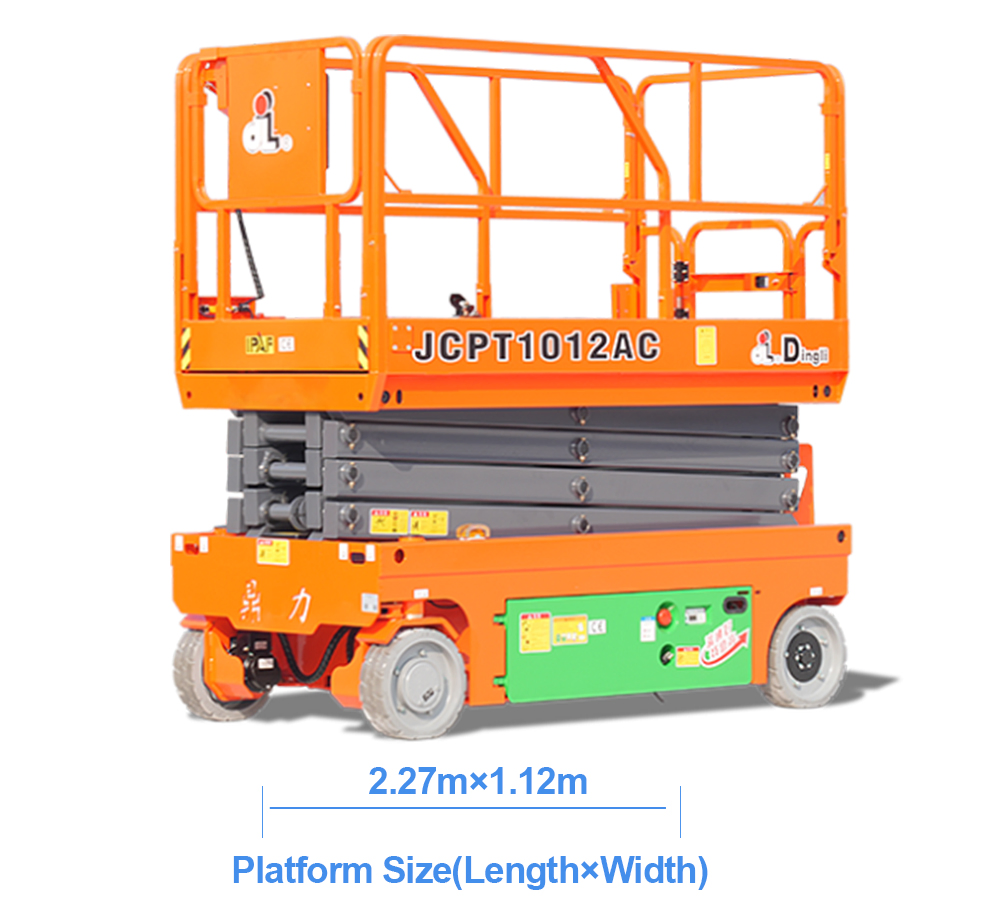

| Platform Size (L×W) | 2.27m × 1.12m | Platform Extension Size | 0.90m |
| Ground Clearance (Stowed/Raised) | 0.10m / 0.019m | Wheelbase | 1.87m |
| Turning Radius (Inside/Outside) | 0m / 2.20m | Tyres | φ381*127mm |
| Safe Working Load (S.W.L) | 450kg | S.W.L On Extension | 113kg |
| Max. Occupants (Indoor/Outdoor) | 2 / 2 | Gradeability | 25% |
| Travel Speed (Stowed) | 5km/h | Travel Speed (Raised) | 0.8km/h |
| Max. Working Slope | X-1.5° / Y-3° | Up/Down Speed | 34/30sec |
