Cherry Picker Spider Lift Man Boom Lift Aerial Work Platform Trailer Mounted

Customization: Available
After-sales Service: Online Support
Warranty: 6 Month

Product Description

i

Basic Information

Model NO.
TGZ10
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Moves
Towable
Driven Type
Hydraulic
Running Mode
Moving
Certification
CE

Product Description

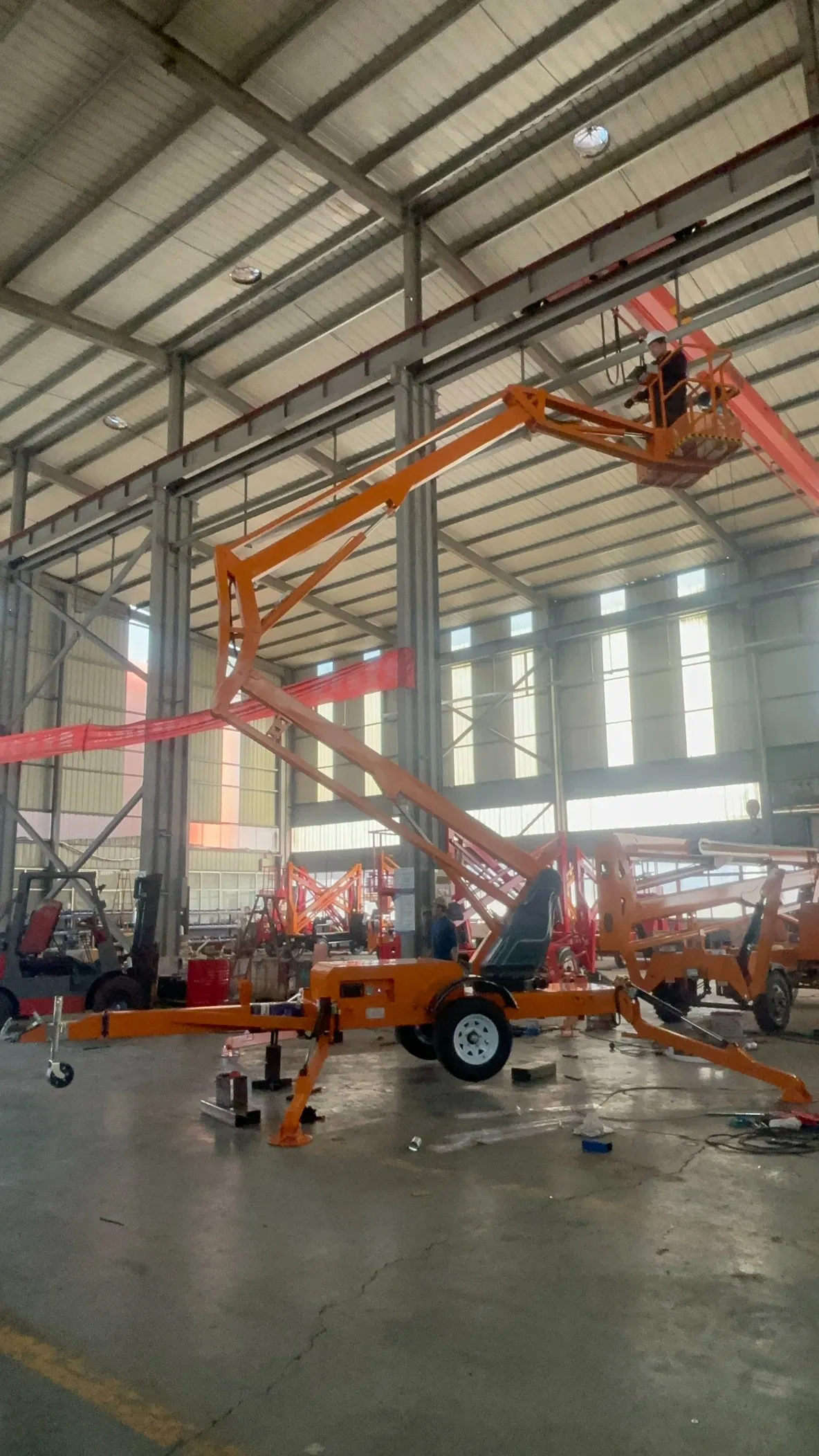

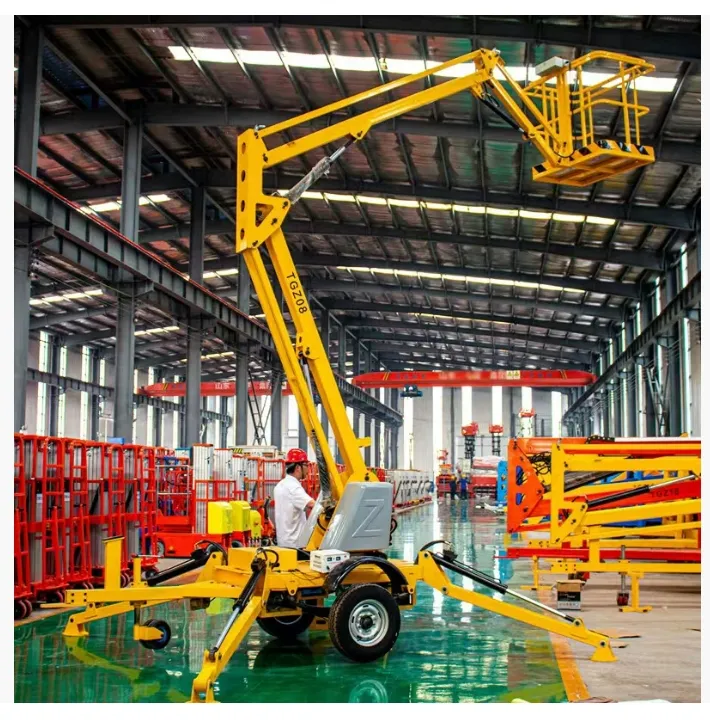

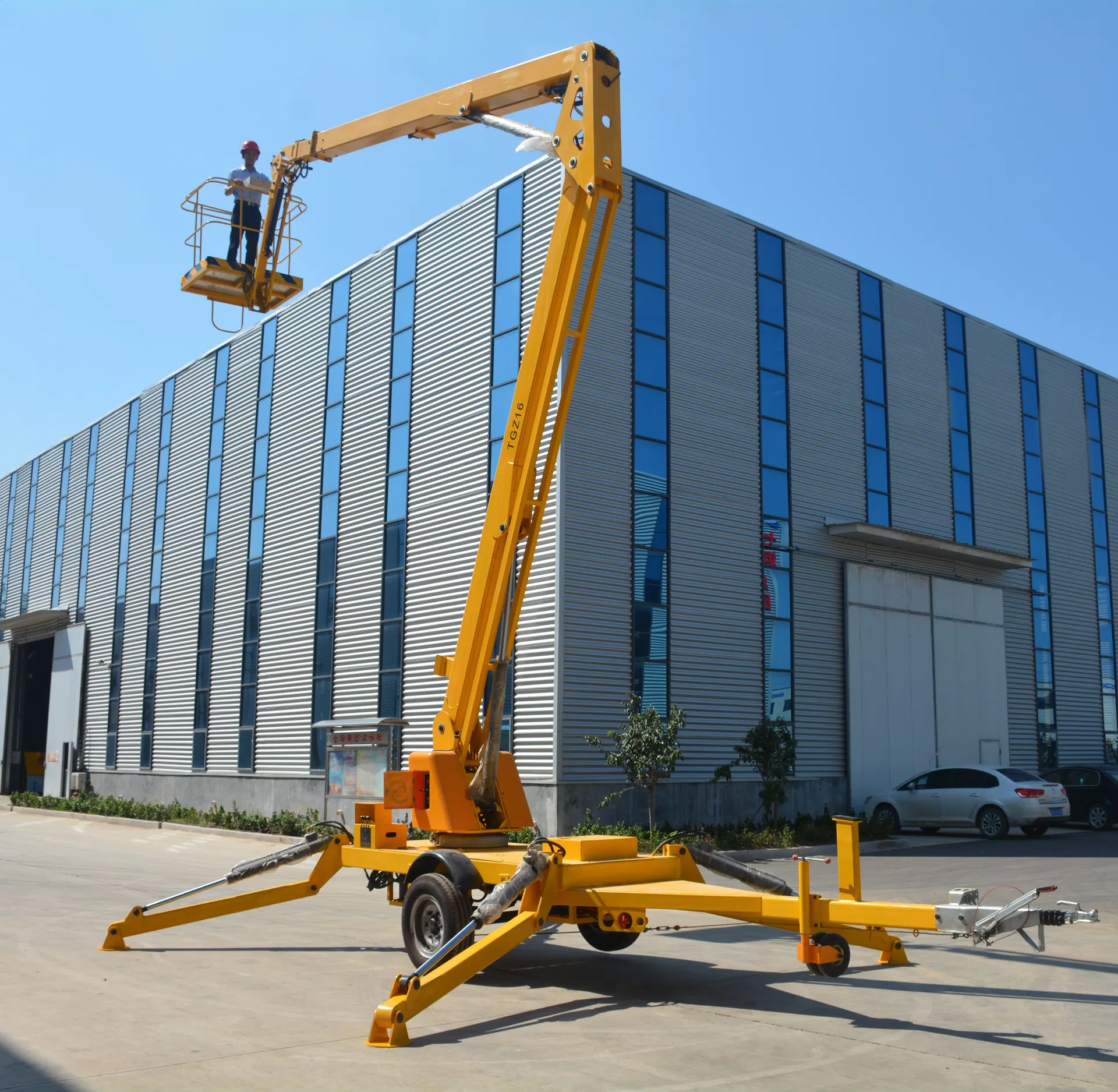

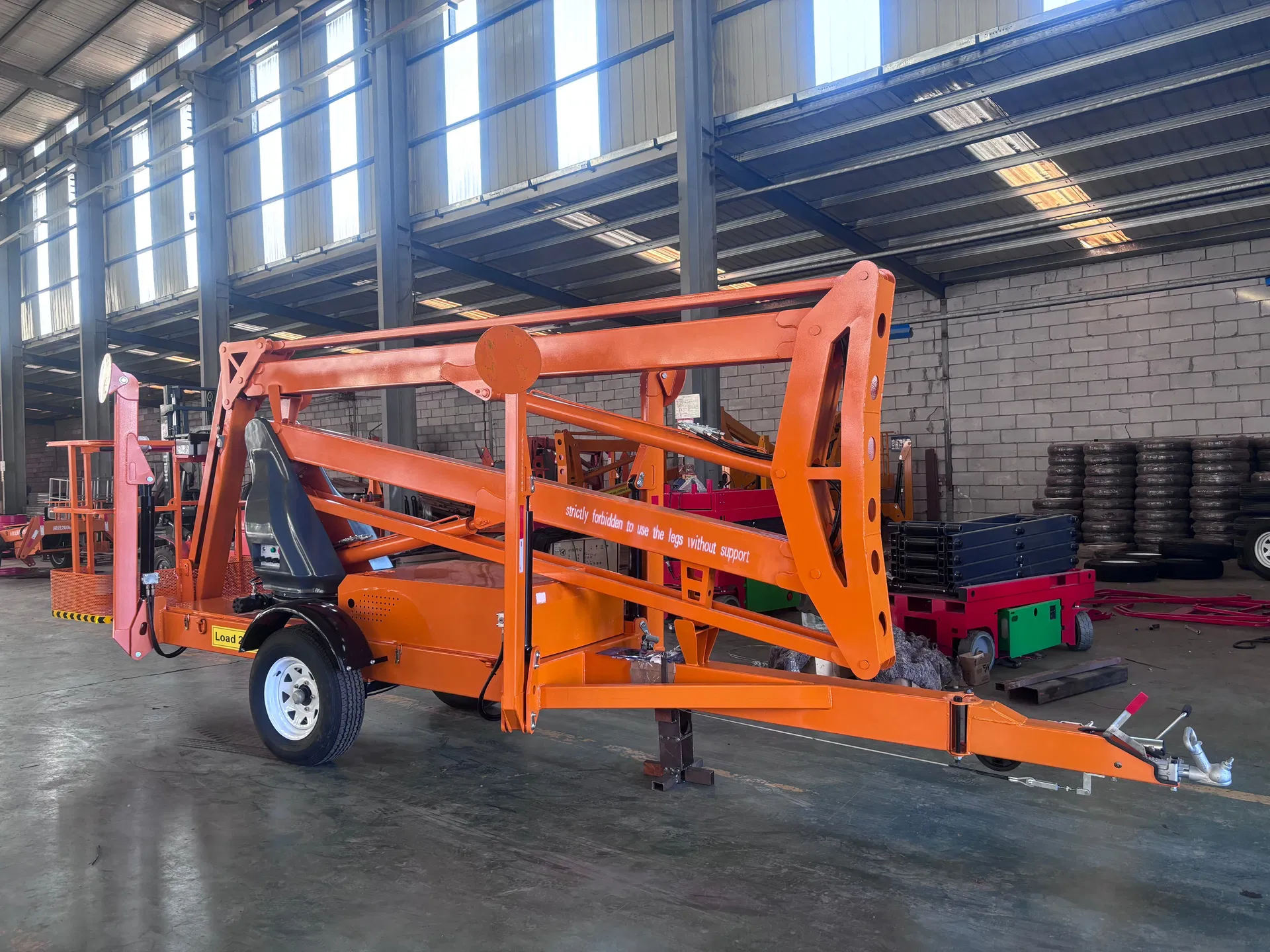

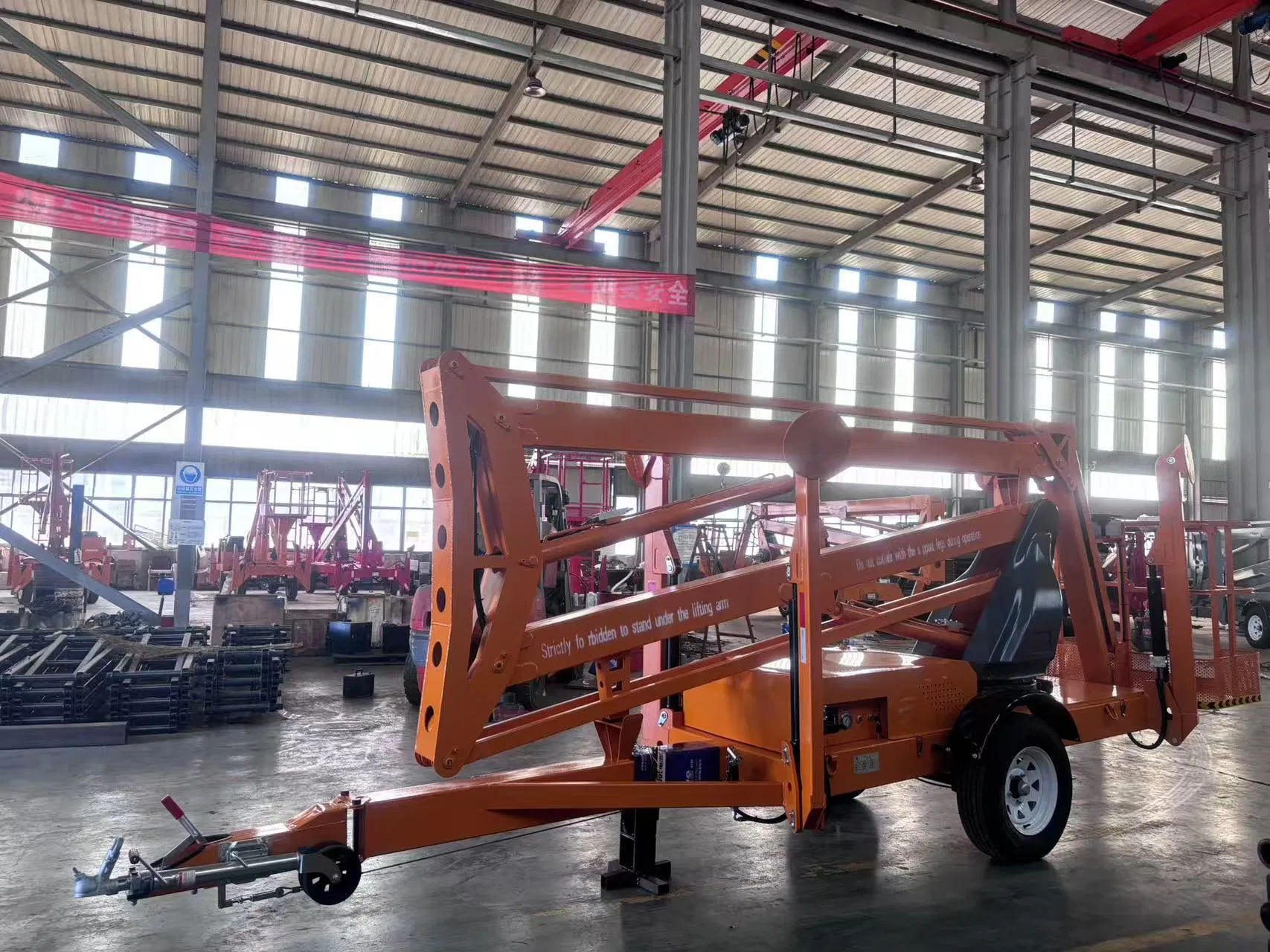

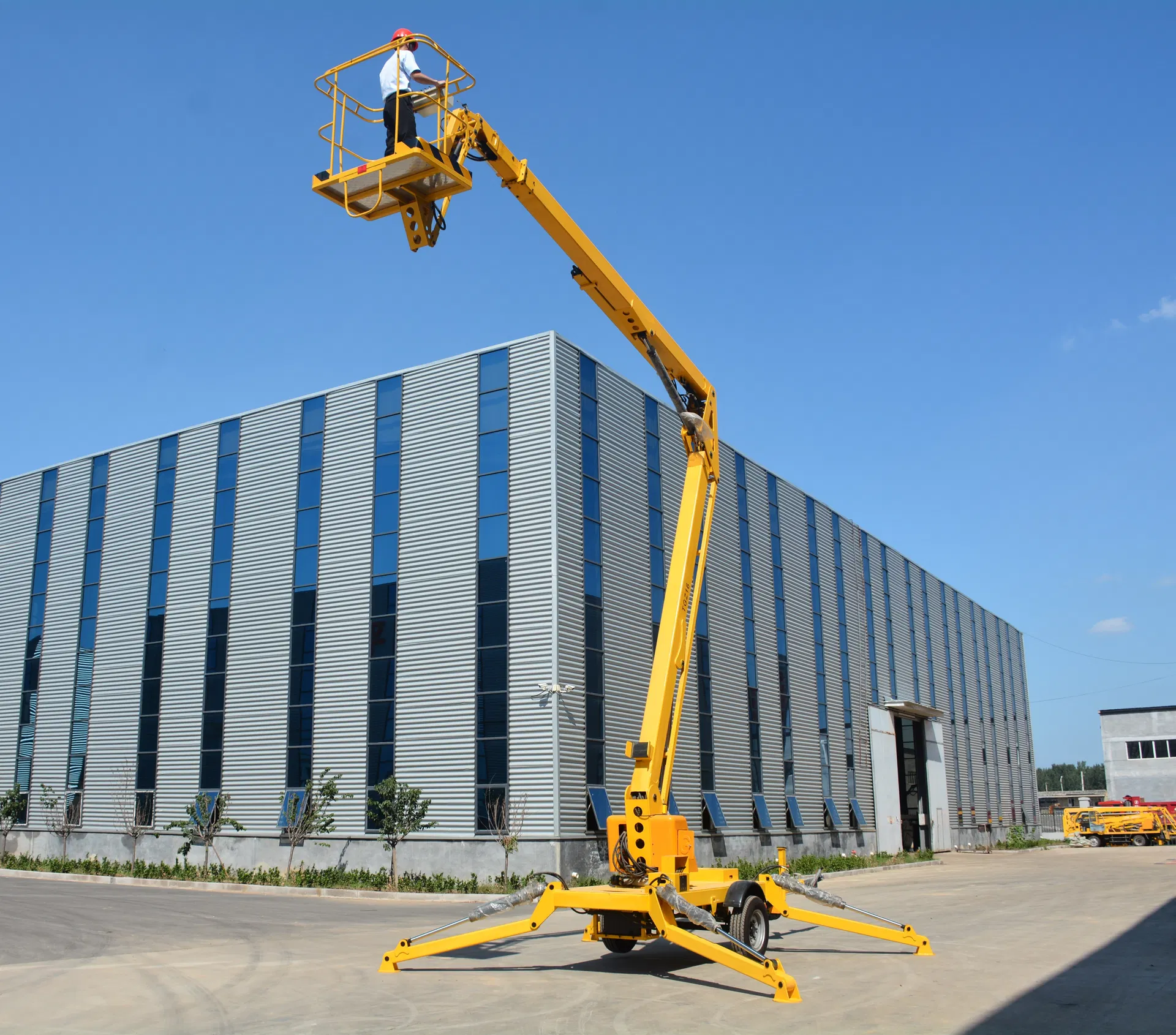

Trailer Folded arm aerial work Platform (cherry picker)

The trailer folding arm type aerial work platform is constructed from high-quality manganese steel, ensuring precision and sensitivity. Designed to cross obstacles with ease, it features a fast setup process and automatic hydraulic support feet. Each leg's height can be adjusted independently to accommodate rugged terrain and maintain a perfectly horizontal platform state.

This towable equipment is highly portable and widely utilized across various sectors including municipal works, electric power maintenance, street lighting, advertising, telecommunications, landscaping, and industrial installations. It is particularly effective for construction, shipbuilding, airport operations, and outdoor engineering tasks.

Technical Specifications

Custom configurations are available upon request.

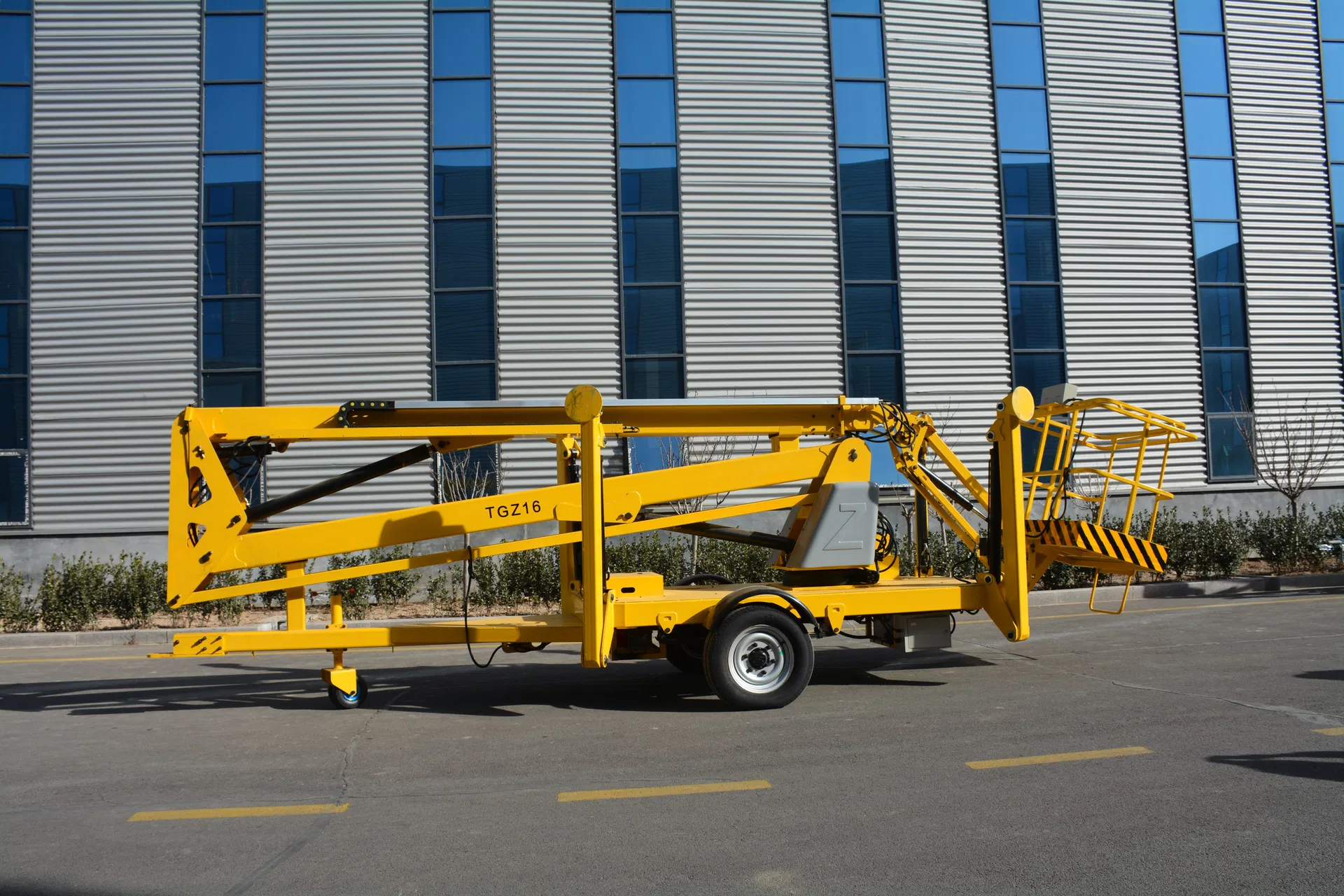

Model TGZ10 TGZ16
Max work height12m18m
Max. platform height10m16m
Max. payload200kg
Work range5.7m9.5m
Platform size1.2*0.8*1.1m
Pack size5.4*1.7*1.97*1.73*2.2
Outrigger range3.7*3.454.2*4.3
Rotation degree360 degree
Tyre185/75R14C215/75R16C
ControlHydraulic control
Weight1600kg2900kg
Diesel engine10hp12hp
DC Hydraulic pump24V/4.5KW /380V 1.5KW/220V 2.2KW
Battery4X6V (180Ah)4x6V (210Ah)

After Sales Service

Standard Warranty6 months limited coverage.
Extended WarrantyOptional coverage up to 12 months.
Global Support24/7 technical assistance for operations.
Professional TrainingRemote maintenance and operation training.
🏢

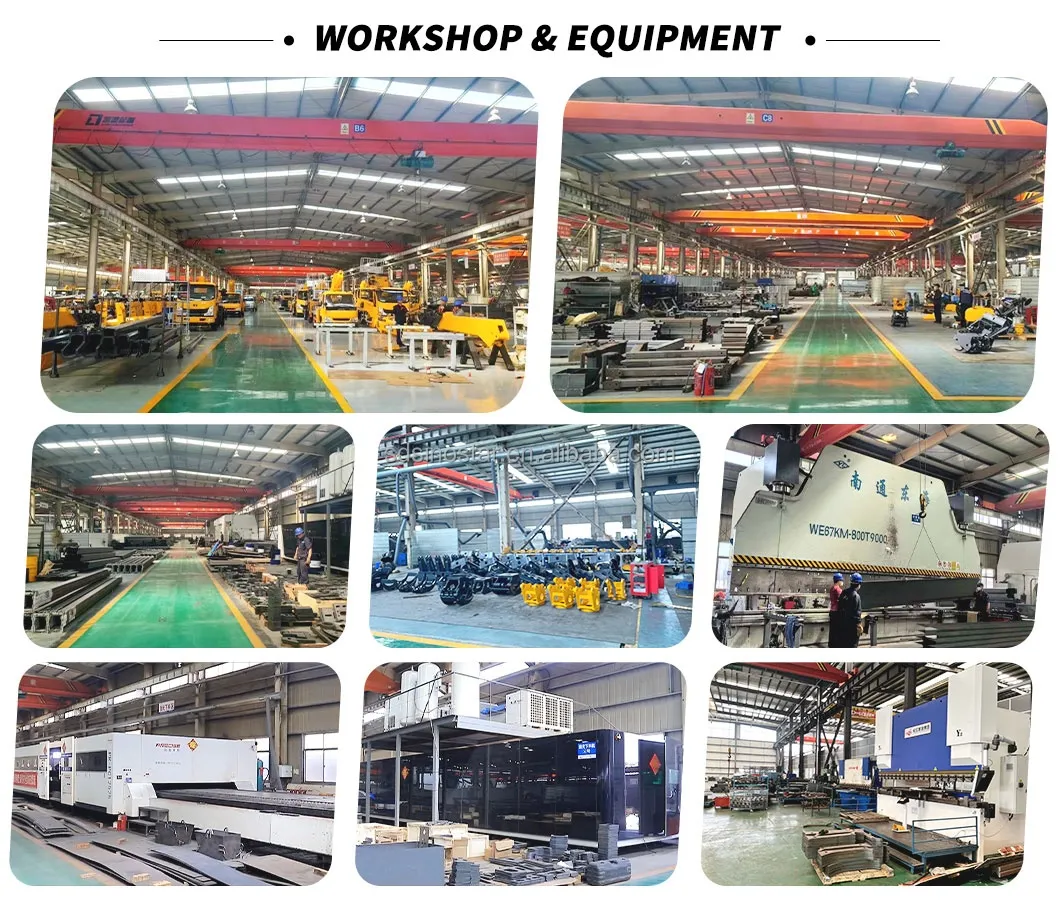

Production Display

?

Frequently Asked Questions

What is the typical lead time for an order?
Standard models generally ship within 15–30 days. For customized units or specific configurations, the lead time is approximately 30–45 days.
Is overseas after-sales support available?
Yes, we provide global support through partnered service centers in key regions and 24/7 remote technical assistance.
Can the platform bucket be customized?
Absolutely. We offer tailored bucket sizes and attachments to meet specific operational requirements.
What documentation is provided for international shipping?
We provide a comprehensive export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
How can I initiate a purchase or request a quote?
Please reach out via our official communication channels for a quote. Once terms are agreed upon, the order can be confirmed via a Purchase Order (PO).
Do you offer training for equipment maintenance?
Yes, we provide remote operation and maintenance training to ensure your team can safely and effectively handle the equipment.
