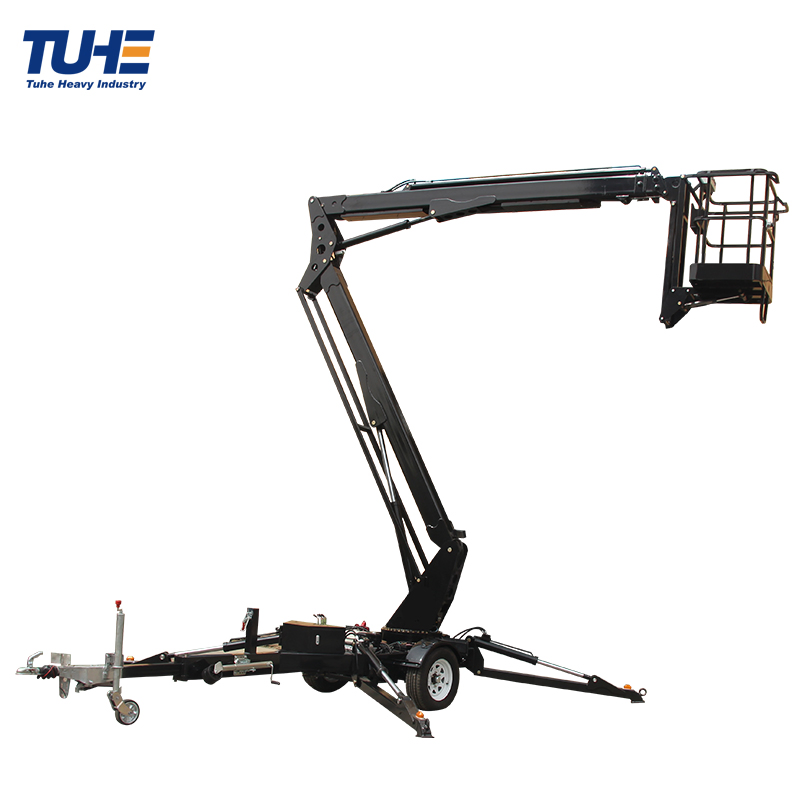

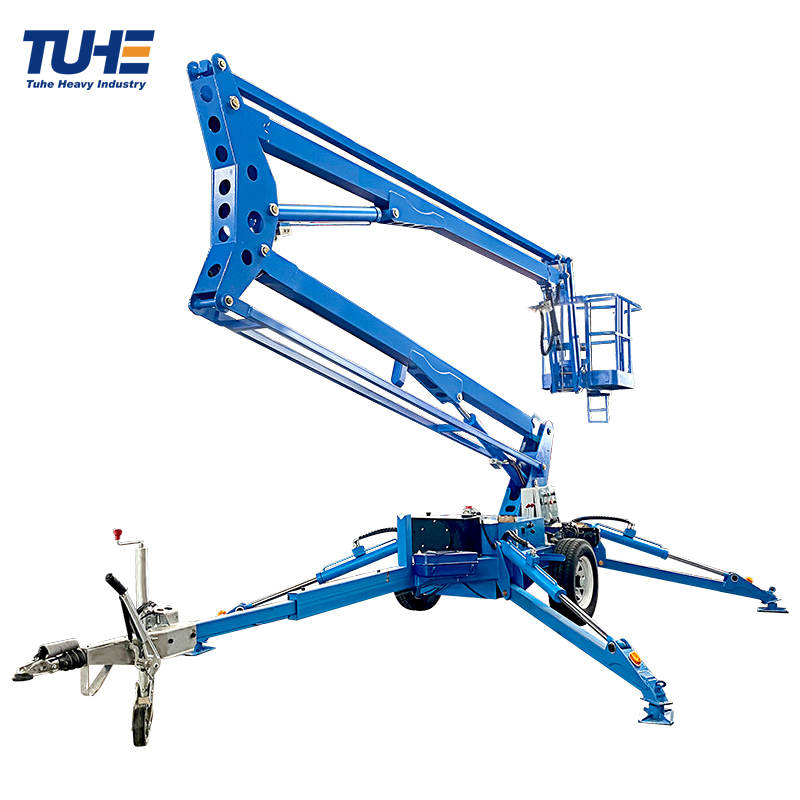

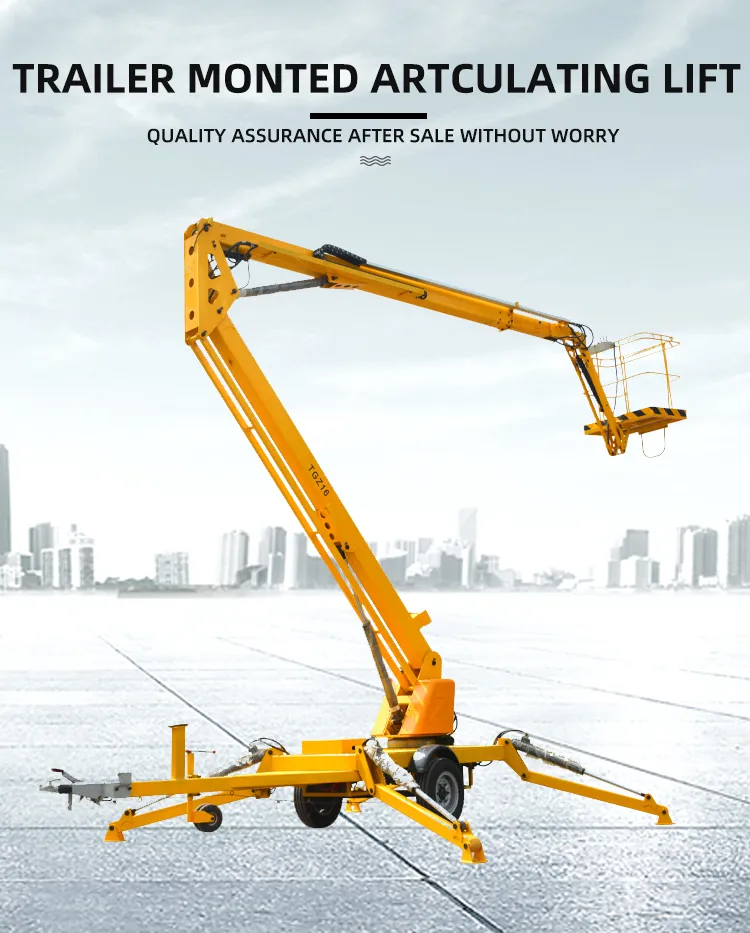

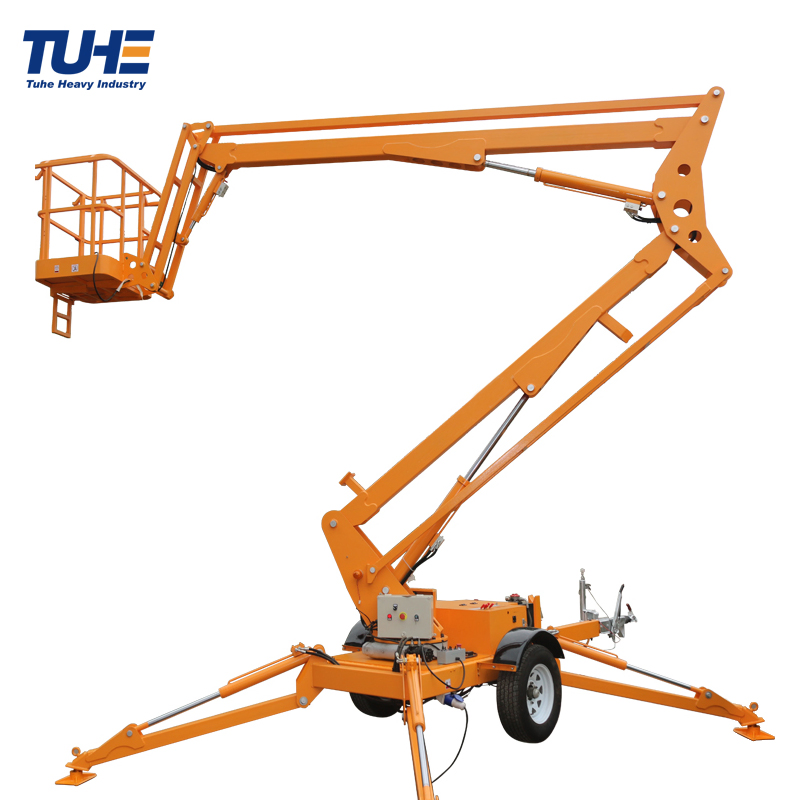

Articulating Boom Lift is also called "spider boom lift". The main structure of the cantilever lift has four outriggers, the arm, a work basket platform for carrying staff, and the bottom control system. It has durable tires and trailer hooks, which can be moved in different working locations by the trailer, and the outriggers can allow it to work on uneven ground.

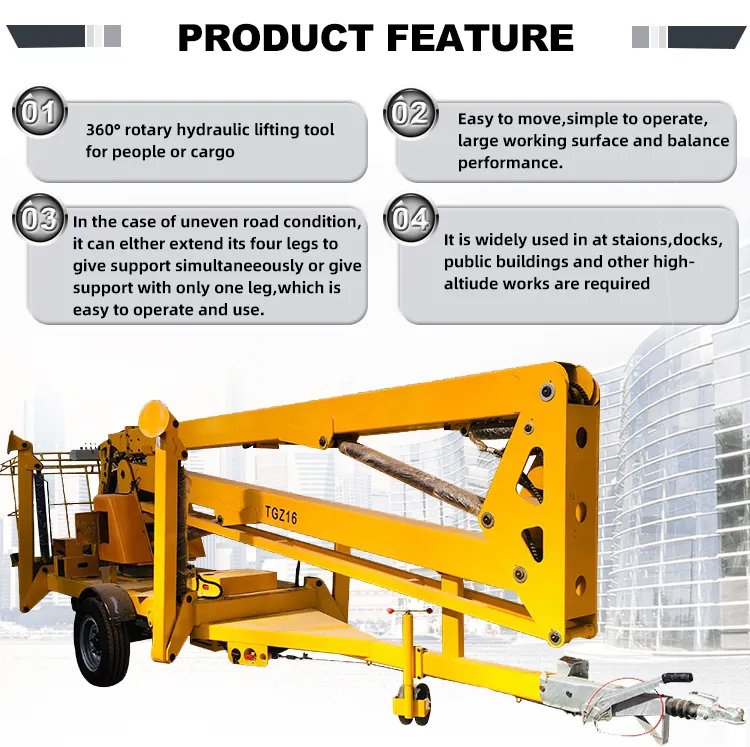

The Articulating Boom Lift is space-efficient, both when in use and folded for storage, as it's able to move around in narrow spaces easily and be folded up for compact. Articulated boom lift can be mounted on a trailer or truck to move freely from one place to another. It can rotate 360°. The four automatic hydraulic legs provide high stability.
Various power sources can be customized including AC, DC, gasoline, or diesel. Dual power or multi-power configurations are available to suit different working environments.
| Model | Lifting Height (m) | Working Height (m) | Dimensions (mm) | Platform Size (mm) | Weight (kg) | Working Radius (m) | Load (kg) |
|---|---|---|---|---|---|---|---|
| THTCZB-10 | 10 | 12 | 5400*1665*1900 | 1200*800 | 1700 | 5 | 200 |
| THTCZB-12 | 12 | 14 | 6400*1665*1900 | 1200*800 | 2000 | 6 | 200 |
| THTCZB-14 | 14 | 16 | 6200*1730*2100 | 1200*800 | 2350 | 8.5 | 200 |
| THTCZB-16 | 16 | 18 | 7000*1730*2200 | 1200*800 | 2600 | 9 | 200 |
| THTCZB-18 | 18 | 20 | 7100*1850*2260 | 1200*800 | 4300 | 10 | 200 |
| THTCZB-20 | 19.8 | 22 | 7700*1850*2260 | 1200*800 | 4450 | 12 | 200 |
