Battery Driven Aerial Work Platform for Indoor and Outdoor Use

■

Basic Specifications

Model NO.FSJY-S

Max. Platform Height6m 8m

Min. Platfom Height1080mm 1200mm

Min. Turning Radius2000mm

Driving Motor2X24/0/5 V/Kw

Lifting Motor24/2.2 V/Kw

Battery2X12/150 V/Ah

Transport PackagePallet

Specification300kg

HS Code8427900000

■

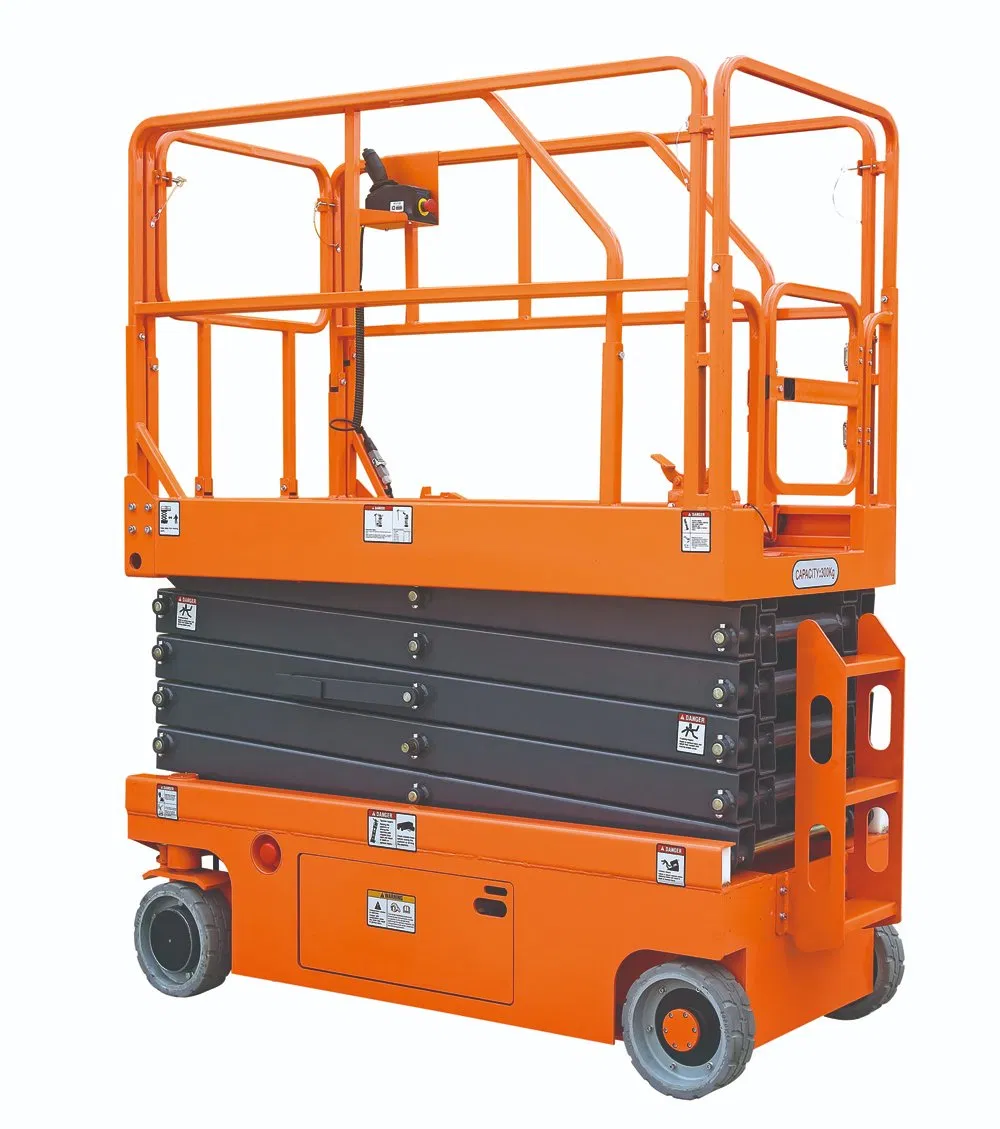

Self Propelled Full Electric Scissor Lift Platform

✔

Electric Drive System Effective and energy saving electric drive system features zero emission and low noise, enabling this machine easily to work in enclosed environments such as office buildings, hospitals and schools.

✔

Narrow Structure Narrow structure design enables the complete vehicle to easily pass through a single gateway. The foldable fence makes the transportation easier.

✔

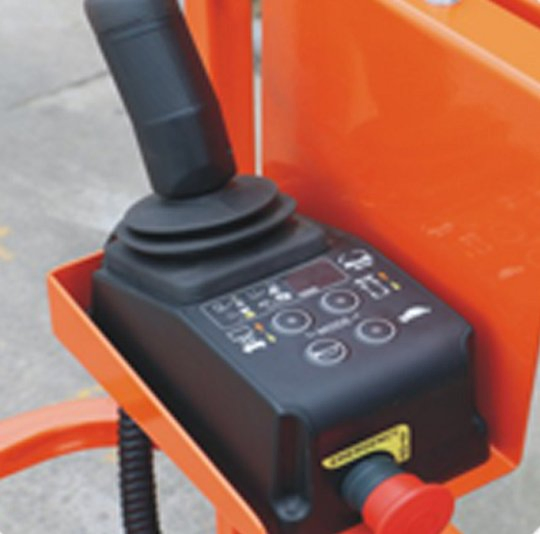

Safety Features Equipped with Emergency descend button to bring down the platform in case of power failure and Overload limit to ensure occupant safety.

■

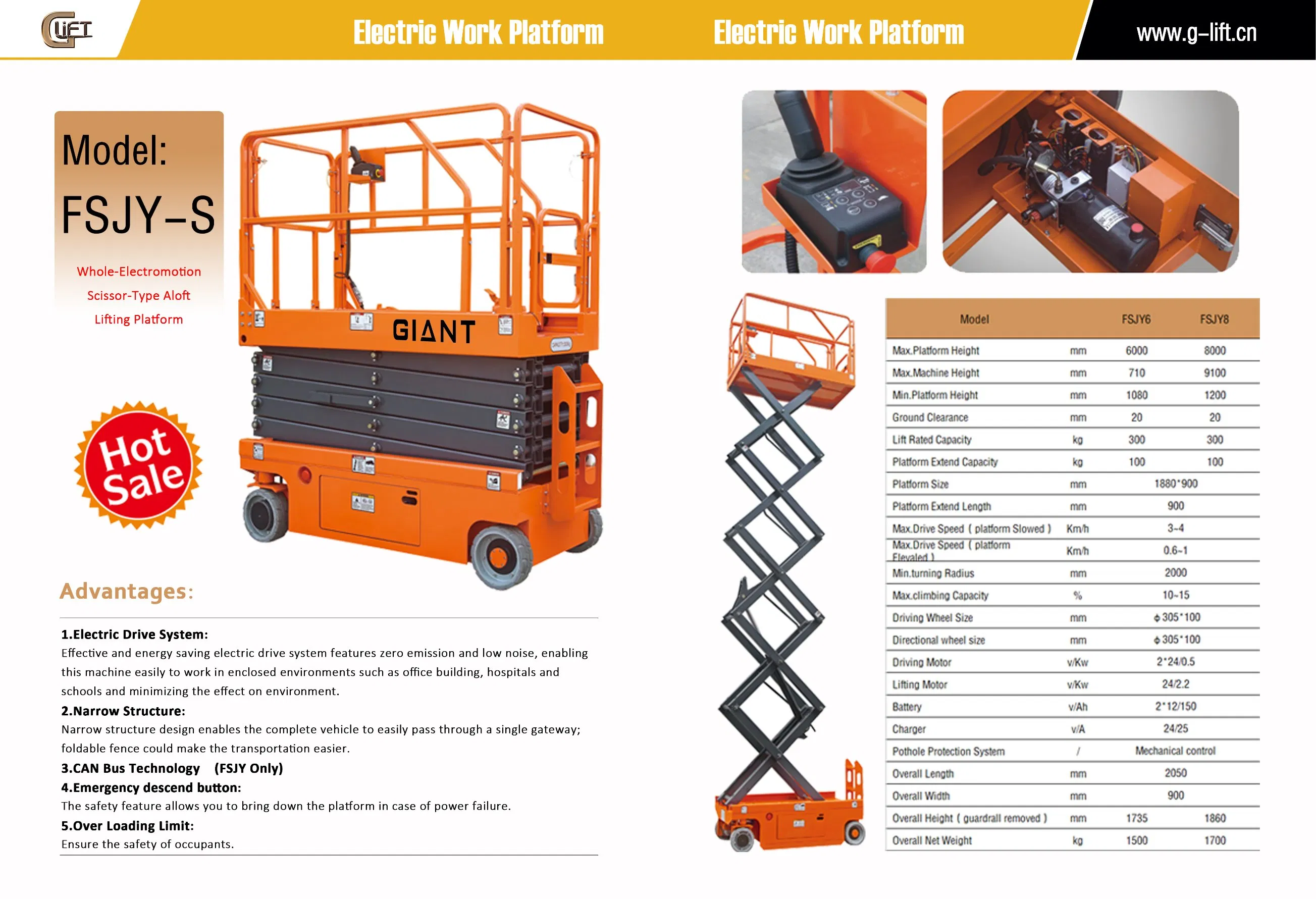

Technical Parameters

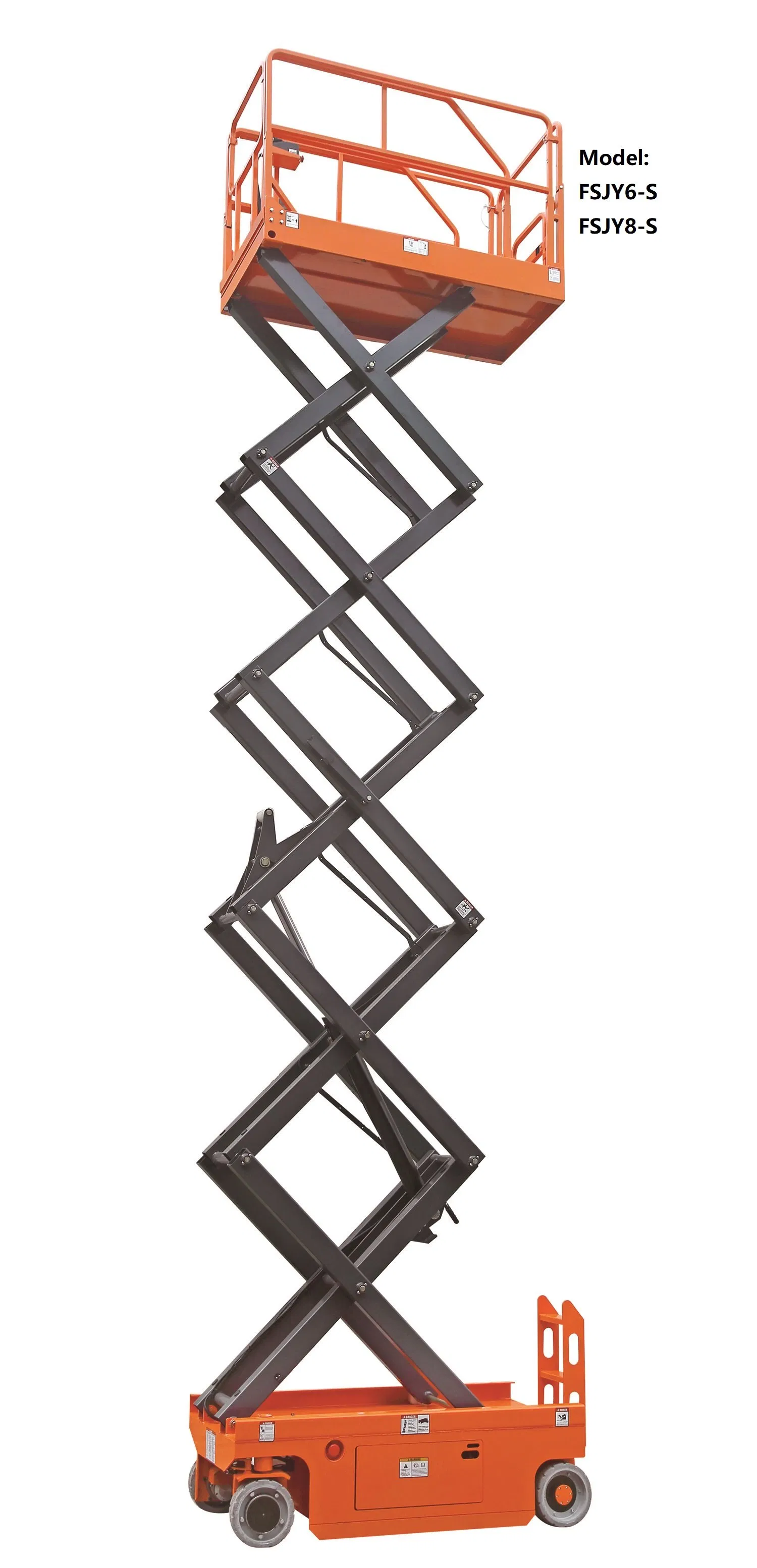

Model	Unit	FSJY6-S	FSJY8-S
Max.Platform Height	mm	6000	8000
Max.Machine Height	mm	7100	9100
Min.Platform Height	mm	1080	1200
Lift Rated Capacity	kg	300	300
Platform Size	mm	1880x900
Max. Drive Speed	Km/h	3~4
Min. Turning Radius	mm	2000
Driving Motor	v/Kw	2*24/0.5
Battery	v/Ah	2*12/150
Overall Net Weight	kg	1500	1700

■

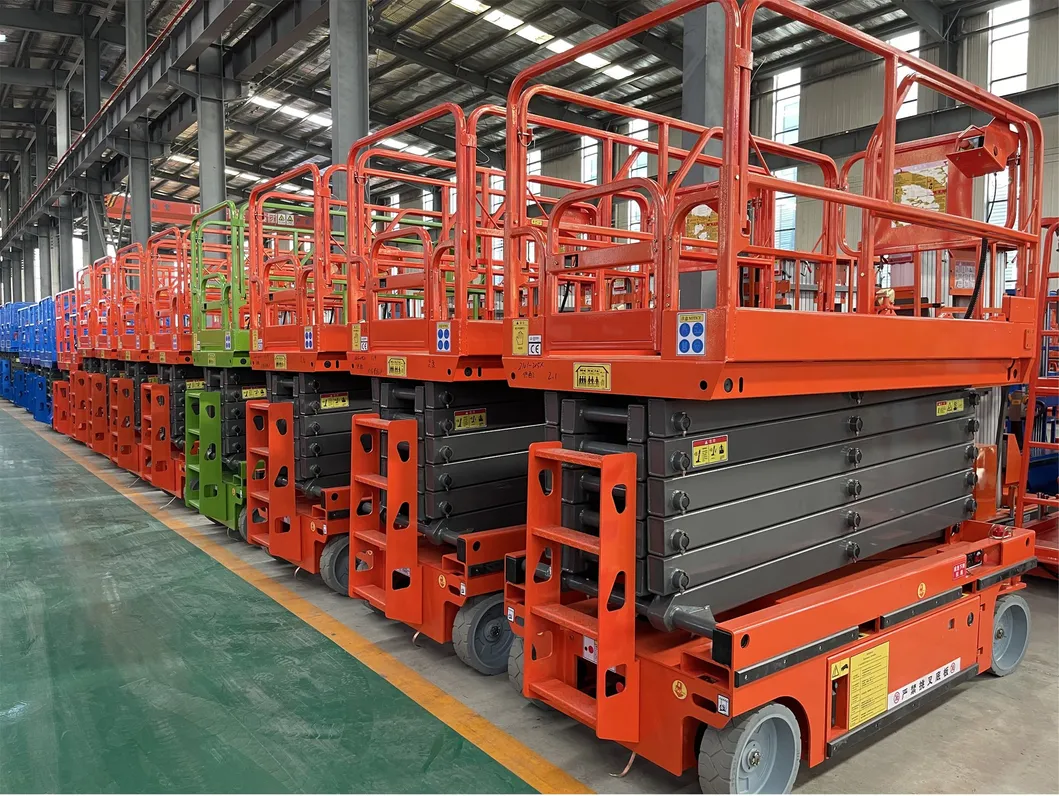

Product Gallery

?

Frequently Asked Questions

Q1: Are you a factory or a trading company? We are a combination of both, focused on manufacturing material handling products such as lift tables, pallet trucks and lifting platforms for over 35 years. We provide a one-stop purchase experience for industrial lifting equipment.

Q2: Do you provide customized products? Yes, customized products can be provided according to your specific requirements. Both OEM and ODM services are acceptable.

Q3: How do you control the product quality? We use high-quality steel, follow standardized production processes with traceable ID cards, and conduct 100% finished product testing before shipping. We also accept third-party inspections.

Q4: What is the warranty period for your products? We provide a 12-month warranty for all products, excluding wear parts such as wheels, tires, or hydraulic oil.

Q5: What is the lead time for production? Usually around 10-15 days after payment is received. During peak seasons or holidays, it may take around 30 days.

Q6: What payment terms do you accept? We primarily accept T/T and L/C. For other payment methods, please contact our sales team.
