Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Certification
CE, ISO 9001
Product Name

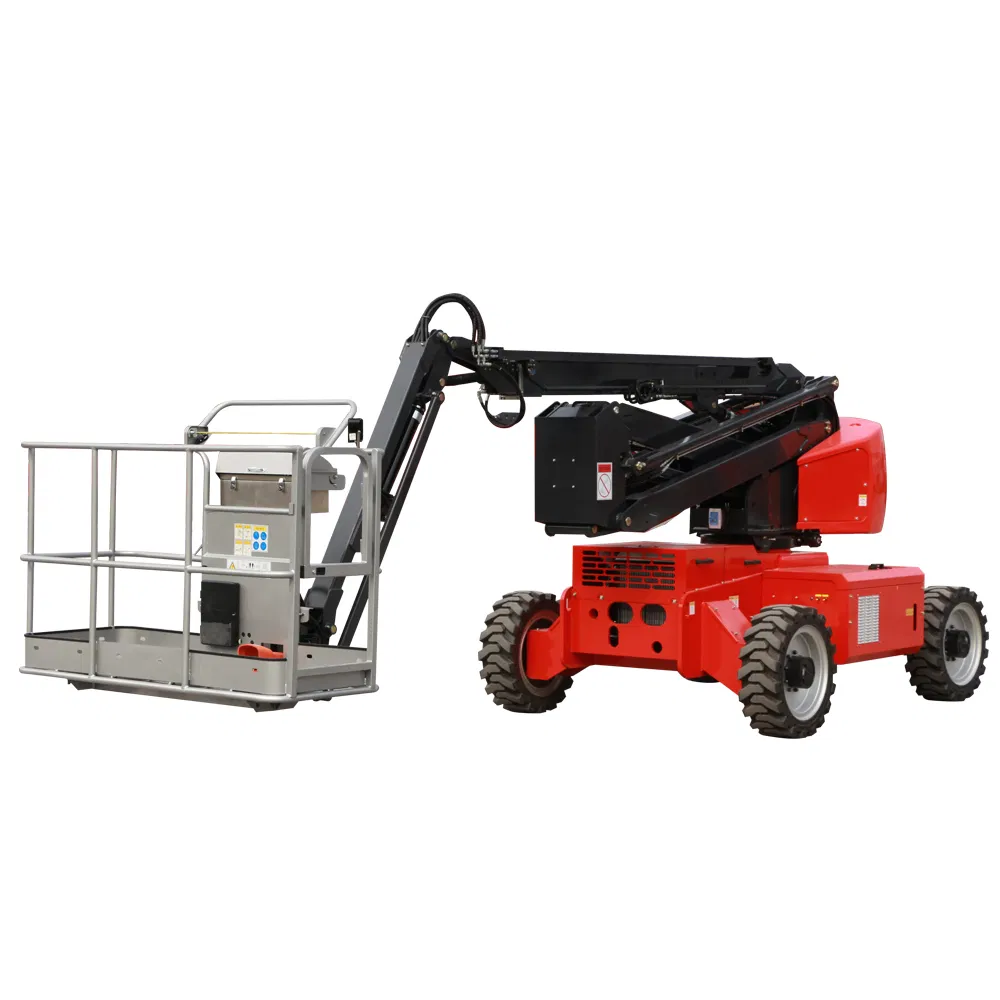

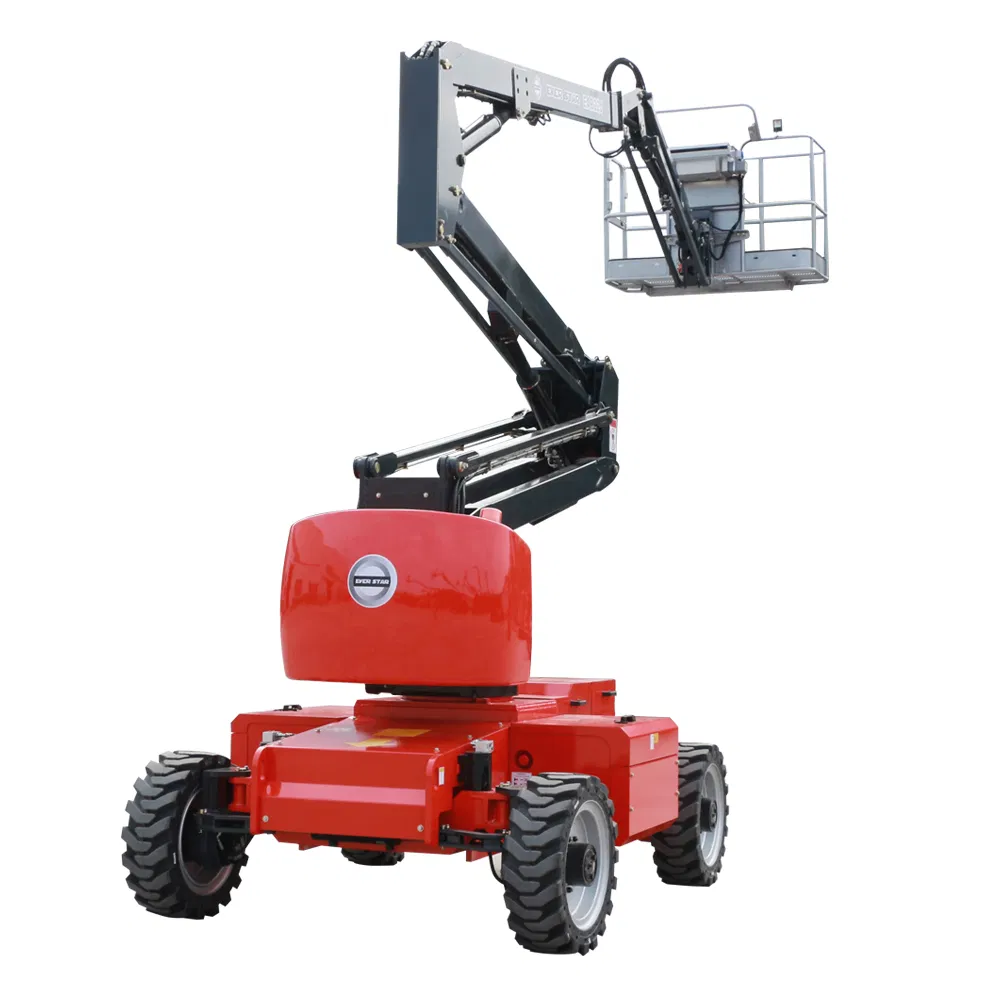

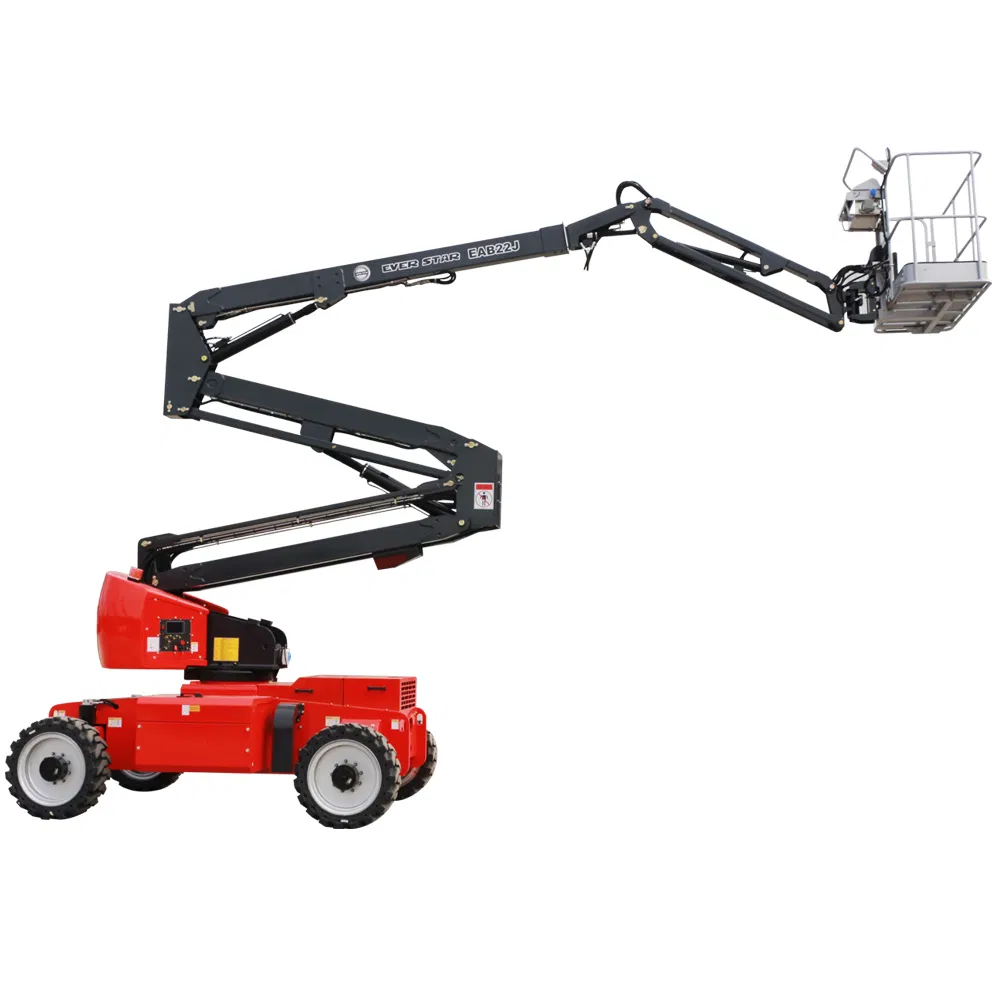

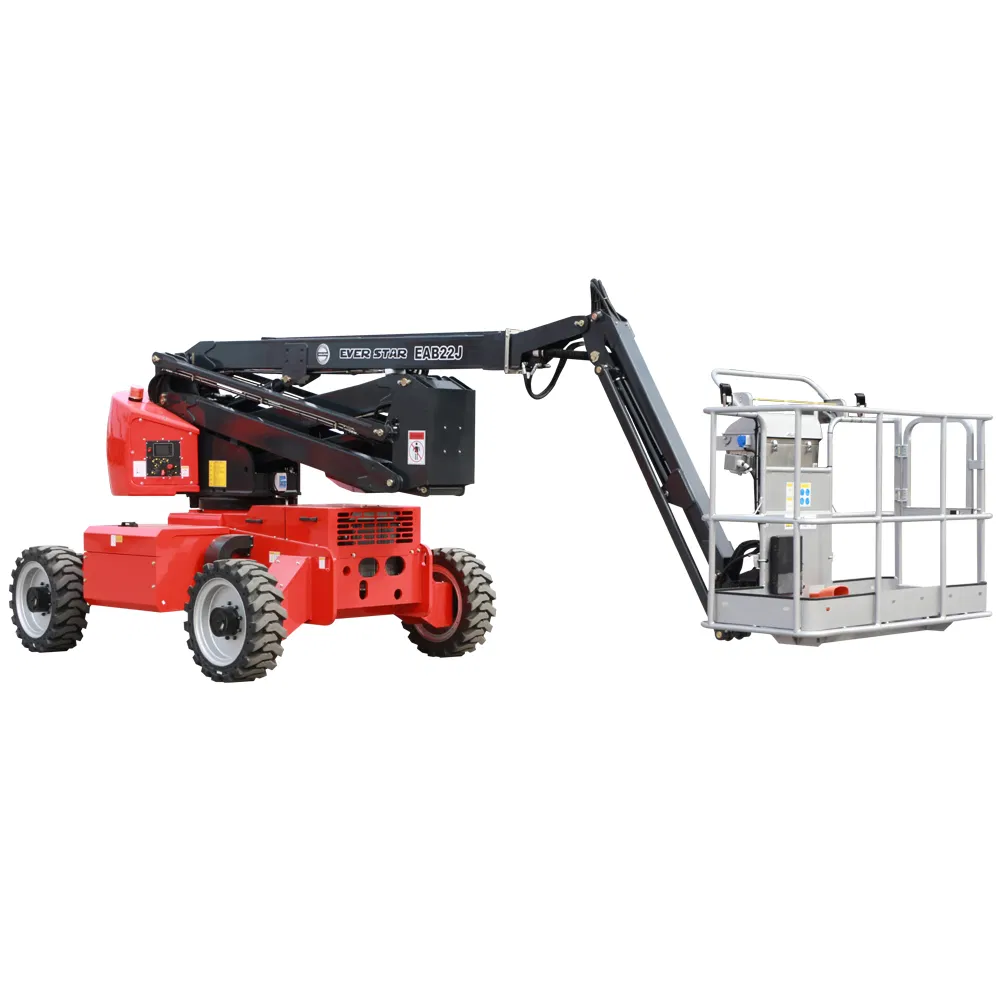

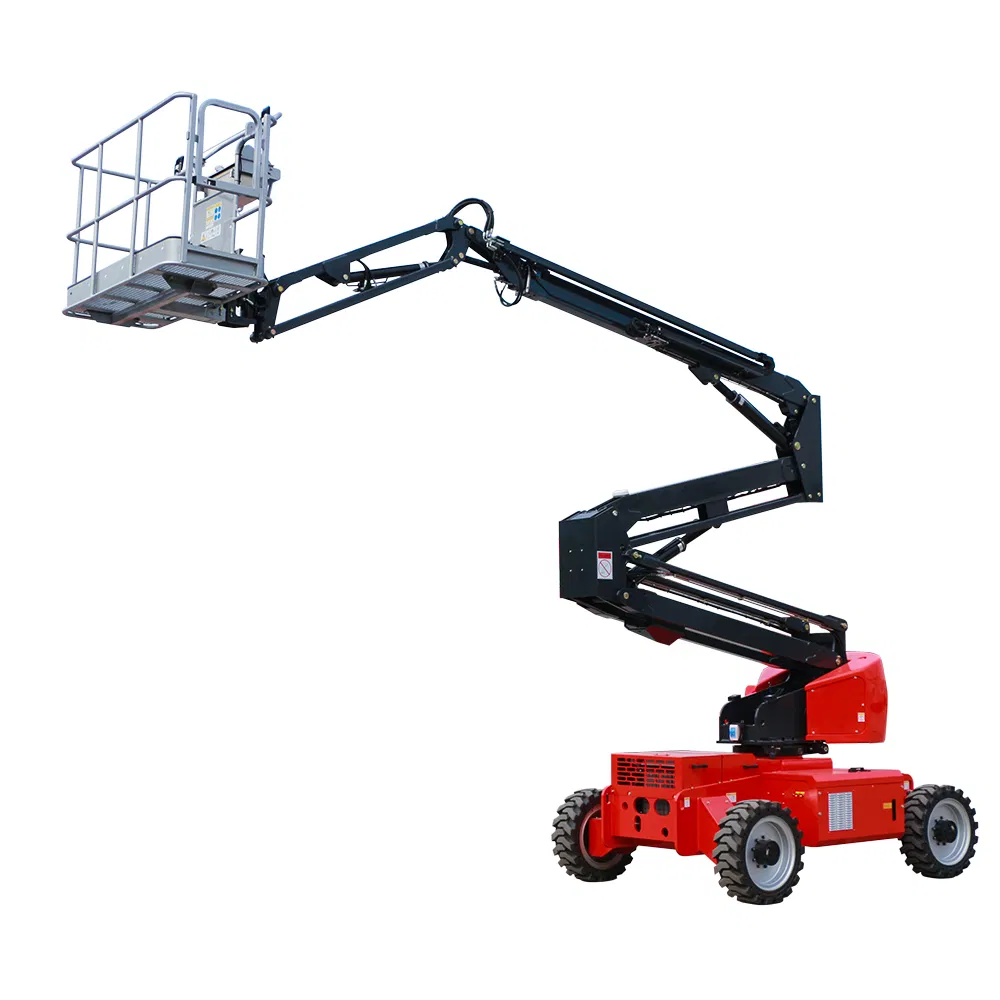

Hydraulic Platform Lift
Technical Parameters (16-28m Diesel)
| Model |
EAB16J |
EAB18J |
EAB20J |
EAB22J |
EAB26J |
EAB28J |
| Max. Working Height(m) | 16.7 | 18 | 20.2 | 22 | 26.2 | 28 |
| Max. Platform Height(m) | 14.7 | 16 | 18.2 | 20 | 24.2 | 26 |
| Max. Lift Capacity(kg) | 230 | 230 | 230 | 230 | 230 | 230 |
| Max. Horizontal Outreach(m) | 8.1 | 9.55 | 11.6 | 12 | 15.4 | 17.28 |
| Stowed Size (LxWxH m) | 6.72x2.28x2.47 | 7.26x2.28x2.4 | 8.23x2.38x2.5 | 8.54x2.38x2.55 | 10.65x2.48x2.85 | 11.7x2.58x2.97 |
| Engine Power(kw) | ≈36kw@2400rpm | ≈36kw@2500rpm |
| Weight(kg) | 7500 | 7800 | 8800 | 9380 | 15870 | 17000 |
Technical Parameters (32-47m Diesel)
| Model |
EAB32J |
EAB40J |
EAB47J |
| Max. Working Height(m) | 32 | 40.1 | 47.5 |
| Max. Platform Height(m) | 30 | 38.1 | 45.5 |
| Max. Lift Capacity(kg) | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 20.2 | 21.6 | 23 |
| Platform Size(m) | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 |
| Engine Power(kw) | ≈54kw@2400rpm | ≈54kw@2400rpm | ≈81kw@2400rpm |
| Weight(kg) | 18000 | 24500 | 26500 |
Available in various models: Electric/Diesel Articulated and Telescopic Boom Lifts.

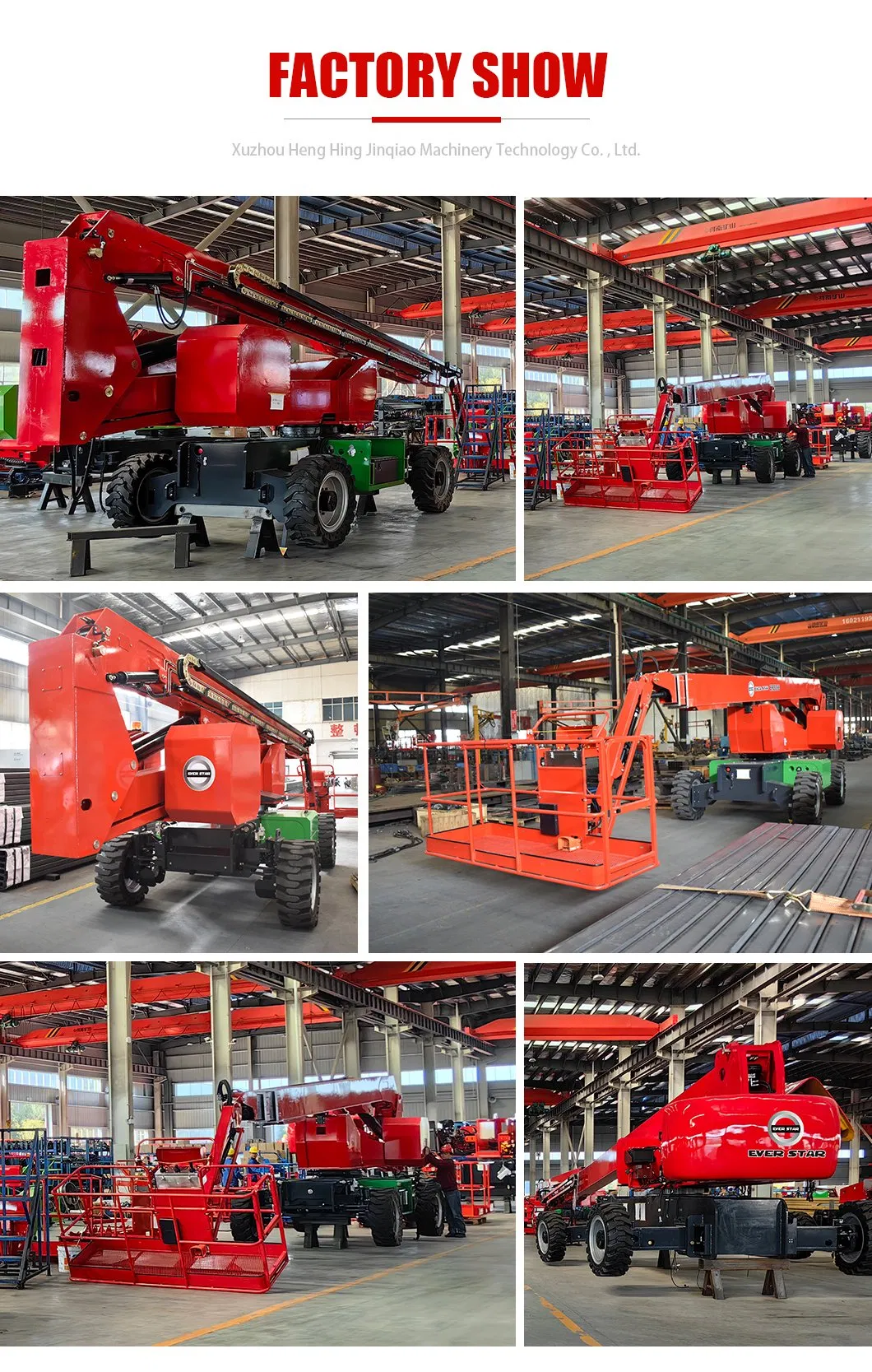

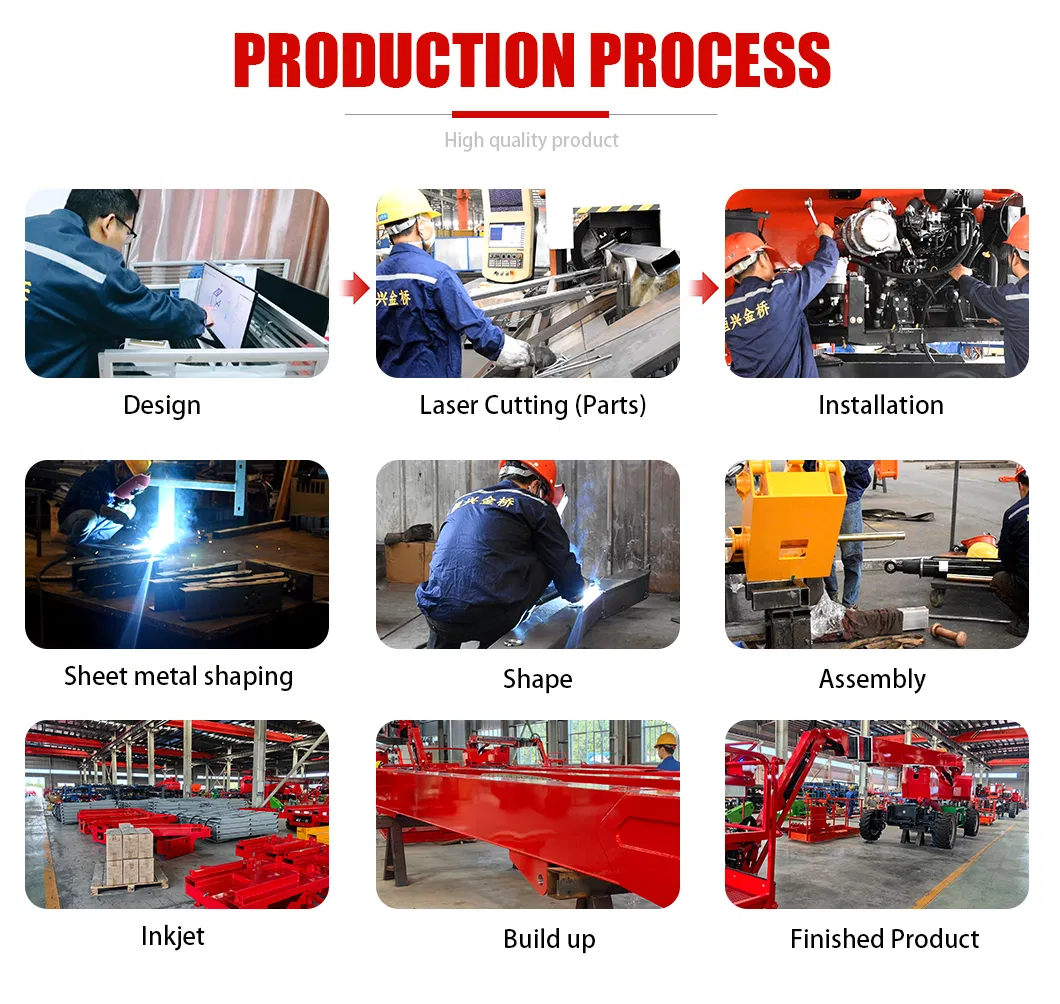

Production Line & Quality Control
Frequently Asked Questions
What is the maximum working height available for your boom lifts?
Our range covers working heights from 6 meters up to 47.5 meters to suit various industrial and construction needs.
What power types do you offer for the articulating boom lifts?
We provide both electric-powered models for indoor/quiet operations and diesel-powered models for heavy-duty outdoor terrain.
Are your hydraulic platforms certified for international markets?
Yes, all our products are manufactured under strict quality control and hold CE and ISO 9001 certifications.
What is the standard lifting capacity for these units?
Standard models typically offer a 230kg capacity, while our larger diesel models can handle up to 480kg.
Can the boom lifts operate on rough terrain?
Yes, our diesel articulating boom lifts are designed with high gradeability (up to 45%) specifically for moving and operating on uneven surfaces.
Do you support customized colors for the equipment?
Yes, we can accommodate specific color requirements based on our customers' branding or preferences.
