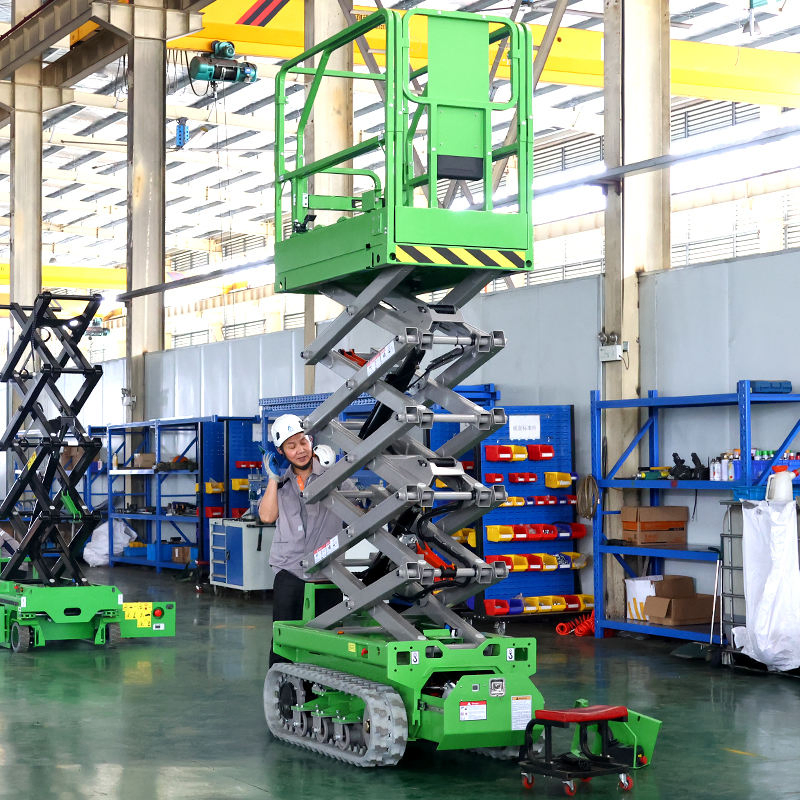

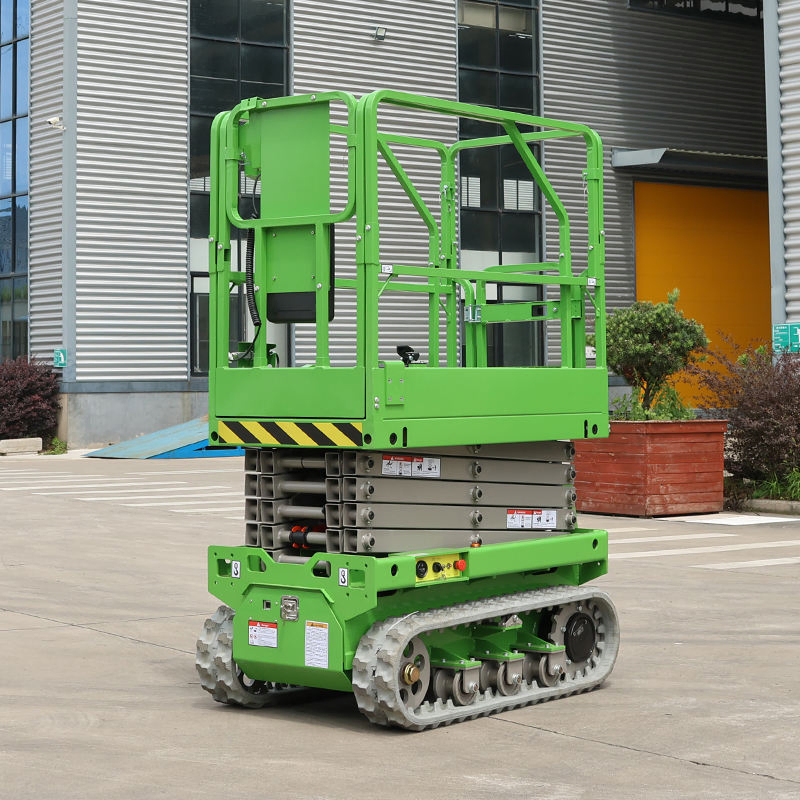

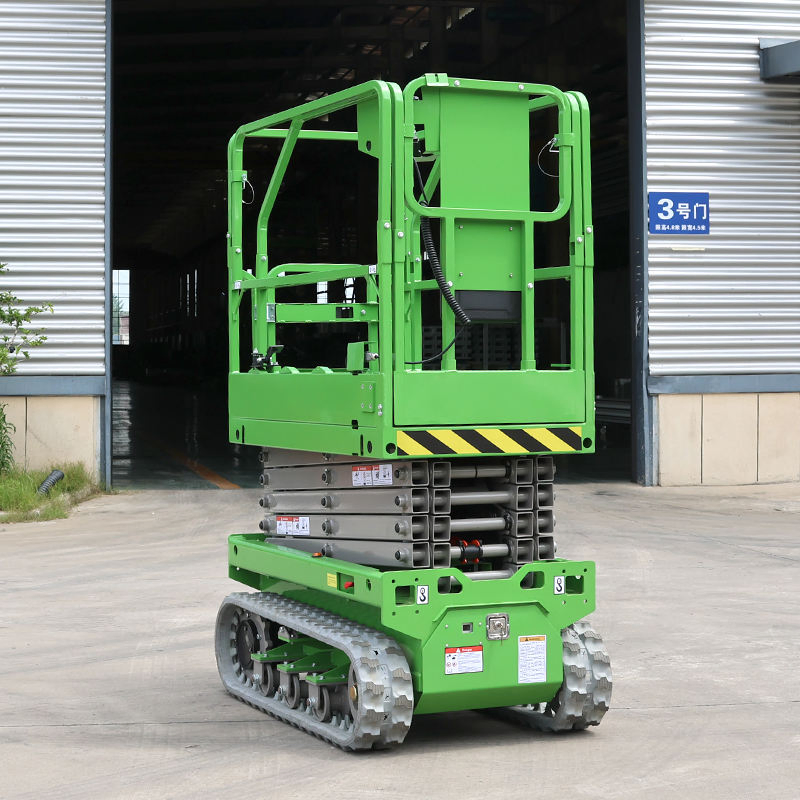

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

1 / 5

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

Overview & Basic Info

Model NO.:BJ-0607T

Application:Workshop, Warehouse, Building Crane

Lift Mechanism:Scissor Lift

Carrying Capacity:230kg

Moves:Self-propelled

Driven Type:Hydraulic

Certification:CE, ISO 9001

Dimensions:1750*920*1520mm

Max Occupancy:2 Persons

Electric Motor:24V/2×1kw

Product Description

Product Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Dimensions
Max operating height (m)	6.6	7.8	8.3	10.3	12	14	16
Max platform height (m)	4.6	5.8	6.3	8.3	10	12	14
Platform length (mm)	1400	1400	1800	1800	2270	2270	2670
Overall width (mm)	880	920	960	960	1360	1360	1610
Performance
Rated load capacity (kg)	230	230	300	300	450	450	450
Gradeability (%)	30	30	30	30	30	30	30
Weight (kg)	816	1055	1640	1745	3460	3760	4760

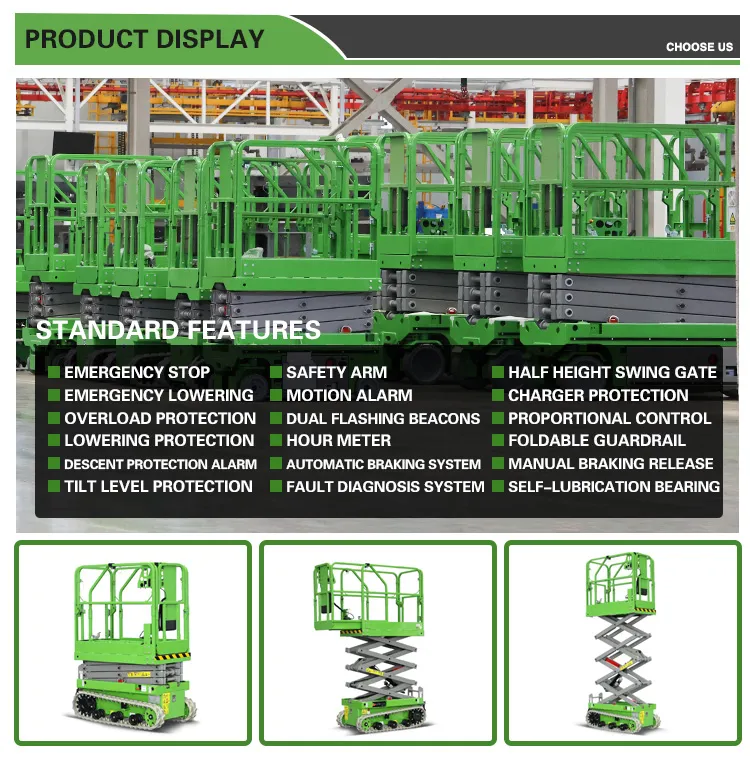

Professional Display

Frequently Asked Questions

Q1: What is the maximum working height of the BJ-0607T model? A1: The BJ-0607T features a maximum platform height of 5.8 meters, which provides an approximate working height of up to 7.8 meters.

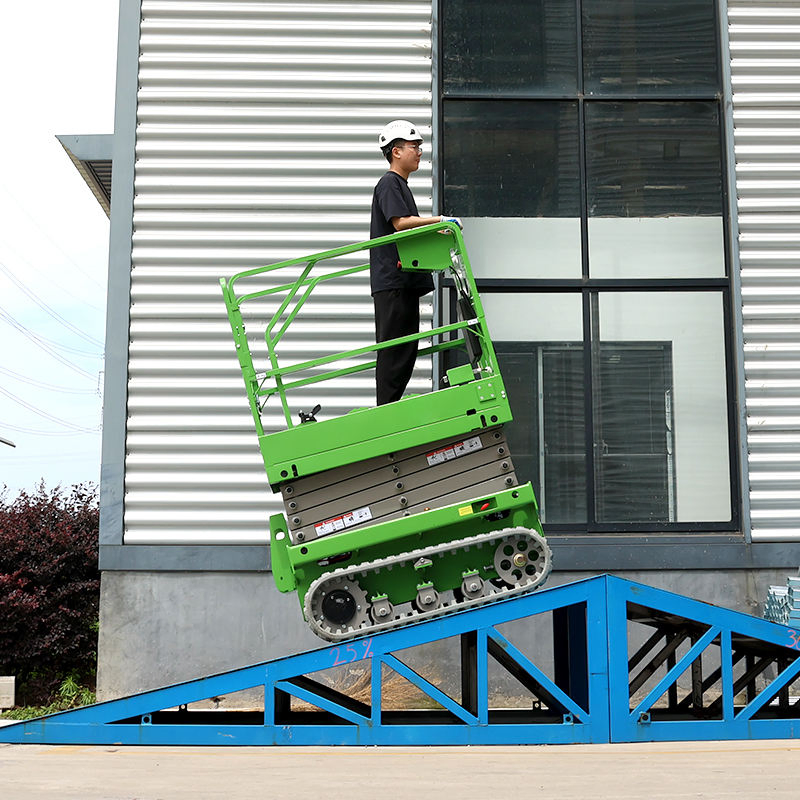

Q2: Can this scissor lift be used on uneven terrain? A2: Yes, these models are self-propelled and use rubber or steel tracks, making them suitable for various indoor and outdoor environments like workshops and construction sites.

Q3: What safety features are included in these lifts? A3: Our scissor lifts are explosion-proof, insulating, and CE/ISO 9001 certified. They also include tilt sensors with a maximum working inclination angle of up to 3°.

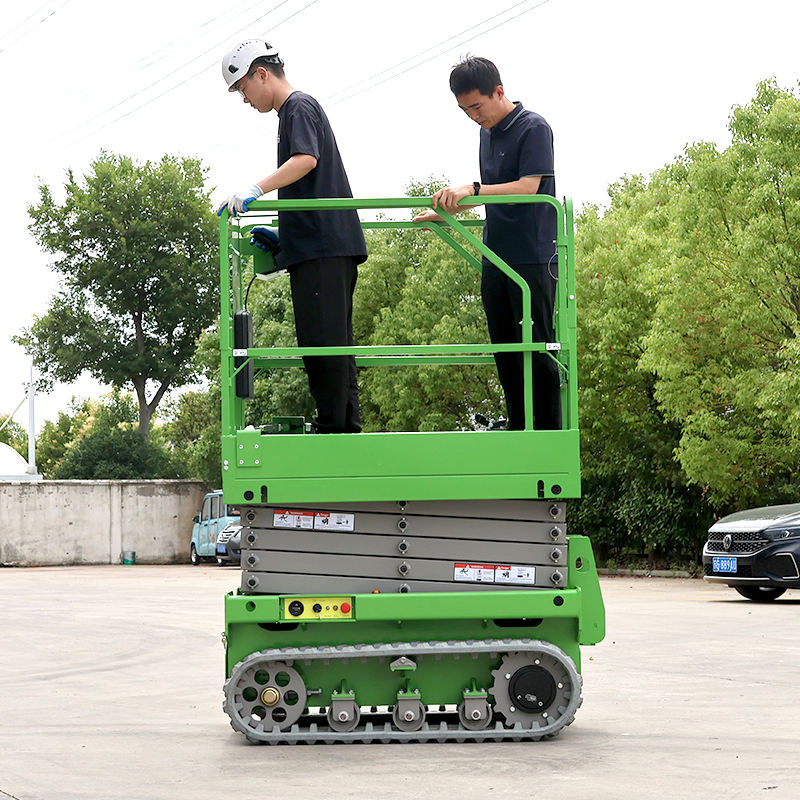

Q4: How many people can the platform accommodate? A4: Depending on the model, the platform can safely hold 2 to 3 people. For example, the BJ-0607T is designed for 2 occupants.

Q5: What is the power source for the drive mechanism? A5: These lifts use a maintenance-free lead-acid battery system (24V or 48V depending on the model) coupled with high-efficiency electric motors.

Q6: What are the transport dimensions for storage? A6: The stowed height with folded guardrails is significantly reduced. For instance, the BJ-0607T has a folded height of 1750mm, allowing for easy transport and storage.
