Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Light Level (200kg)
Moves
Self-propelled / Towable
Driven Type
DC / Diesel / AC
Certification
GS, CE, RoHS, ISO 9001
Product Description

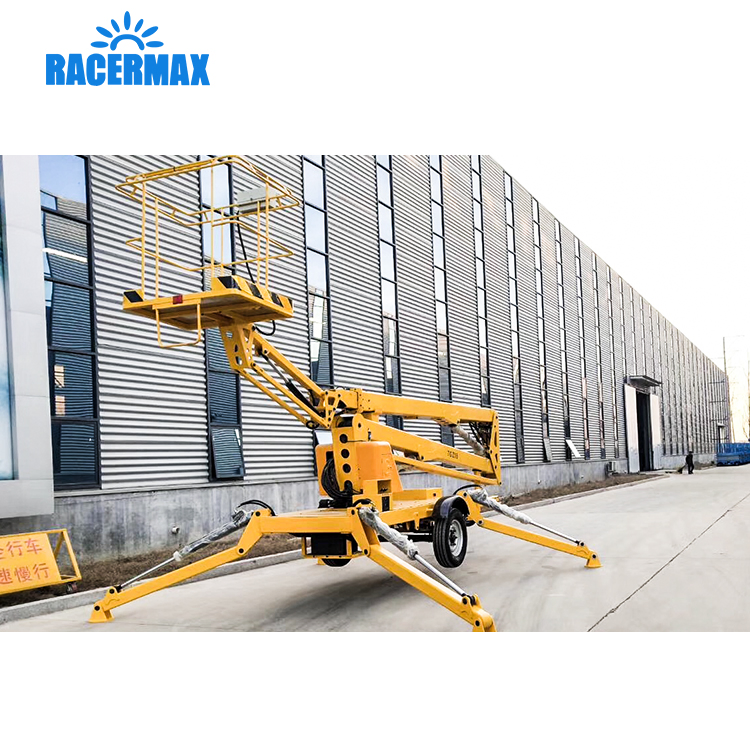

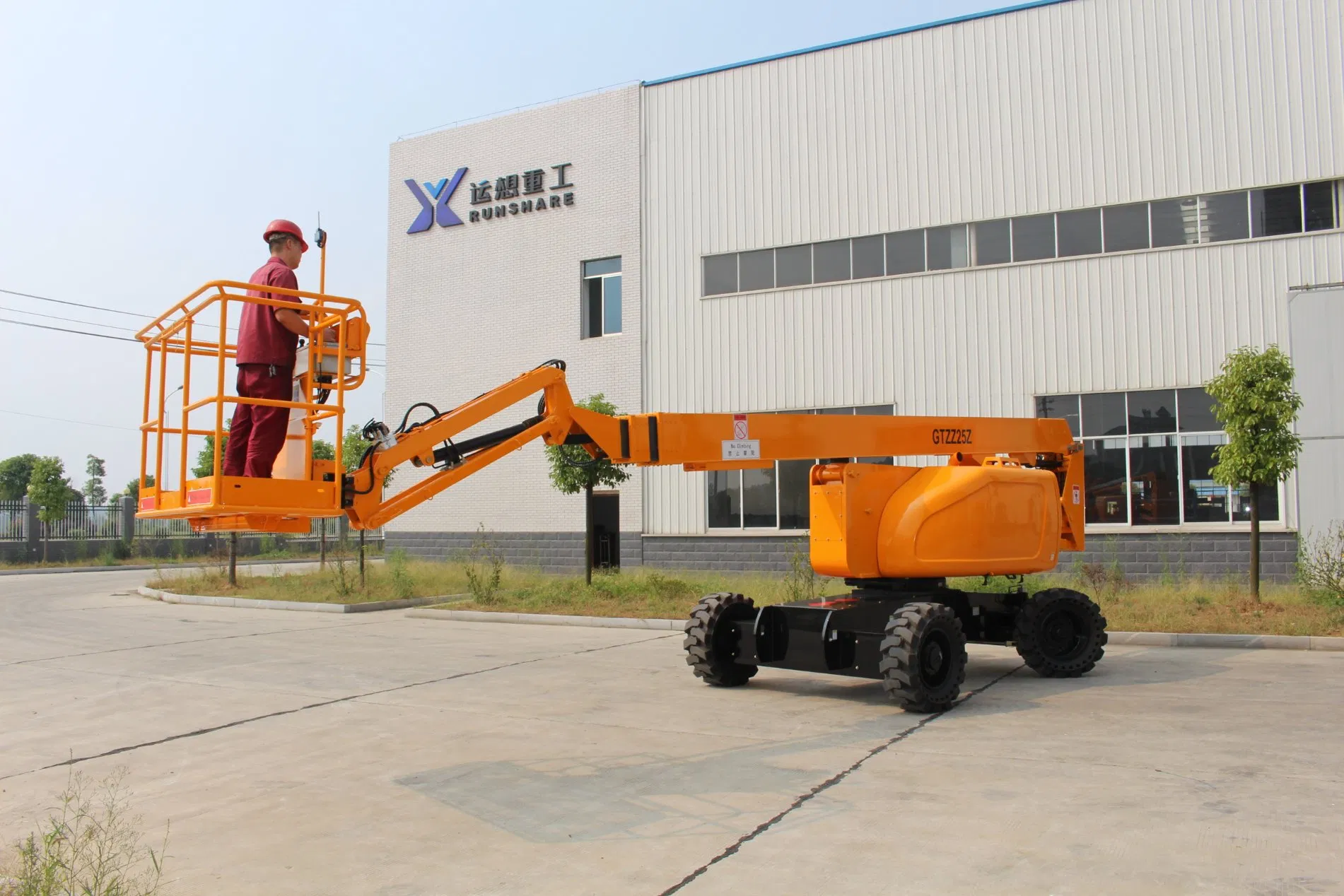

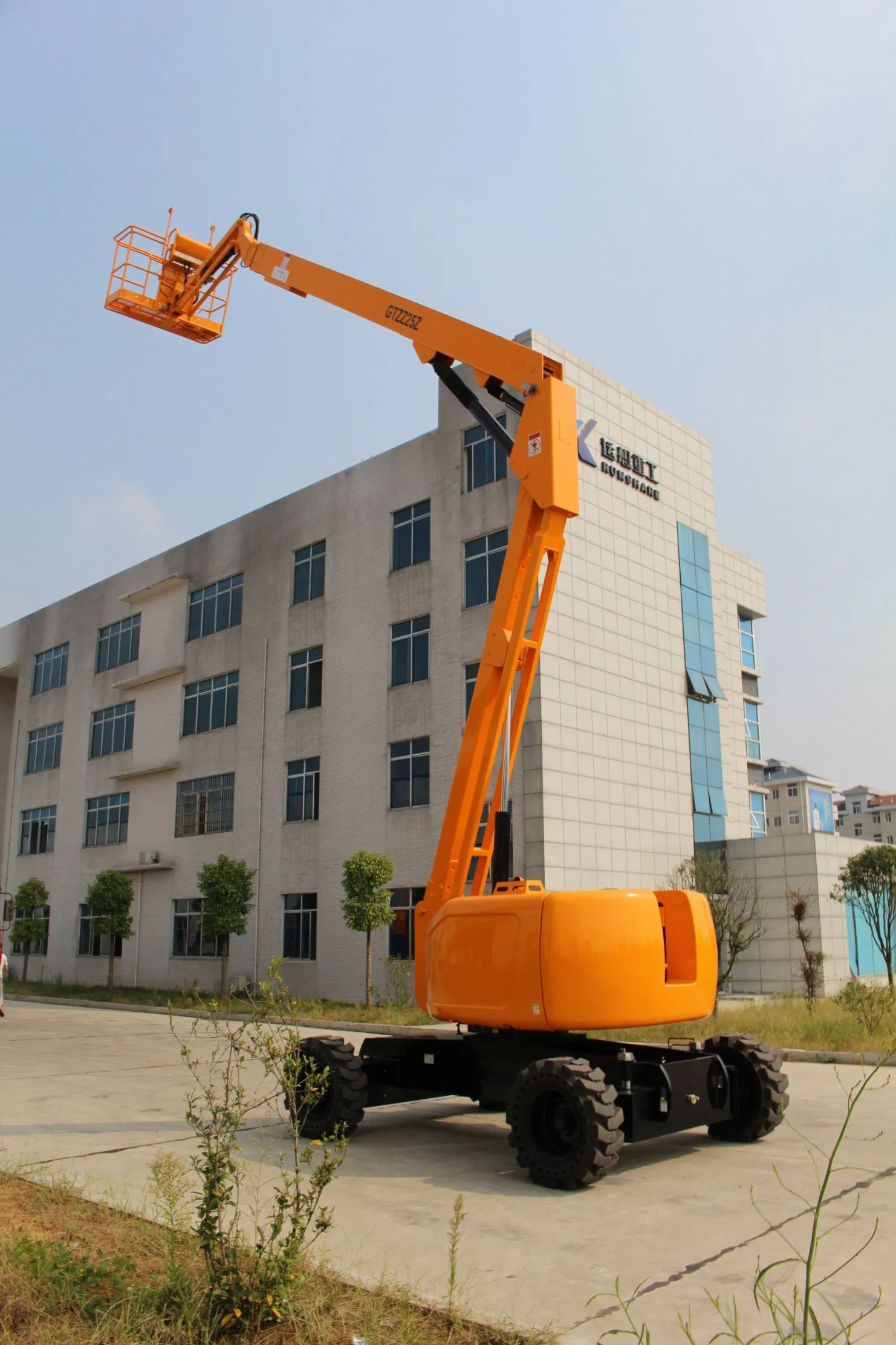

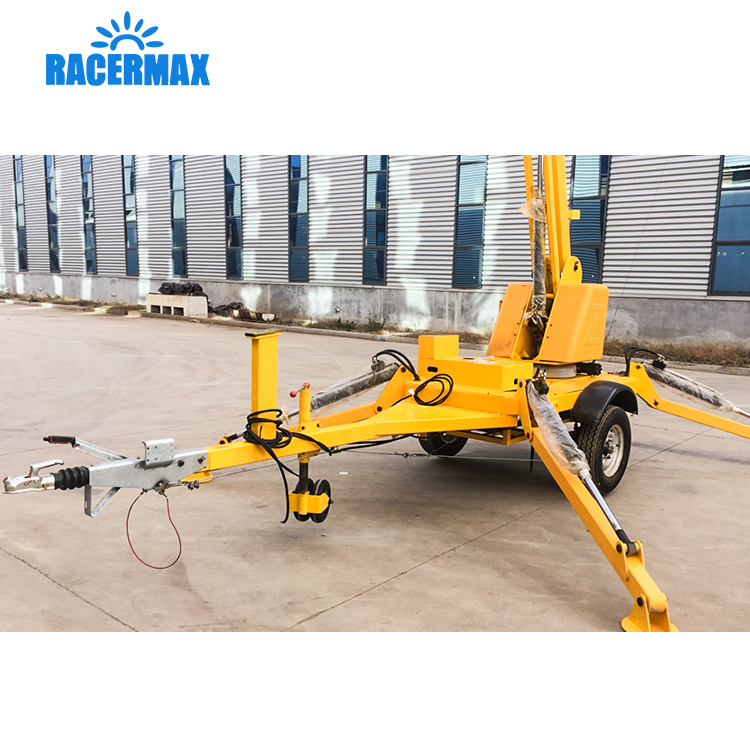

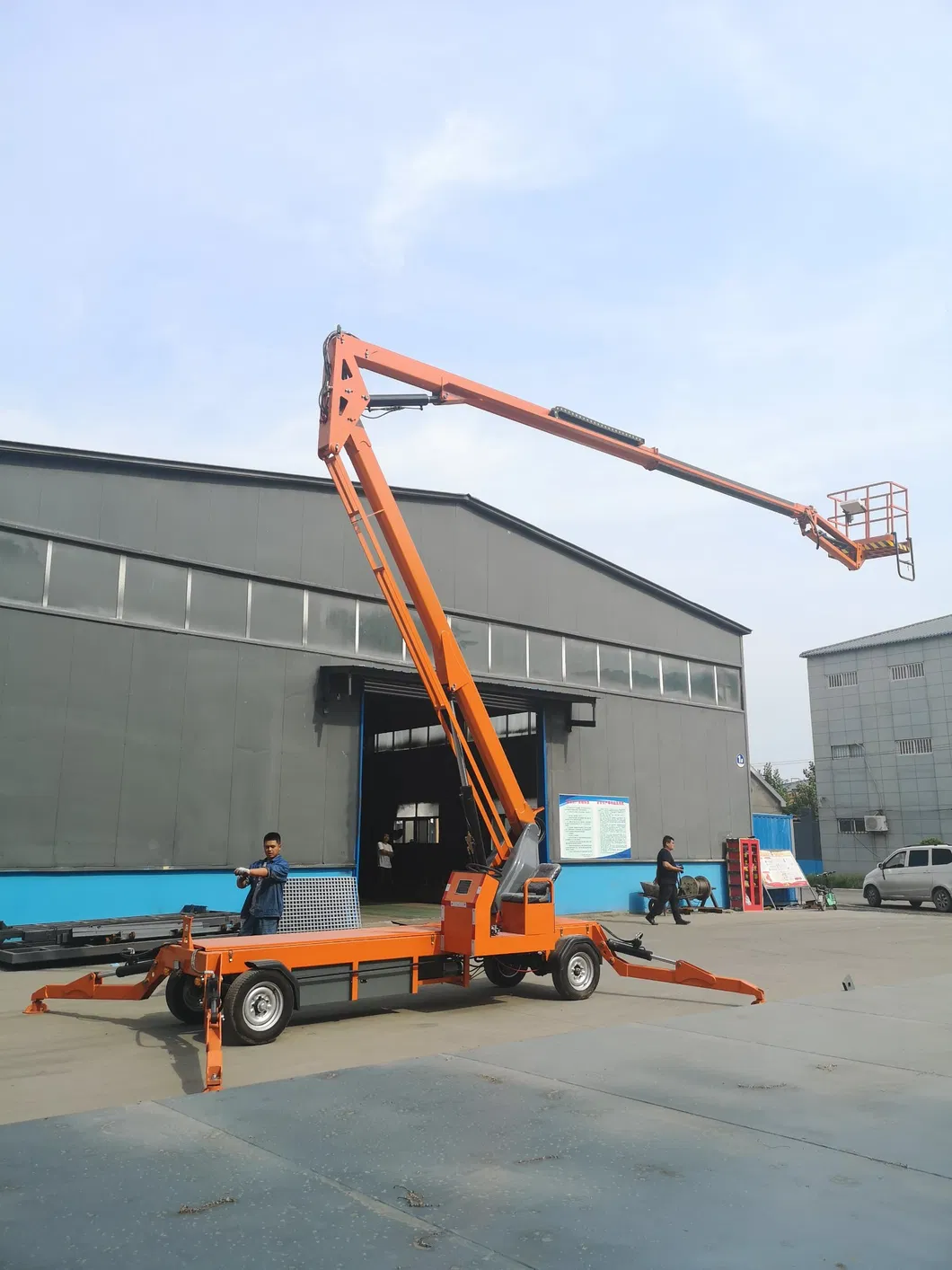

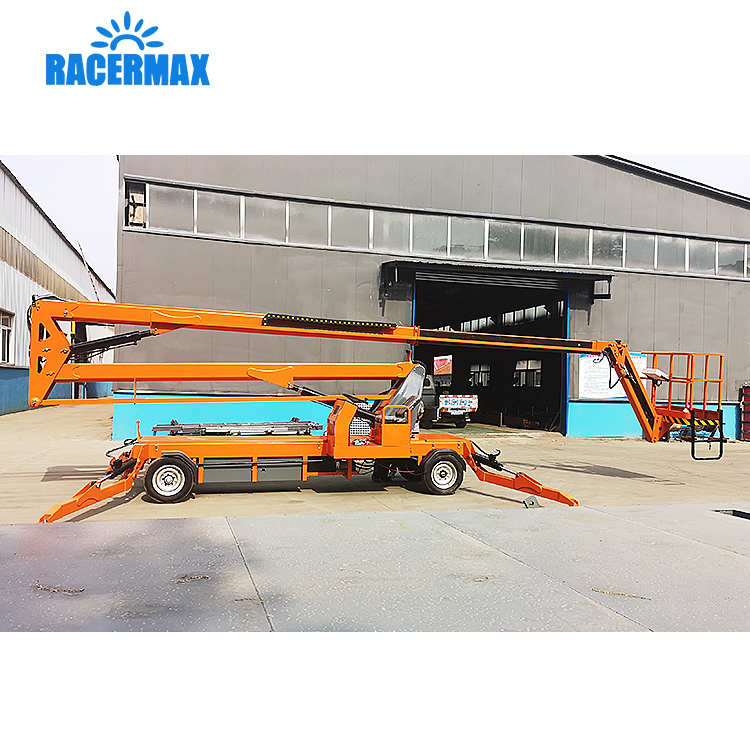

The articulated boom lift offers high-quality performance with a maximum working height of 18m. It is designed for durability and flexibility in various aerial work environments.
| Model |
Rising Height |
Horizontal Span |
Loading Capacity |
Table Size |
Dimensions (mm) |
Weight |
| SDZ-8 | 8m | 4.5m | 200kg | 1200*800mm | 5460*1650*1900 | 1700kg |
| SDZ-10 | 10m | 5m | 200kg | 1200*800mm | 5200*1600*1900 | 1500kg |
| SDZ-12 | 12m | 6m | 200kg | 1200*800mm | 6400*1665*1900 | 2000kg |
| SDZ-14 | 14m | 8.5m | 200kg | 1200*800mm | 6500*1730*2100 | 2350kg |
| SDZ-16 | 16m | 9m | 200kg | 1200*800mm | 7000*730*2200 | 2600kg |

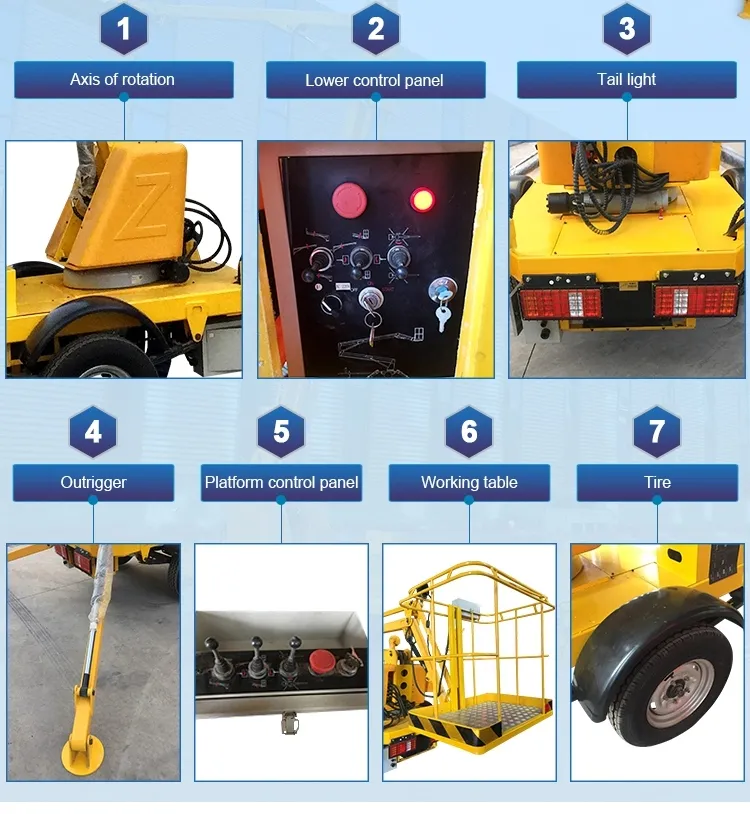

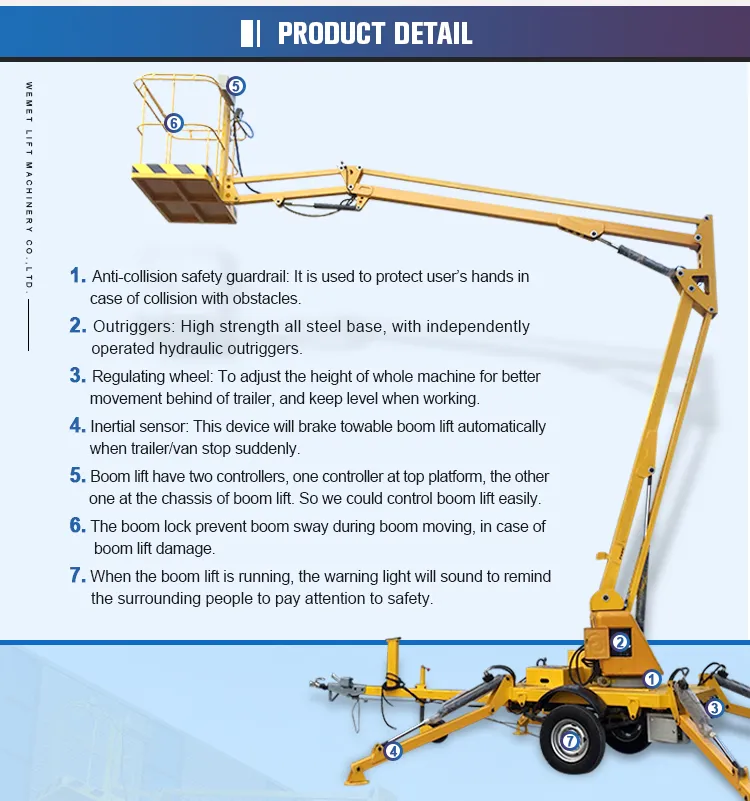

Main Safety & Operation Features
🛡️
Anti-collision safety guardrail: Protects user's hands from obstacles. Metallic paint provides anti-UV and corrosion resistance.
🏗️
Outriggers: High-strength steel base with independently operated hydraulic outriggers for stability.
⚖️
Regulating wheel: Adjusts height for better movement behind a trailer and maintains level working.
🛑
Inertial sensor: Automatically brakes the boom lift if the towing vehicle stops suddenly.
🎮
Dual Controllers: One at the top platform and one at the chassis for easy operation.

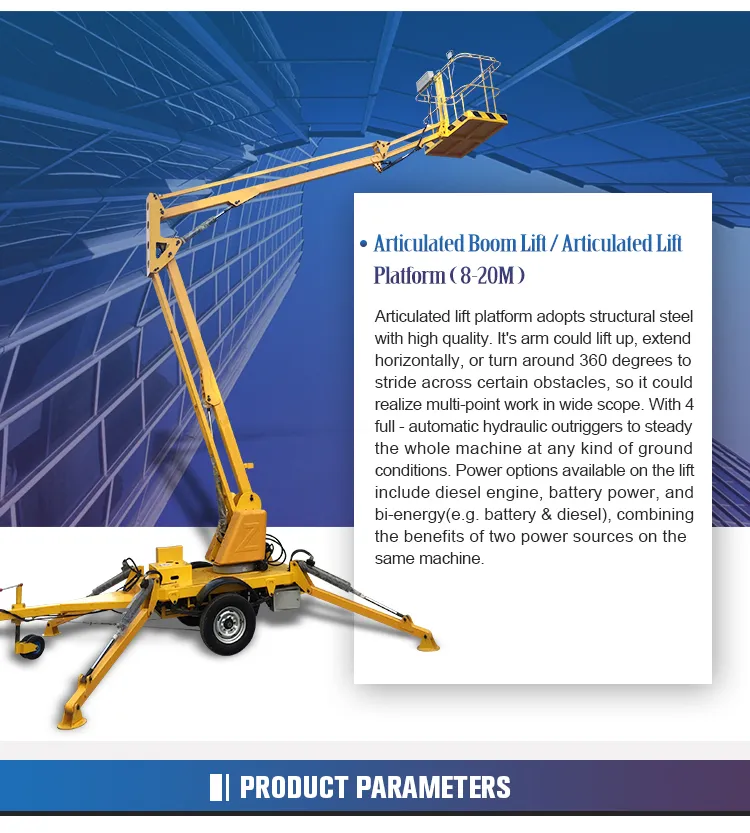

Advantages of Folding Arm Boom Lift:
- Three power sources: Diesel engine, AC Electric power, and Storage battery (low noise).
- Four full-automatic hydraulic legs provide excellent stability.
- 360° boom rotation allows working across barriers.
Wide Application

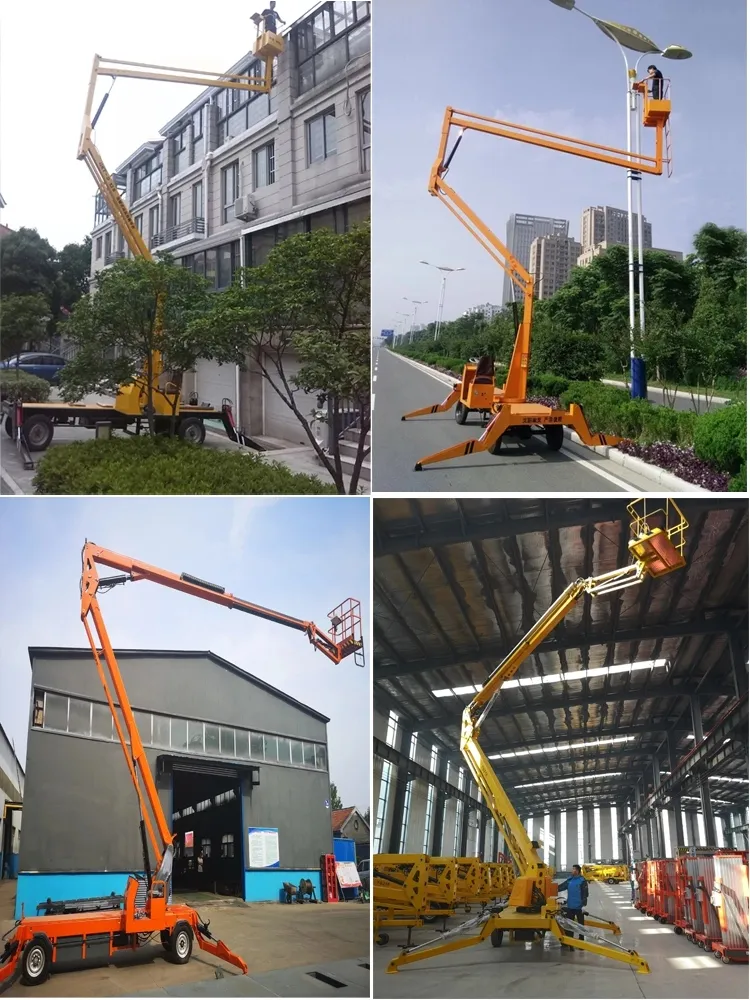

This trailer-mounted boom lift can be towed anywhere by car. It is ideal for street light maintenance, shopping malls, road works, and other aerial maintenance tasks.
Product Overview

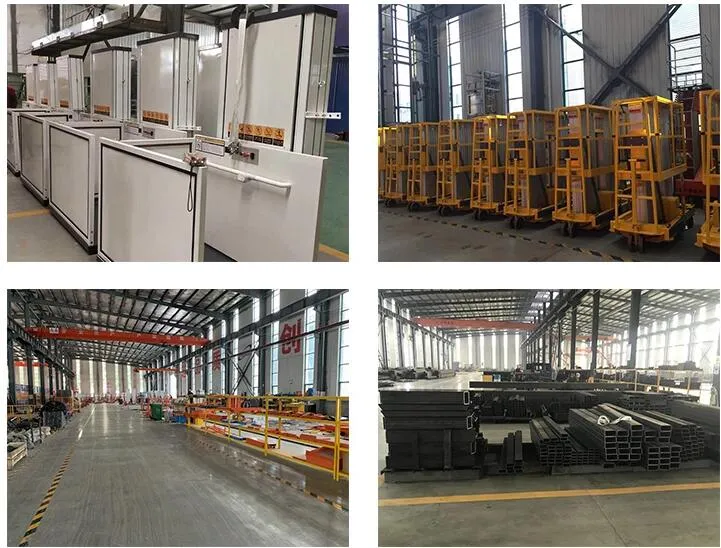

Manufacturing specialized lifting equipment including Scissor Lifts, Aluminum-alloy mast lifts, Wheelchair Lifts, and Articulated boom lifts. All products are developed through ISO9001 and European quality CE certification standards.
Frequently Asked Questions
What is the maximum loading capacity of the articulated boom lift?
The standard loading capacity for these models is 200kg, which is suitable for carrying personnel and necessary tools for aerial work.
What are the available power options for these lifts?
The equipment offers three sources of power: General Diesel engine, AC Electric power, and Storage battery. The battery option is particularly useful for quiet indoor operations.
Does the boom rotate 360 degrees?
Yes, the boom supports 360° rotation, allowing the platform to reach across barriers and provide access to difficult-to-reach areas.
Is the equipment safe to use on uneven ground?
Yes, the lift is equipped with four full-automatic hydraulic outriggers that provide high stability. Additionally, a regulating wheel helps keep the machine level during work.
How is the boom lift controlled?
The lift features dual controllers. One is located on the top work platform for the operator, and the other is at the chassis, allowing for flexible control from either location.
What certifications do these products hold?
These boom lifts are manufactured according to high-quality standards and have passed GS, CE, RoHS, and ISO 9001 certifications.
