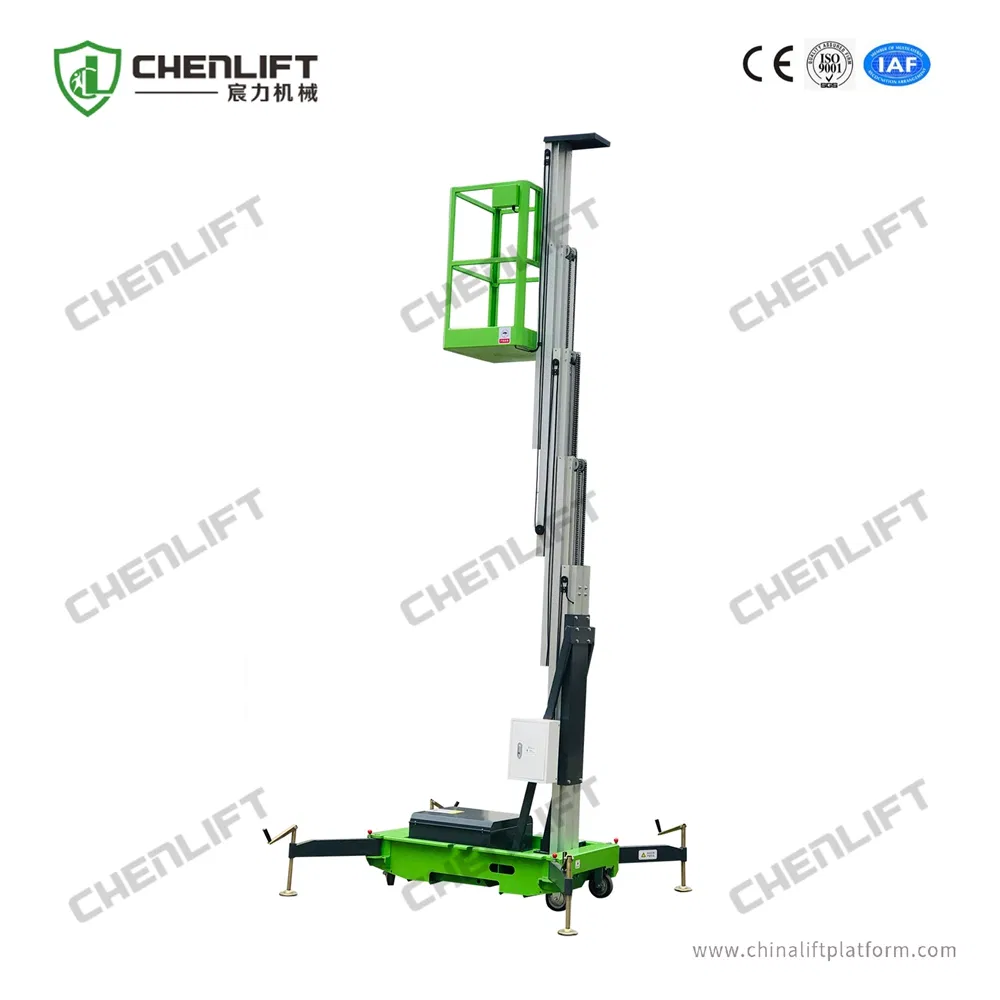

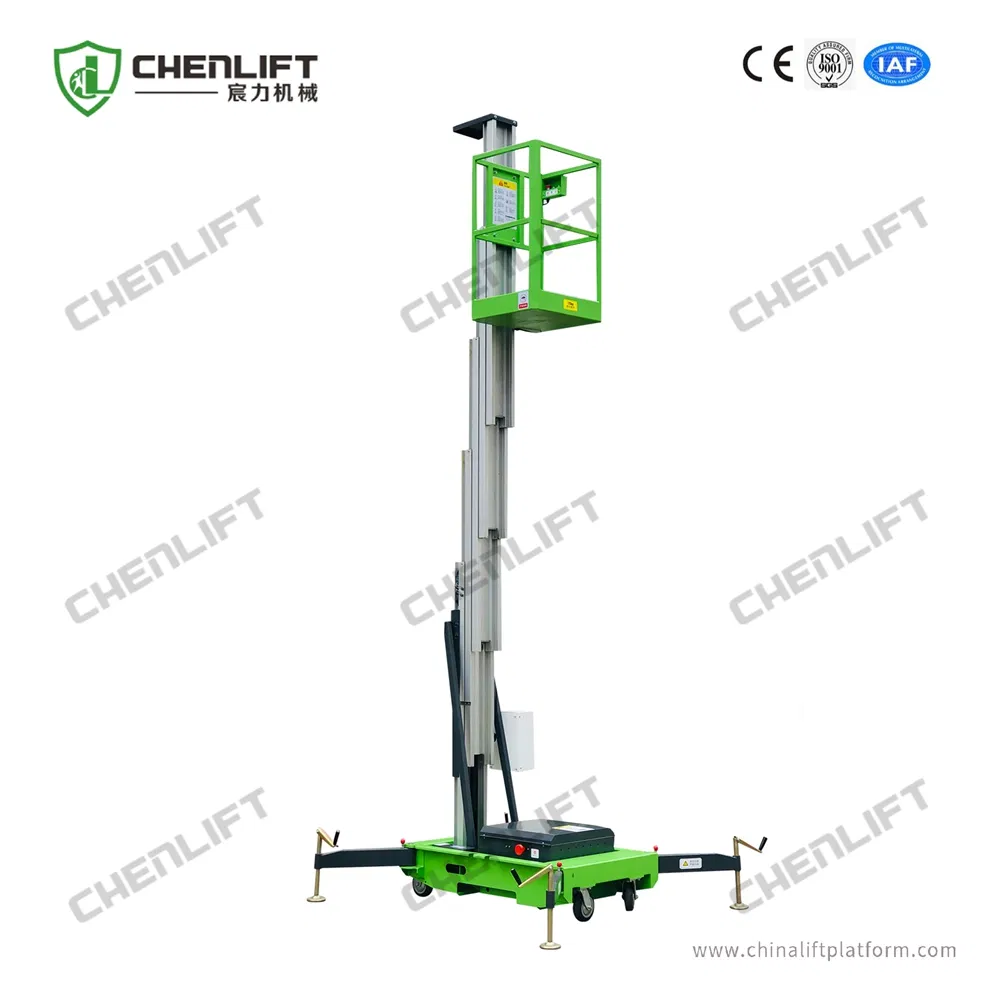

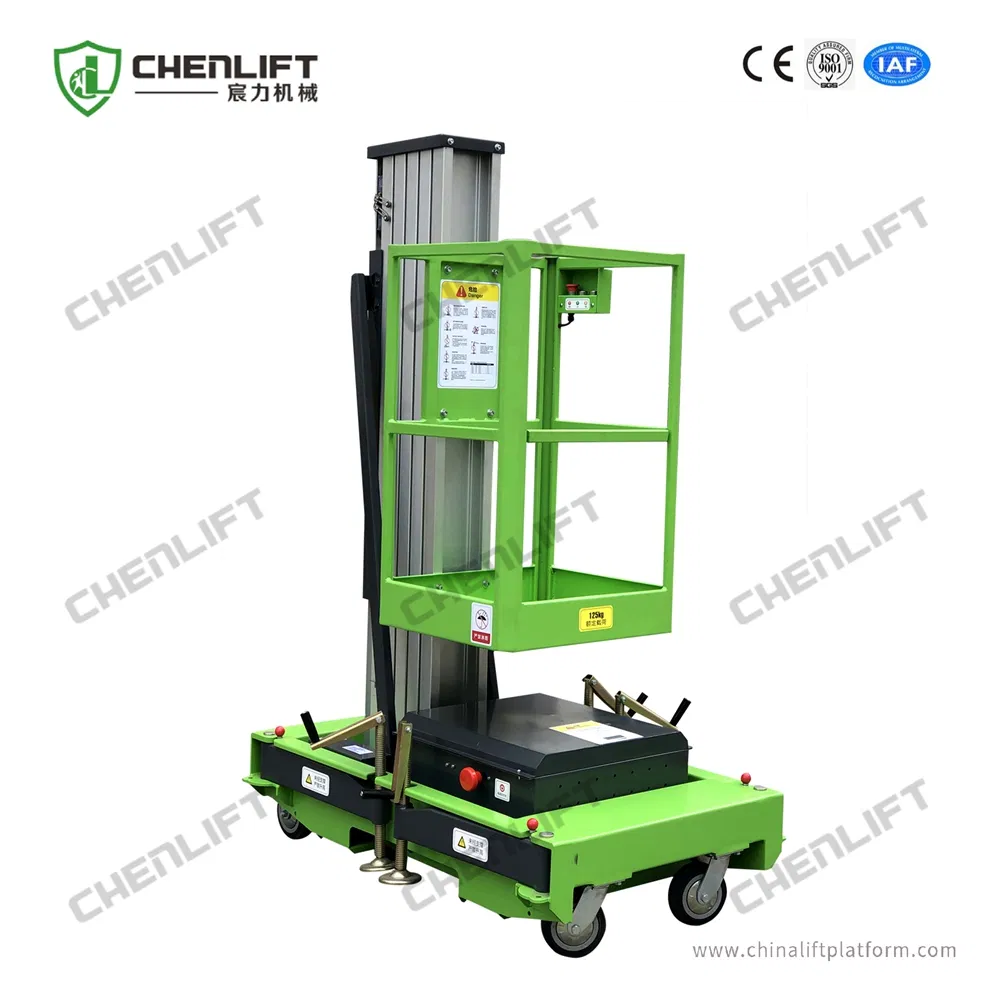

10m Elevating Work Platform Single Mast Manual Pushing Vertical Lift

1 / 5

10m Elevating Work Platform Single Mast Manual Pushing Vertical Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Lift Chain

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

ME1000-1(GTWY100-10)

Driven Type

Certification

CE, ISO 9001

Loading Capacity

130kg

Working Height

12m

Platform Height

10m

Platform Size

0.60*0.55m

Lifting Motor

1.1kw

Weight

420kg

HS Code

8428909090

Origin

China

Feature

Explosion-Proof

🏗️ Product Overview

Man Pushing around Aluminum Aerial Work Platform

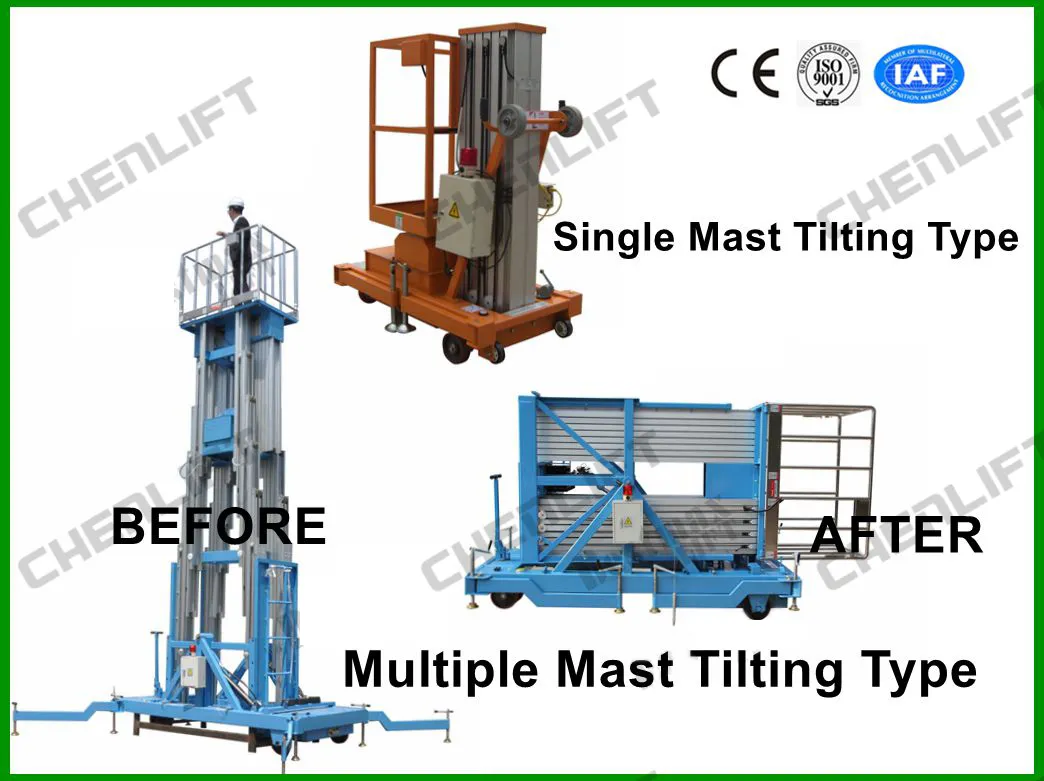

This product range features single mast, double mast, triple mast, quadruple mast, and six masts (four plus two) configurations. It is designed with non-marking tires and an anodized aluminum mast for durability and ease of use.

The compact main body and light-weighted structure make it safe, reliable, and easy to push to designated sites. Operation is handled via a telescopic cylinder with control panels available on both the platform and ground level.

Power Options:

AC Version: 110V or 220V standard
DC Version: 12V or 24V chargeable battery (includes built-in charger and indicator)
Dual Power: AC & DC combined version optional

📍 Ideal Applications

Mainly used for installation and maintenance in narrow spaces such as:

Star Hotels & Lobbies

Modern Workshops

Exhibition Halls & Malls

Railway Stations

It easily fits through regular doors and elevators, offering low energy consumption with no pollution or damage to floors.

🛡️ Safety Features

Toe protection boards and anti-skid deck on the platform
Auxiliary Lowering and dual limit switch for safety
Operation voltage at 24V with safety belt holding
Anti-burst valve on the cylinder
Emergency stop button both on platform and ground
Short Circuit and leakage protection system (AC) / Fuse protection (DC)

📊 Technical Parameters

Single Mast Series

Model NO.	Working Height(m)	Capacity(Kg)	Platform Size(m)	Power(Kw)	Weight(Kg)
GTWY6-100	8	130	0.60x0.55	0.75	260
GTWY8-100	10	130	0.60x0.55	0.75	300
GTWY10-100	12	130	0.60x0.55	0.75	400

Double Mast Series

Model NO.	Working Height(m)	Capacity(Kg)	Platform Size(m)	Power(Kw)	Weight(Kg)
GTWY6-200	8	200	1.18x0.62	1.1	380
GTWY10-200	12	200	1.38x0.62	1.1	610
GTWY14-200	16	150	1.48x0.62	1.1	650

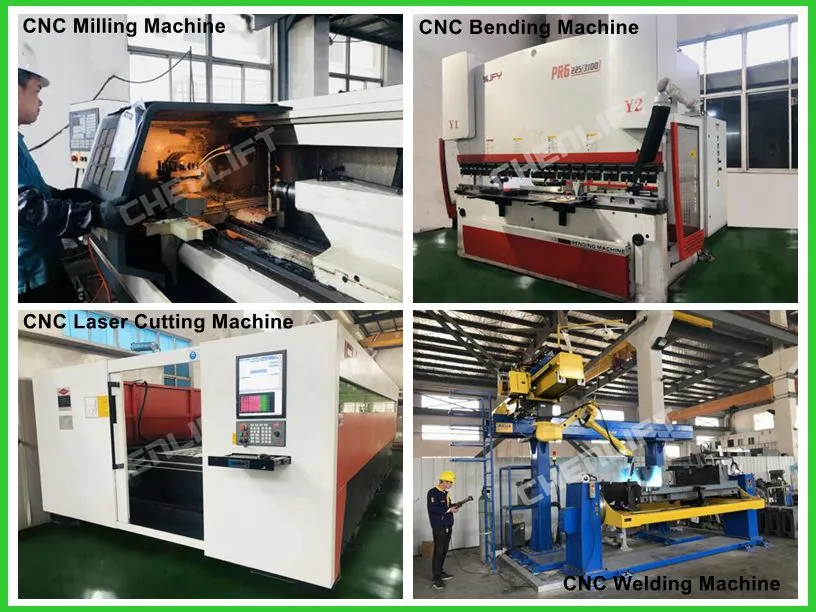

🏭 Factory & Certificates

Frequently Asked Questions

1. What is the maximum working height available?

The aluminum aerial work platforms offer a wide range of working heights, starting from 4m up to a maximum of 24m depending on the mast configuration (Single, Double, Triple, etc.).

2. Can this lift fit through standard indoor doors?

Yes, the compact design and aluminum construction allow these lifts to easily pass through regular doors and fit into standard passenger elevators.

3. What power supply options are provided?

Standard models use AC power (110V/220V). We also offer DC battery-powered versions (12V/24V) with built-in chargers, and a hybrid AC & DC version for maximum flexibility.

4. What is the weight capacity of the platform?

The loading capacity varies by model, ranging from 130kg for single mast units up to 300kg for multi-mast heavy-duty configurations.

5. Are there any safety mechanisms for power failure?

Yes, all units are equipped with an Auxiliary Lowering system and emergency stop buttons on both the platform and ground controls to ensure operator safety during power interruptions.

6. Is the platform suitable for sensitive flooring?

Absolutely. The equipment features non-marking tires and a lightweight aluminum body specifically designed to operate without damaging floors in hotels, halls, or workshops.
